Climate Control Seat System

DTC B14F2 Seat Heater Temperature Sensor Malfunction

DESCRIPTION
Outputs to the rear cushion cover's temperature sensor stop if one of the following occurs: 1) the temperature sensor is open or shorted; or 2) the temperature sensor is damaged and its output value does not change.

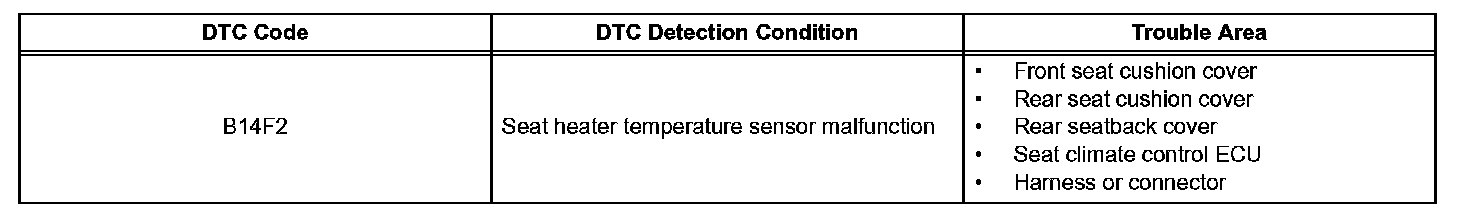

DTC Detection Condition:

WIRING DIAGRAM

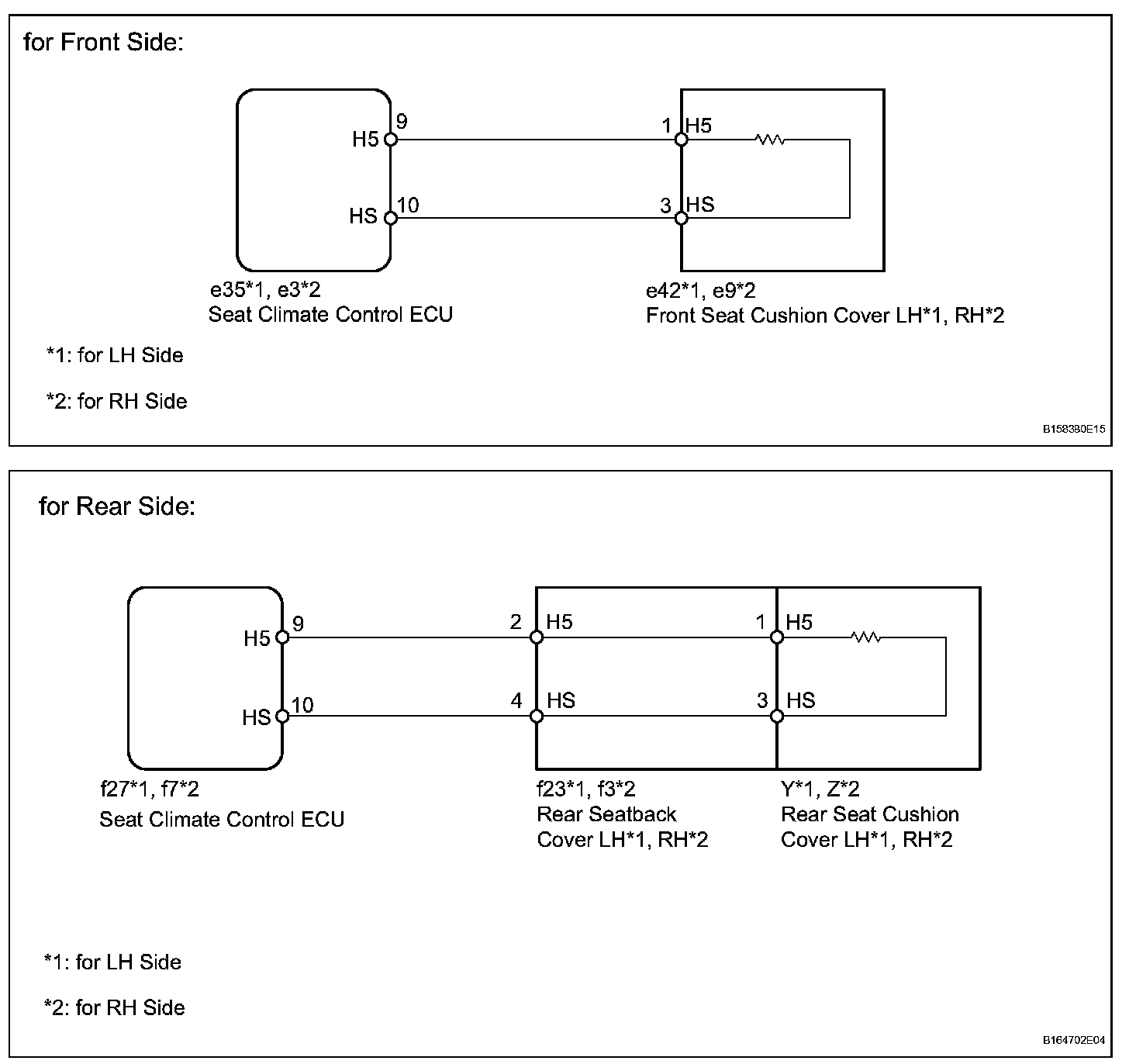

Wiring Diagram:

INSPECTION PROCEDURE

Step 1 - 2:

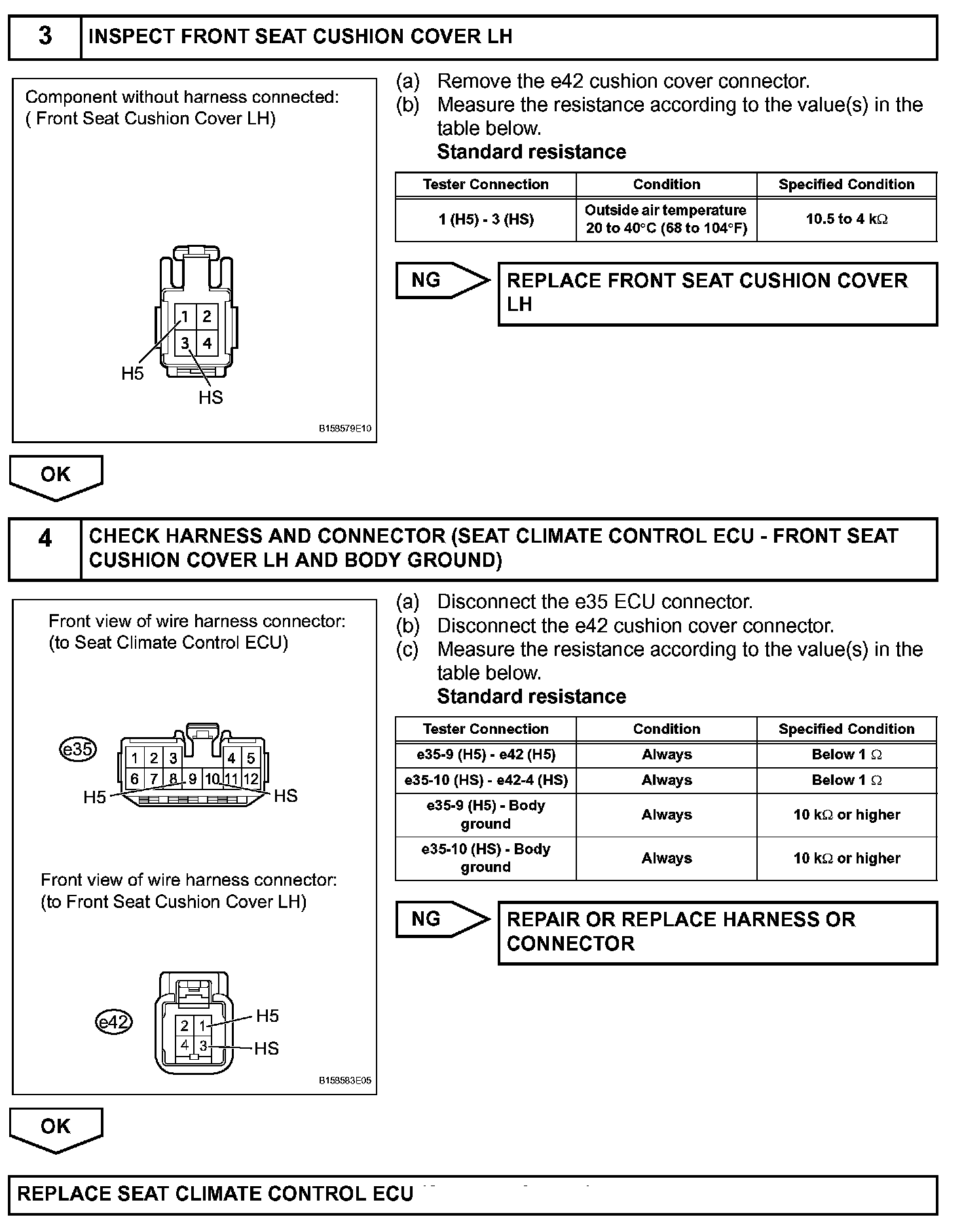

Step 3 - 4:

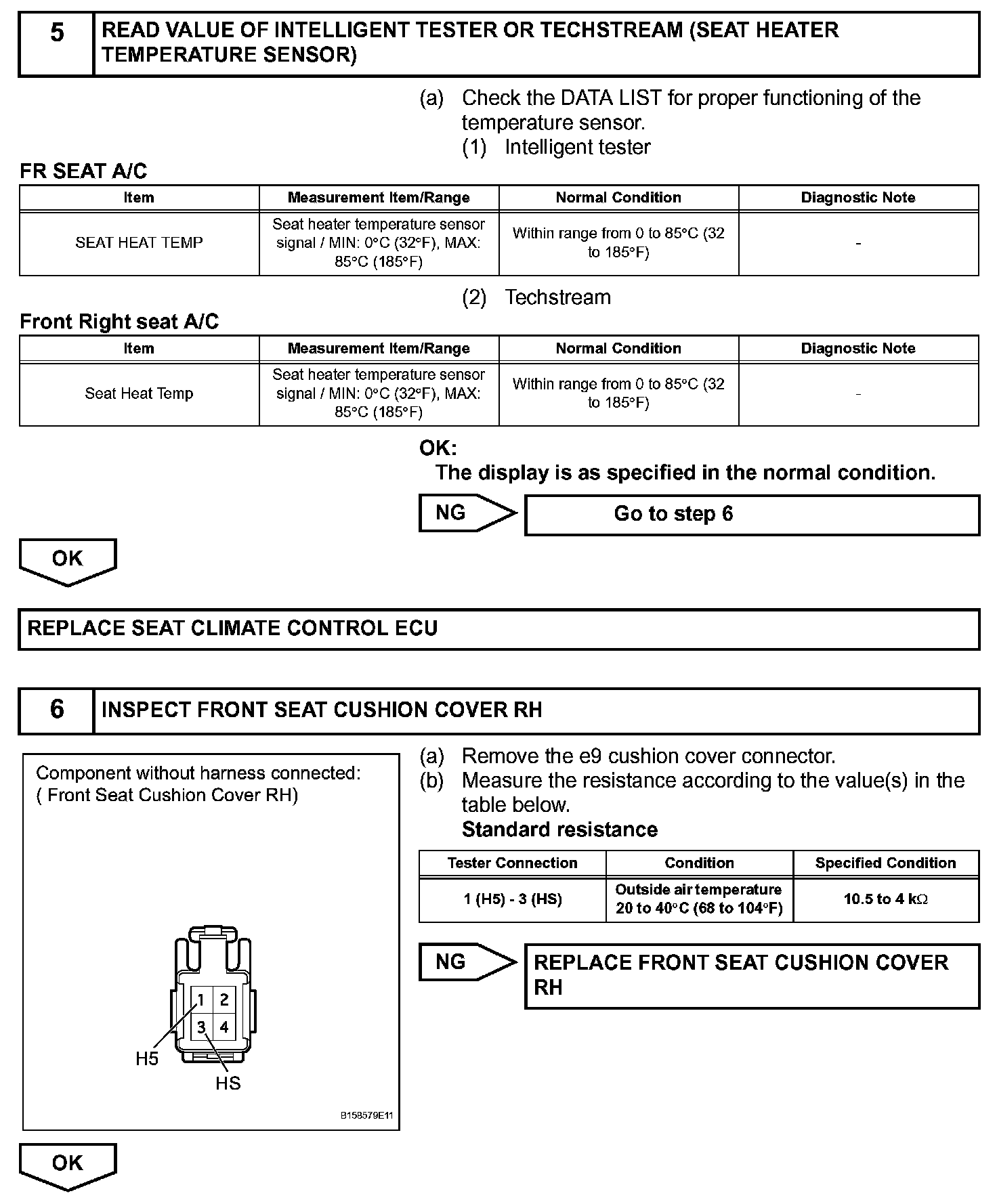

Step 5 - 6:

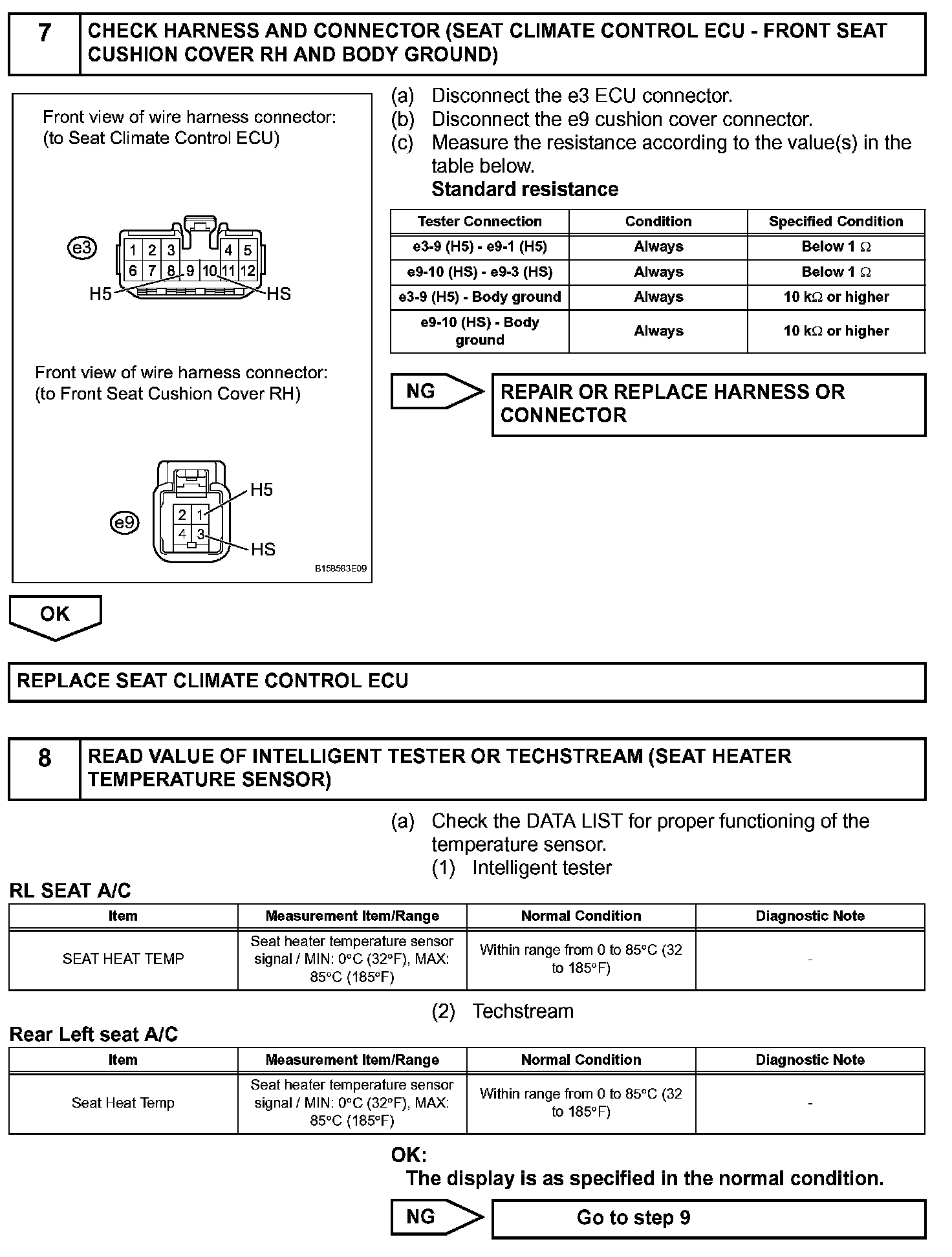

Step 7 - 8:

Step 8(Continued) - 9:

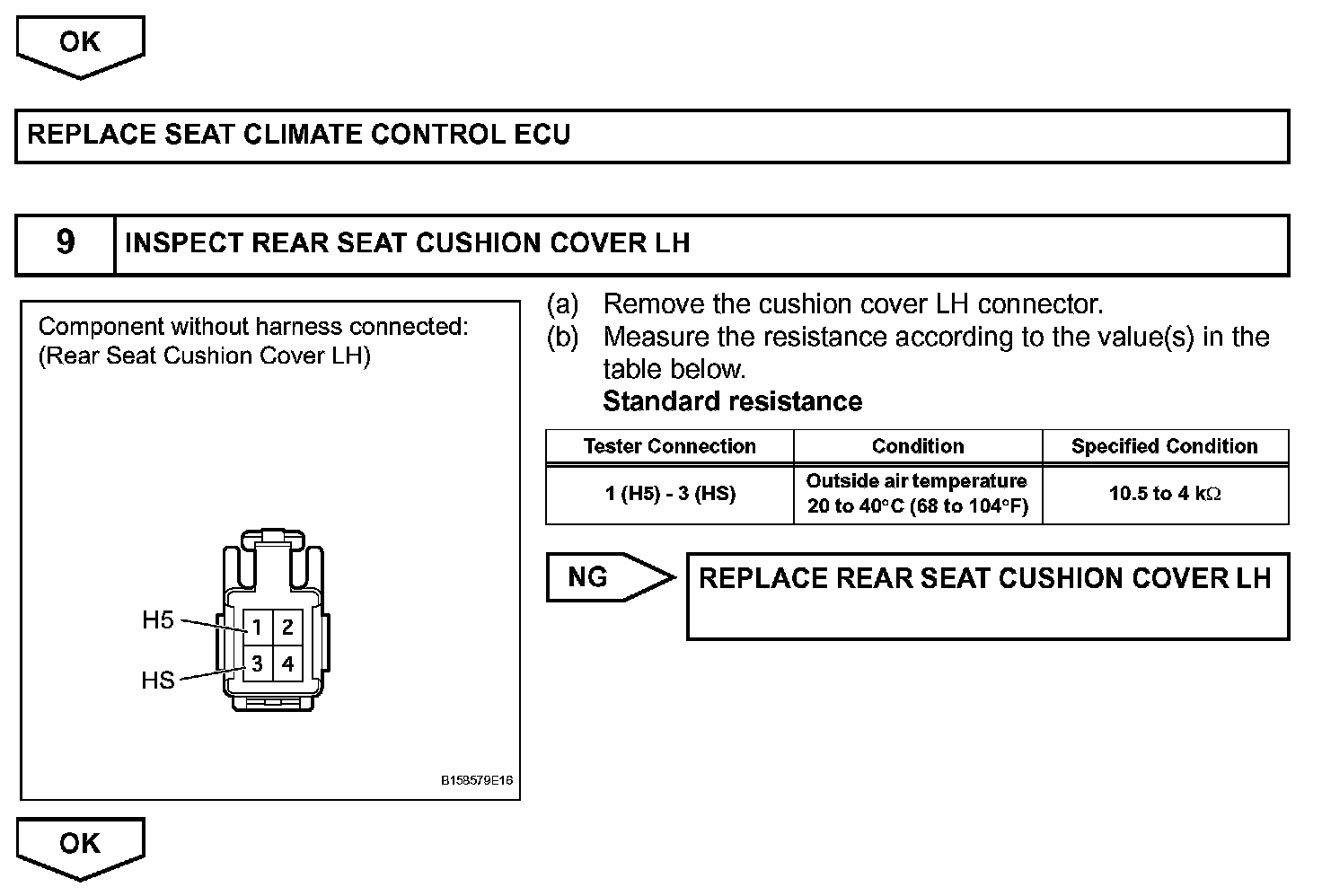

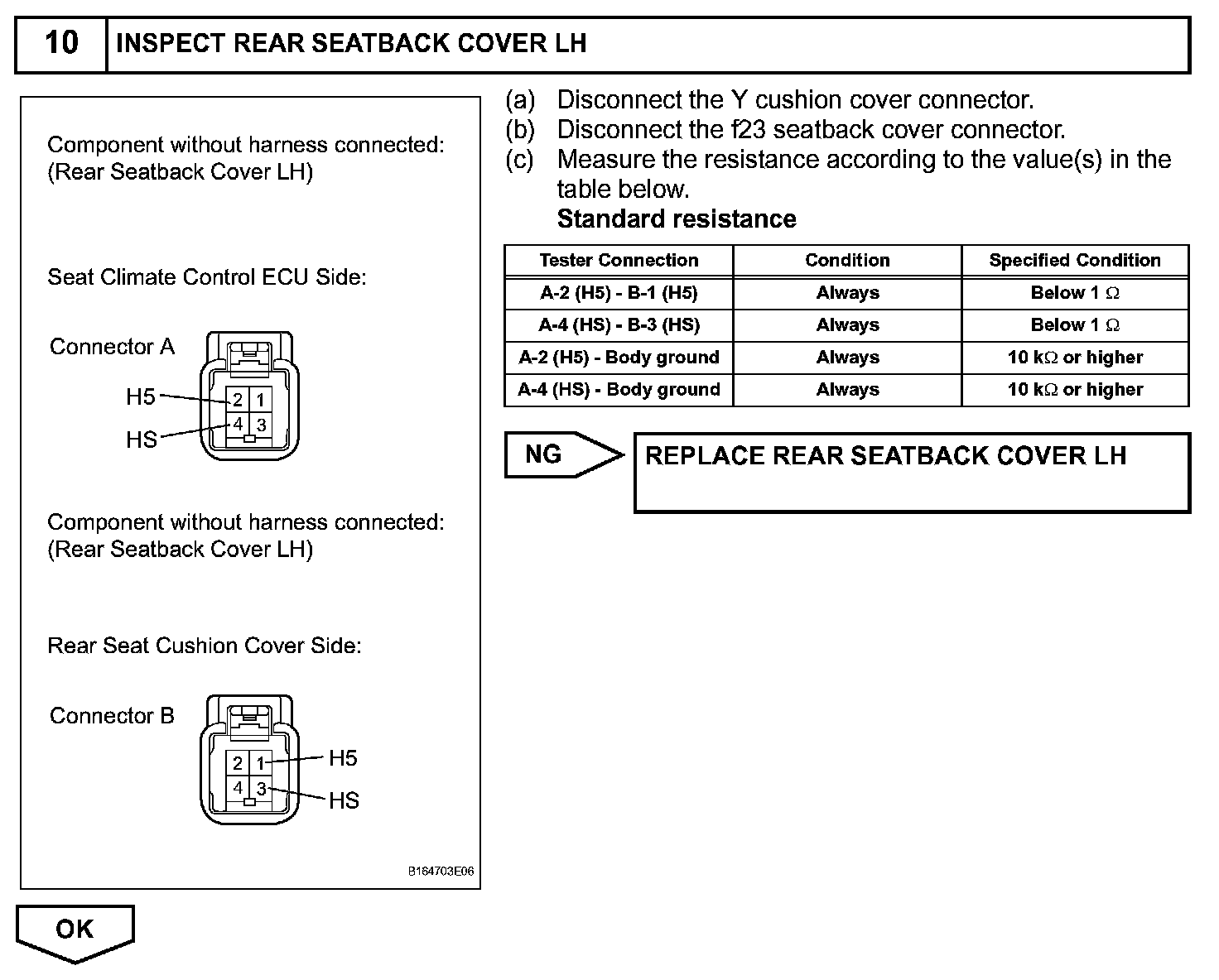

Step 10:

Step 11 - 12:

Step 12(Continued) - 13:

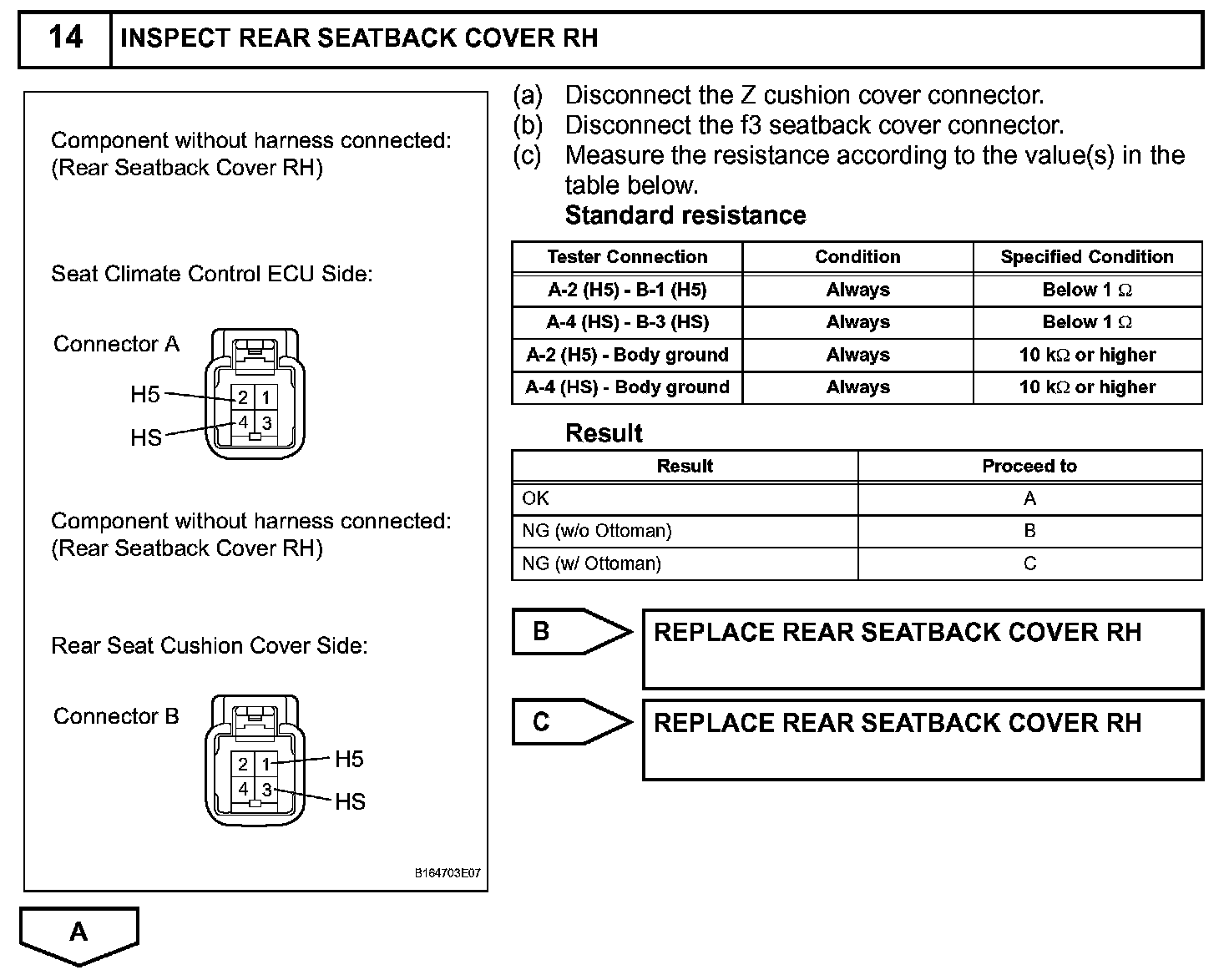

Step 14:

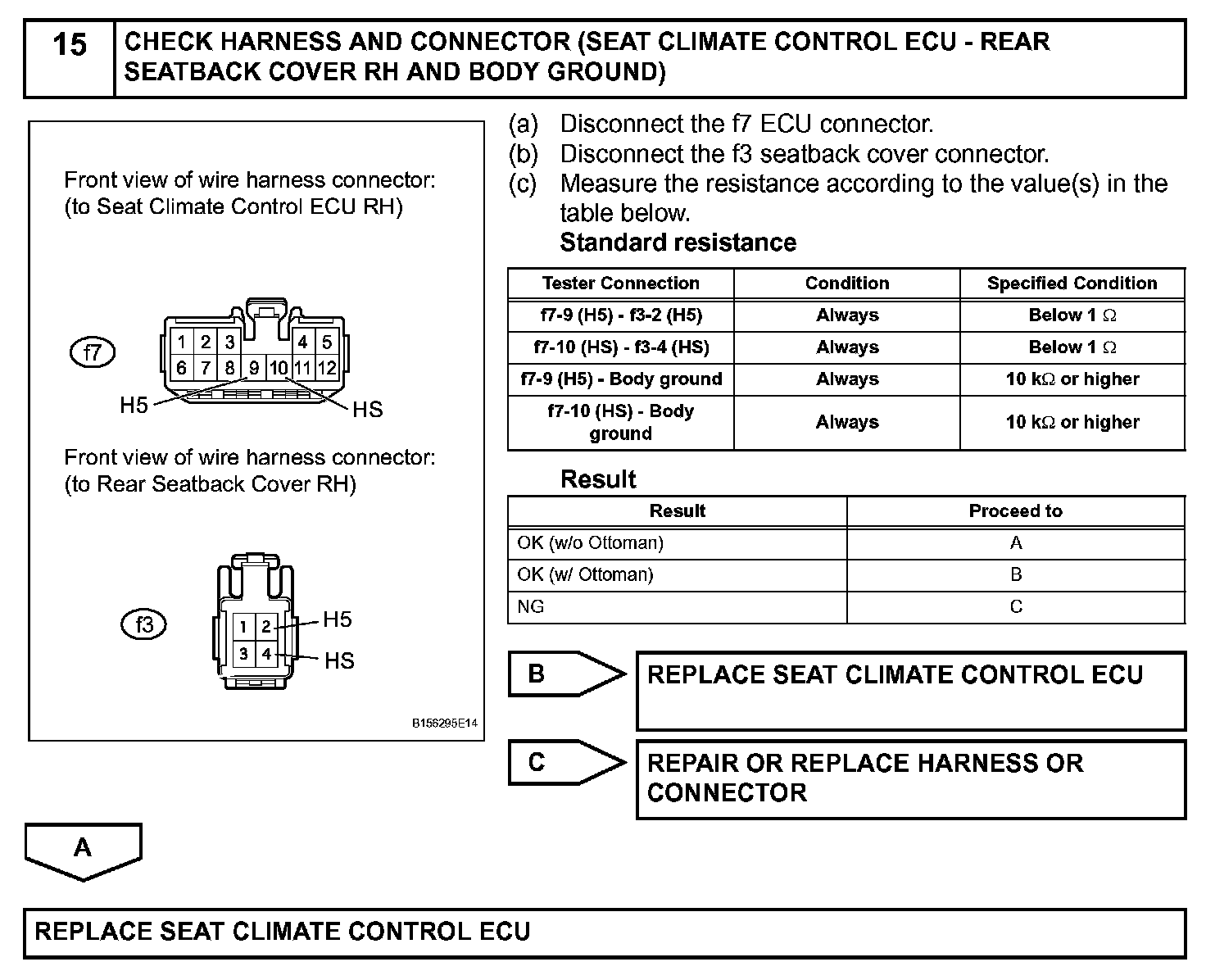

Step 15:
