DTC B14F1 Seatback Peltier Temperature Sensor Malfunction

DESCRIPTION
Outputs to the seat climate control controller or rear seatback climate controller blower stop if one of the following occurs: 1) the seat climate control controller temperature sensor or rear seatback climate control blower temperature sensor is open or shorted; 2) either temperature sensor is damaged and its output value does not change.

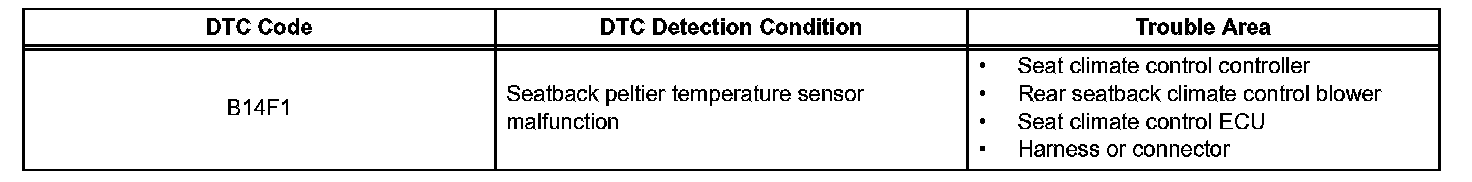

DTC Detection Condition:

WIRING DIAGRAM

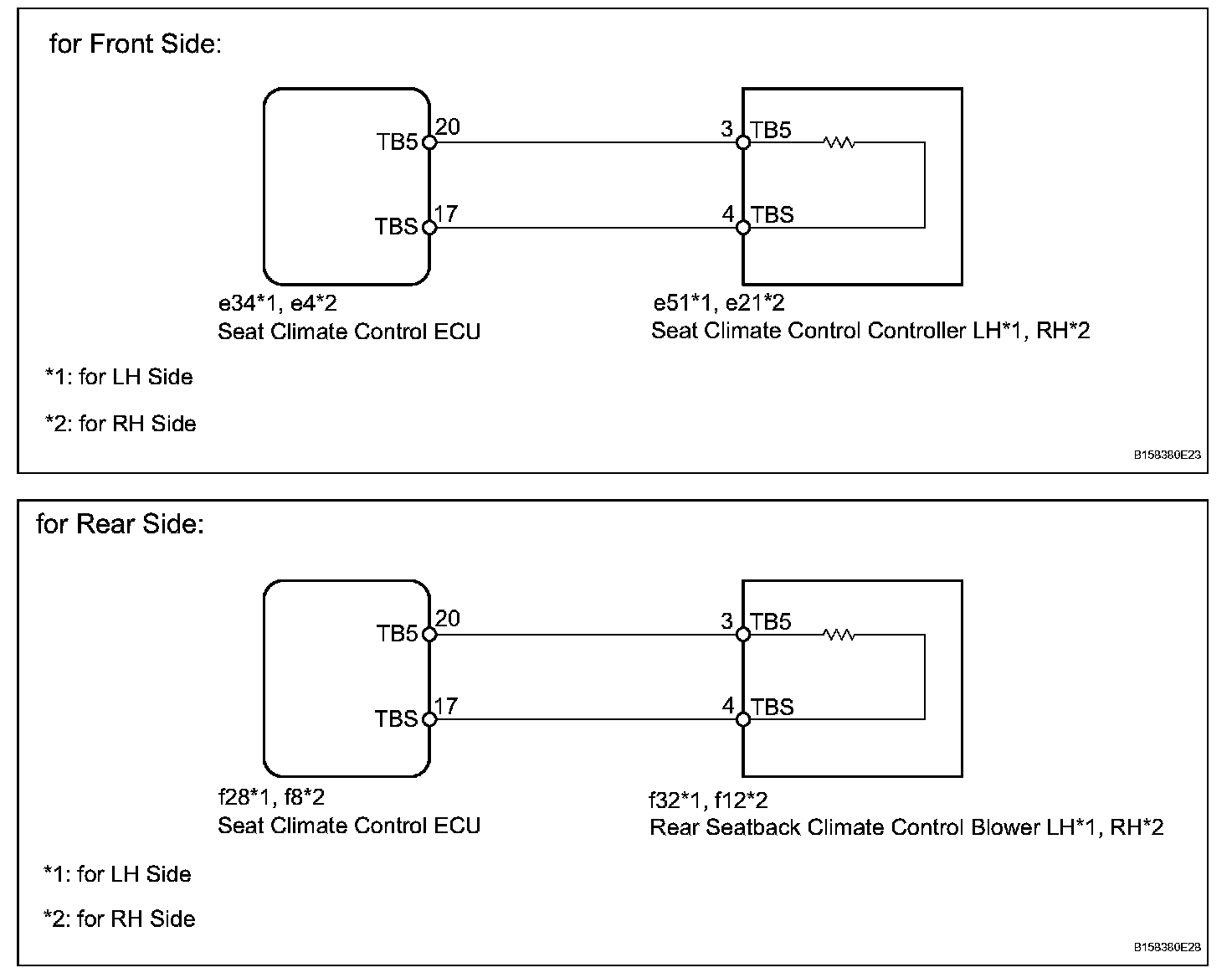

Wiring Diagram:

INSPECTION PROCEDURE

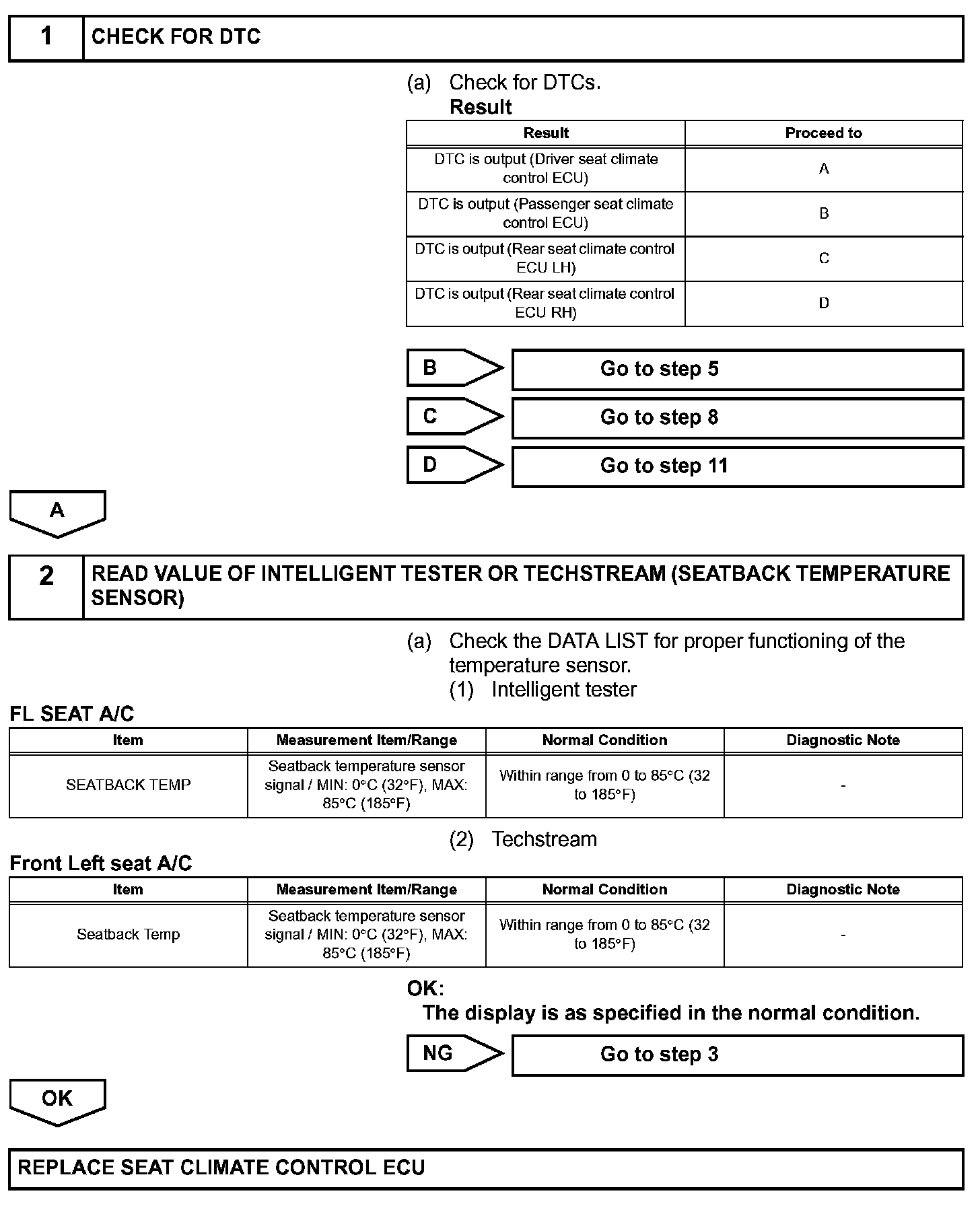

Step 1 - 2:

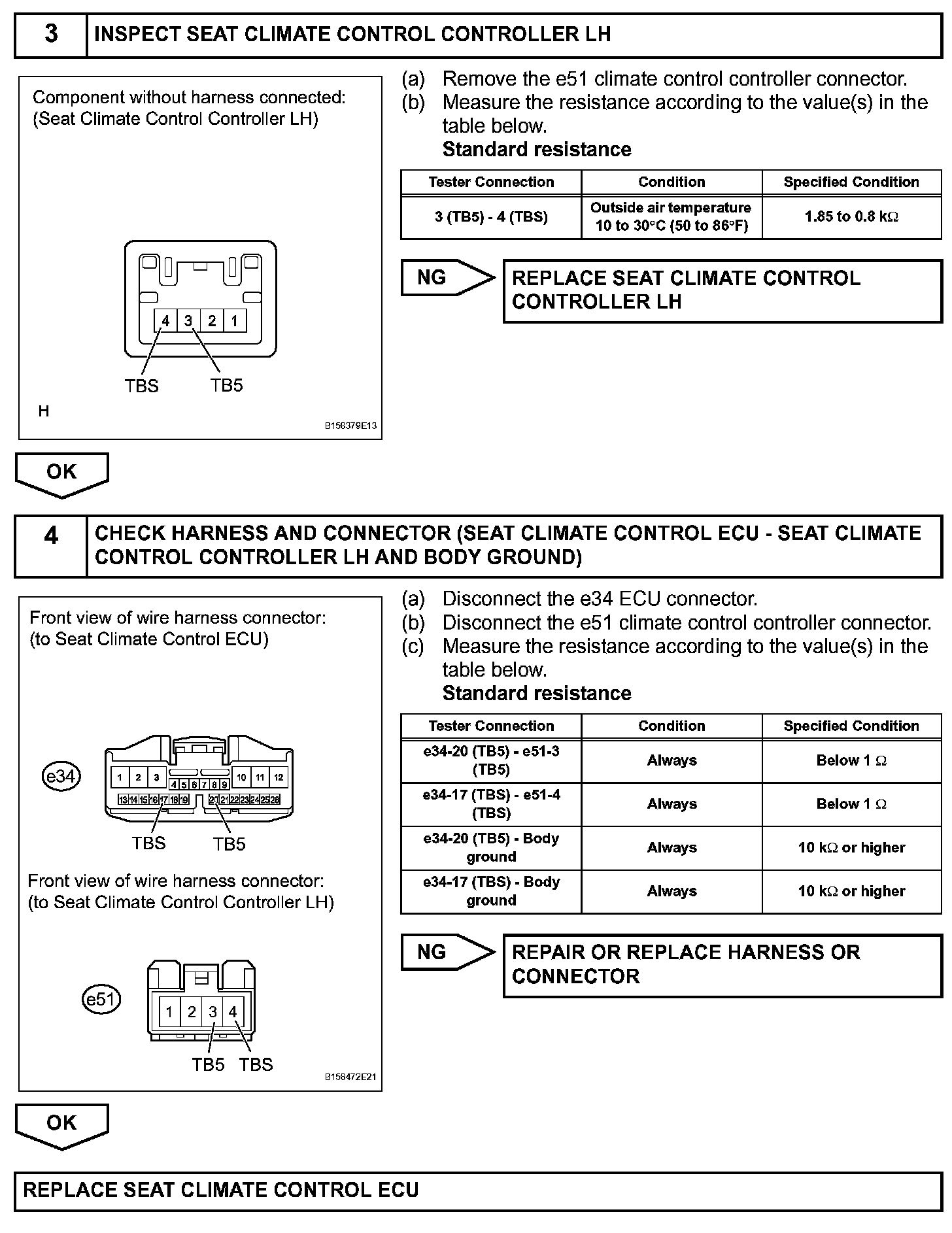

Step 3 - 4:

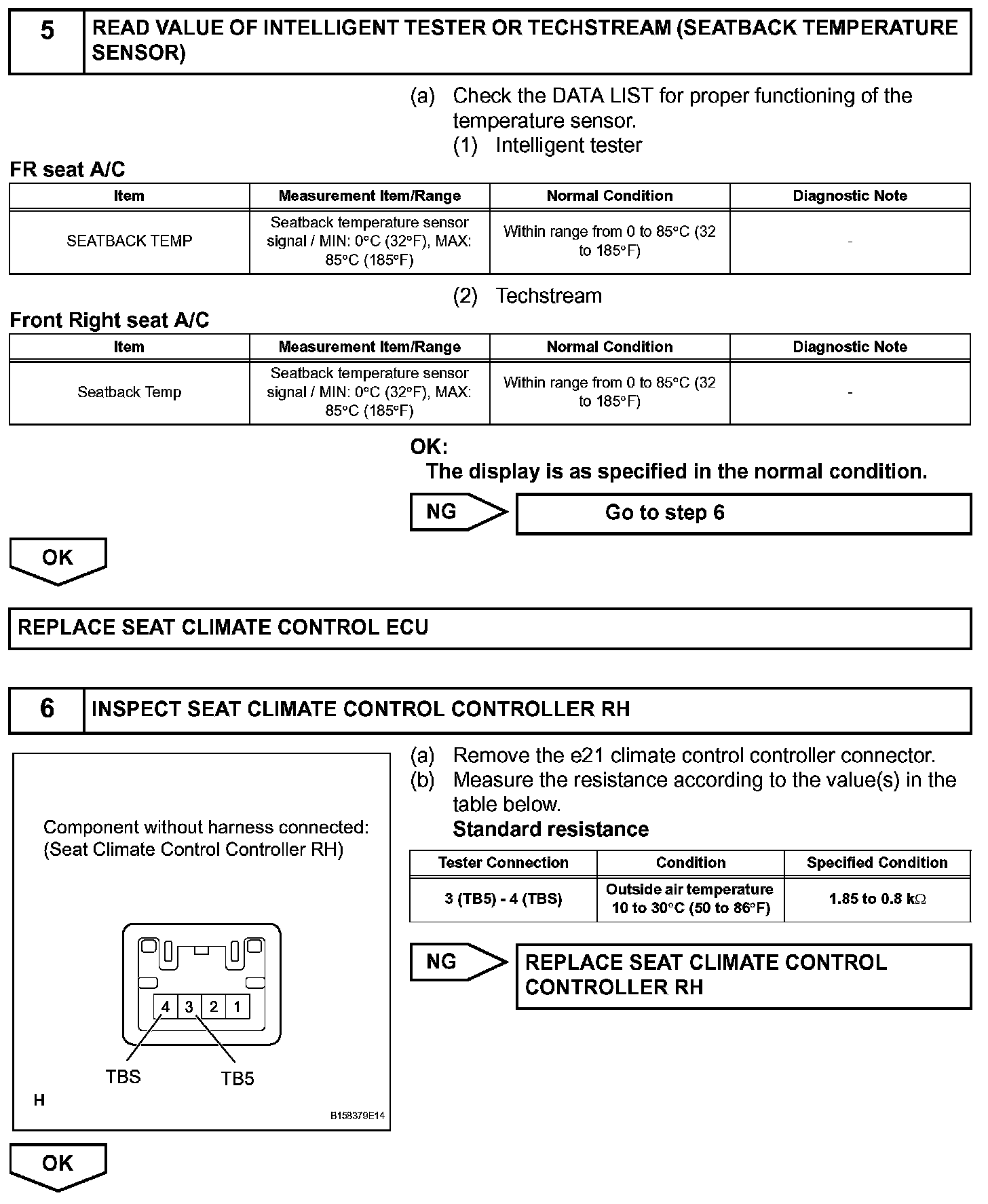

Step 5 - 6:

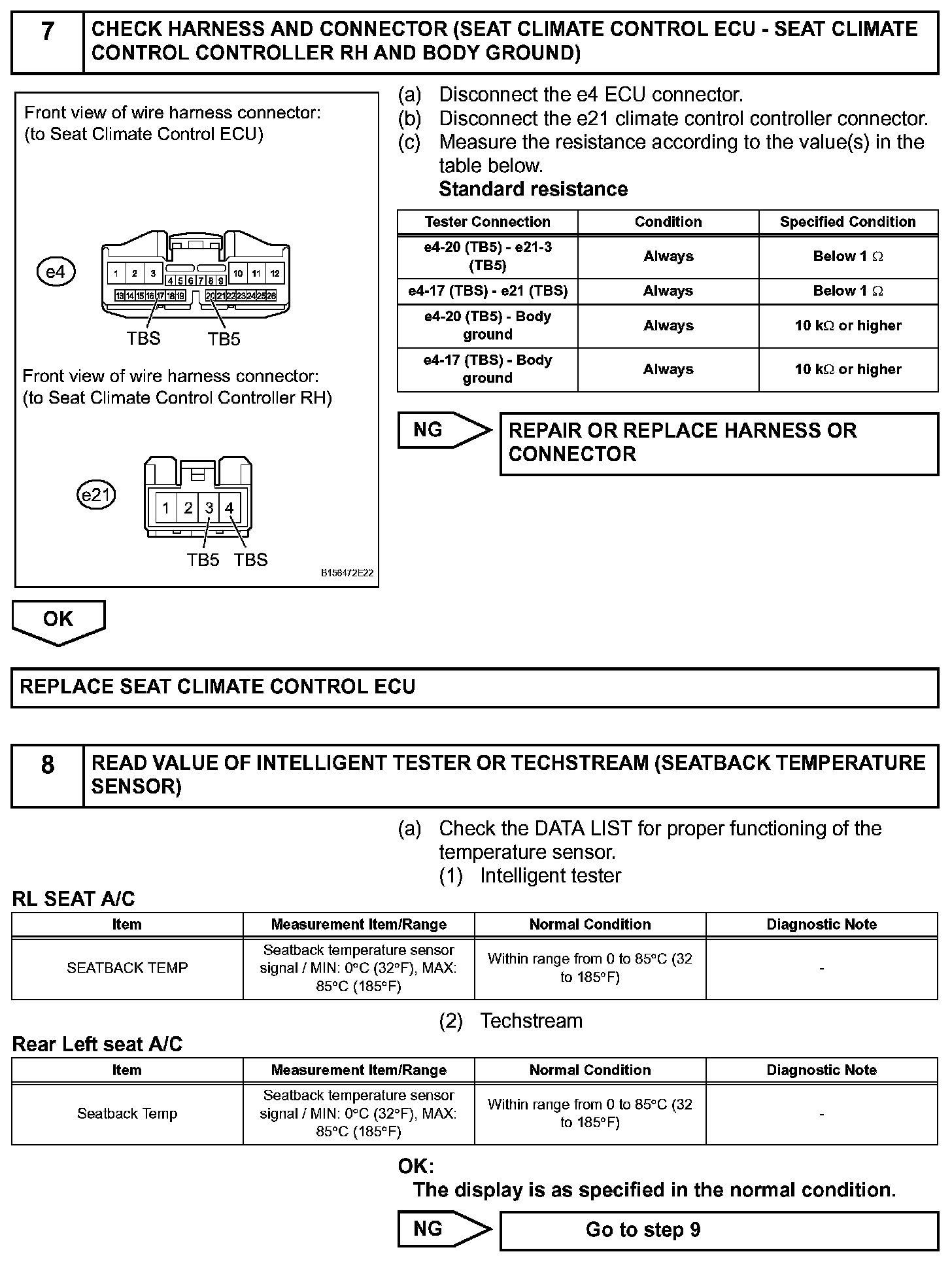

Step 7 - 8:

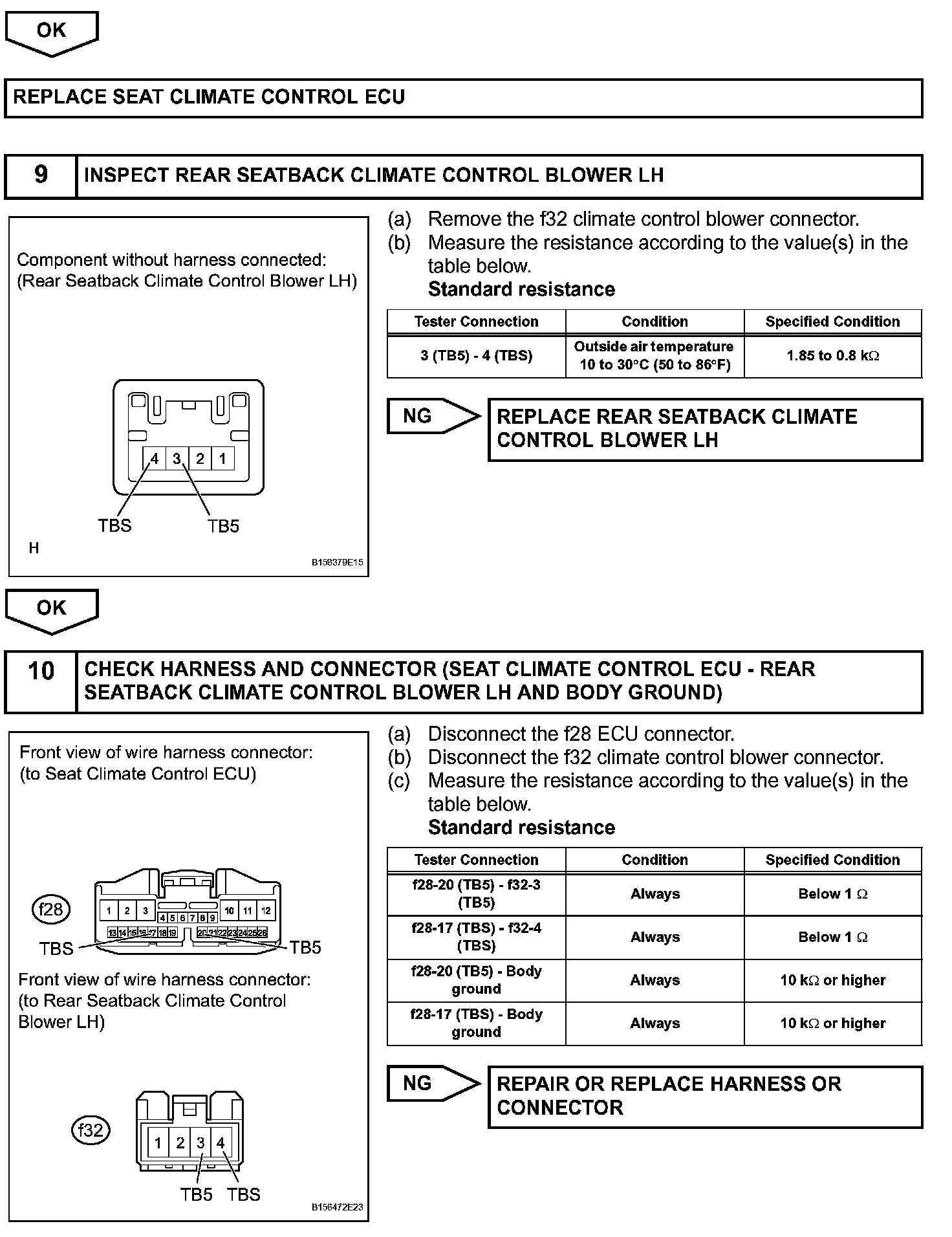

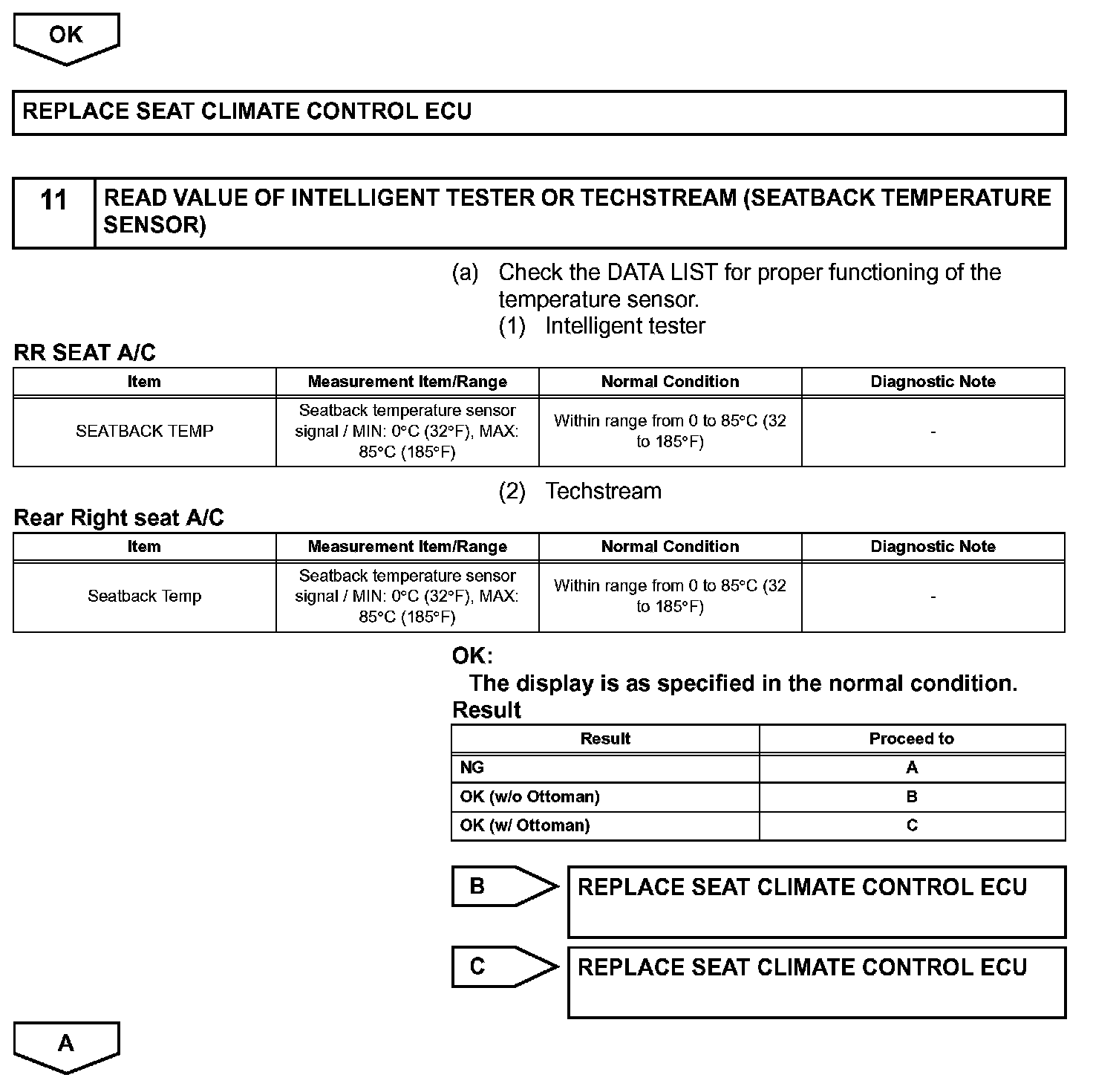

Step 8(Continued) - 10:

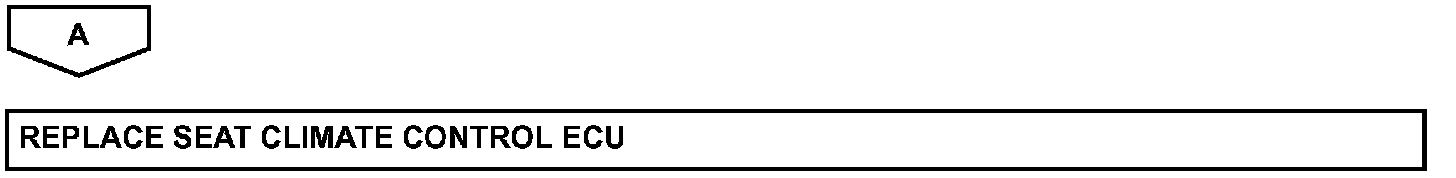

Step 10(Continued) - 11:

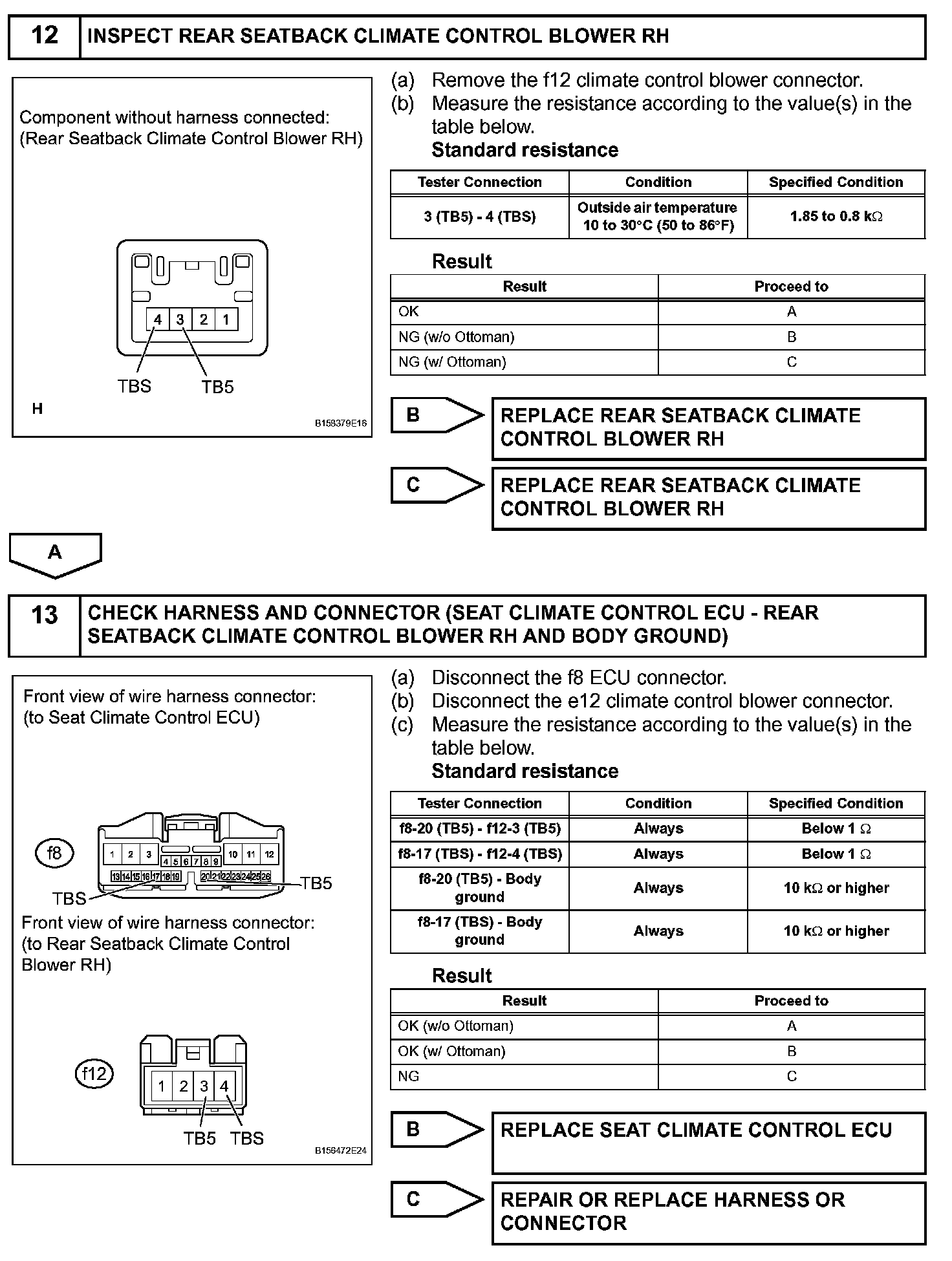

Step 12 - 13:

Step 13(Continued):
