B1499
DTC B1499/99 Multiplex Communication CircuitDESCRIPTION

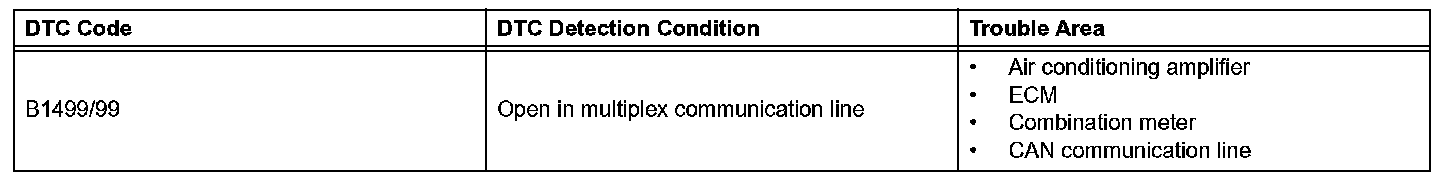

DTC Detection Condition:
The air conditioning amplifier communicates data with the ECM and combination meter through the CAN communication system.

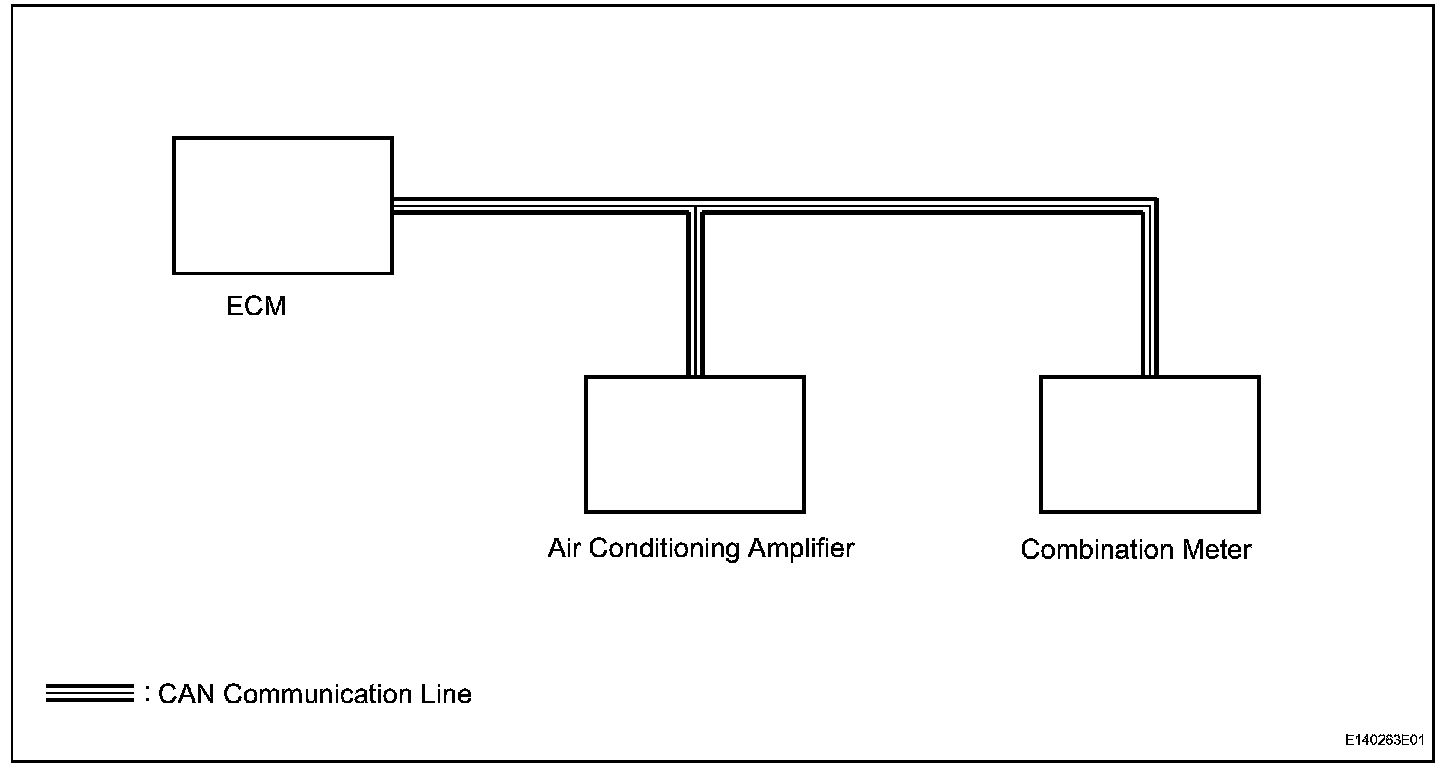

Wiring Diagram:

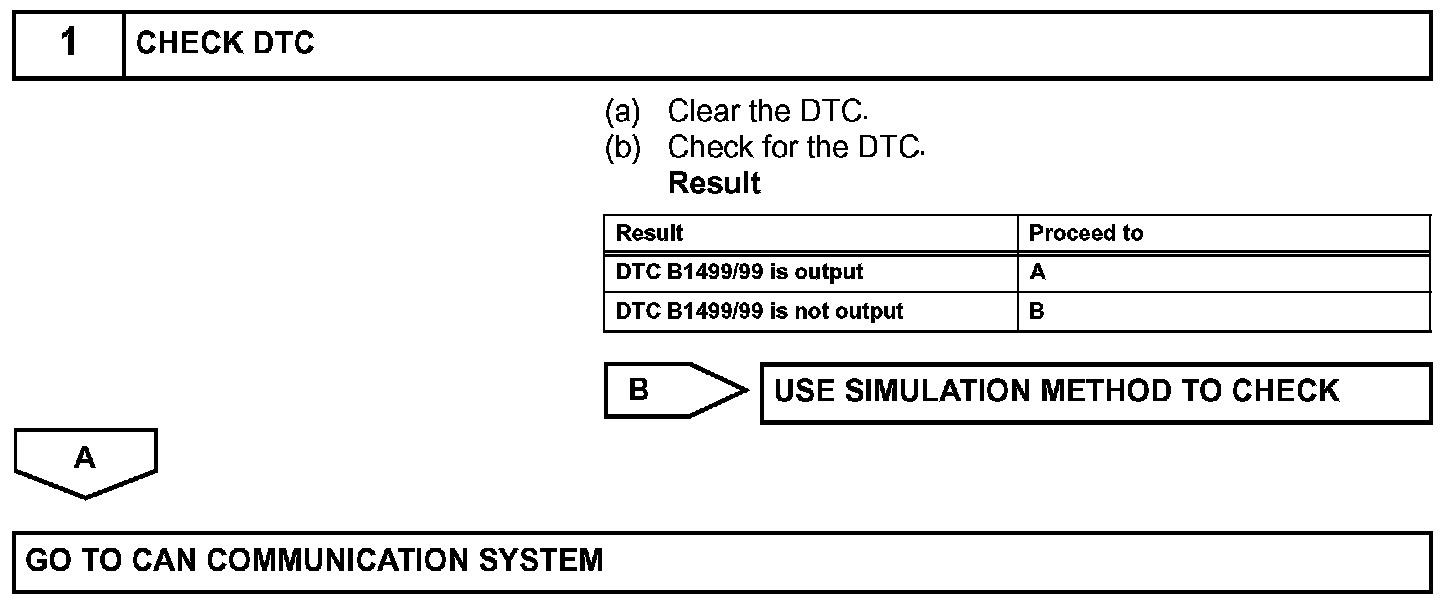

Step 1:
INSPECTION PROCEDURE
