B1458

DTC B1458/58 Passenger Side Air Outlet Damper Control Servo Motor Circuit

DESCRIPTION

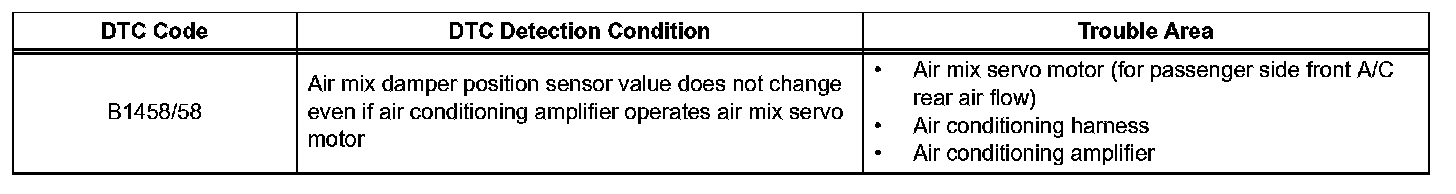

DTC Detection Condition:

The air mix damper servo (for passenger side front A/C rear air flow) sends pulse signals to inform the air conditioning amplifier of the damper position. The air conditioning amplifier activates the motor (normal, reverse) based on the signals to move the air mix damper (for passenger side front A/C rear air flow) to any position. As a result the amount of air that has passed through the evaporator and is now passing through the heater core is adjusted, and the temperature of the air blowing toward the rear passenger side is controlled.

HINT: Confirm that no mechanical problem is present because this diagnostic code can be output when either a damper link or damper is mechanically locked.

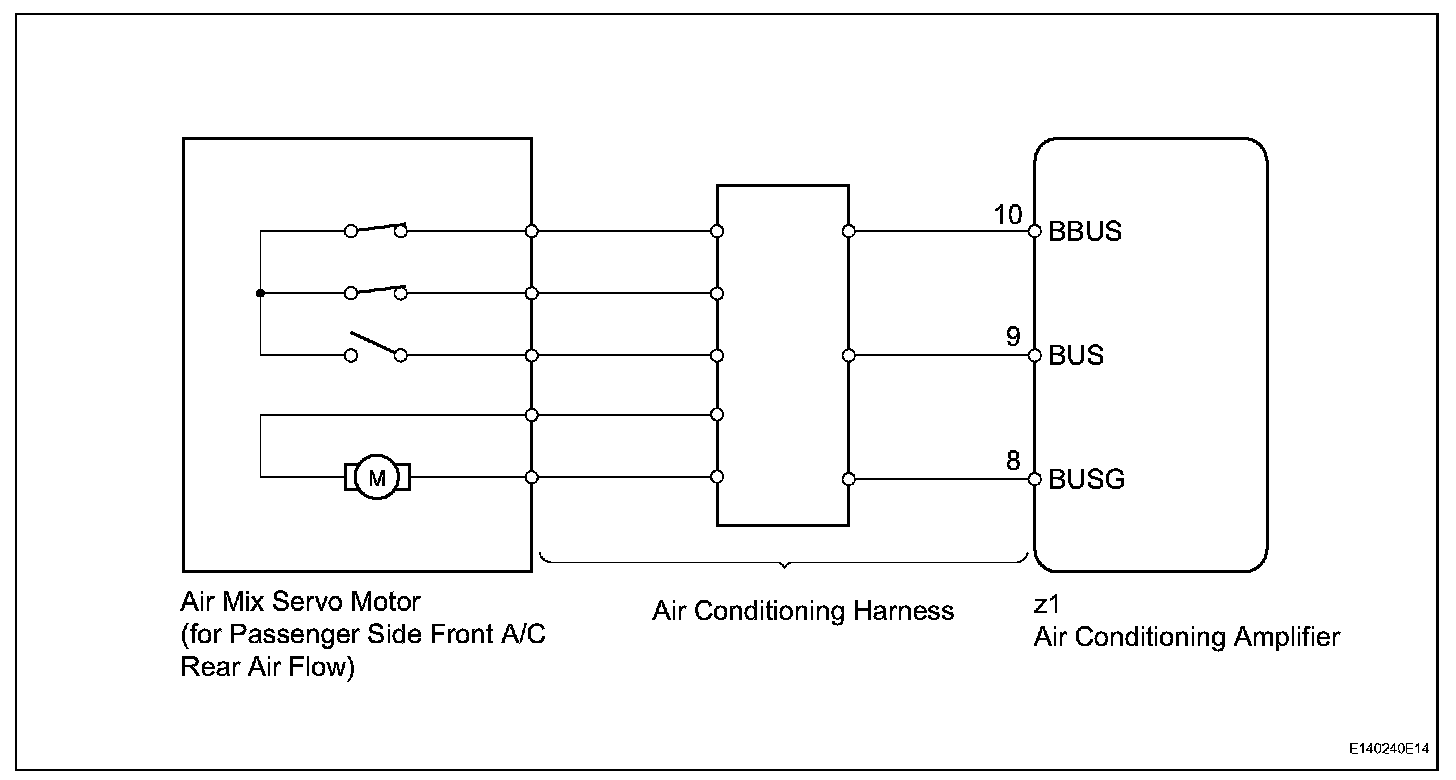

Wiring Diagram:

Step 1:

Step 1 (Continued)-2:

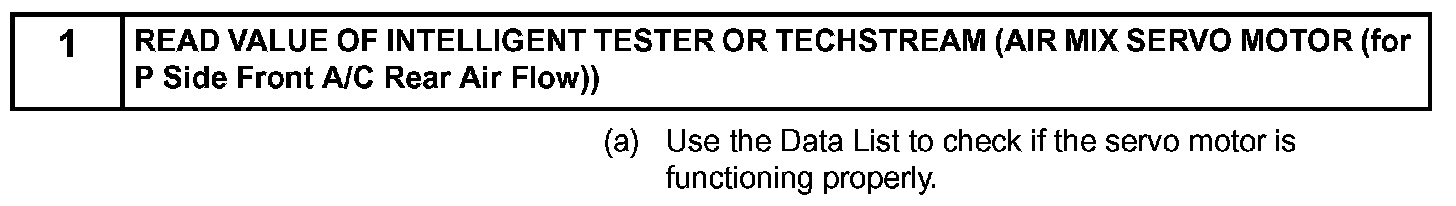

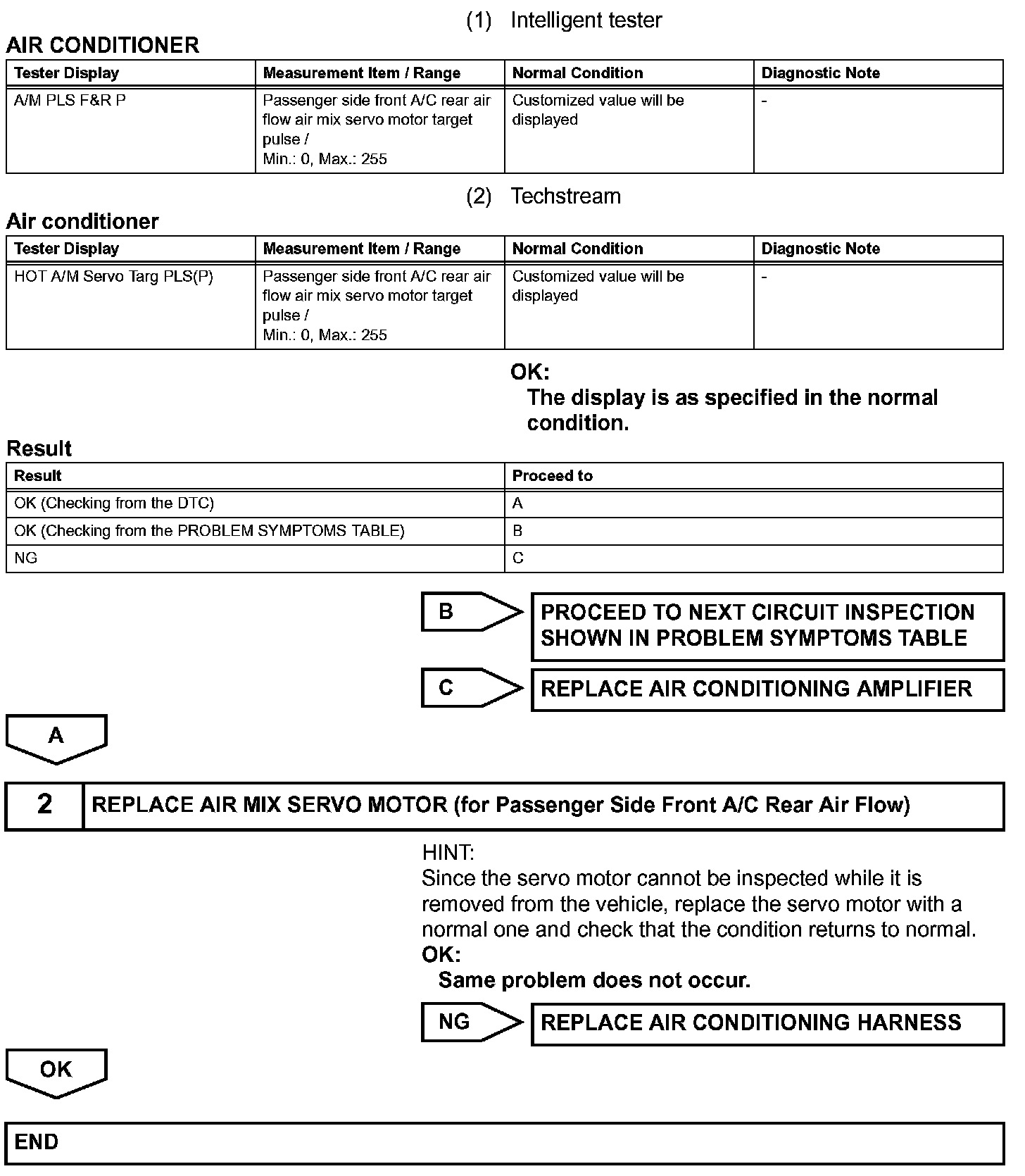

INSPECTION PROCEDURE
