B1443

DTC B1443/43 Air Outlet Damper Control Servo Motor Circuit

DESCRIPTION

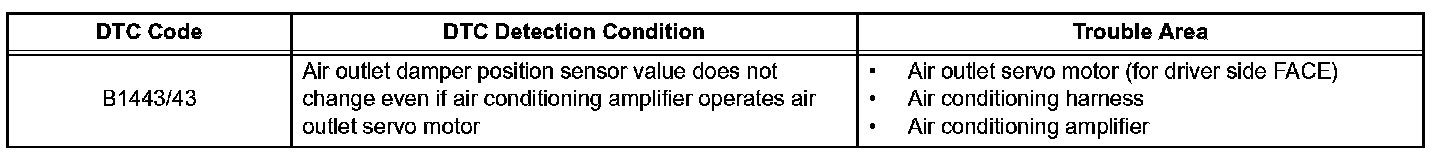

DTC Detection Condition:

The mode damper servo (for driver side FACE) sends pulse signals to inform the air conditioning amplifier of the damper position. The air conditioning amplifier activates the motor (normal, reverse) based on the signals to move the mode damper servo (for driver side FACE) to any position, which controls the air outlet changes.

HINT: Confirm that no mechanical problem is present because this diagnostic code can be output when either a damper link or damper is mechanically locked.

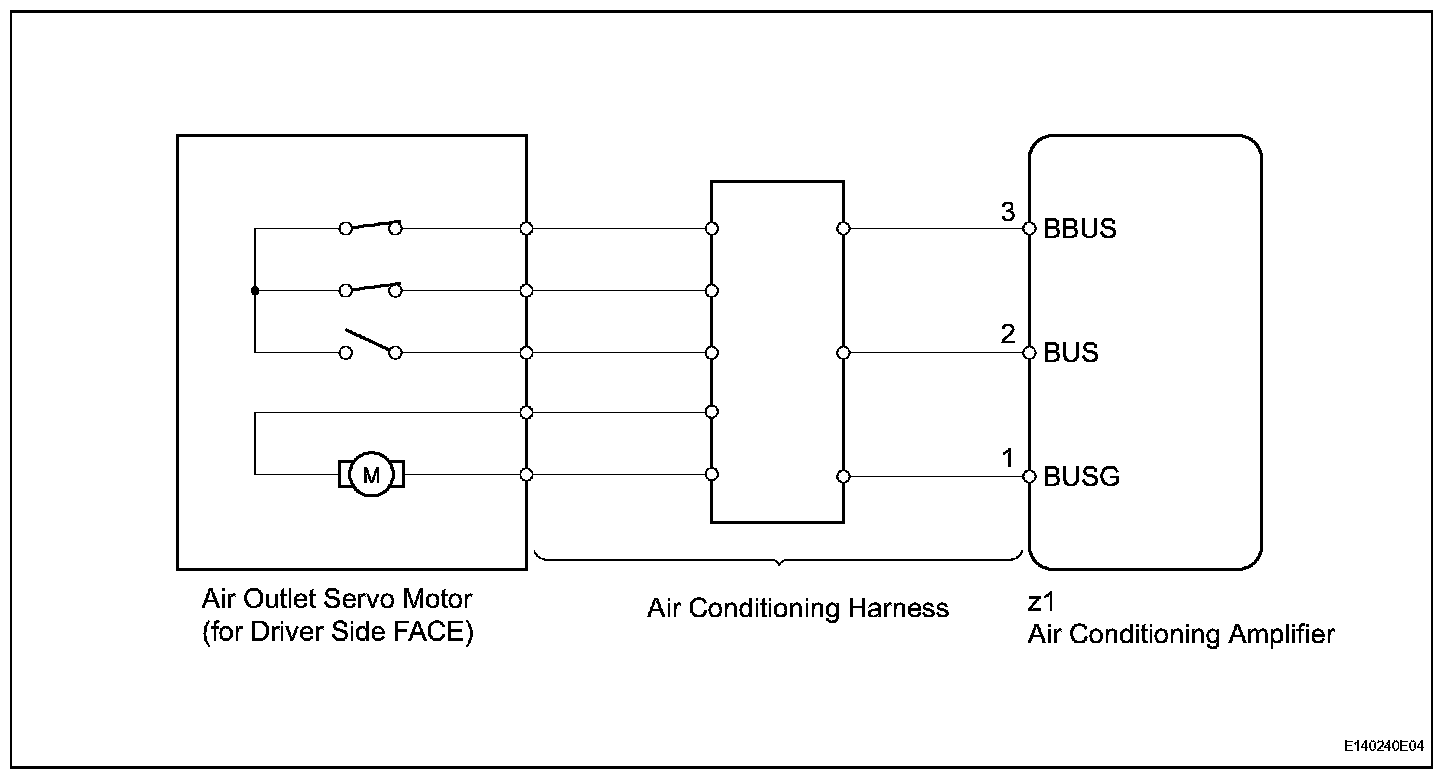

Wiring Diagram:

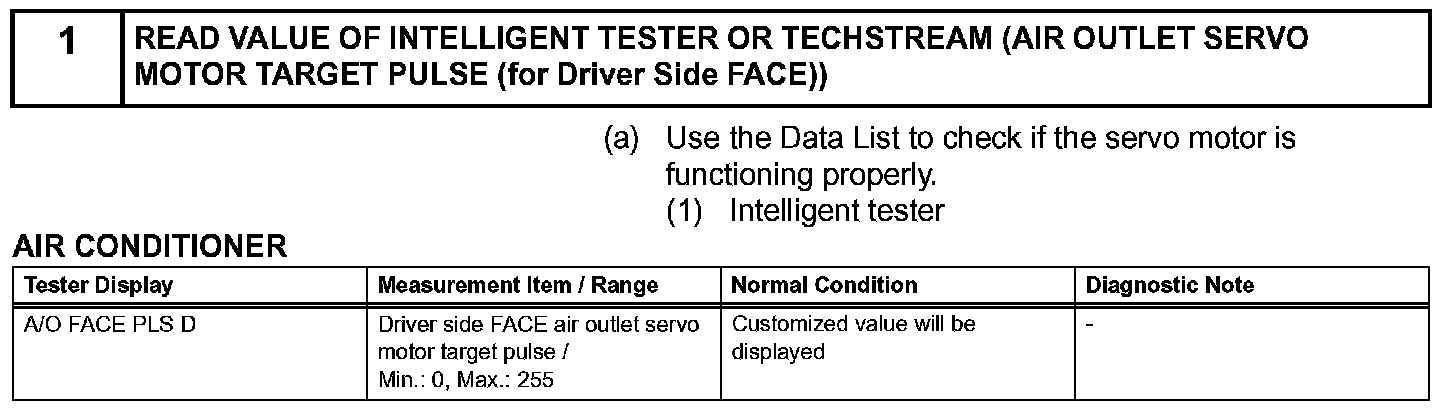

Step 1:

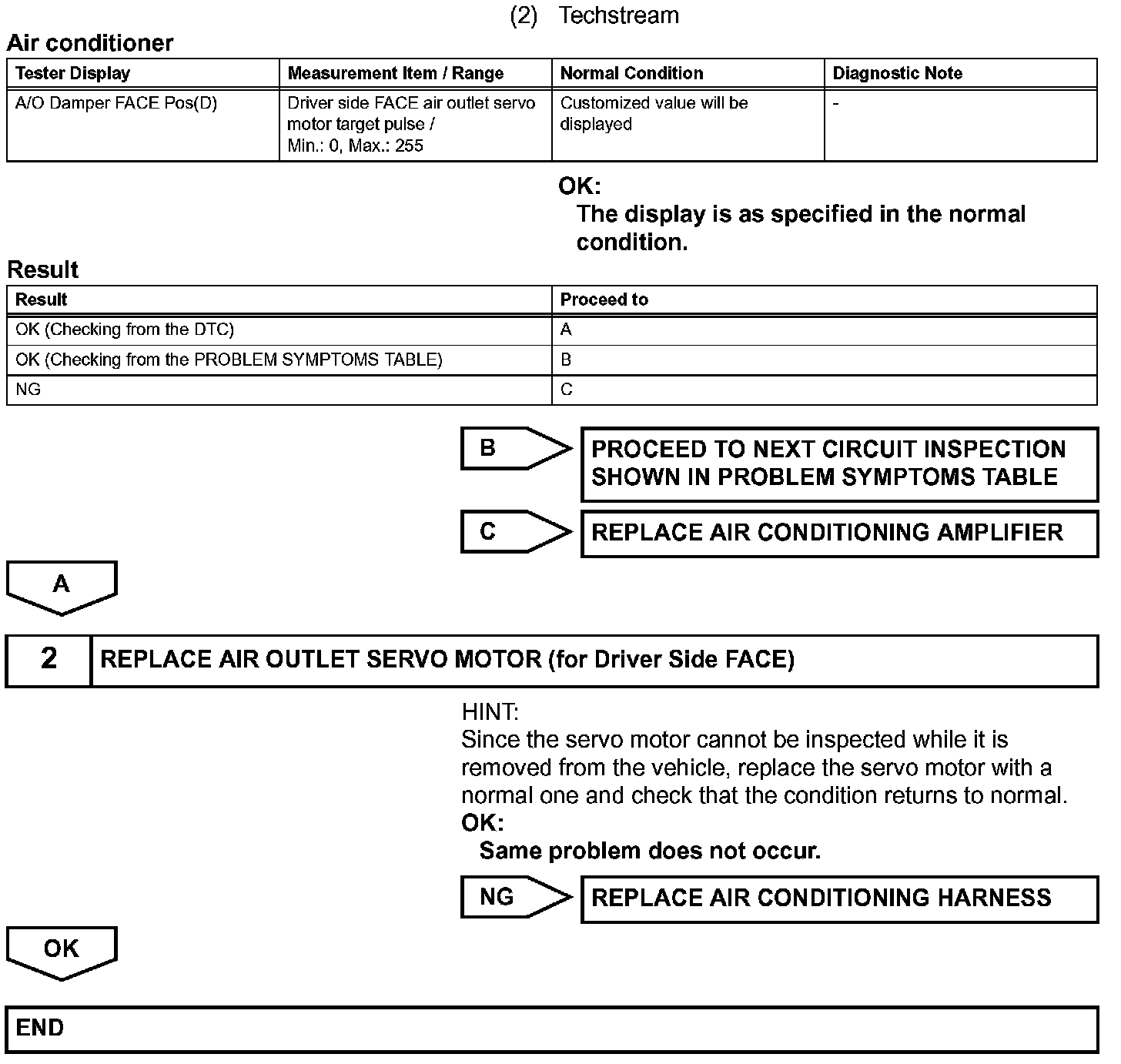

Step 1 (Continued)-2:

INSPECTION PROCEDURE
