B1244

DTC B1244 Light Sensor Circuit Malfunction

DESCRIPTION

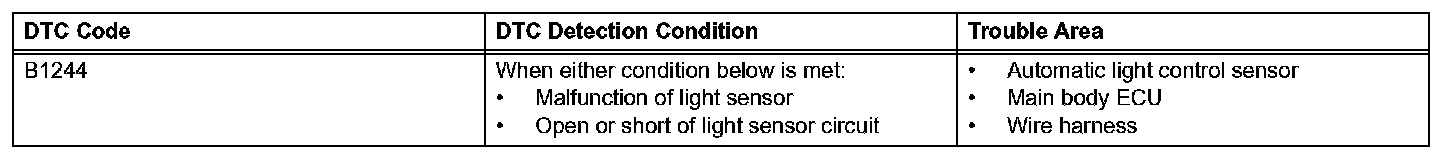

DTC Detection Condition:

This DTC is output when a failure of the automatic light control sensor circuit is detected.

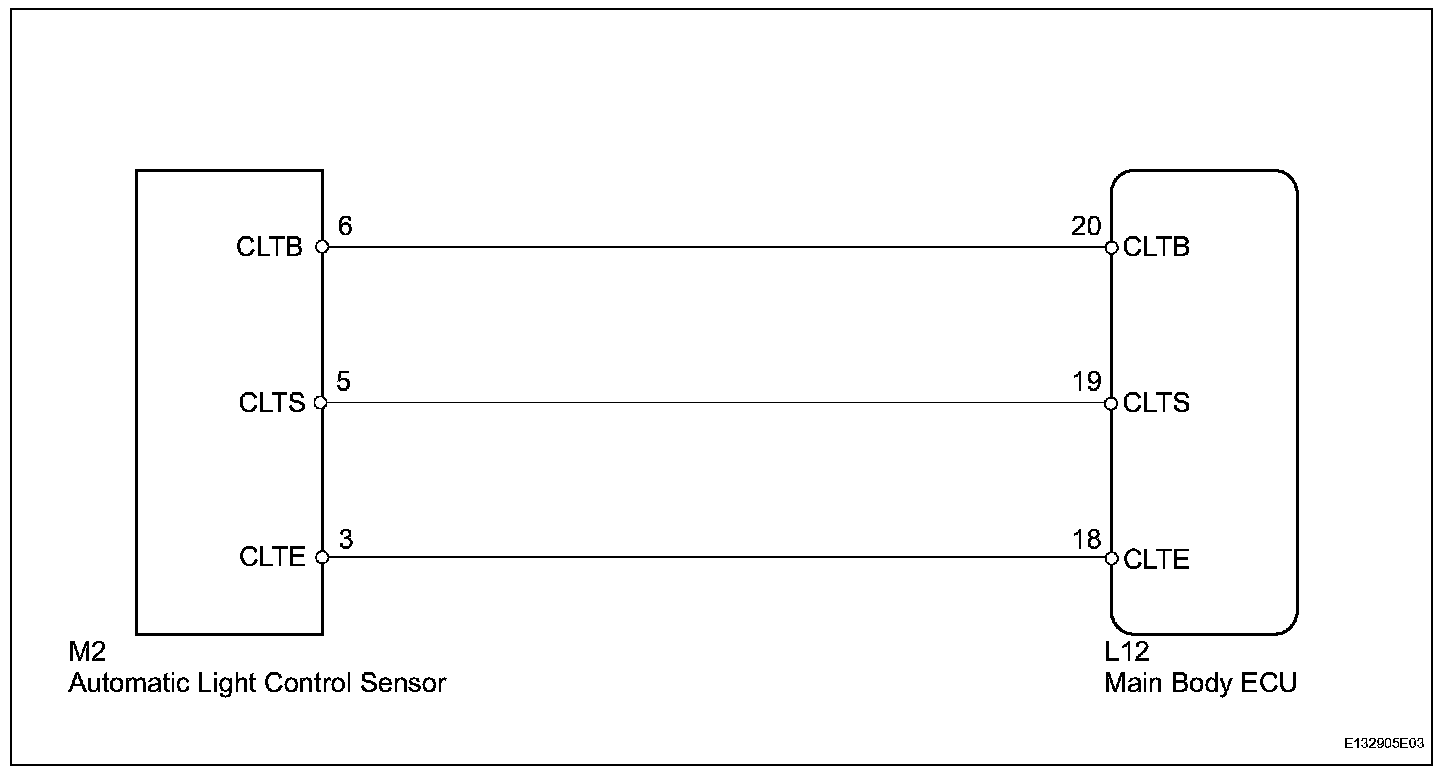

Wiring Diagram:

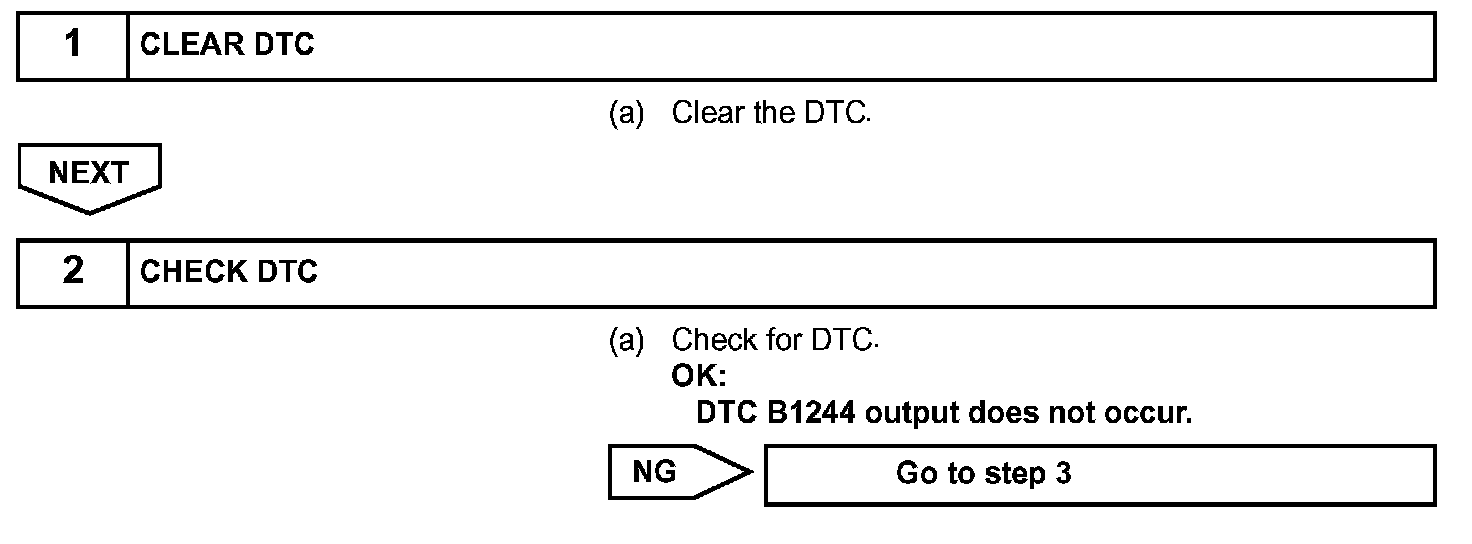

Step 1-2:

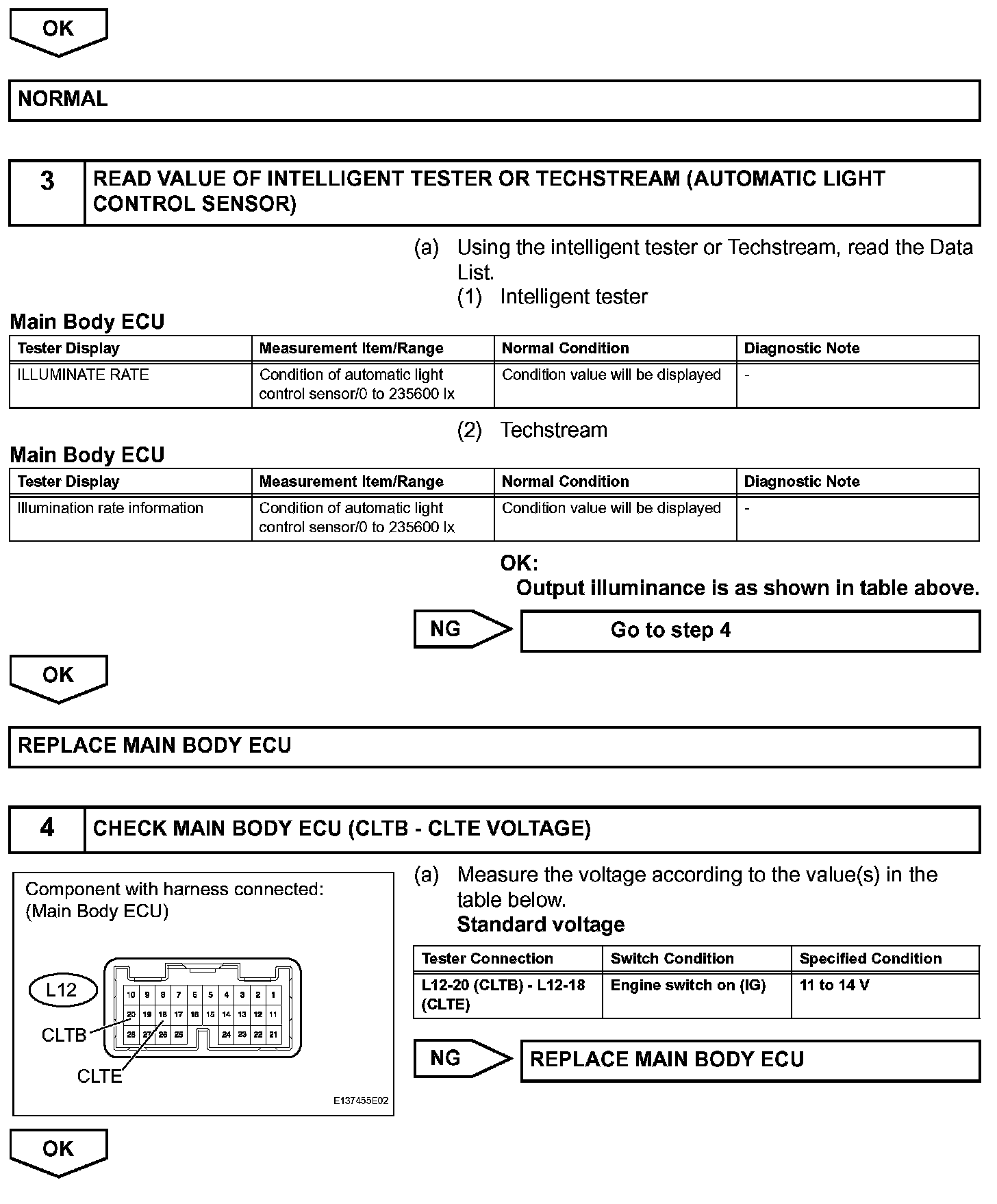

Step 2 (Continued)-4:

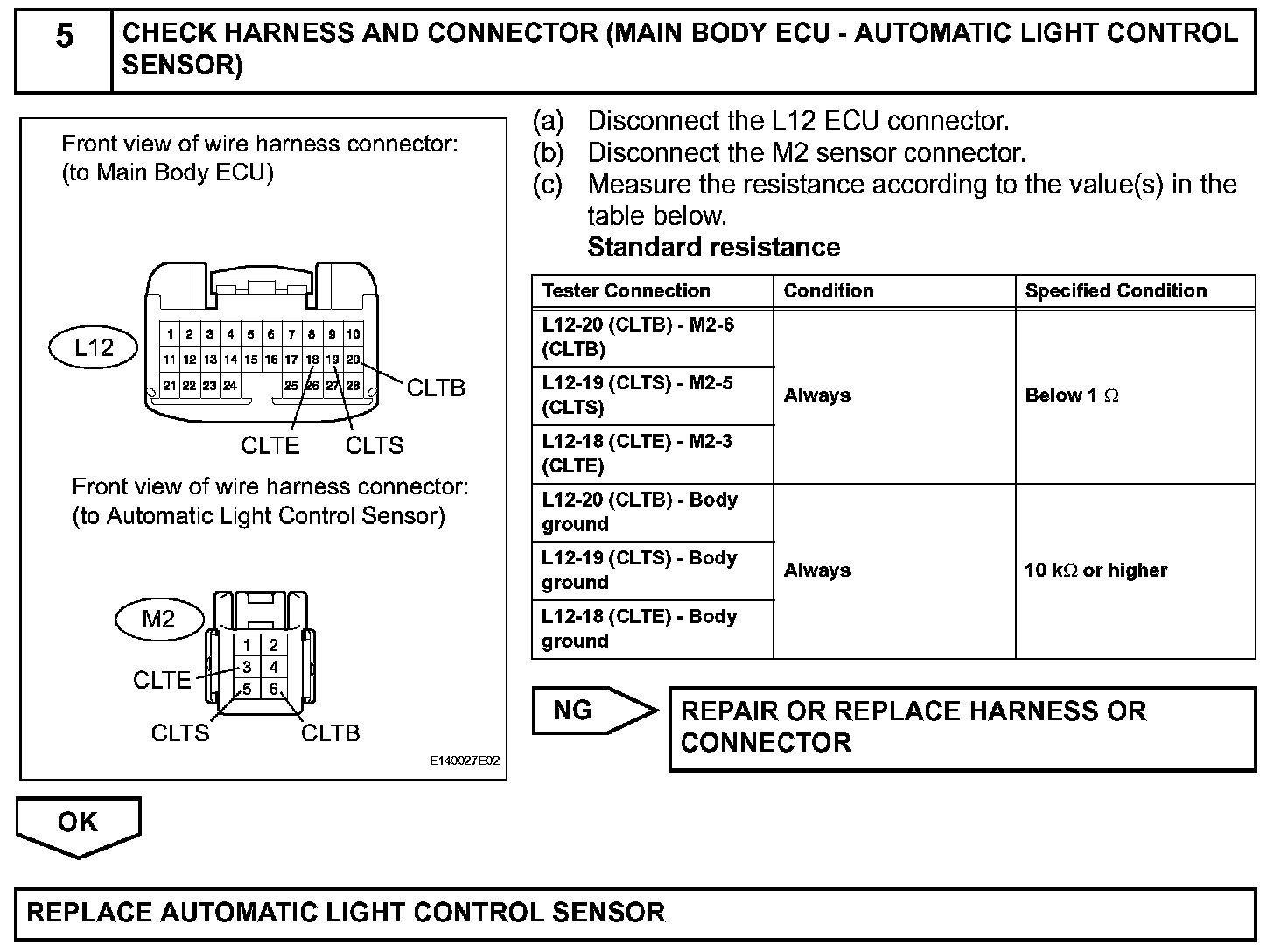

Step 5:

INSPECTION PROCEDURE
