Torque Converter: Service and Repair

TORQUE CONVERTER AND DRIVE PLATE

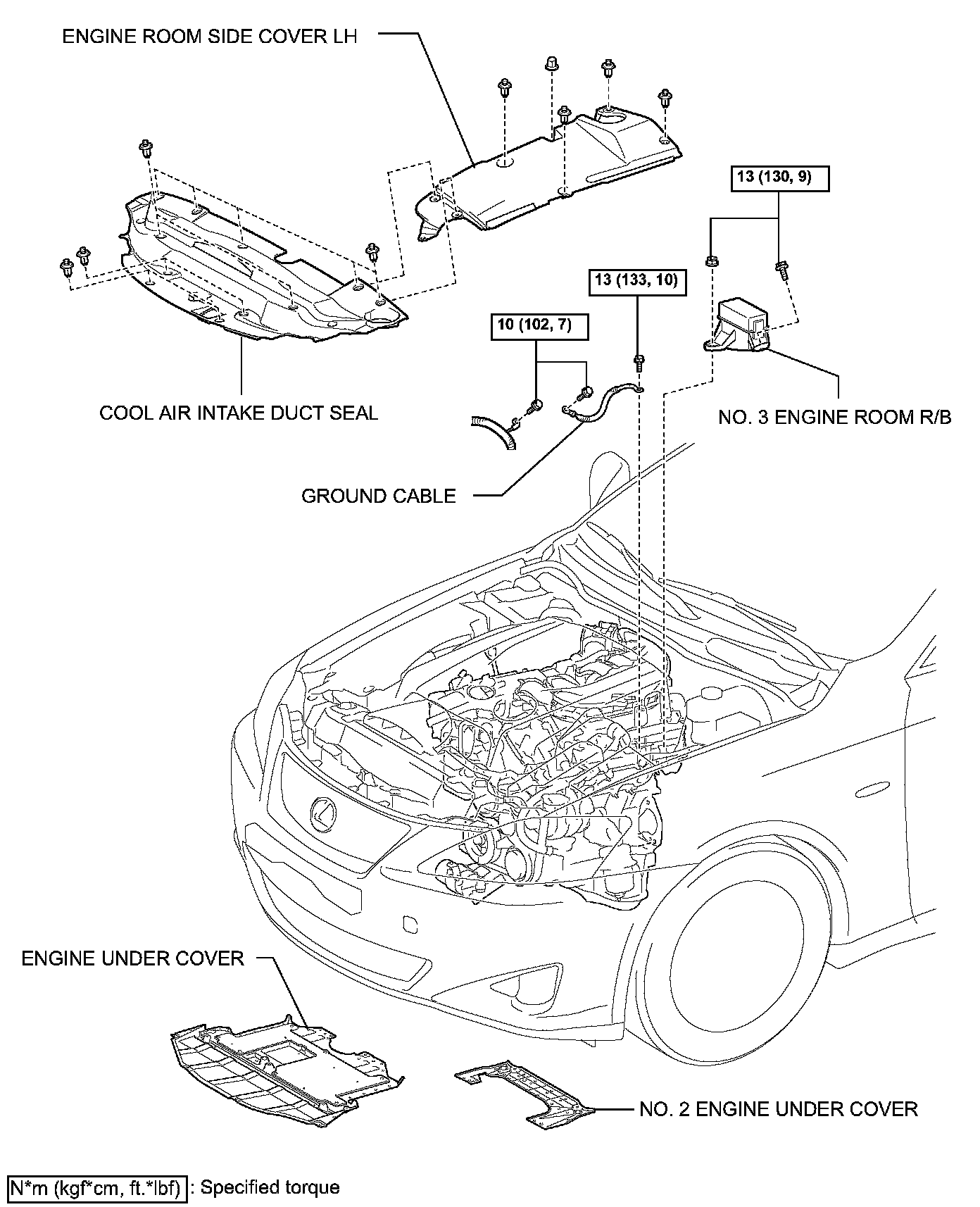

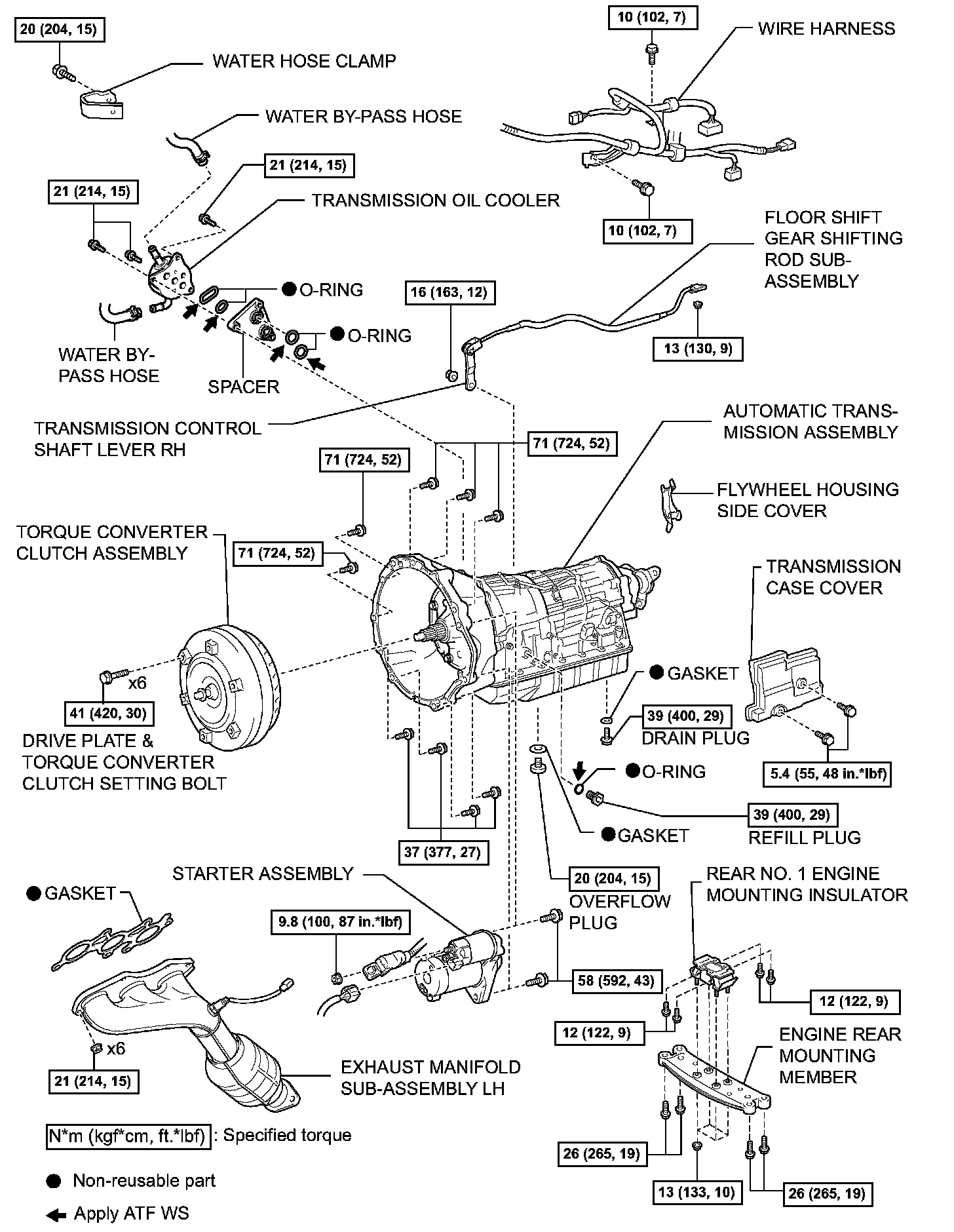

Components:

REMOVAL
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE COOL AIR INTAKE DUCT SEAL
3. REMOVE ENGINE ROOM SIDE COVER LH
4. REMOVE ENGINE UNDER COVER
5. REMOVE NO.2 ENGINE UNDER COVER
6. DRAIN COOLANT
7. DRAIN AUTOMATIC TRANSMISSION FLUID
8. REMOVE NO.1 REAR FLOOR PANEL BRACE
9. REMOVE FRONT CENTER FLOOR BRACE
10. REMOVE OXYGEN SENSOR
11. REMOVE FRONT EXHAUST PIPE ASSEMBLY
12. REMOVE OUTSIDE AIR GUIDE PLATE RH
13. REMOVE FRONT FLOOR NO.1 HEAT INSULATOR
14. REMOVE PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY
15. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY LH
16. REMOVE STARTER ASSEMBLY
17. REMOVE FLYWHEEL HOUSING SIDE COVER
18. REMOVE DRIVE PLATE & TORQUE CONVERTER CLUTCH SETTING BOLT
19. SEPARATE FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY
20. SUPPORT AUTOMATIC TRANSMISSION ASSEMBLY
21. REMOVE ENGINE REAR MOUNTING MEMBER
22. SEPARATE CONNECTOR
23. SEPARATE WIRE HARNESS
24. SEPARATE WATER BY-PASS HOSE
25. REMOVE AUTOMATIC TRANSMISSION ASSEMBLY
26. REMOVE REAR NO.1 ENGINE MOUNTING INSULATOR
27. REMOVE TRANSMISSION CONTROL SHAFT LEVER RH
28. REMOVE TRANSMISSION OIL COOLER
29. REMOVE TORQUE CONVERTER CLUTCH ASSEMBLY
30. INSPECT TORQUE CONVERTER CLUTCH ASSEMBLY

INSPECTION
1. INSPECT TORQUE CONVERTER CLUTCH ASSEMBLY
SST 09350-30020 (09351-32020, 09351-32010)
a) Inspect the one-way clutch.

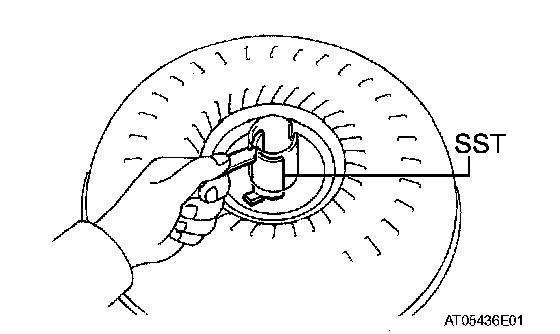

1) Install SST so that it fits in a notch of the converter hub and a notch of the outer race of the one-way clutch.
SST 09350-30020 (09351-32020)

2) Press on the serrations of the starter with a finger and rotate the starter.
Clean the converter and retest the one-way clutch.

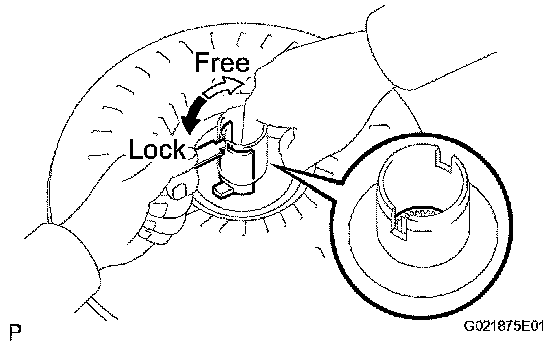

When the one-way clutch is turned clockwise, it rotates freely and when turned counterclockwise, it locks.
b) Determine the condition of the torque converter clutch assembly.

1) If the inspection result of the torque converter clutch assembly does not satisfy the standard conditions, replace the torque converter clutch assembly.
Malfunction item: A metallic sound is heard from the torque converter clutch during a stall test or when the shift lever is in the N position. The one-way clutch is free or locked in both directions.

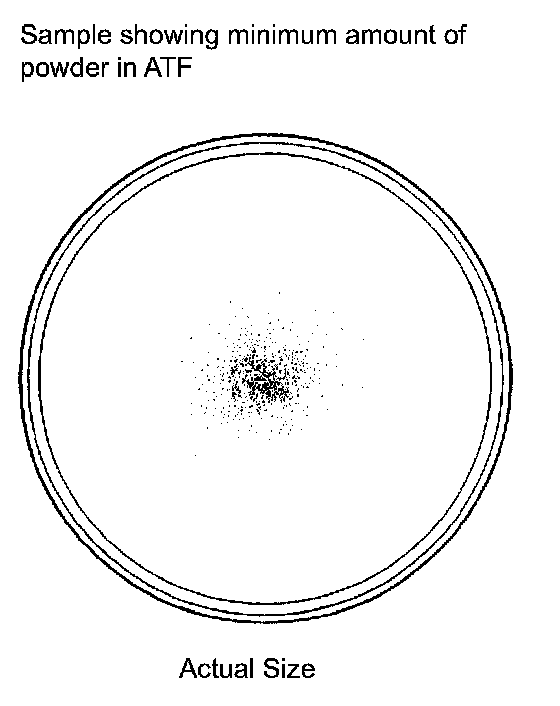

Fine powder exceeding the sample limit is identified in ATF.

HINT: The sample shows the auto fluid of approximately 0.25 liters (0.26 US quarts, 0.22 Imp. quarts) of ATF that is taken out from the removed torque converter clutch.

c) Replace the ATF in the torque converter clutch.
1) If the ATF is discolored and/or has a foul odor, completely stir the ATF in the torque converter clutch and drain the ATF

2. INSPECT RUNOUT OF DRIVE PLATE AND RING GEAR SUB-ASSEMBLY

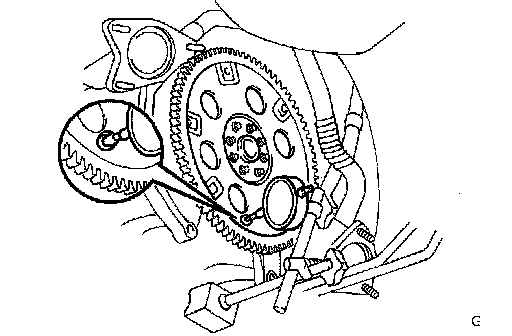

a) Set up a dial indicator and measure the drive plate runout.
Maximum runout: 0.20 mm (0.0079 inch)
If runout exceeds the maximum value or if the ring gear is damaged, replace the drive plate.

INSTALLATION
1. INSTALL TORQUE CONVERTER CLUTCH ASSEMBLY
2. INSTALL TRANSMISSION OIL COOLER
3. INSTALL TRANSMISSION CONTROL SHAFT LEVER RH
4. INSTALL REAR NO.1 ENGINE MOUNTING INSULATOR
5. INSTALL AUTOMATIC TRANSMISSION ASSEMBLY
6. INSTALL WATER BY-PASS HOSE
7. INSTALL WIRE HARNESS
8. CONNECT CONNECTOR
9. INSTALL ENGINE REAR MOUNTING MEMBER
10. INSTALL FLOOR SHIFT GEAR SHIFTING ROD SUBASSEMBLY
11. INSTALL DRIVE PLATE & TORQUE CONVERTER CLUTCH SETTING BOLT
12. INSTALL FLYWHEEL HOUSING SIDE COVER
13. INSTALL STARTER ASSEMBLY
14. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY LH
15. INSTALL PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY
16. FULLY TIGHTEN NO.1 CENTER SUPPORT BEARING ASSEMBLY
17. INSPECT AND ADJUST NO.2 AND NO.3 JOINT ANGLE
18. INSTALL FRONT FLOOR NO.1 HEAT INSULATOR
19. INSTALL OUTSIDE AIR GUIDE PLATE RH
20. INSTALL FRONT EXHAUST PIPE ASSEMBLY
21. INSTALL OXYGEN SENSOR
22. INSTALL FRONT CENTER FLOOR BRACE
23. INSTALL NO.1 REAR FLOOR PANEL BRACE
24. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
25. ADD COOLANT
26. ADD AUTOMATIC TRANSMISSION FLUID
27. ADJUST COOLANT
28. CHECK FOR ENGINE COOLANT LEAKS
29. ADJUST SHIFT LEVER POSITION
30. INSPECT SHIFT LEVER POSITION
31. CHECK FOR EXHAUST GAS LEAKS
32. INSTALL NO.2 ENGINE UNDER COVER
33. INSTALL ENGINE UNDER COVER
34. INSTALL ENGINE ROOM SIDE COVER LH
35. INSTALL COOL AIR INTAKE DUCT SEAL
36. RESET MEMORY
37. PERFORM INITIALIZATION
Some systems need initialization after reconnecting the cable to the negative battery terminal.
