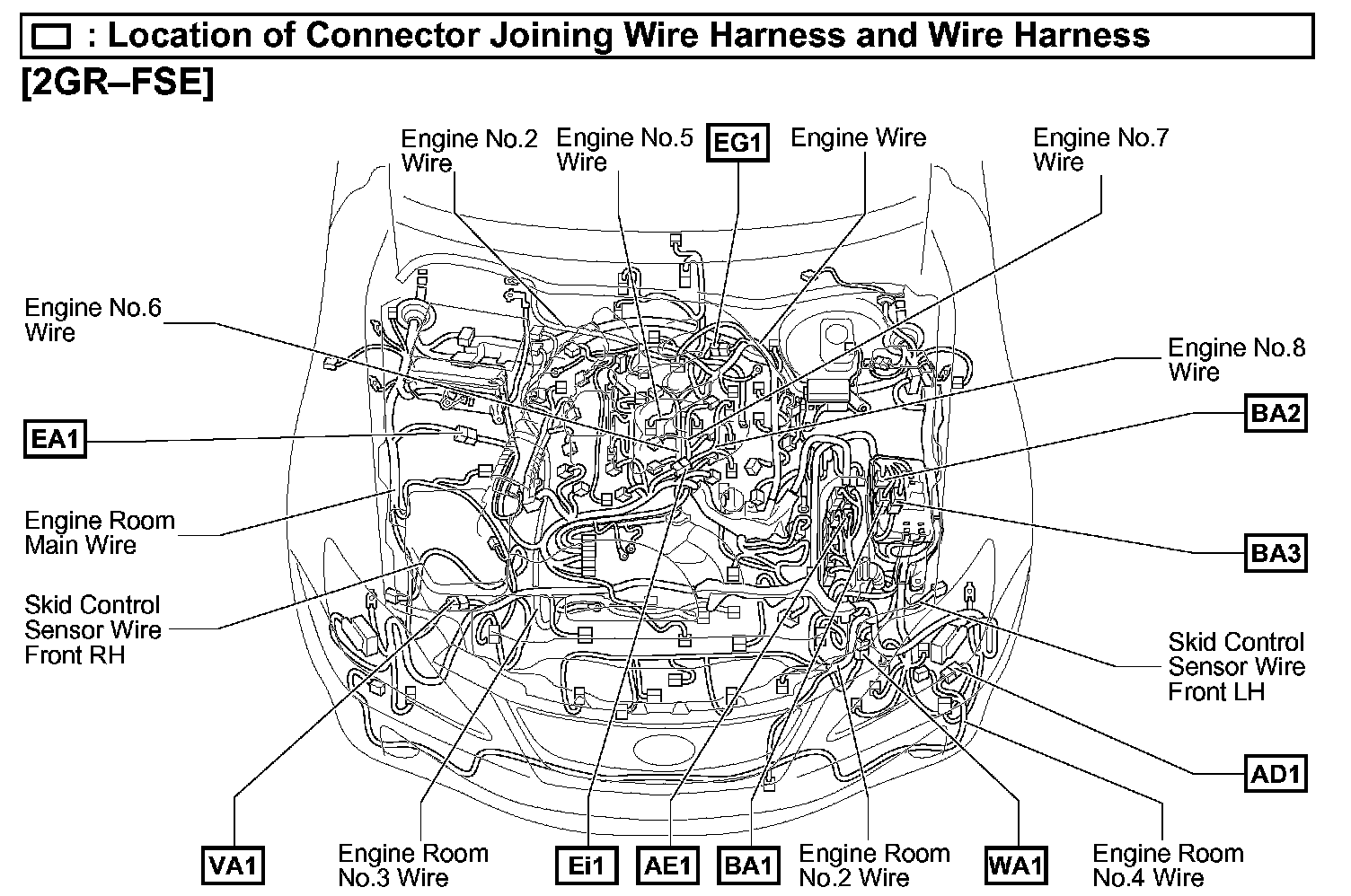

Multiple Junction Connector: Locations

AD1 - Ei1:



AP1 - st1:



NP1 - Mo1, P1 - Q2:



PT1 - Qd1:
