Fuel Pressure Sensor: Service and Repair
REMOVAL1. REMOVE COOL AIR INTAKE DUCT SEAL
2. REMOVE ENGINE ROOM SIDE COVER LH
3. REMOVE ENGINE ROOM SIDE COVER RH
4. REMOVE V-BANK COVER SUB-ASSEMBLY
5. REMOVE FRONT UPPER FENDER PROTECTOR LH
6. REMOVE FRONT UPPER FENDER PROTECTOR RH
HINT: Removal procedure of the RH side is the same as that of the LH side.
7. REMOVE ROOF DRIP SIDE FINISH MOULDING LH
8. REMOVE ROOF DRIP SIDE FINISH MOULDING RH
HINT: Removal procedure of the RH side is the same as that of the LH side.
9. REMOVE FRONT WIPER ARM HEAD CAP
10. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH
11. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH
12. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY
13. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
14. DISCHARGE FUEL SYSTEM PRESSURE
15. DRAIN ENGINE COOLANT
16. DISCONNECT NO. 2 VENTILATION HOSE
17. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE ASSEMBLY
18. REMOVE THROTTLE WITH MOTOR BODY ASSEMBLY
19. REMOVE INTAKE AIR SURGE TANK
20. REMOVE INTAKE MANIFOLD
21. DISCONNECT WATER HOSE JOINT
22. REMOVE NO. 1 FUEL PIPE
23. REMOVE FUEL PRESSURE SENSOR

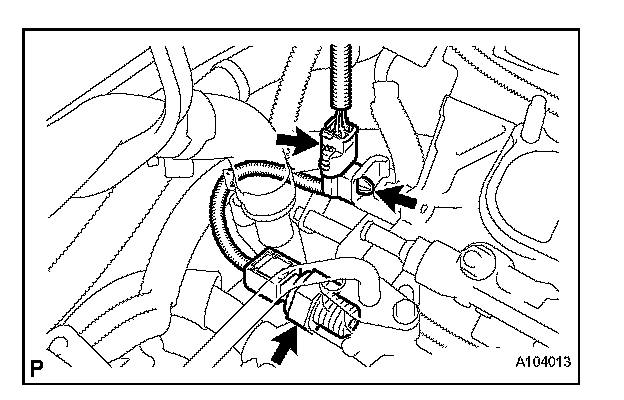

a. Disconnect the connector and clamp.
b. Remove the fuel pressure sensor and gasket.
INSTALLATION
1. INSTALL FUEL PRESSURE SENSOR
a. Install a new gasket to the fuel pressure sensor.
b. Using SST, install the fuel pressure sensor to the No. 1 delivery pipe.
SST 09922-10010
Torque:
For Use With SST
24 N.m (240 kgf.cm, 18 ft.lbf)
For Use Without SST
31 N.m (316 kgf.cm, 23 ft.lbf)

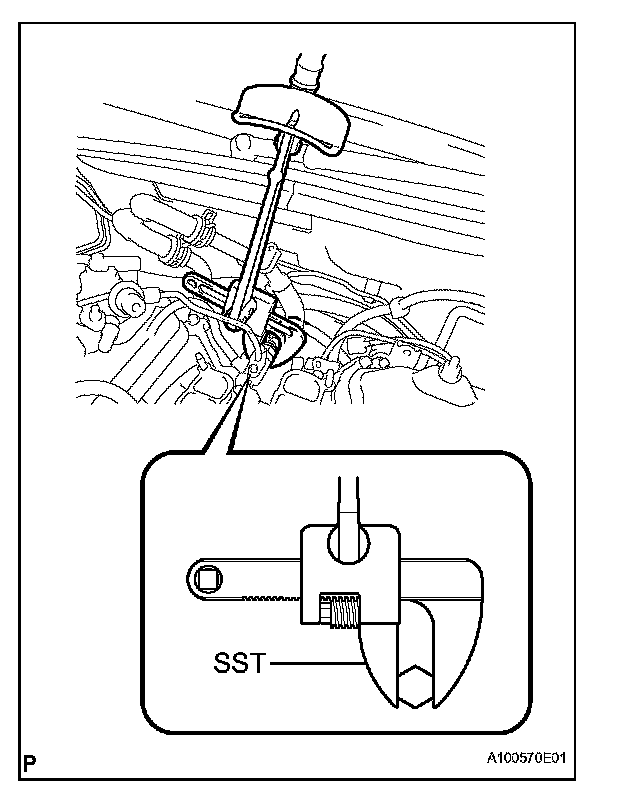

HINT: The torque for use with SST is the torque when SST is used at the position given in the illustration.

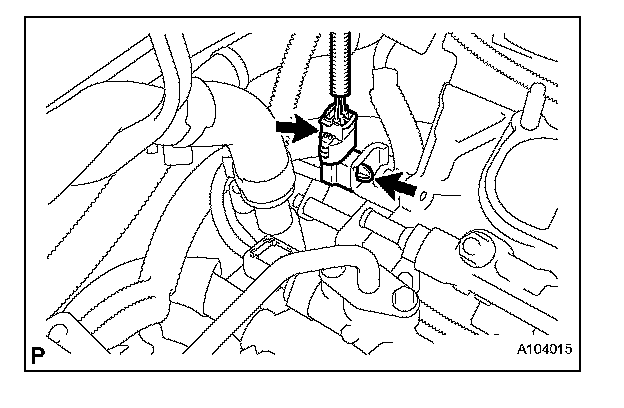

c. Connect the connector with the clamp.
2. INSTALL NO. 1 FUEL PIPE
3. CONNECT WATER HOSE JOINT
4. INSTALL INTAKE MANIFOLD
5. INSTALL INTAKE AIR SURGE TANK
6. INSTALL THROTTLE WITH MOTOR BODY ASSEMBLY
7. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE
8. CONNECT NO. 2 VENTILATION HOSE
9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
10. ADD ENGINE COOLANT
11. CHECK FOR ENGINE COOLANT LEAKAGE
12. CHECK FOR FUEL LEAKAGE
13. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY
14. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH
15. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH
16. INSTALL FRONT WIPER ARM HEAD CAP
17. INSTALL ROOF DRIP SIDE FINISH MOULDING LH
18. INSTALL ROOF DRIP SIDE FINISH MOULDING RH
19. INSTALL FRONT UPPER FENDER PROTECTOR LH
20. INSTALL FRONT UPPER FENDER PROTECTOR RH
HINT: Installation procedure of the RH side is the same as that of the LH side.
21. INSTALL V-BANK COVER SUB-ASSEMBLY
22. INSTALL ENGINE ROOM SIDE COVER LH
23. INSTALL ENGINE ROOM SIDE COVER RH
24. INSTALL COOL AIR INTAKE DUCT SEAL
25. CHECK FUNCTION OF THROTTLE WITH MOTOR BODY ASSEMBLY
26. PERFORM INITIALIZATION
a. Perform initialization.
HINT: Certain systems need to be initialized after reconnecting the cable to the negative (-) battery terminal.
