Fuel Delivery and Air Induction: Description and Operation

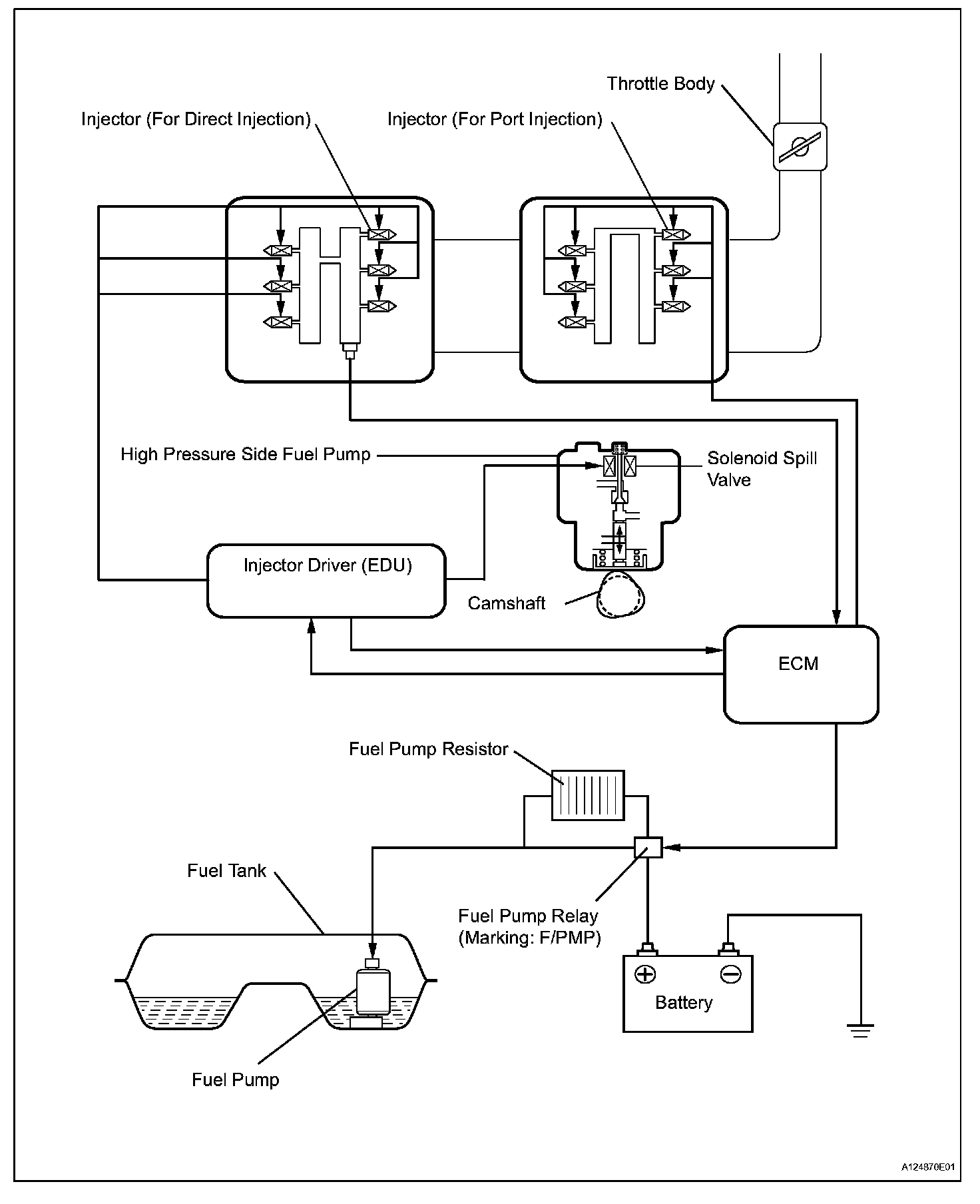

SYSTEM DIAGRAM

System Diagram:

System Diagram:

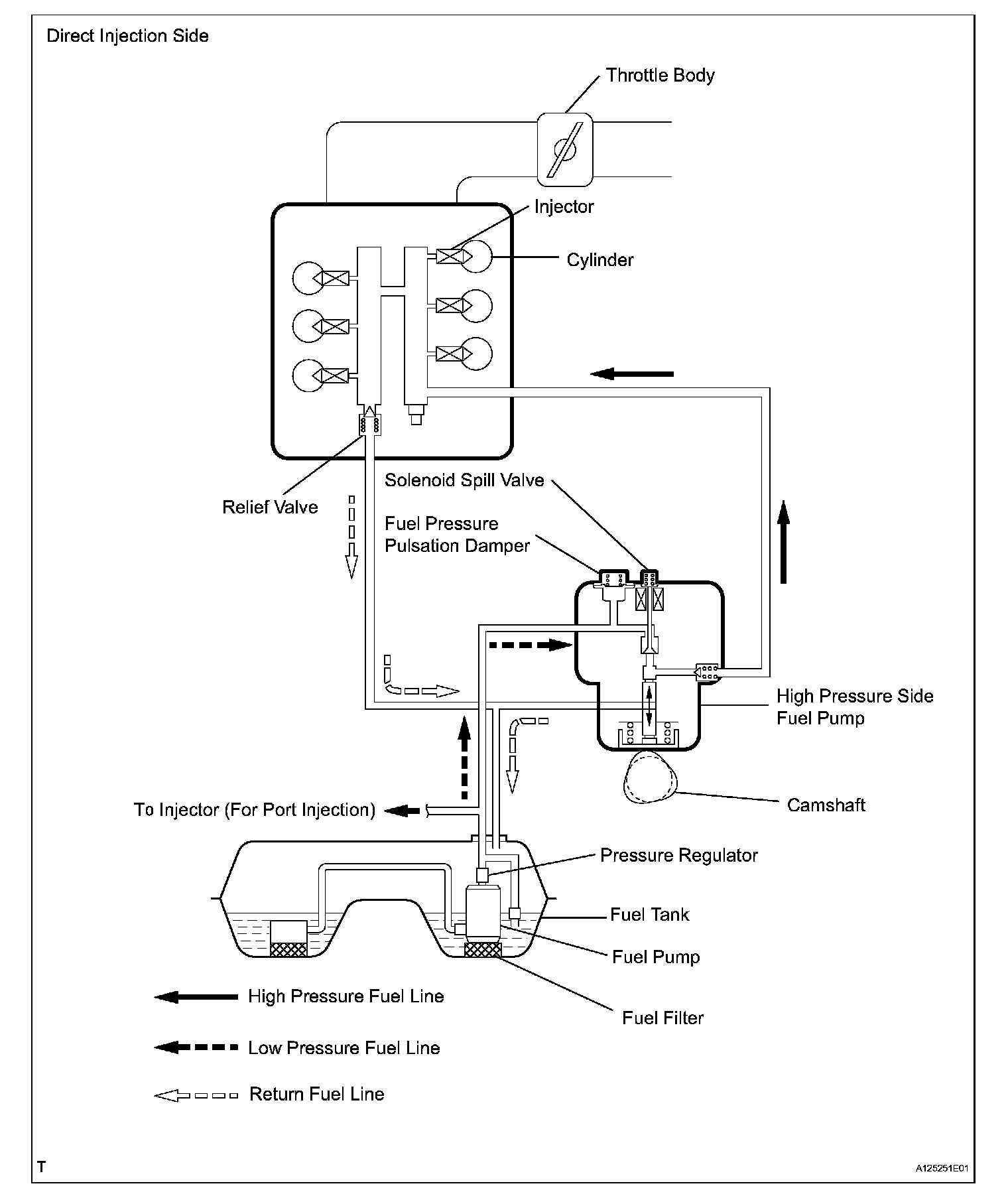

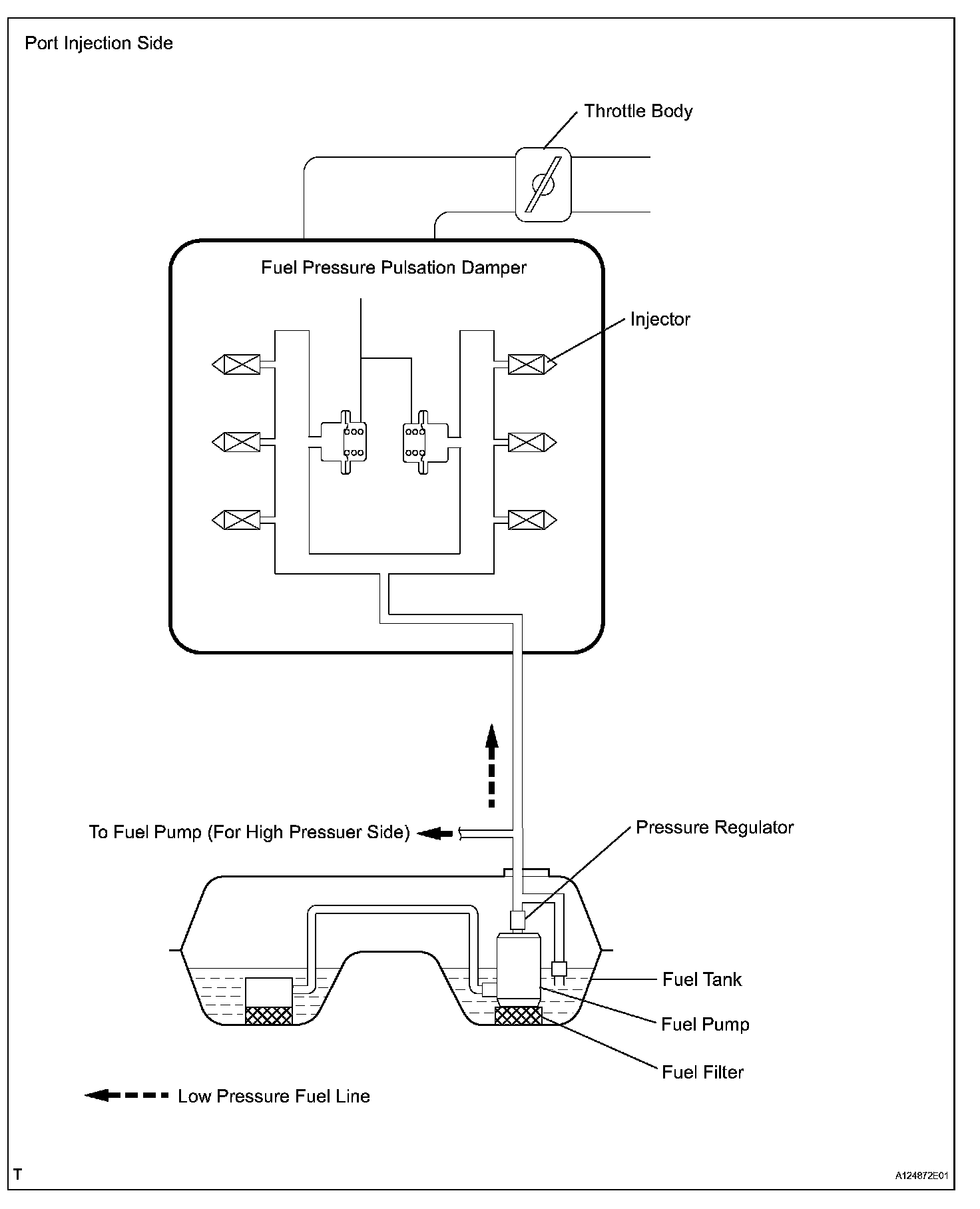

1. FUEL FLOW DIAGRAM

System Diagram:

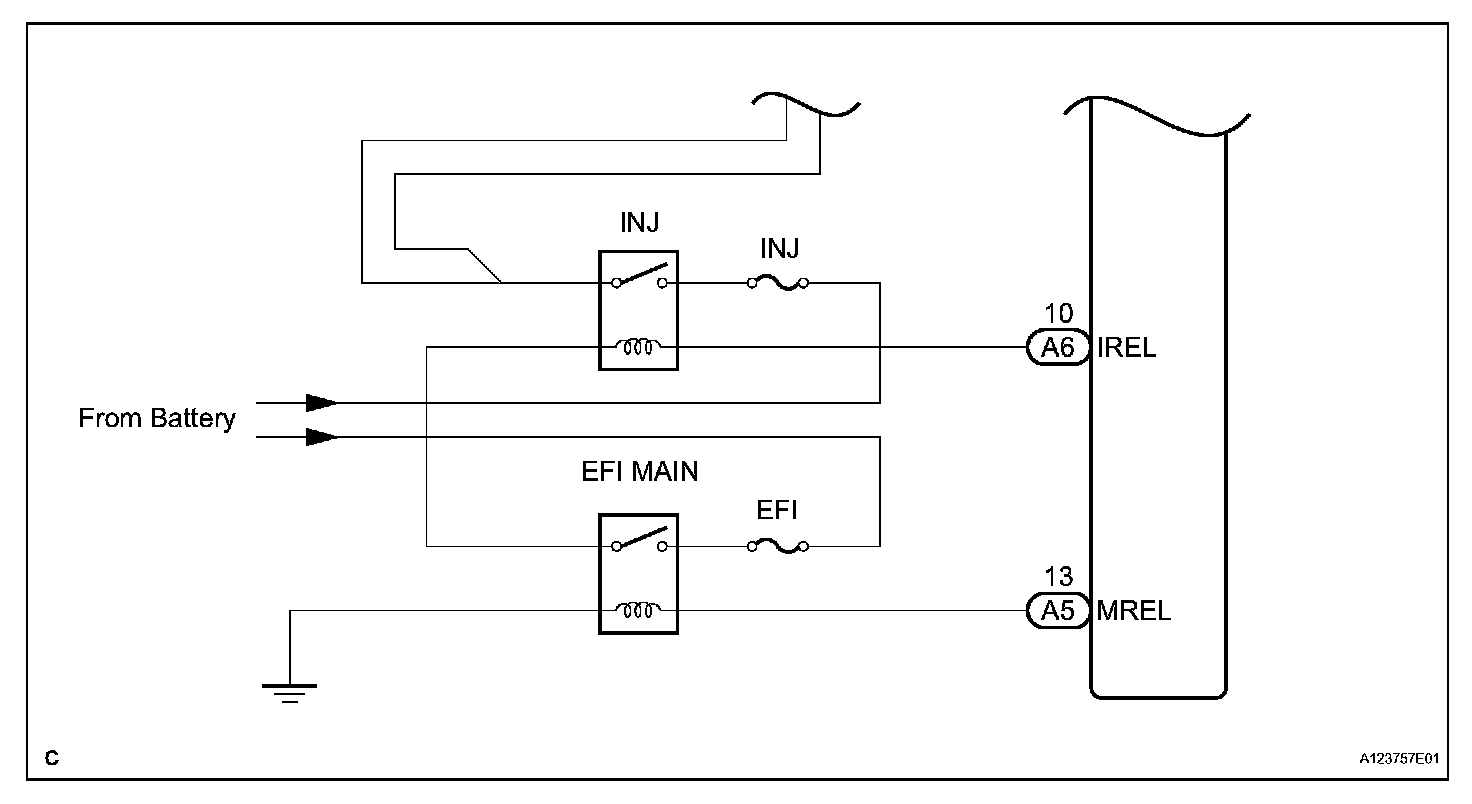

2. ELECTRICAL CONTROL DIAGRAM

System Diagram:

System Diagram:

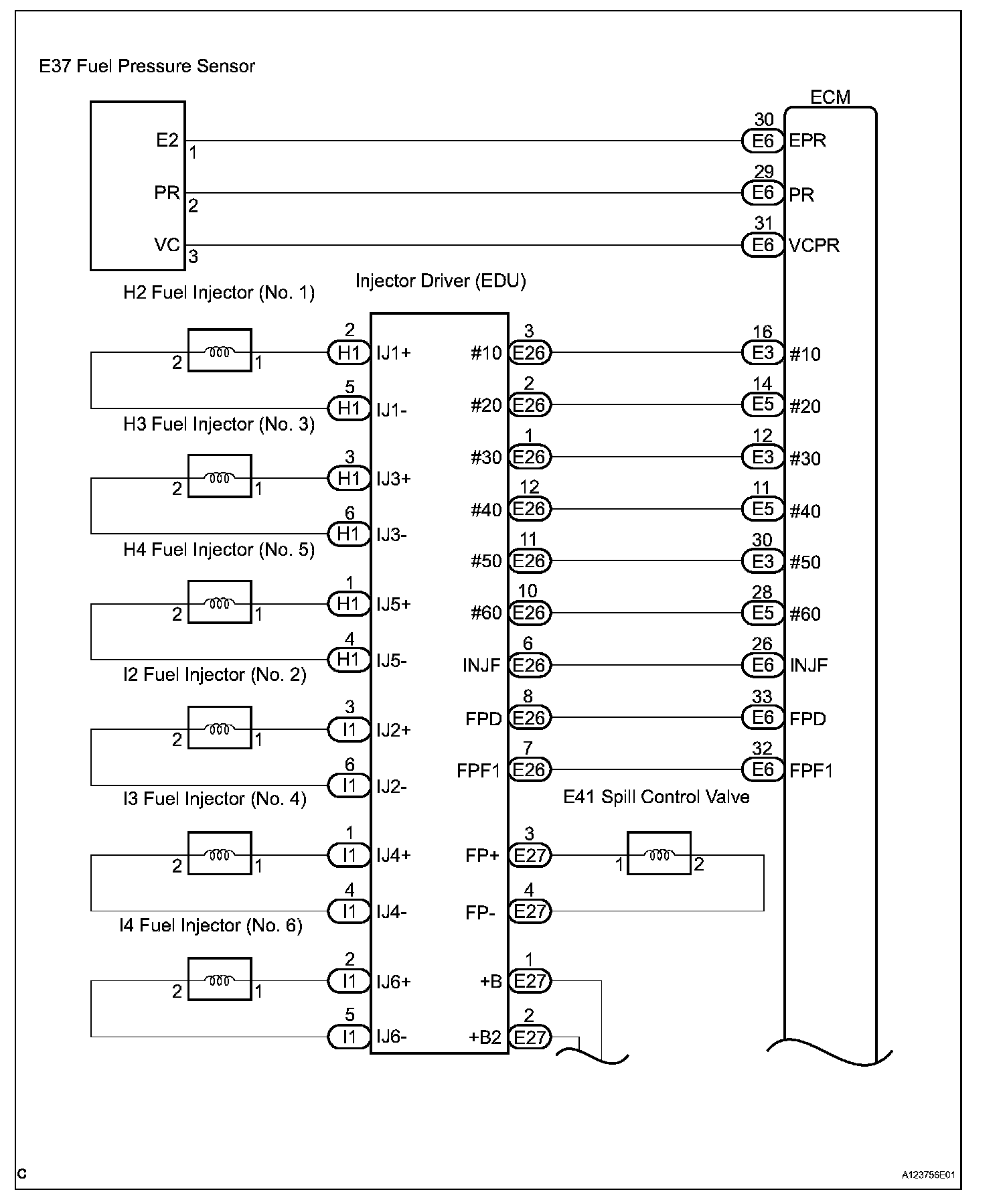

3. HIGH PRESSURE SIDE FUEL SYSTEM WIRING DIAGRAM

System Diagram:

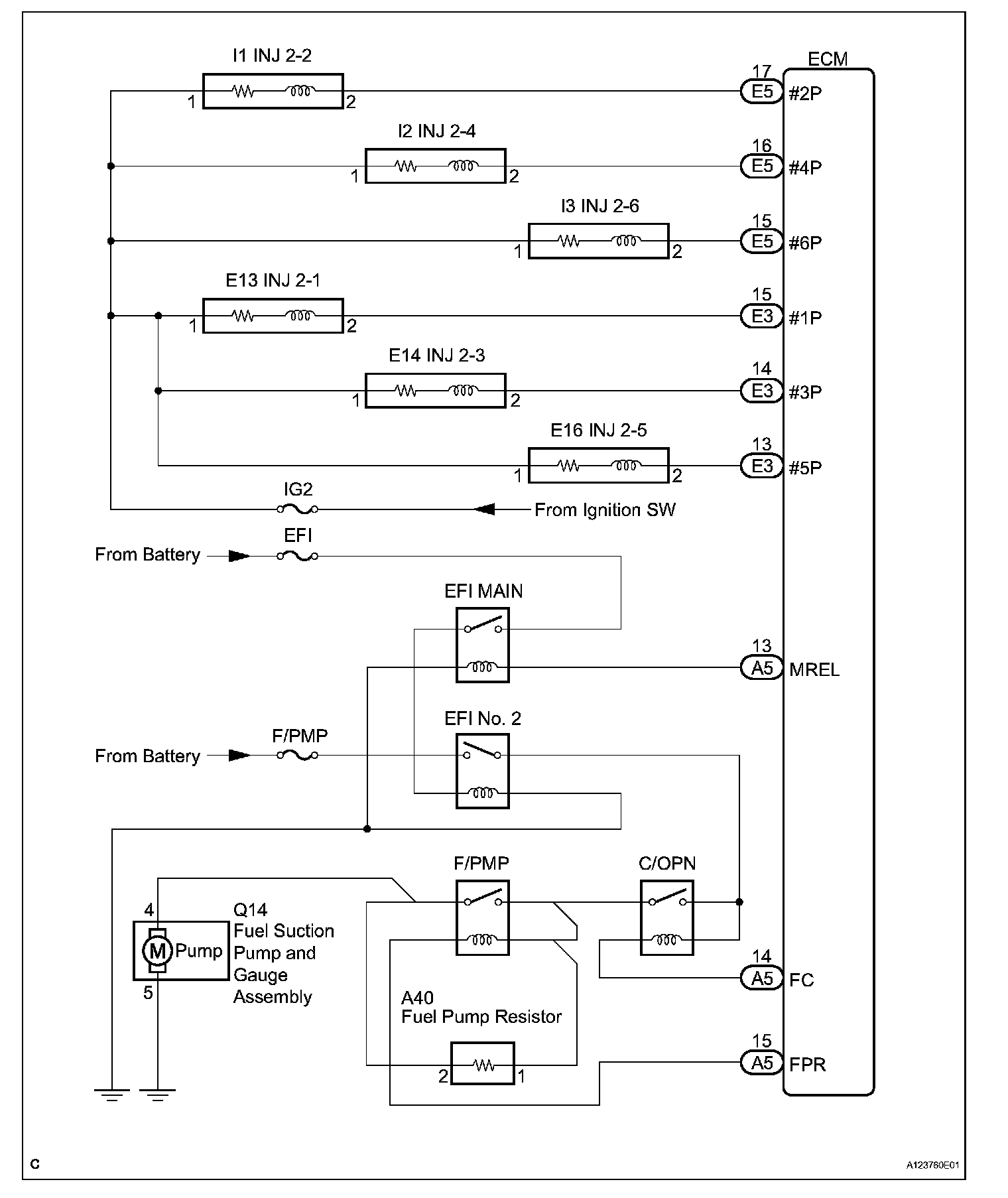

4. LOW PRESSURE SIDE FUEL SYSTEM WIRING DIAGRAM
