Heated Oxygen Sensor (For Sensor 2)
REMOVAL1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
2. REMOVE NO. 1 CONSOLE UPPER PANEL GARNISH
3. REMOVE NO. 2 CONSOLE UPPER PANEL GARNISH
4. REMOVE CONSOLE PANEL SUB-ASSEMBLY
5. REMOVE FRONT ASH RECEPTACLE SUBASSEMBLY
6. REMOVE CONSOLE BOX REGISTER ASSEMBLY
7. REMOVE CONSOLE BOX
8. DISCONNECT HEATED OXYGEN SENSOR CONNECTOR

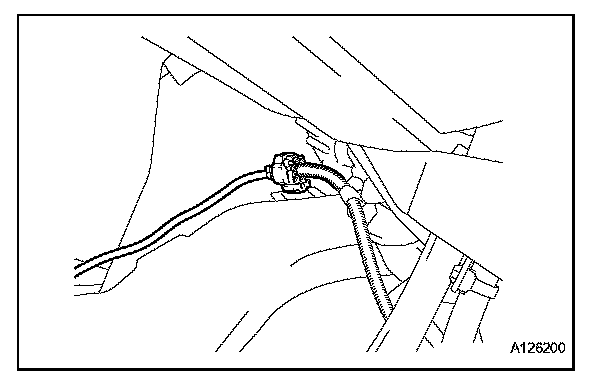

a. Disconnect the heated oxygen sensor connector (bank 1).

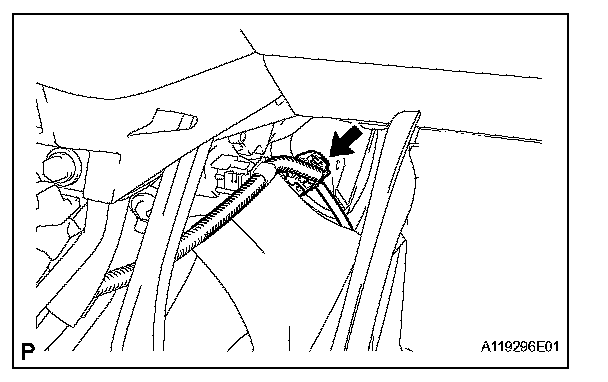

b. Disconnect the heated oxygen sensor connector (bank 2).
9. REMOVE HEATED OXYGEN SENSOR

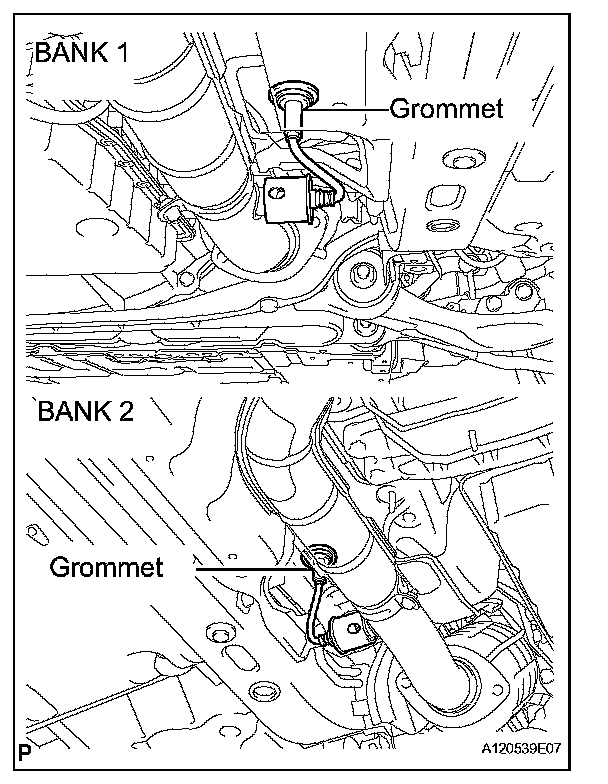

a. Disconnect the grommets from the body.

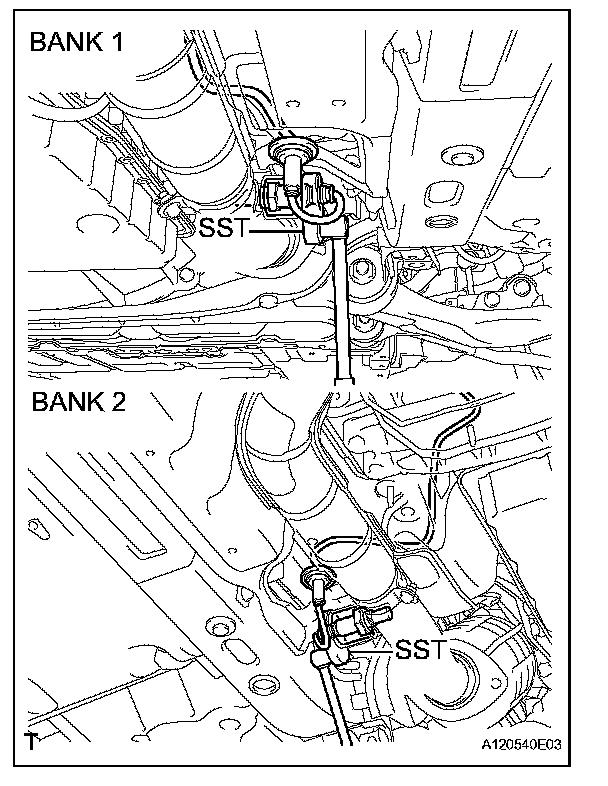

b. Using the SST, remove the heated oxygen sensors from the exhaust pipe assembly.
SST 09224-00010
INSTALLATION
1. INSTALL HEATED OXYGEN SENSOR

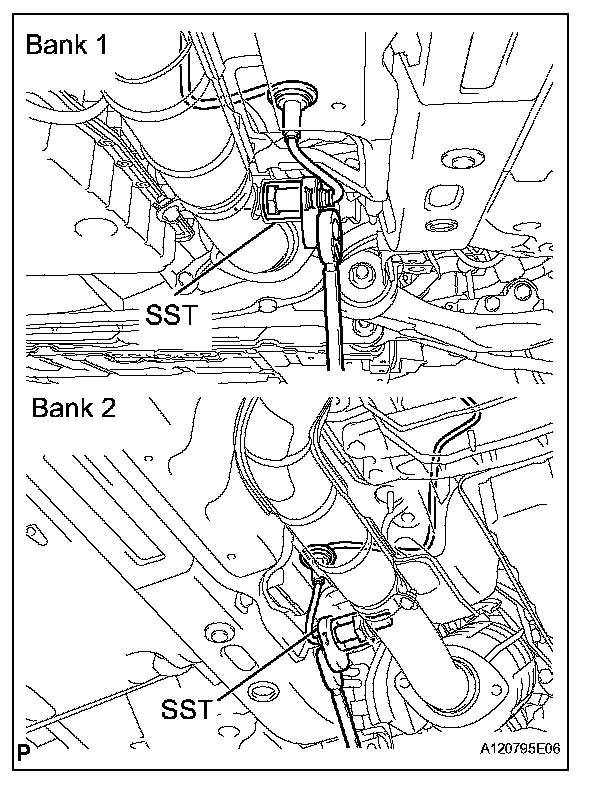

a. Using SST, install the heated oxygen sensors.
SST 09224-00010
Torque:40 N.m (408 kgf.cm, 30 ft.lbf)

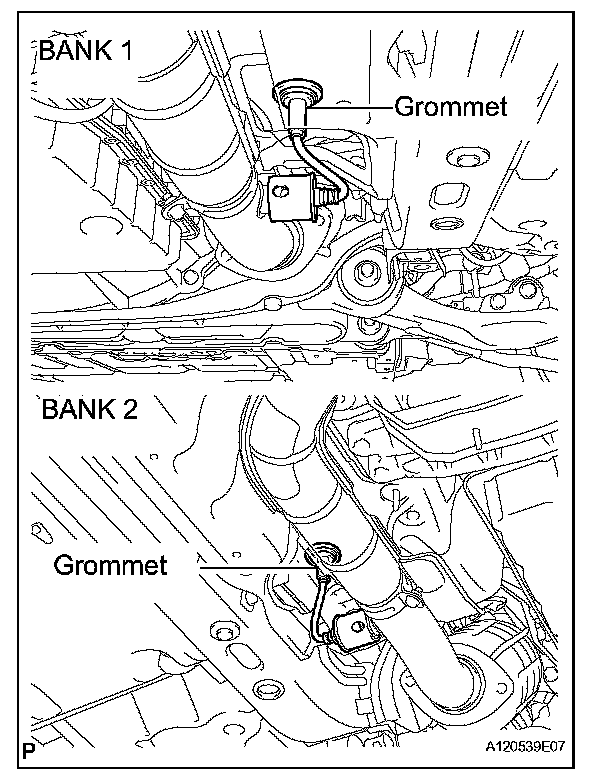

b. Pass the heated oxygen sensor connectors through the floor panel and install the grommets.
2. CONNECT HEATED OXYGEN SENSOR CONNECTOR
a. Connect the heated oxygen sensor connector (bank 2).

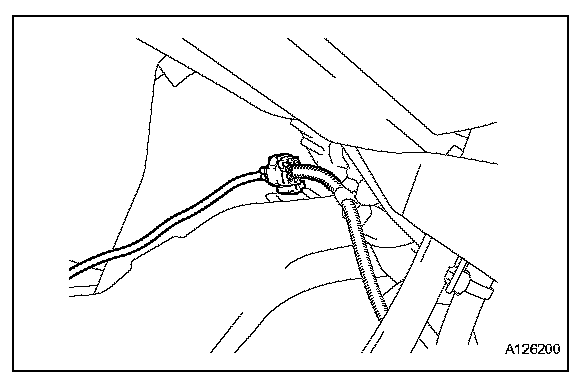

b. Connect the heated oxygen sensor connector (bank 1).
3. INSTALL CONSOLE BOX
4. INSTALL CONSOLE BOX REGISTER ASSEMBLY
5. INSTALL FRONT ASH RECEPTACLE SUBASSEMBLY
6. INSTALL CONSOLE PANEL SUB-ASSEMBLY
7. INSTALL NO. 2 CONSOLE UPPER PANEL GARNISH
8. INSTALL NO. 1 CONSOLE UPPER PANEL GARNISH
9. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
