SFI System

DIAGNOSTIC TROUBLE CODE CHART

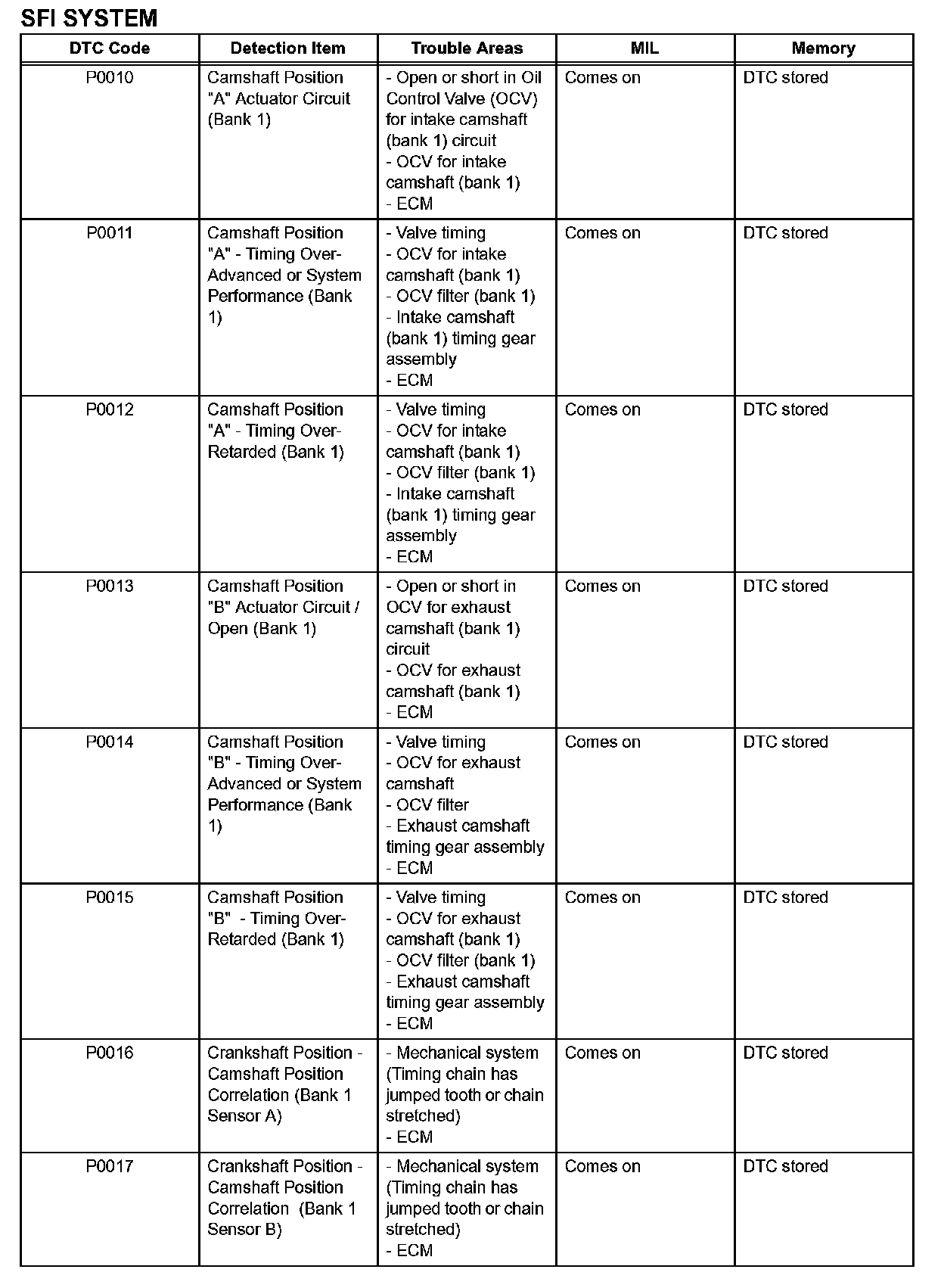

P0010-P0017:

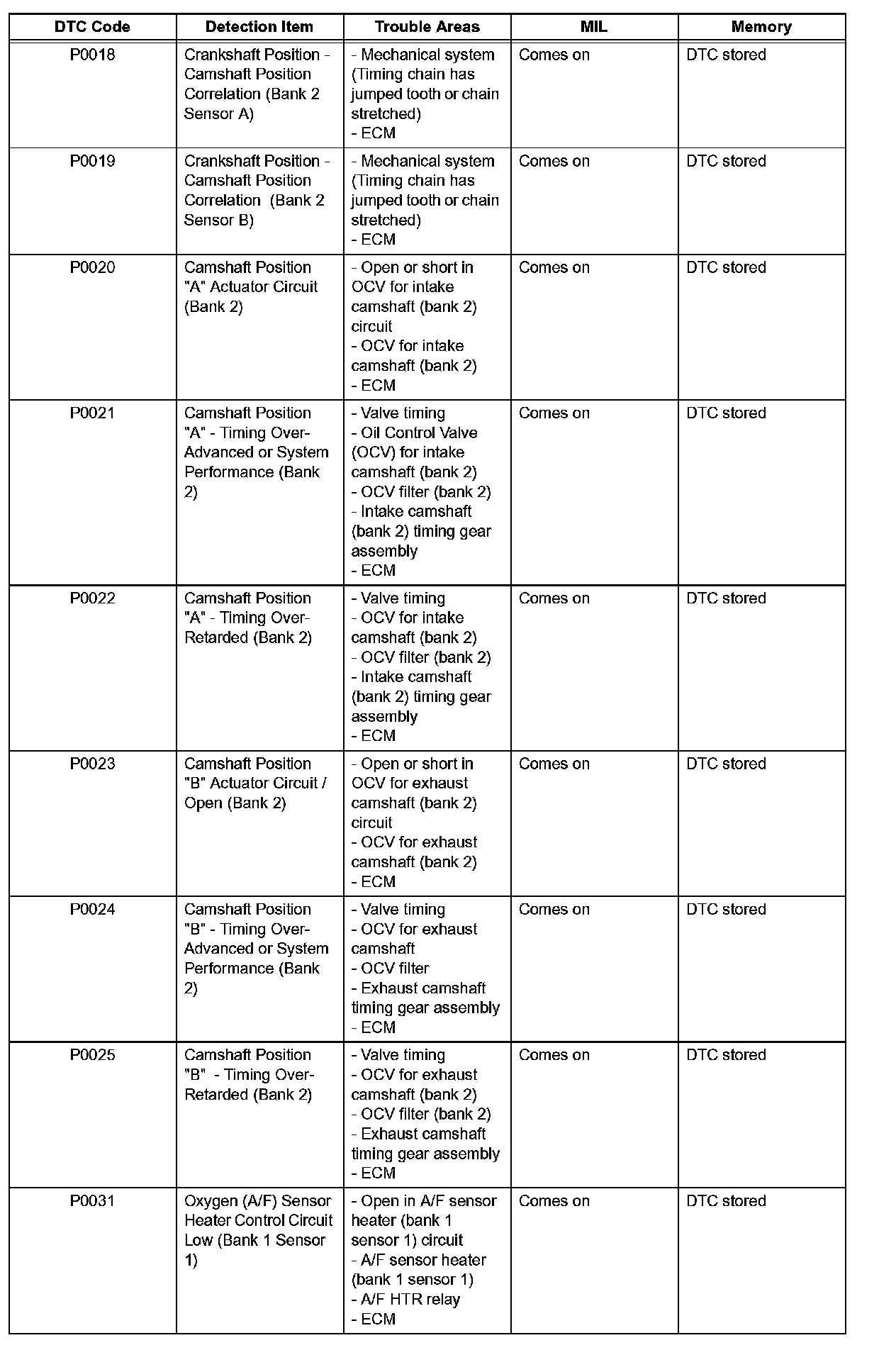

P0018-P0031:

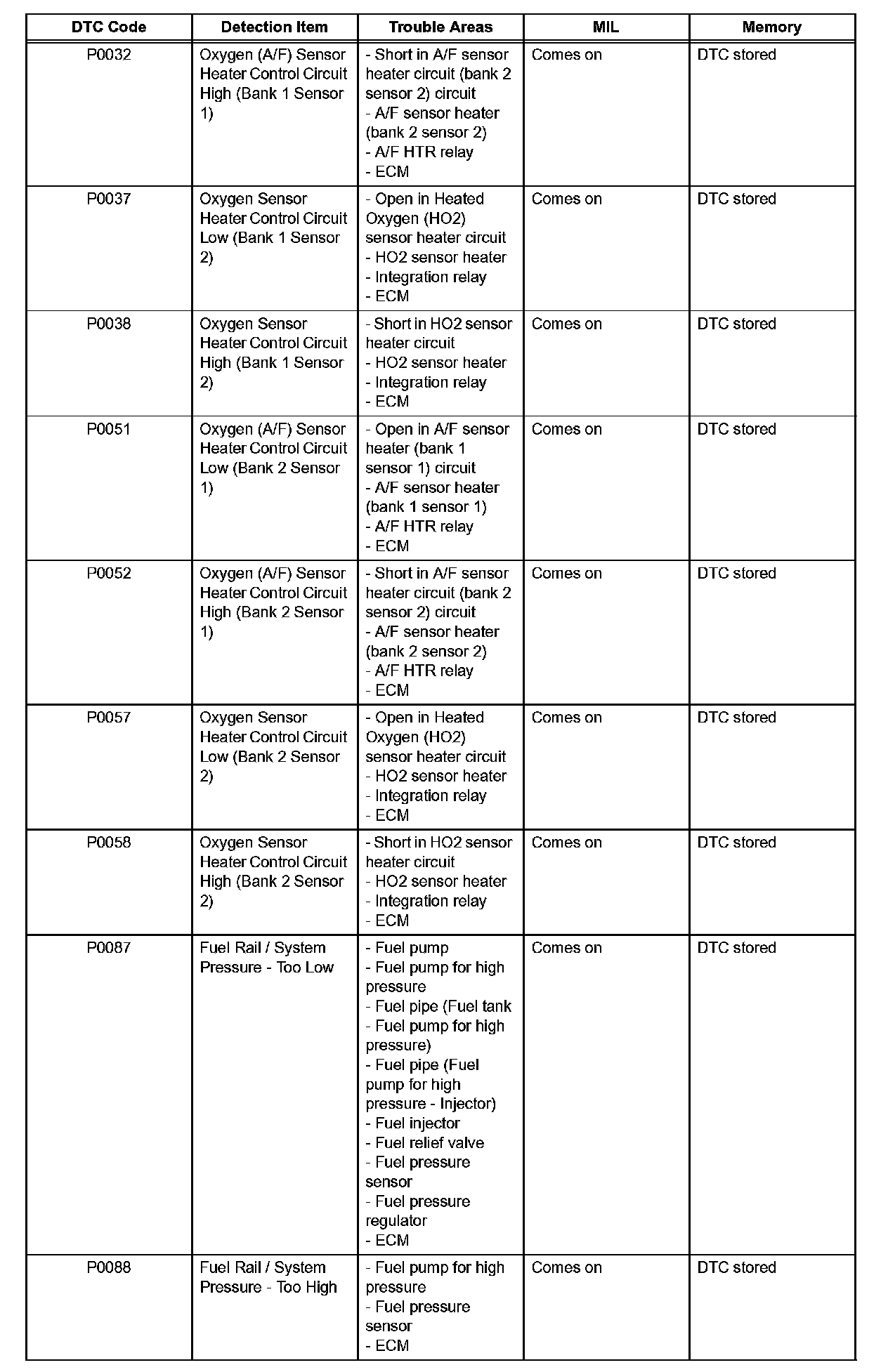

P0032-P0088:

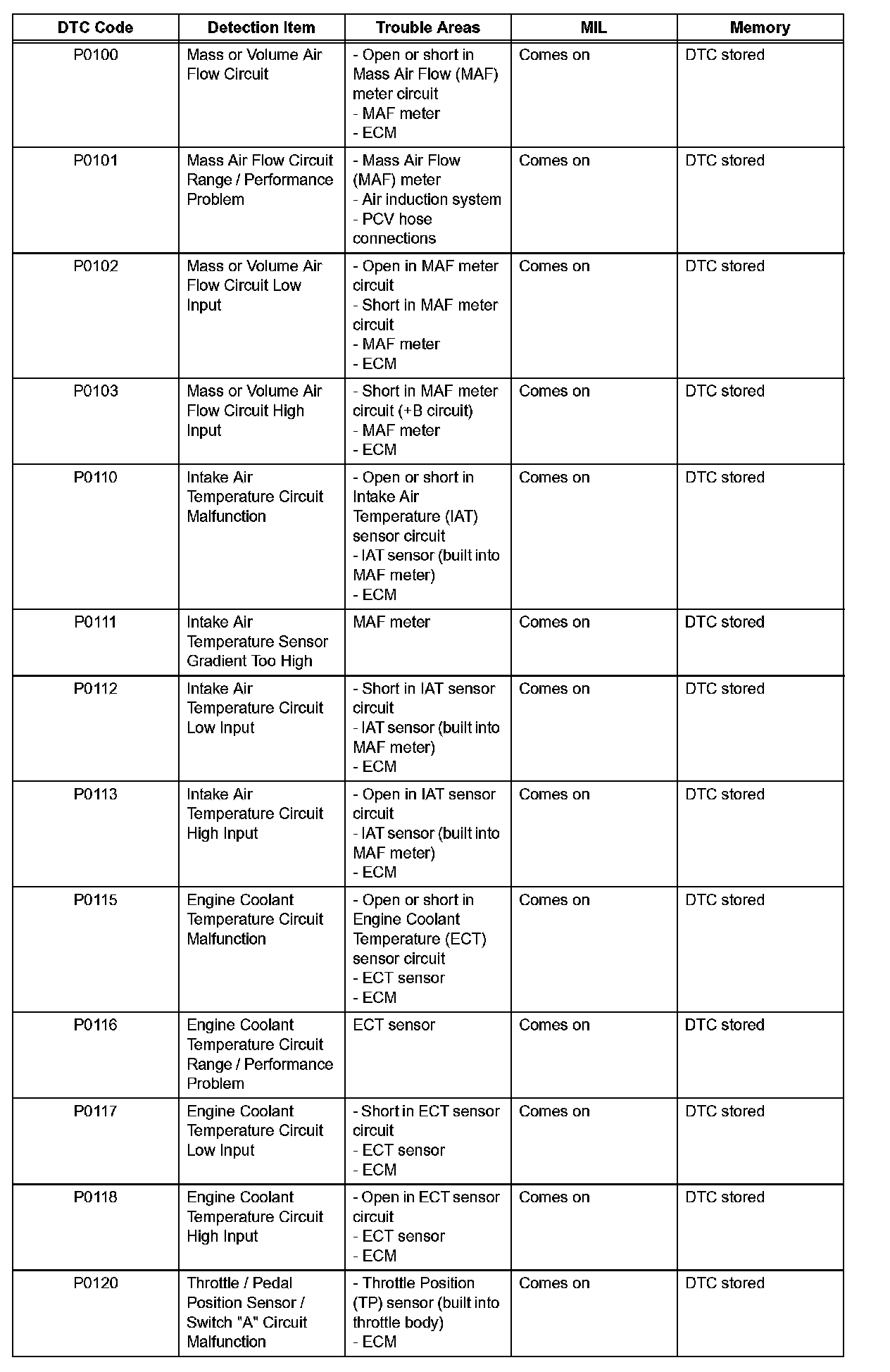

P0100-P0120:

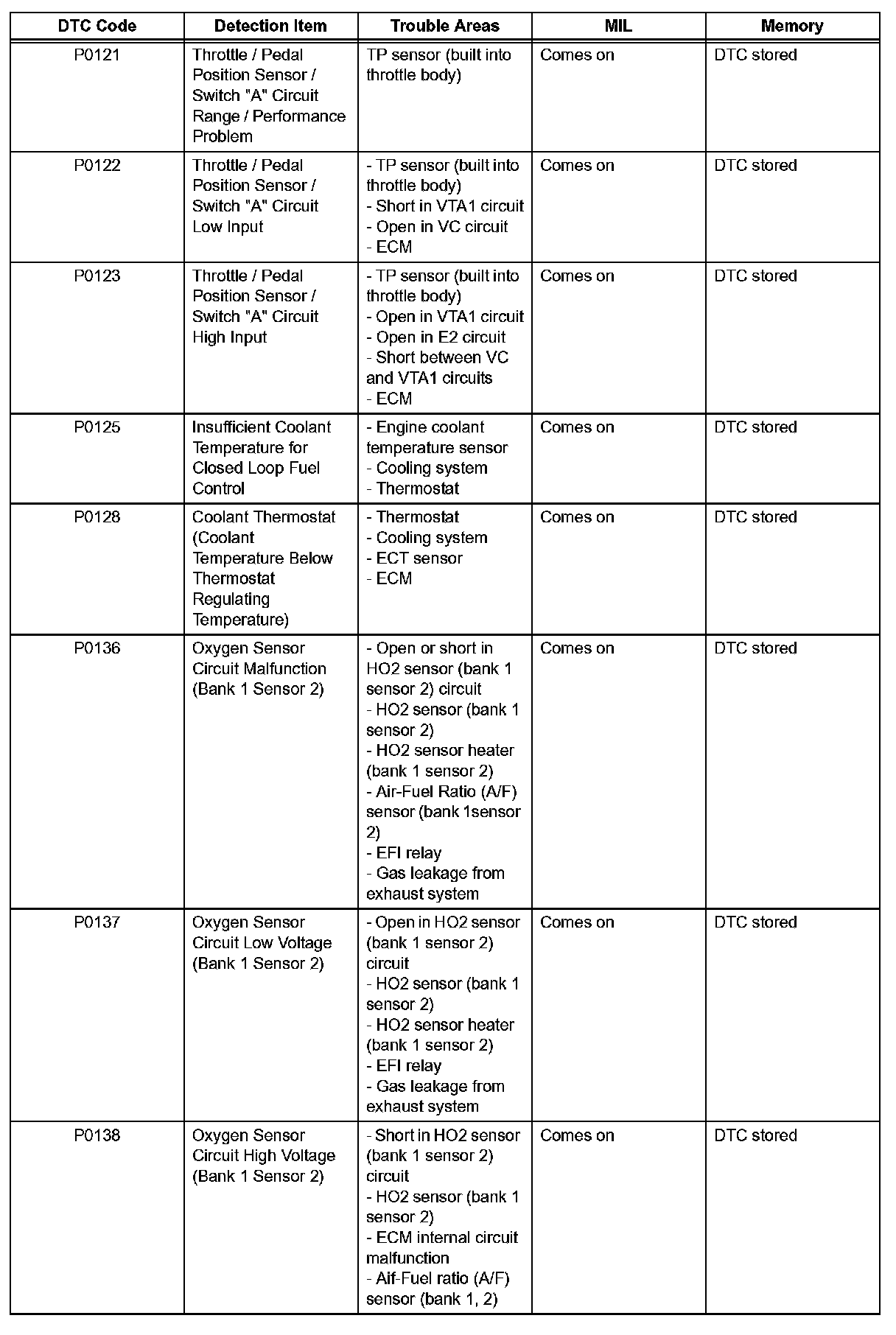

P0121-P0138:

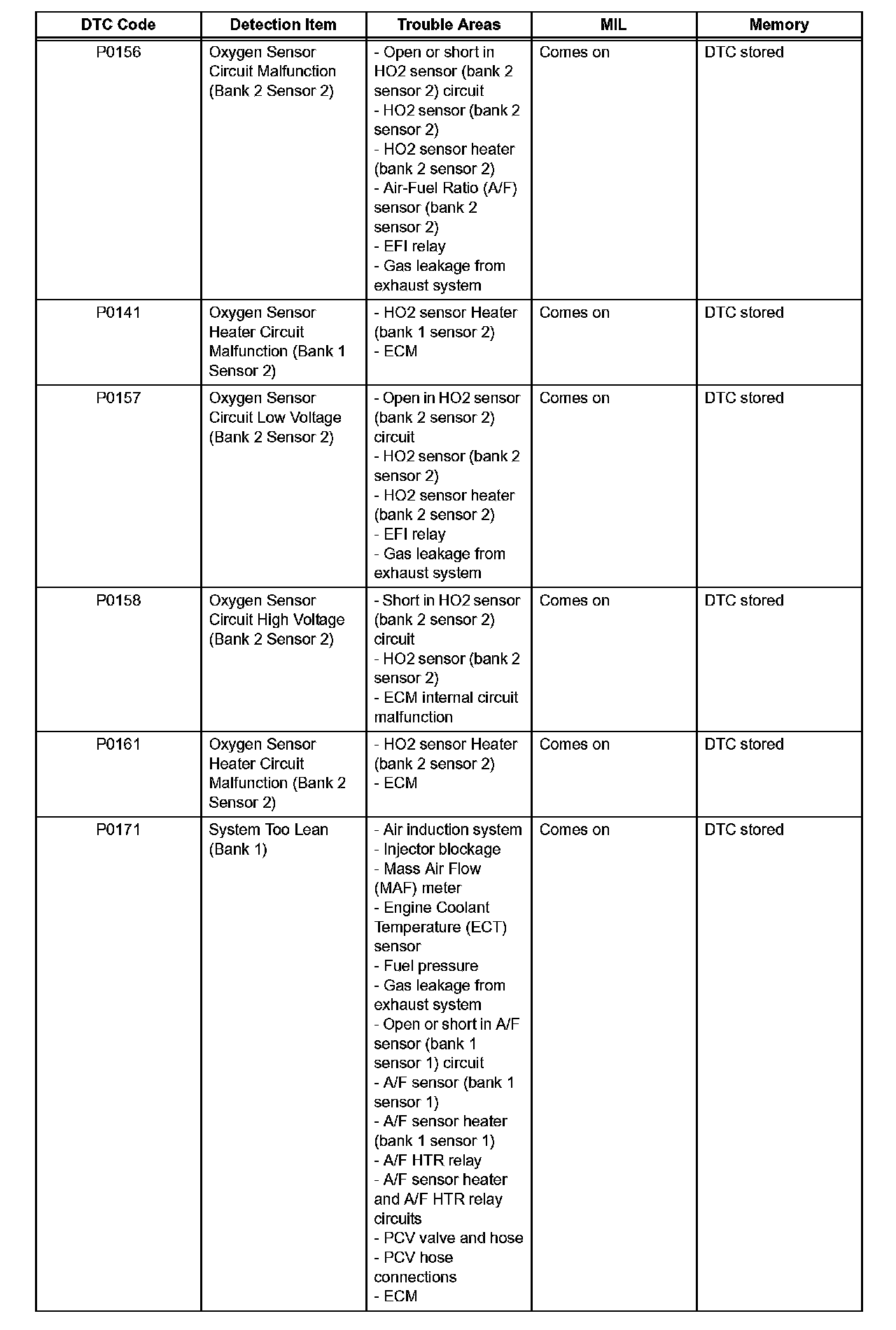

P0156-P0171:

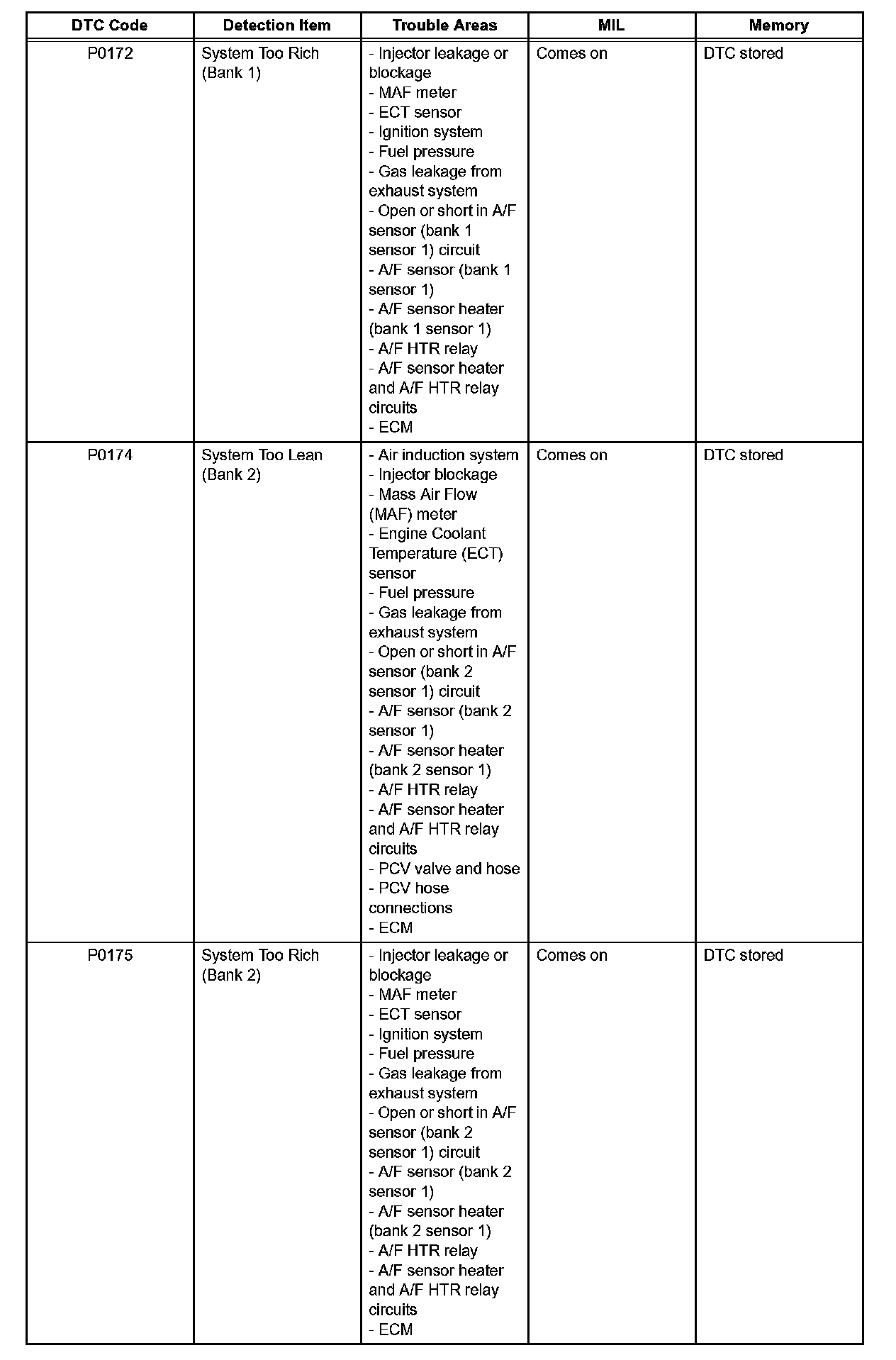

P0172-P0175:

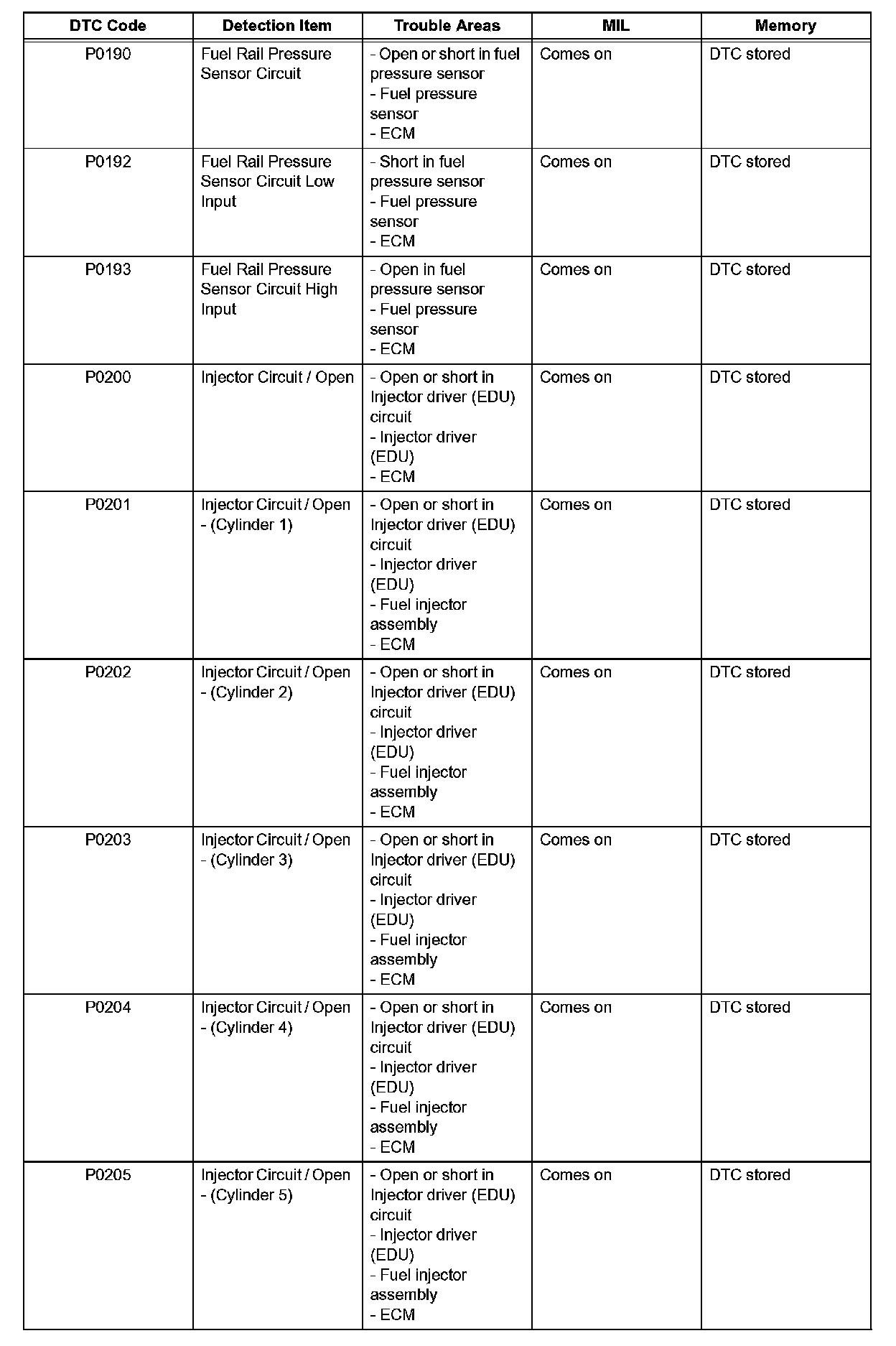

P0190-P0205:

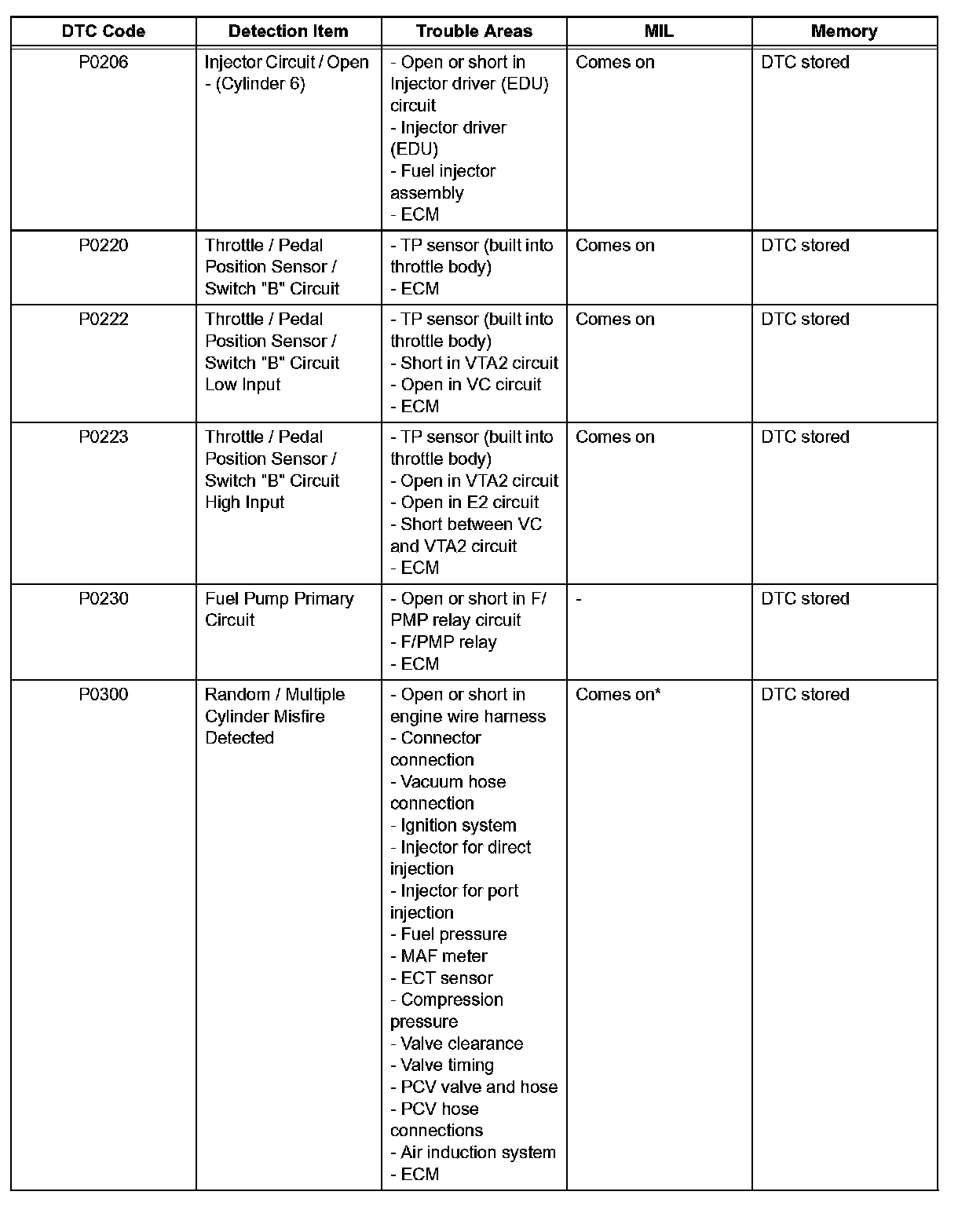

P0206-P0300:

P0301-P0302:

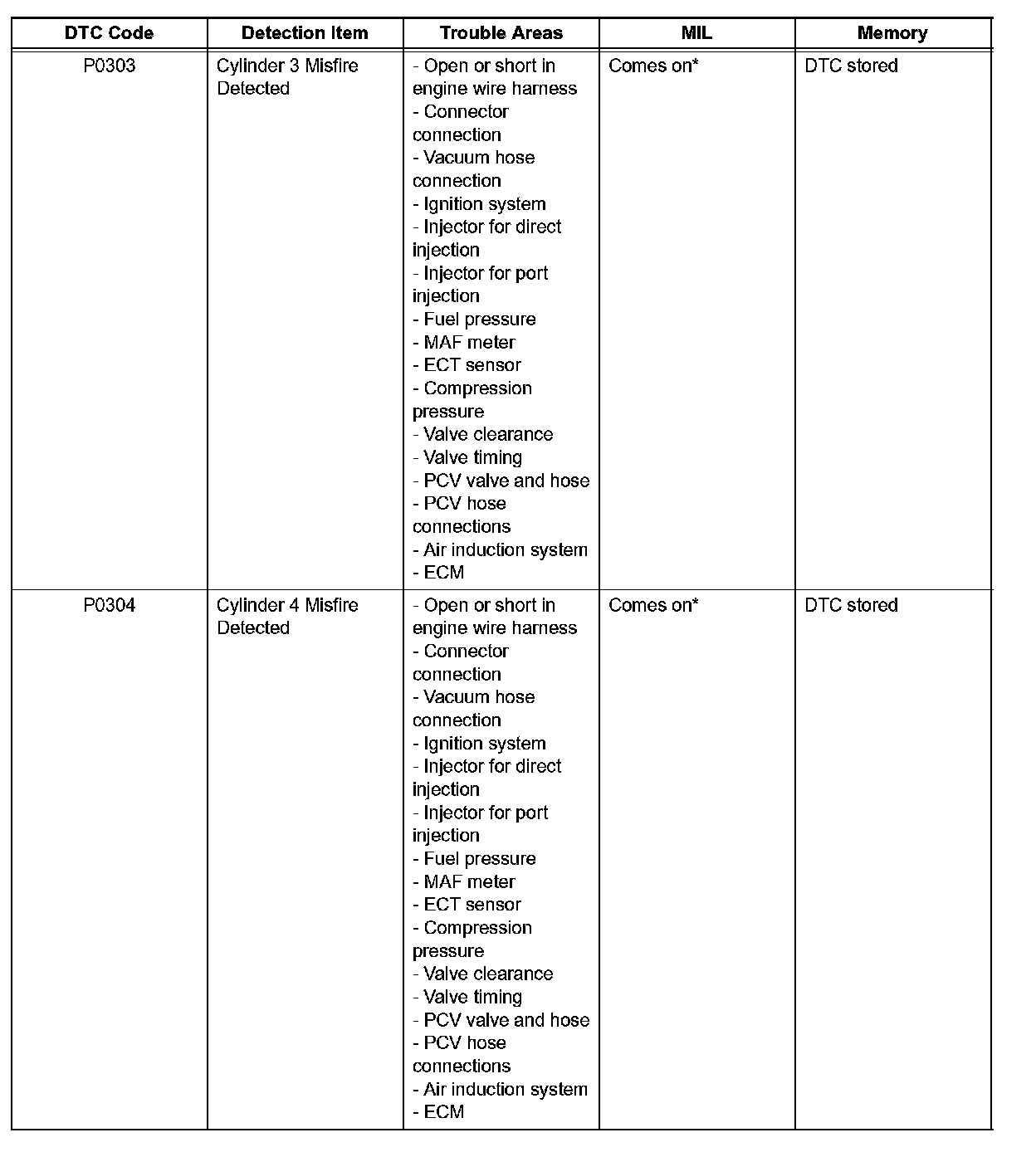

P0303-P0304:

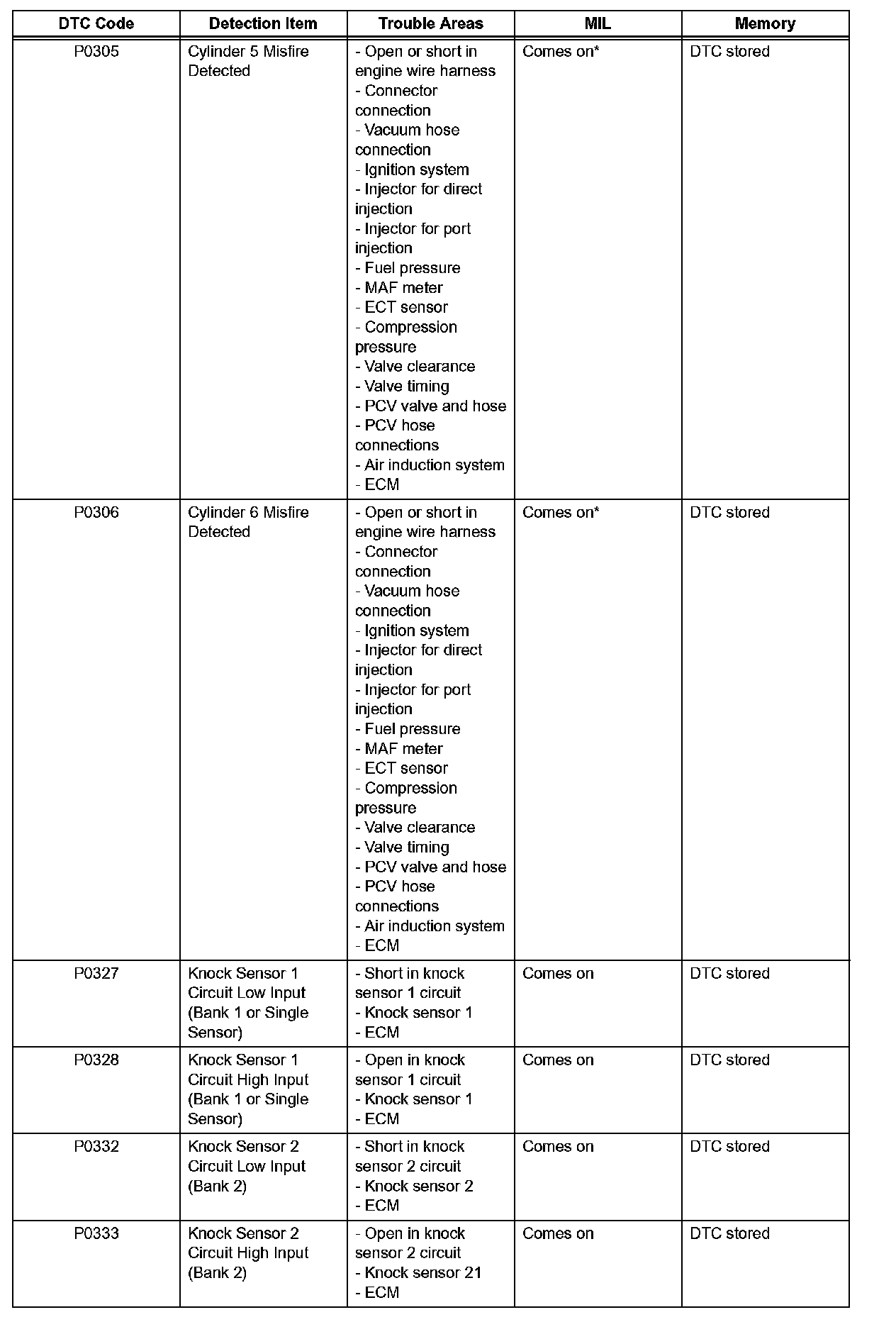

P0305-P0333:

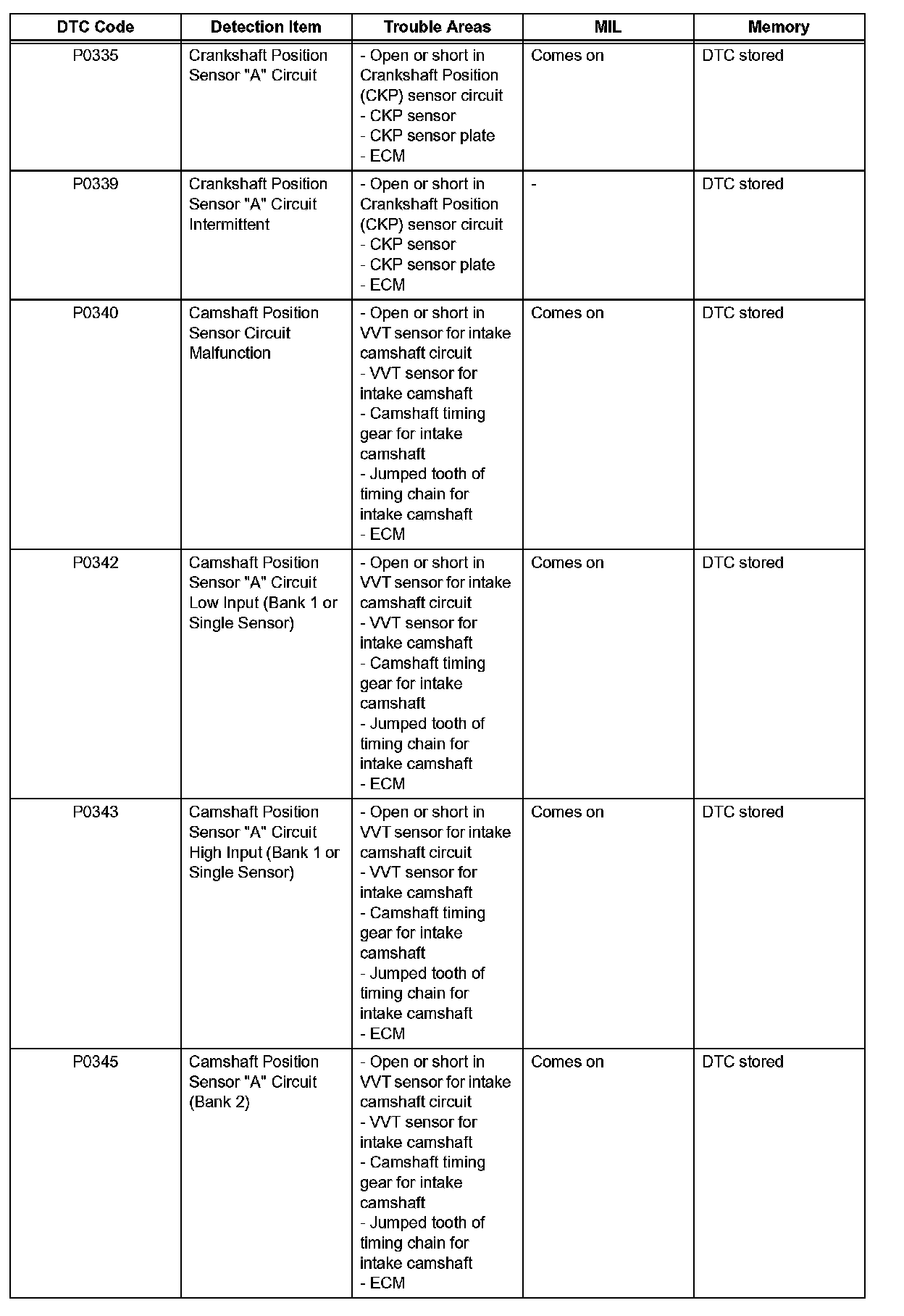

P0335-P0345:

P0347-P0358:

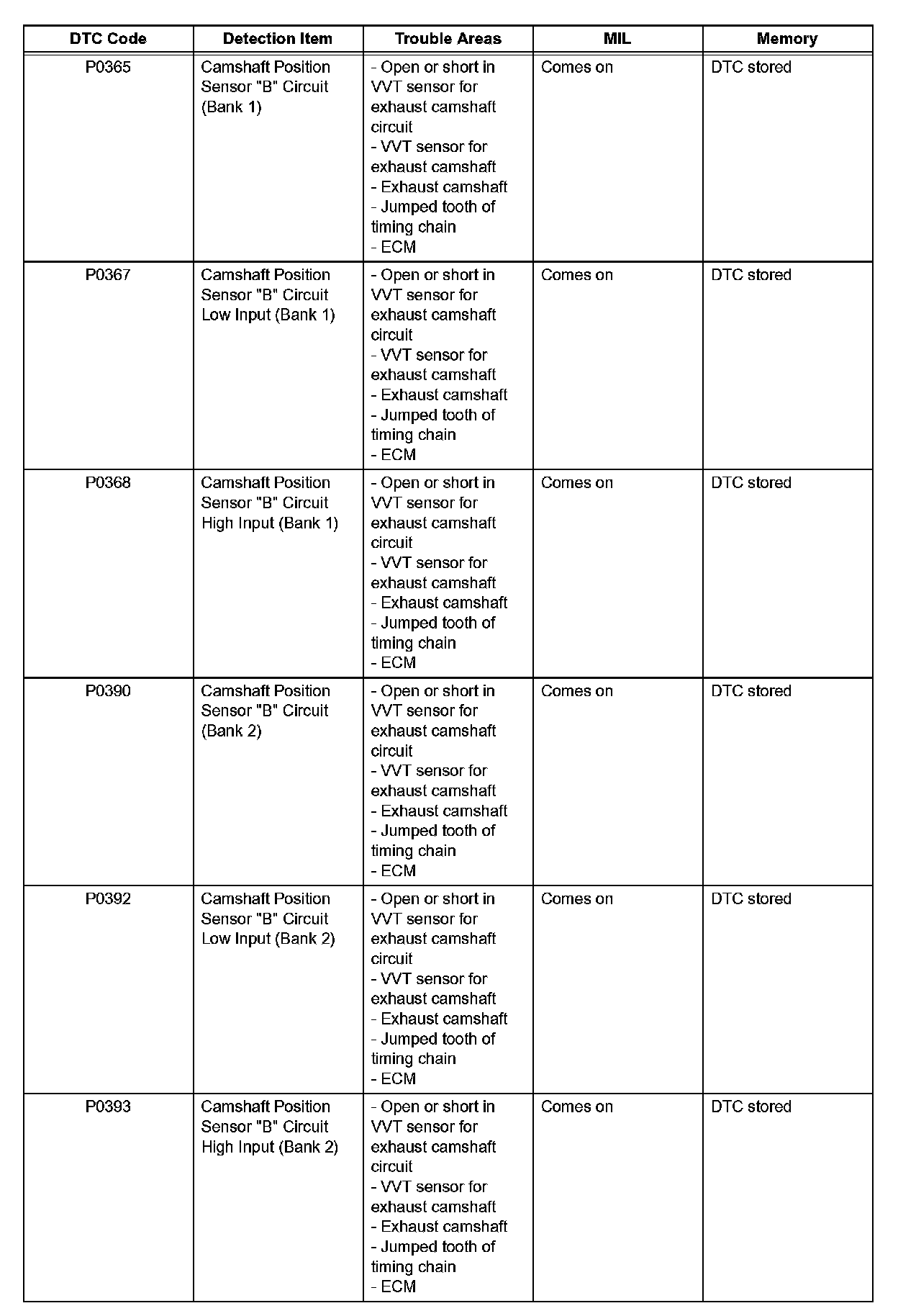

P0365-P0393:

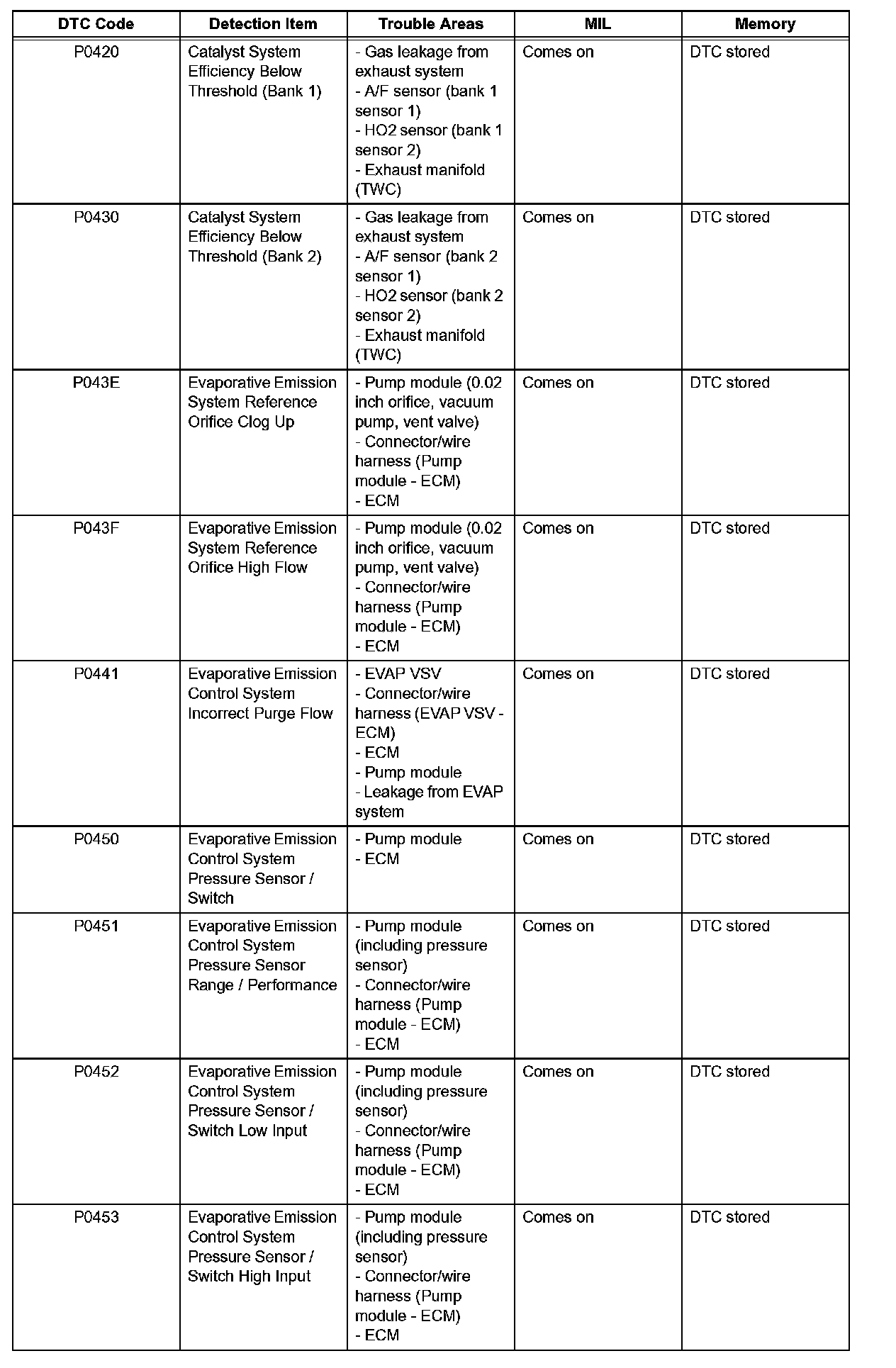

P0420-P0453:

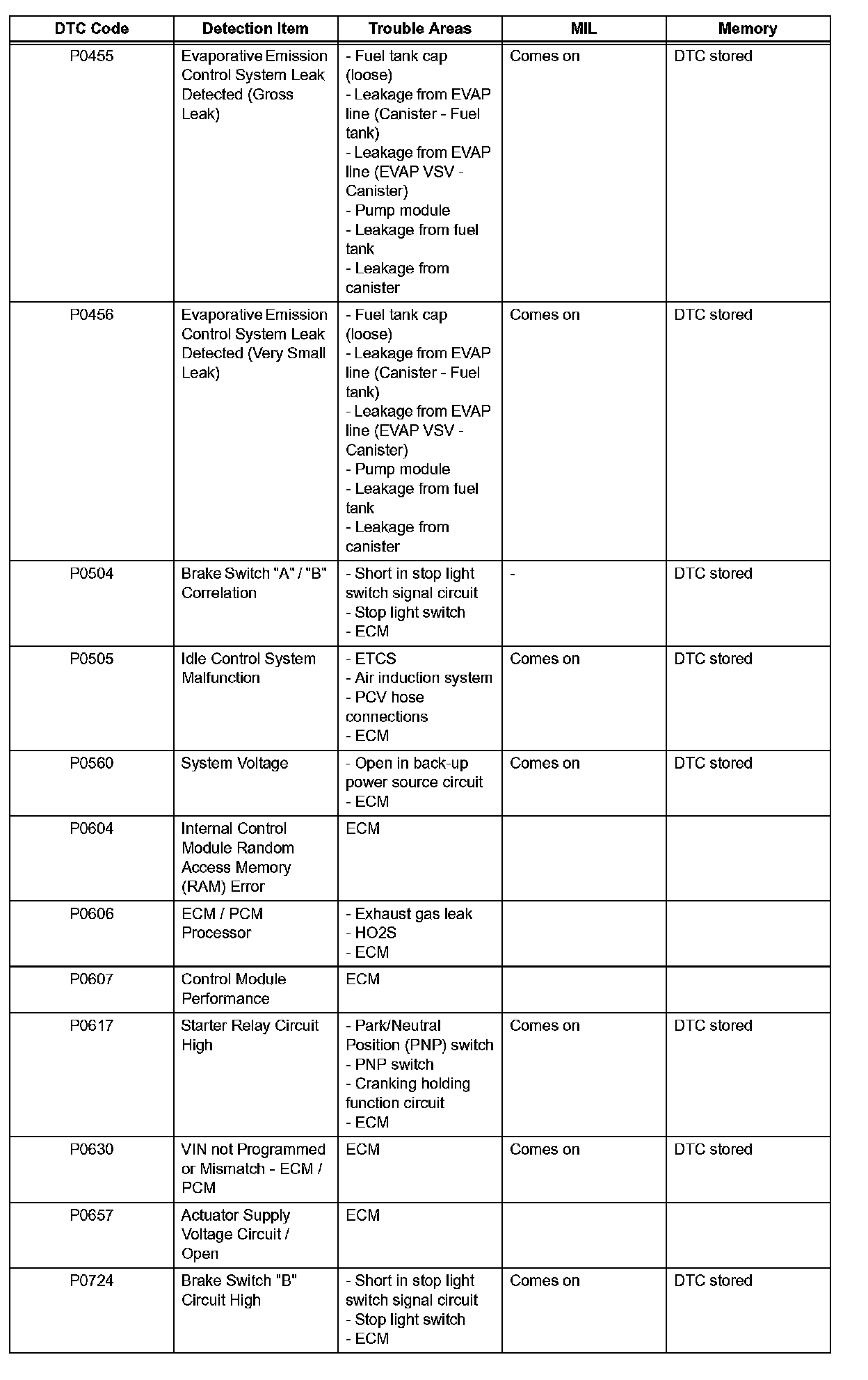

P0455-P0724:

P1235-P2111:

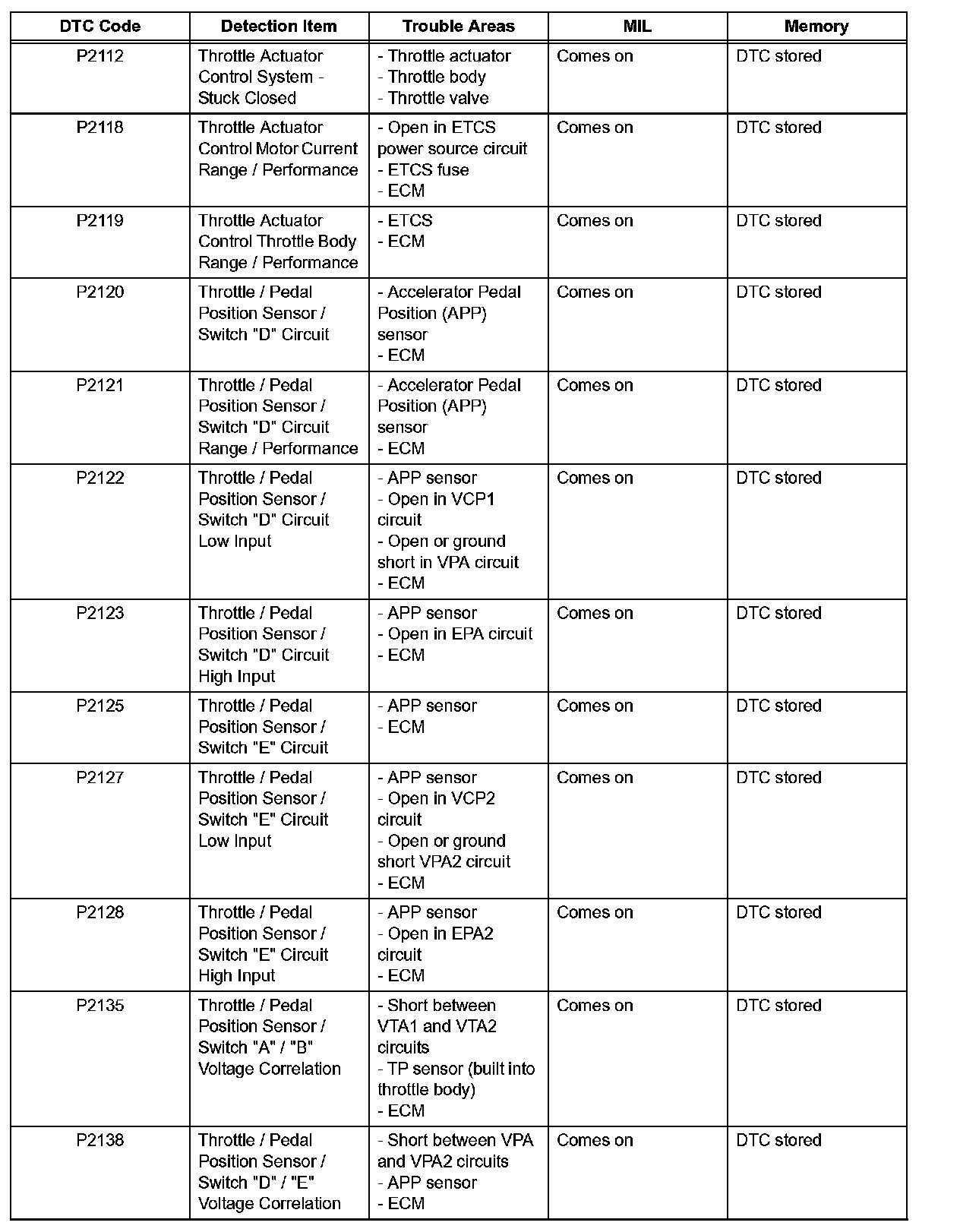

P2112-P2138:

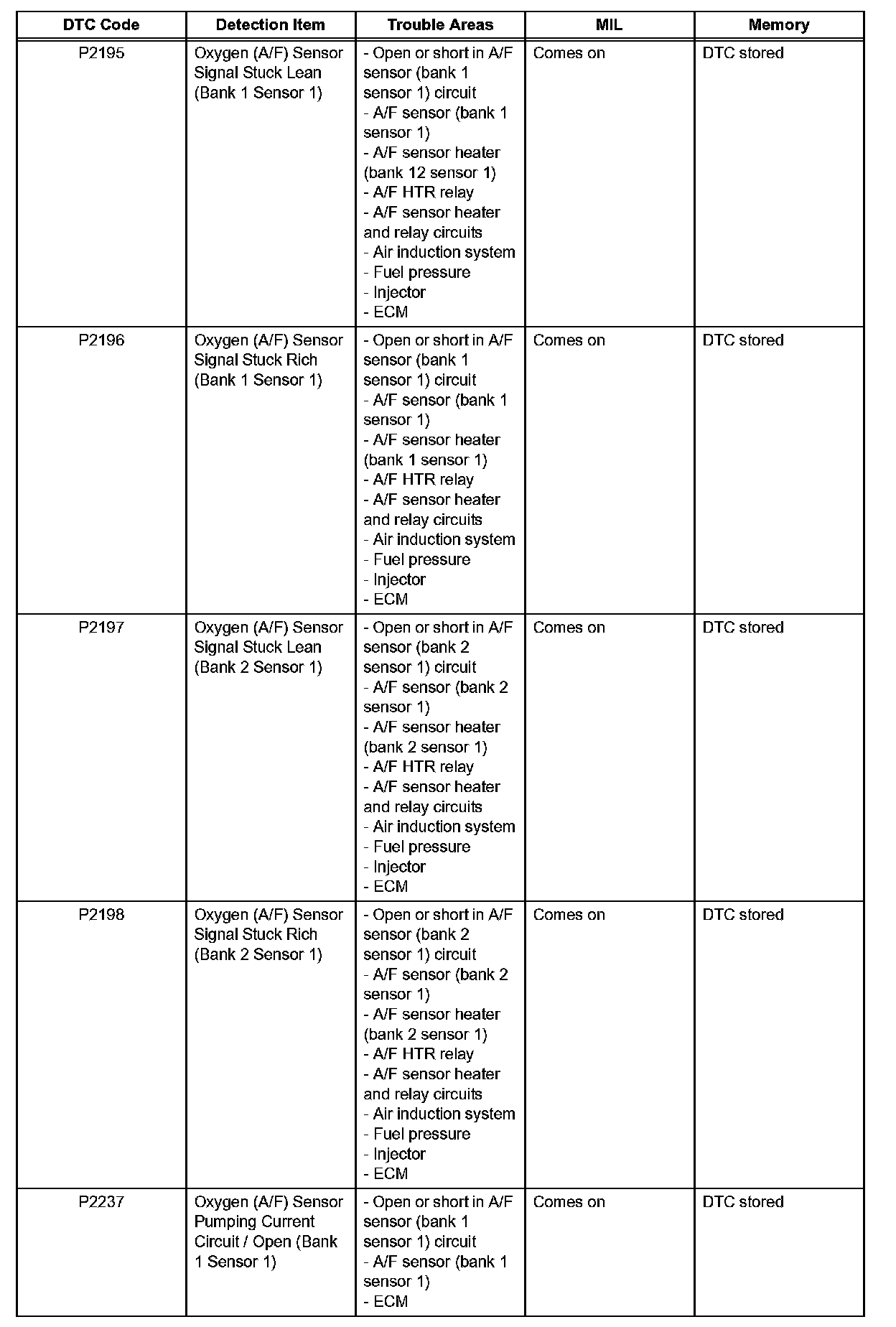

P2195-P2237:

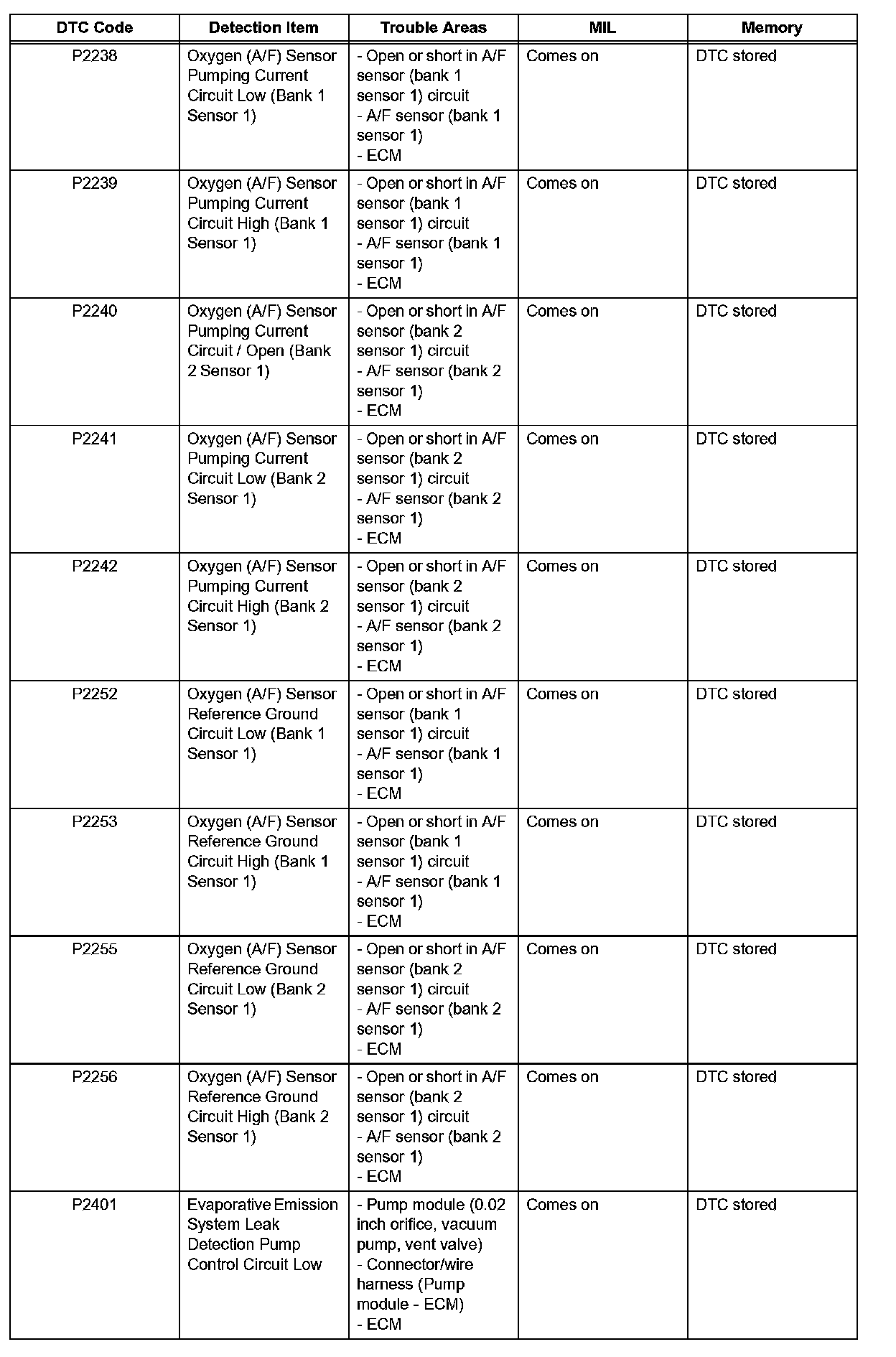

P2238-P2401:

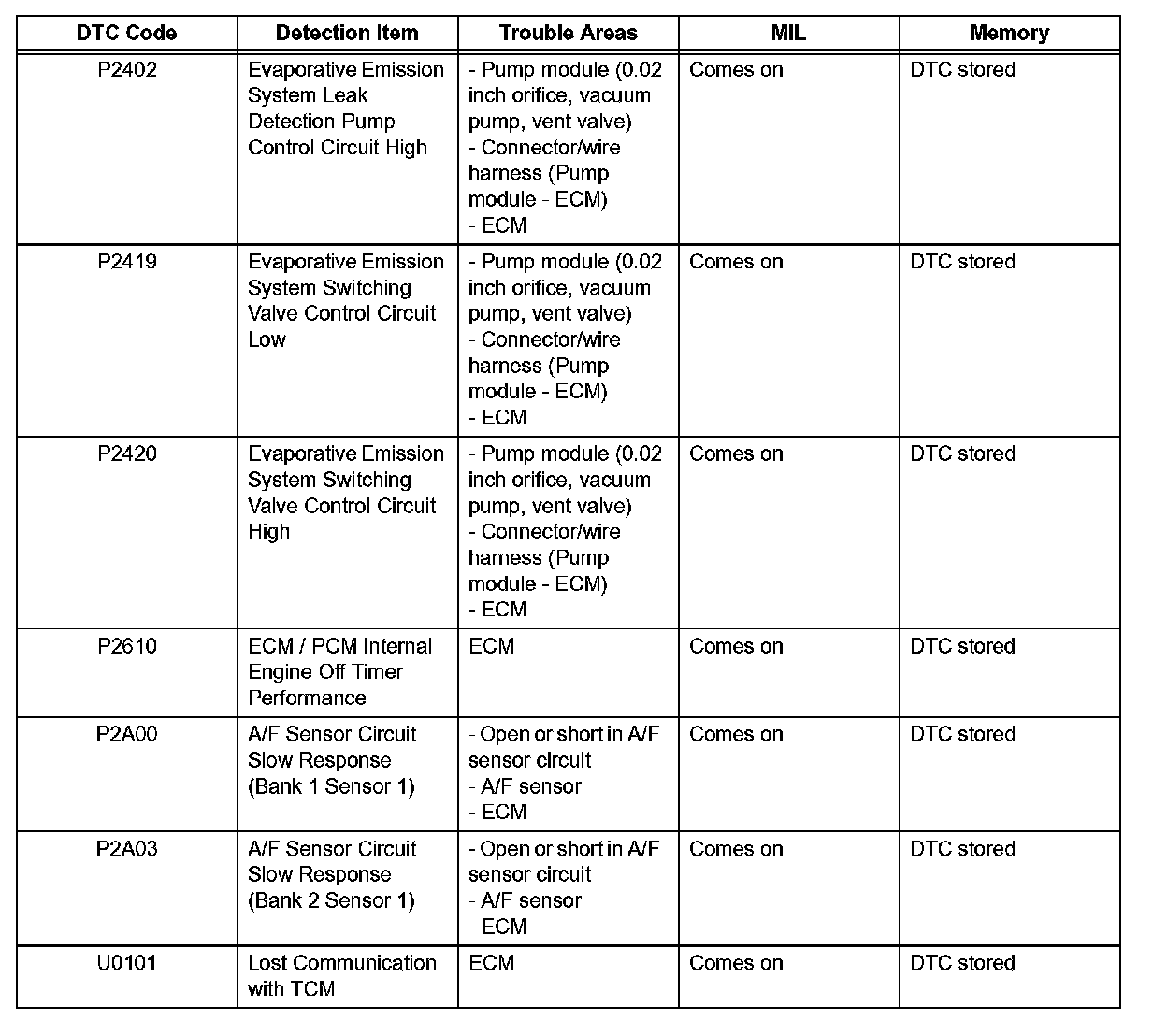

P2402-P2A03 / U0101:

HINT: Parameters listed in the chart may not be exactly the same as your readings due to the type of instrument or other factors. If a DTC is displayed, check the trouble area for the DTC listed in the table, For details of each DTC.

*: MIL flashes when a catalyst damaged misfire is detected.
