Wiper and Washer Switch Circuit

Wiper and Washer Switch Circuit

DESCRIPTION

This circuit provides power to operate the windshield wiper switch assembly. The manual operation signals are sent to the main body ECU LH (cowl side J/B LH).

Wiring Diagram:

Step 1:

Step 1 (Continued)-2:

Step 2 (Continued):

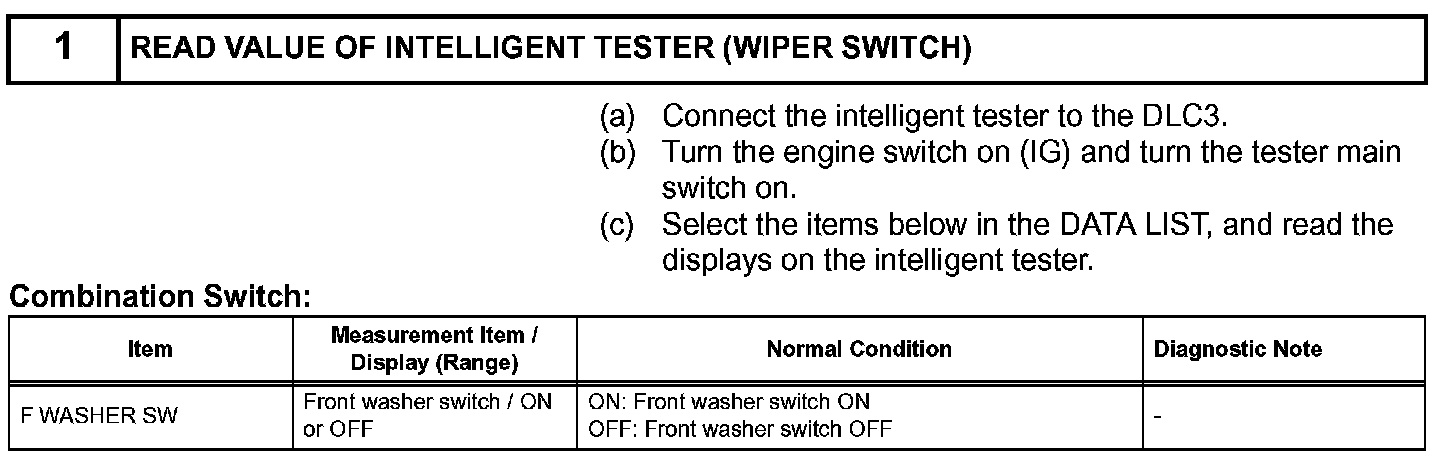

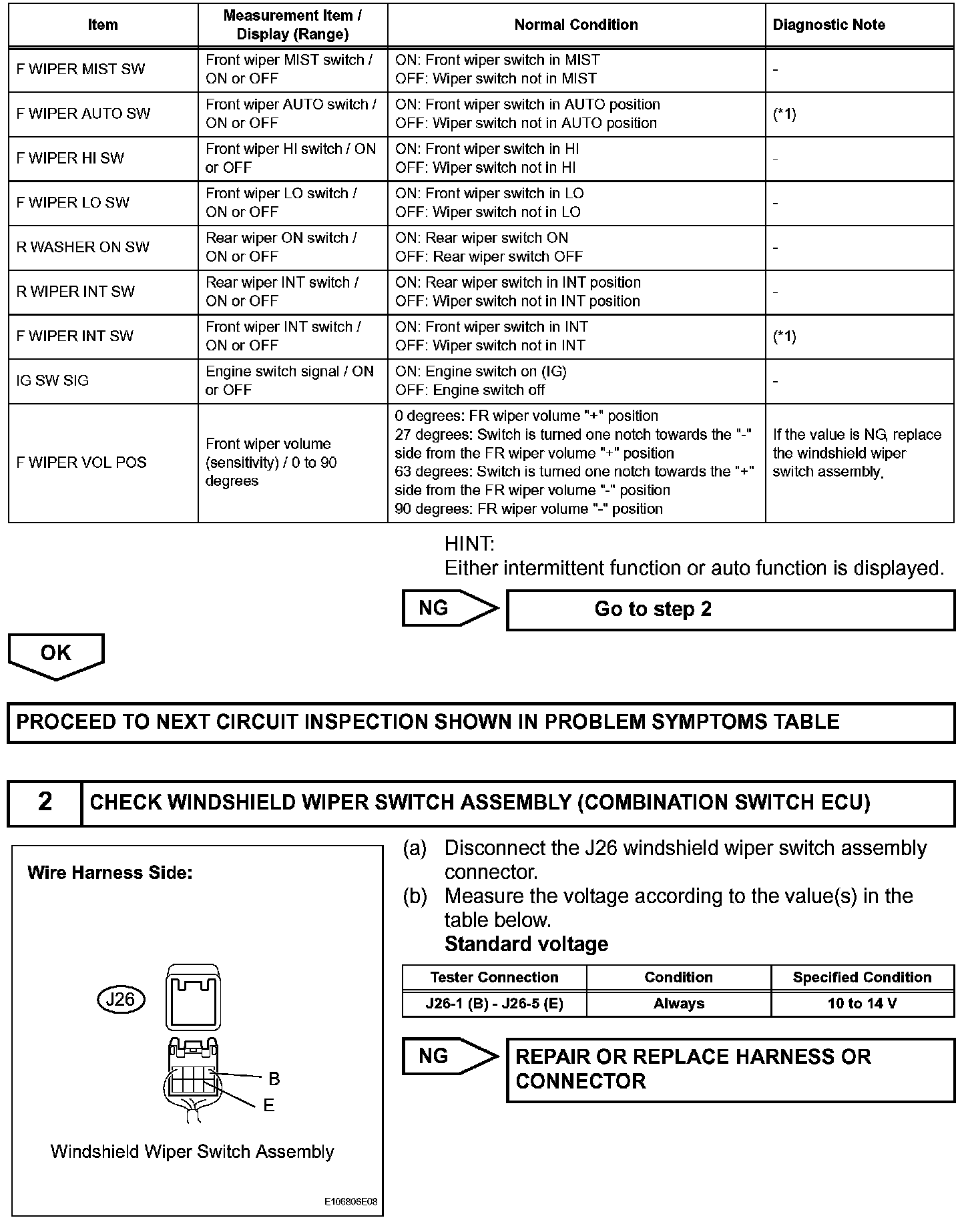

INSPECTION PROCEDURE

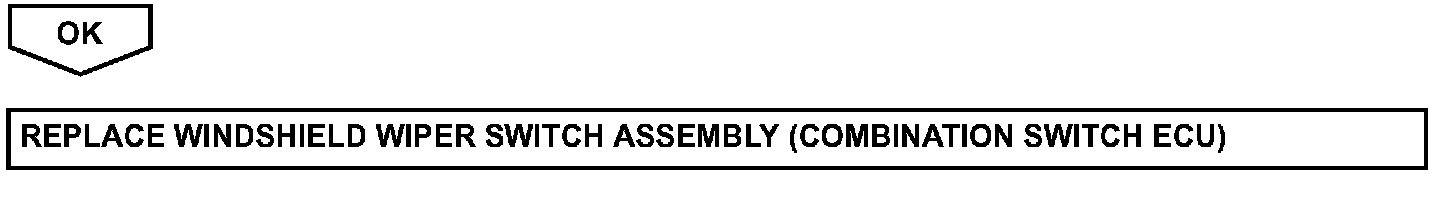

HINT: Before starting the given procedure, check that multiplex communication system (MPX) DTCs are not output.
