Washer Motor Circuit

Washer Motor Circuit

DESCRIPTION

The front controller receives washer switch condition (on or off) information from the windshield wiper switch assembly, and operates the WASH relay.

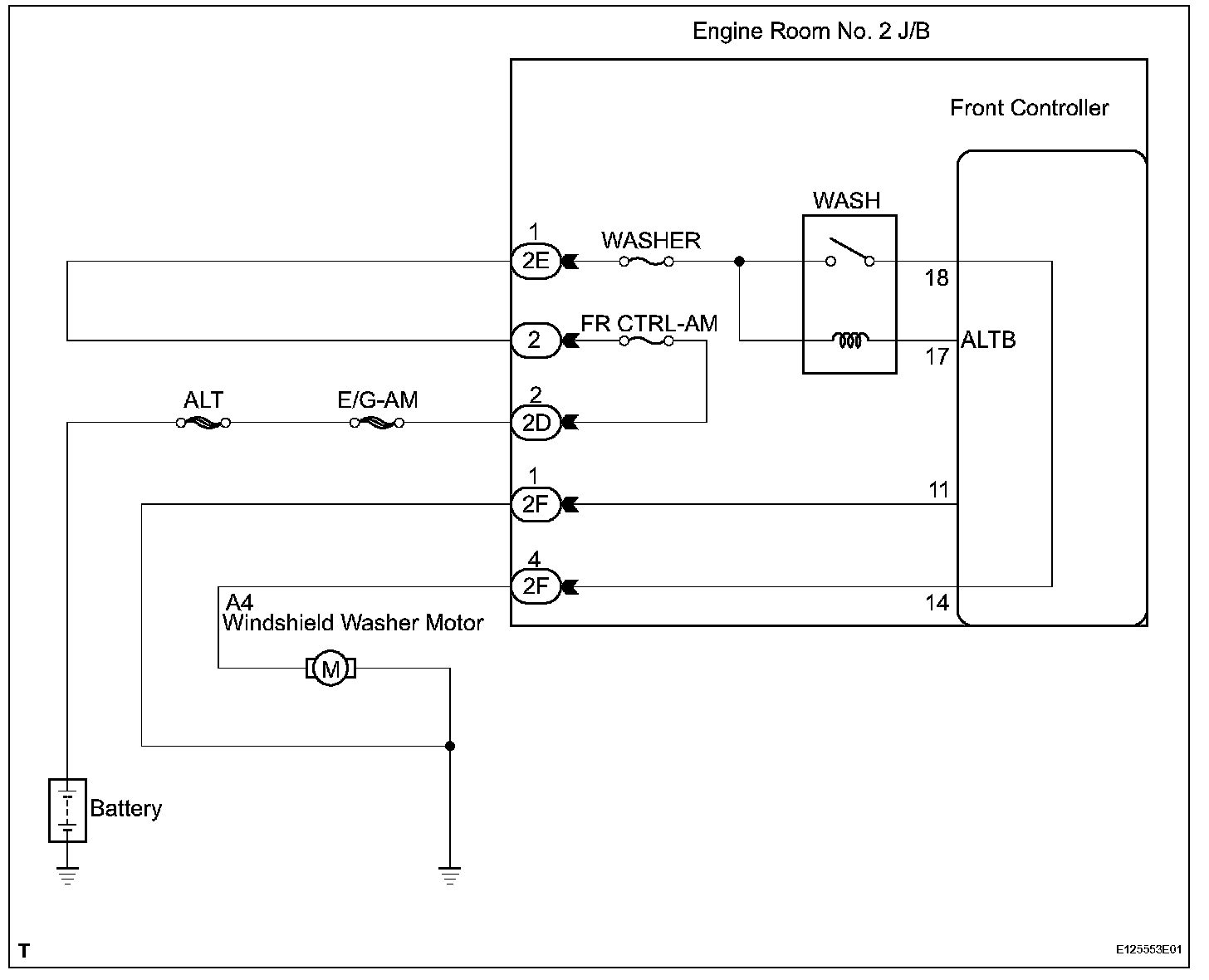

Wiring Diagram:

Step 1:

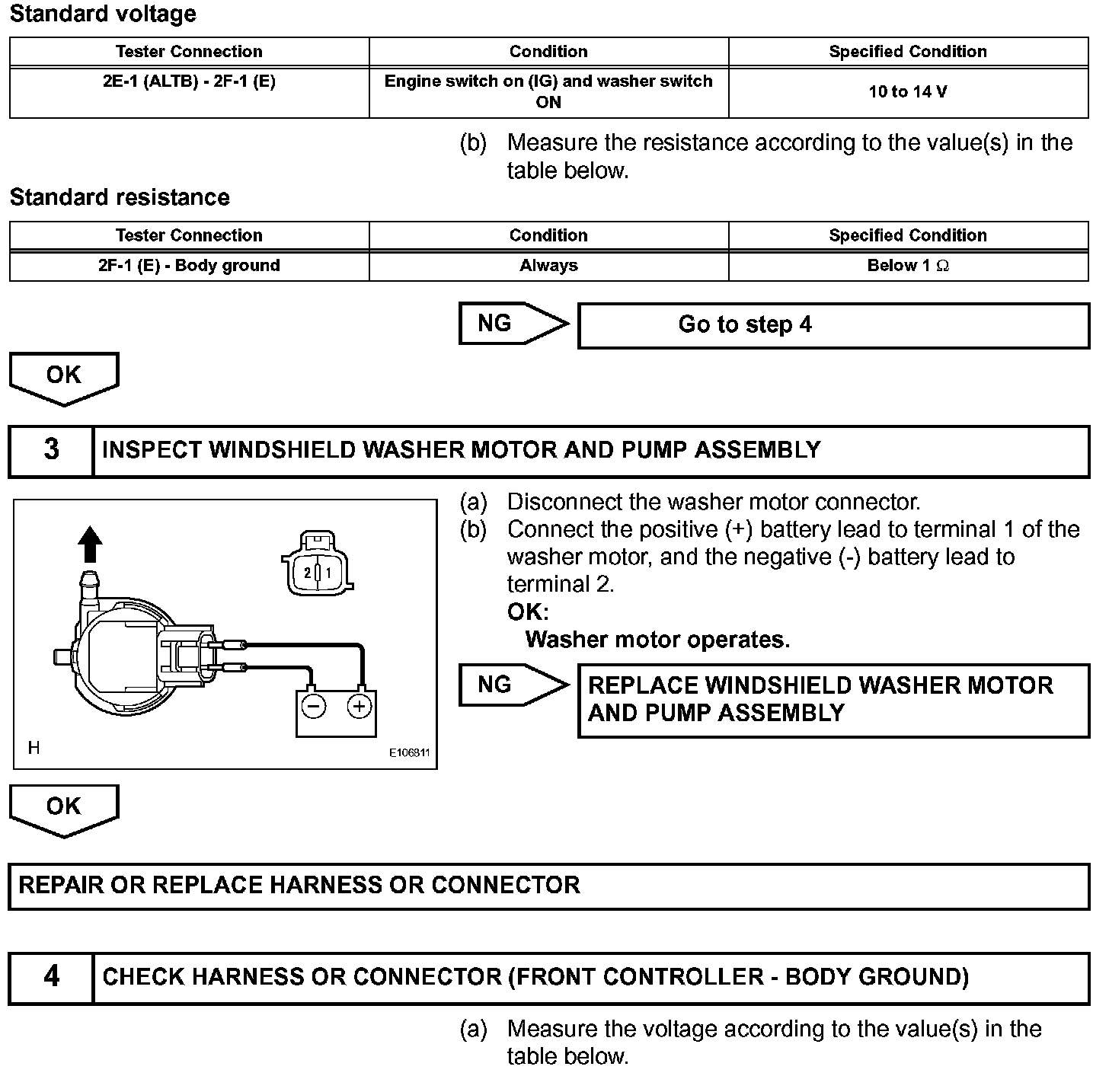

Step 1 (Continued)-2:

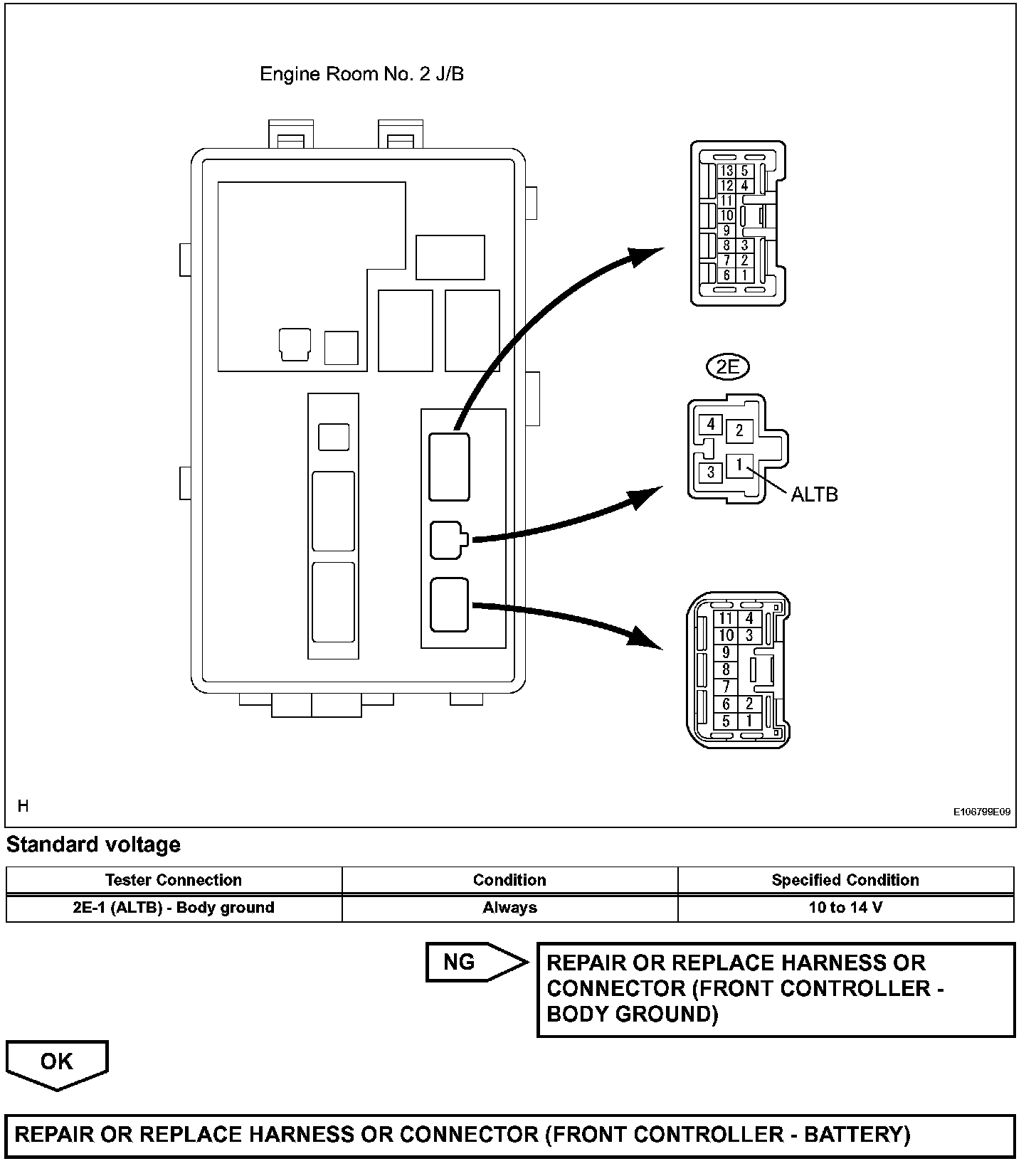

Step 2 (Continued)-4:

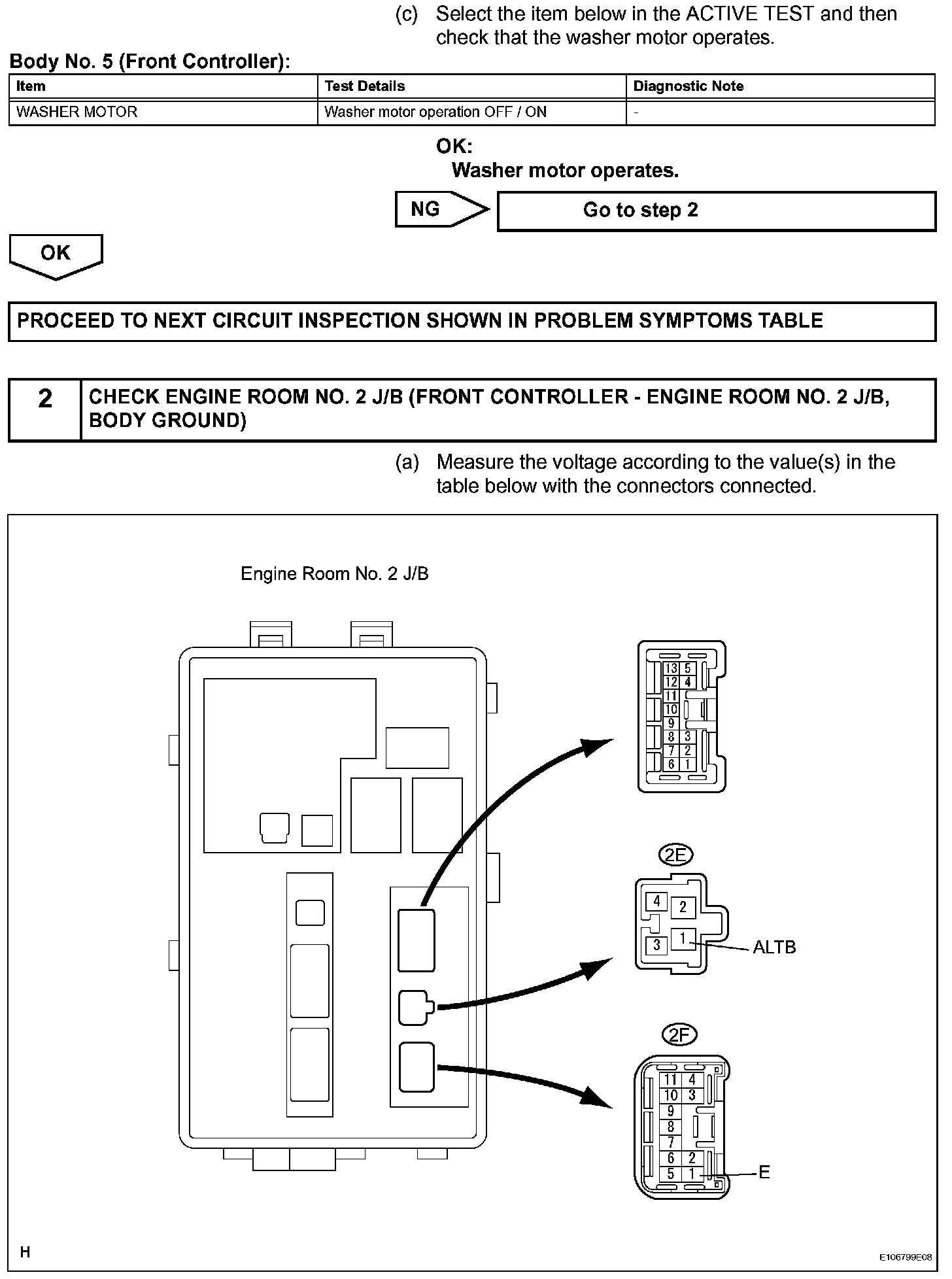

Step 4 (Continued):

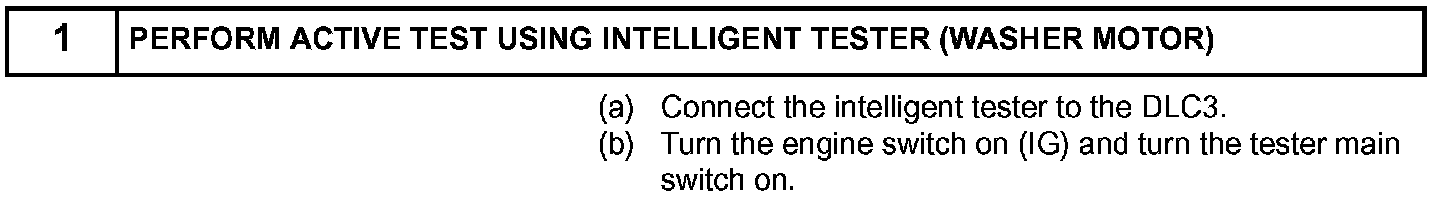

INSPECTION PROCEDURE
