Washer Fluid Level Warning Switch Circuit
Washer Fluid Level Warning Switch CircuitDESCRIPTION
The front controller receives washer fluid level warning switch condition (on or off) information, and sends it through multiplex communication lines to the combination meter.
The combination meter receives this information, and turns on the washer fluid level warning light when the washer fluid becomes low.

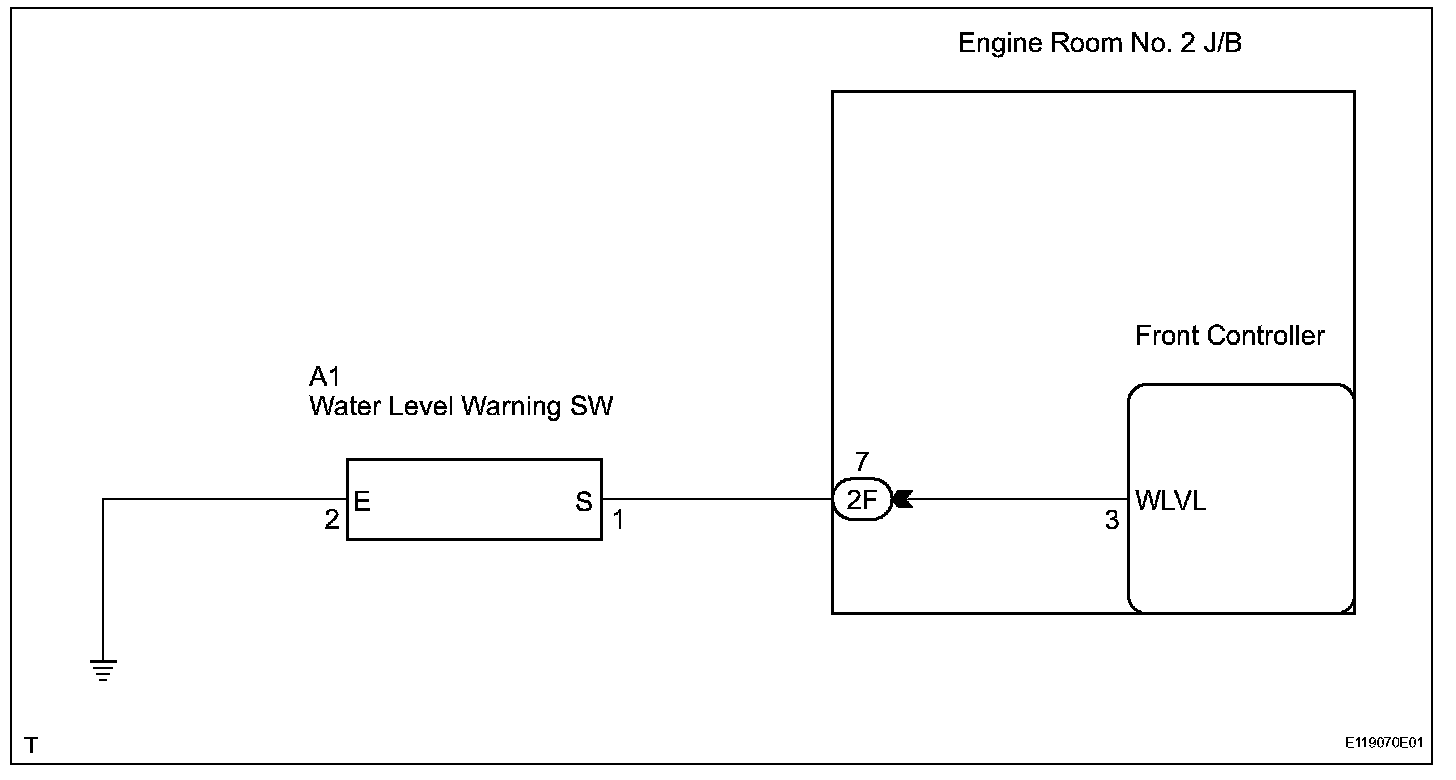

Wiring Diagram:

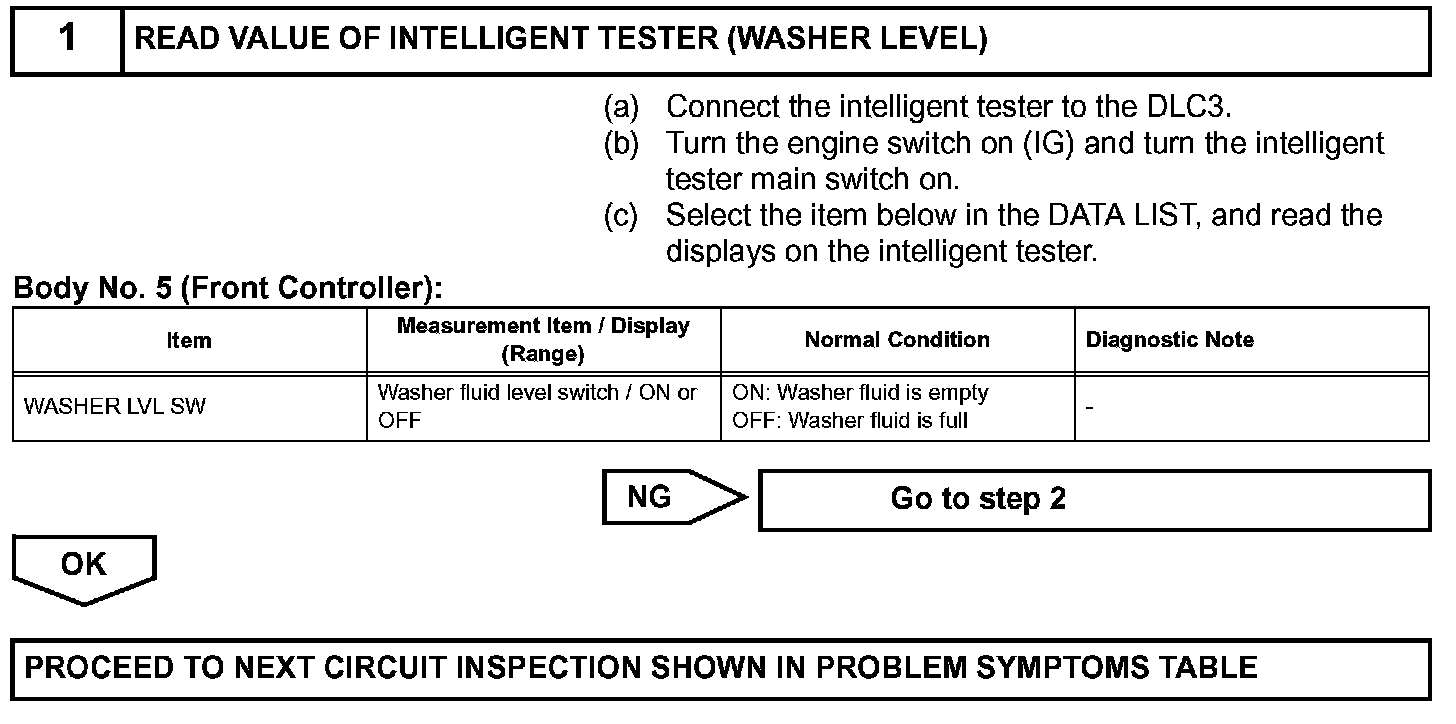

Step 1:

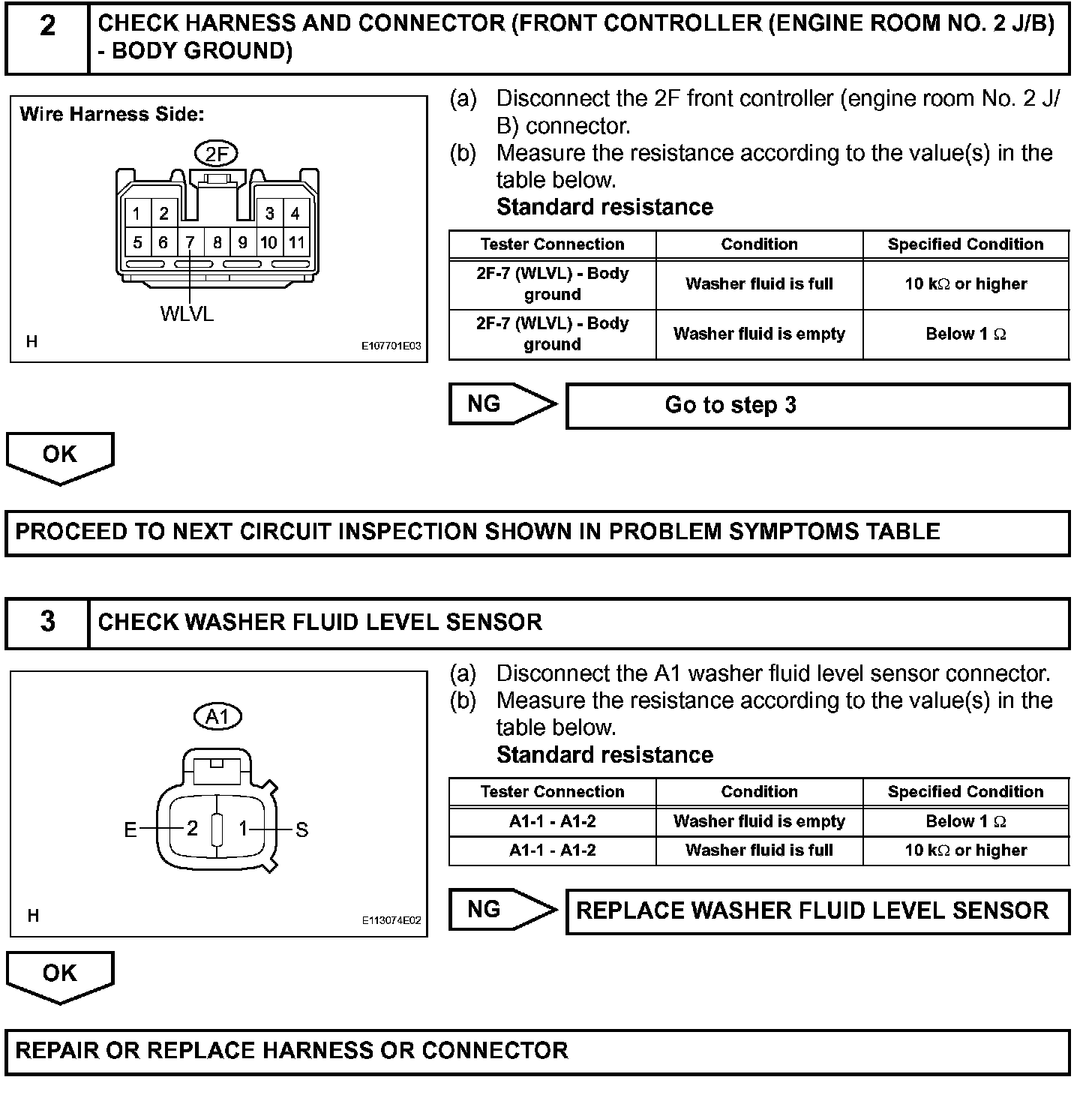

Step 2-3:
INSPECTION PROCEDURE
