Headlight Cleaner Motor and Relay Circuit
Headlight Cleaner Motor and Relay CircuitDESCRIPTION
This circuit provides power to the headlight cleaner control relay.
The headlight cleaner control relay receives a signal from each switch and sends the signal to the headlight cleaner motor and pump assembly to operate it.

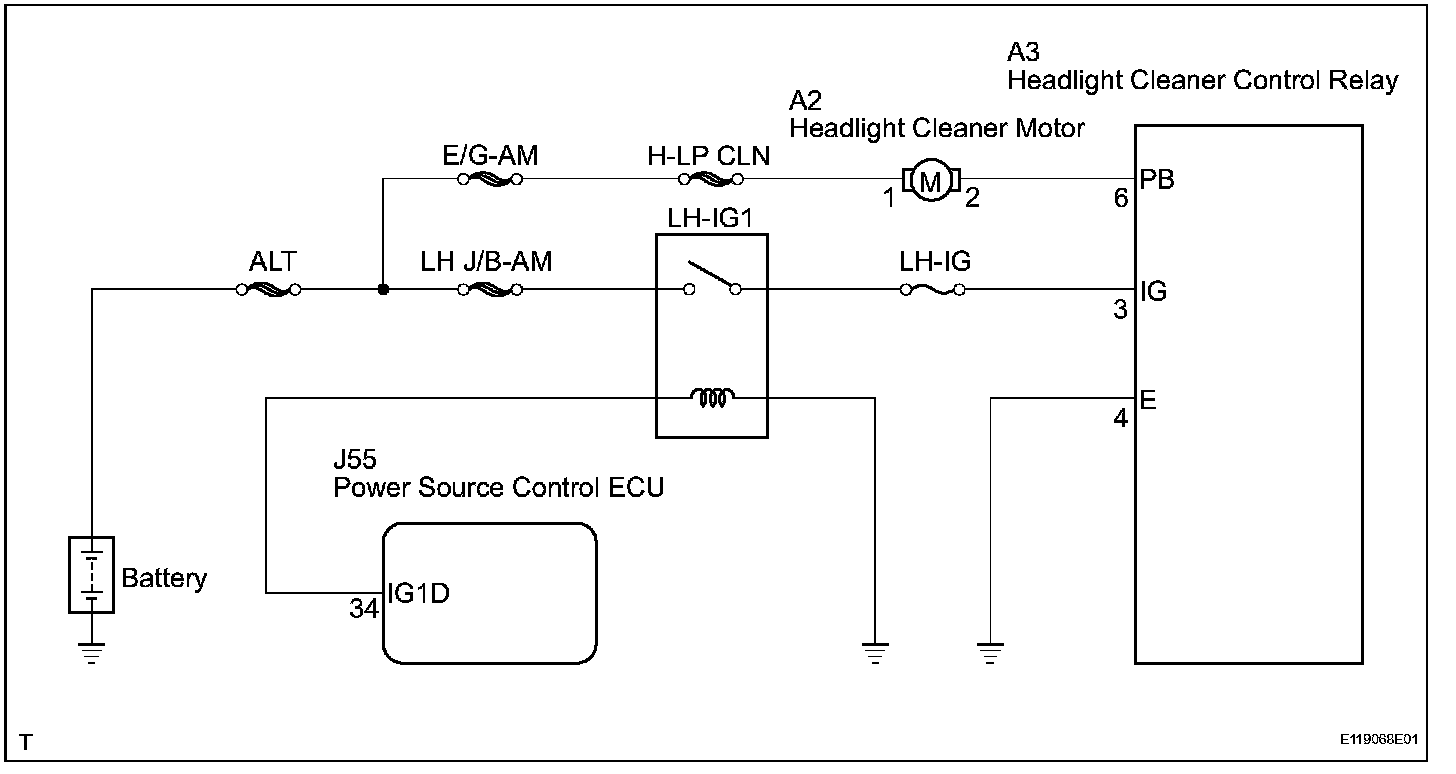

Wiring Diagram:
Step 1-2:
Step 2 (Continued):

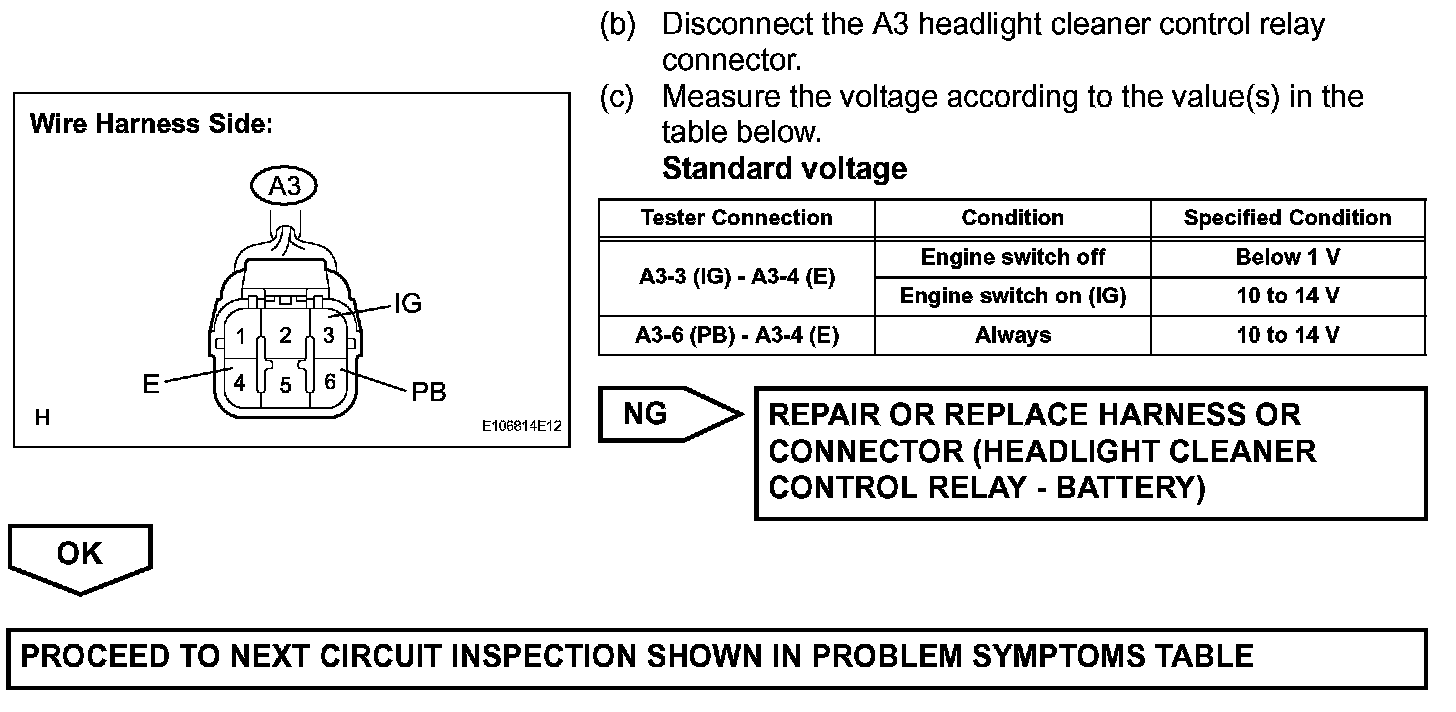

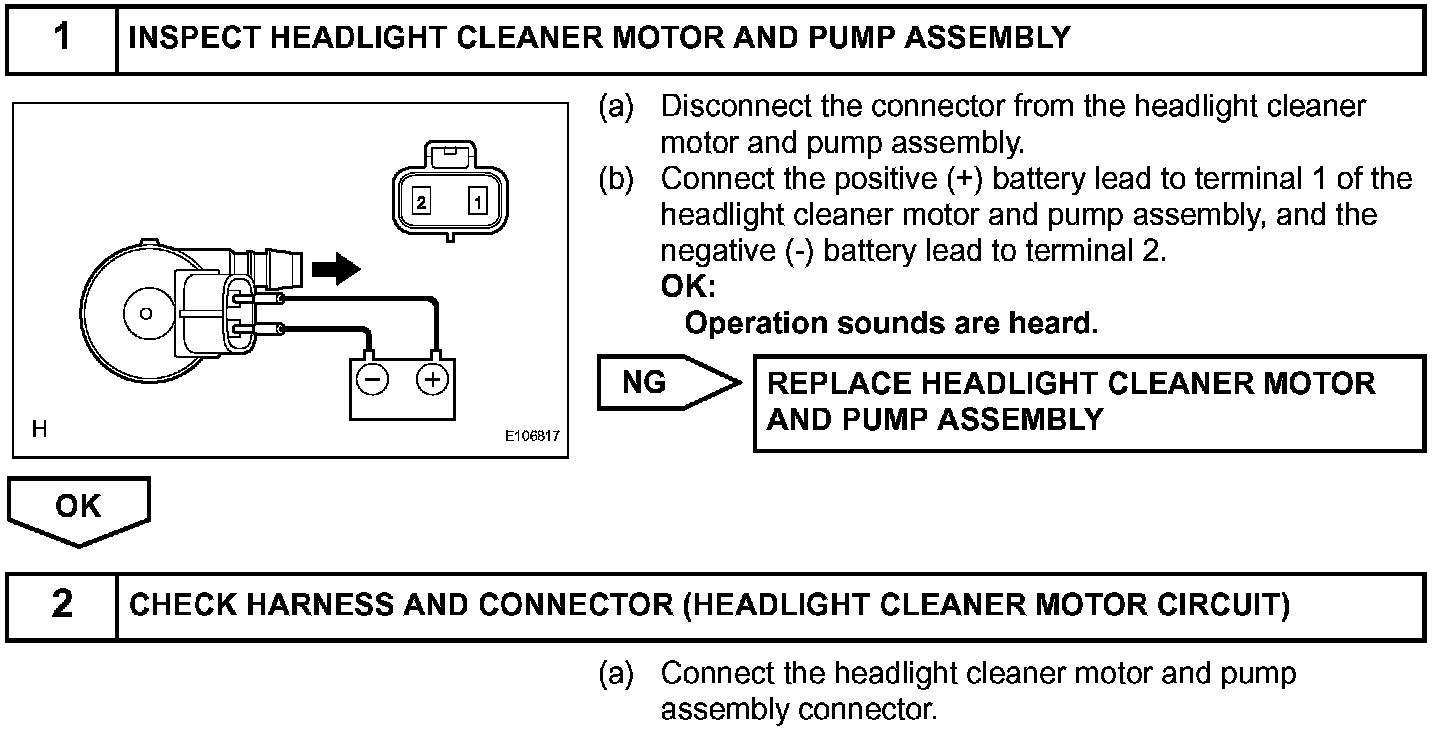

INSPECTION PROCEDURE
