Front Wiper Motor Circuit

Front Wiper Motor Circuit

DESCRIPTION

The main body ECU LH (cowl side J/B LH) controls the front wiper motor.

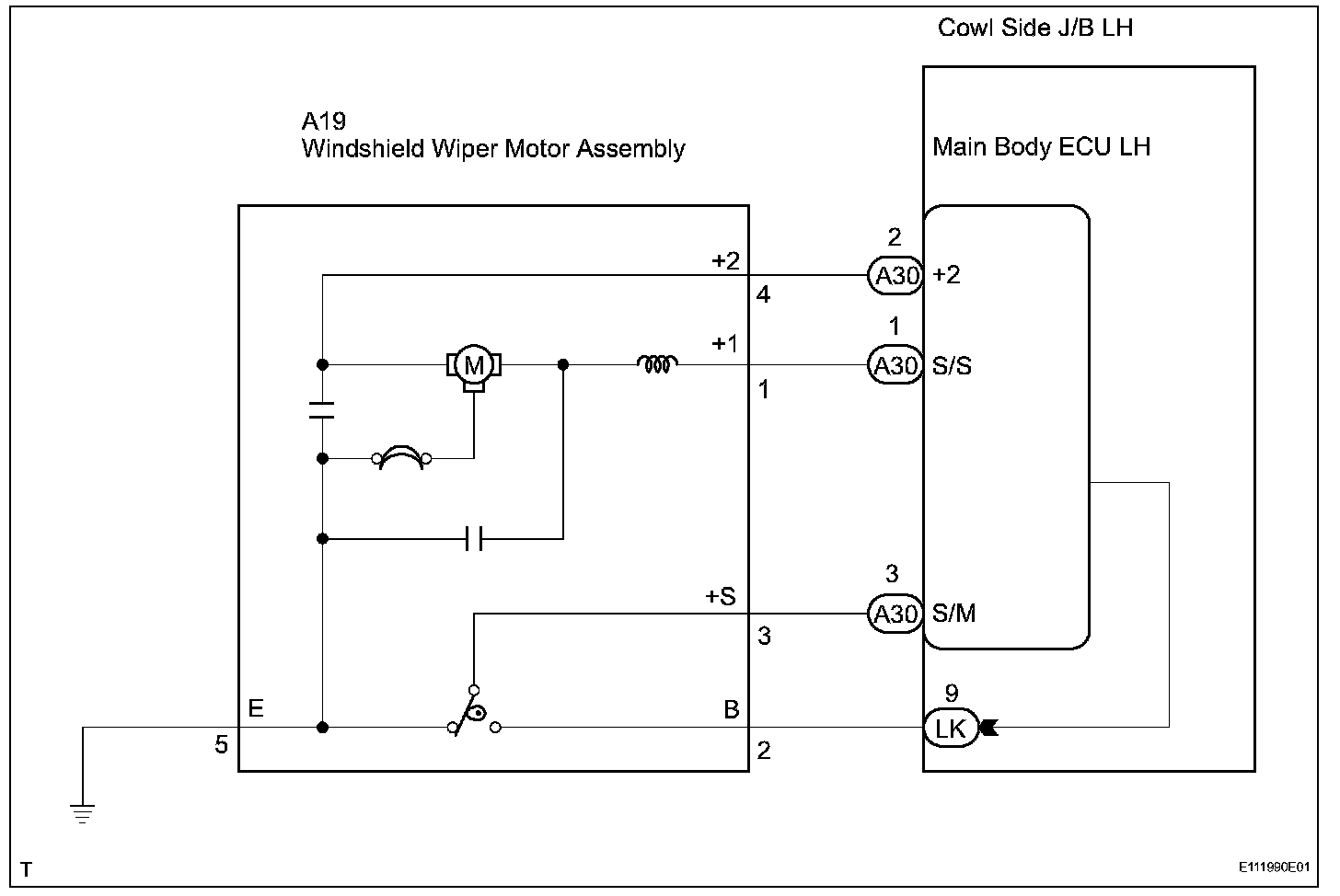

Wiring Diagram:

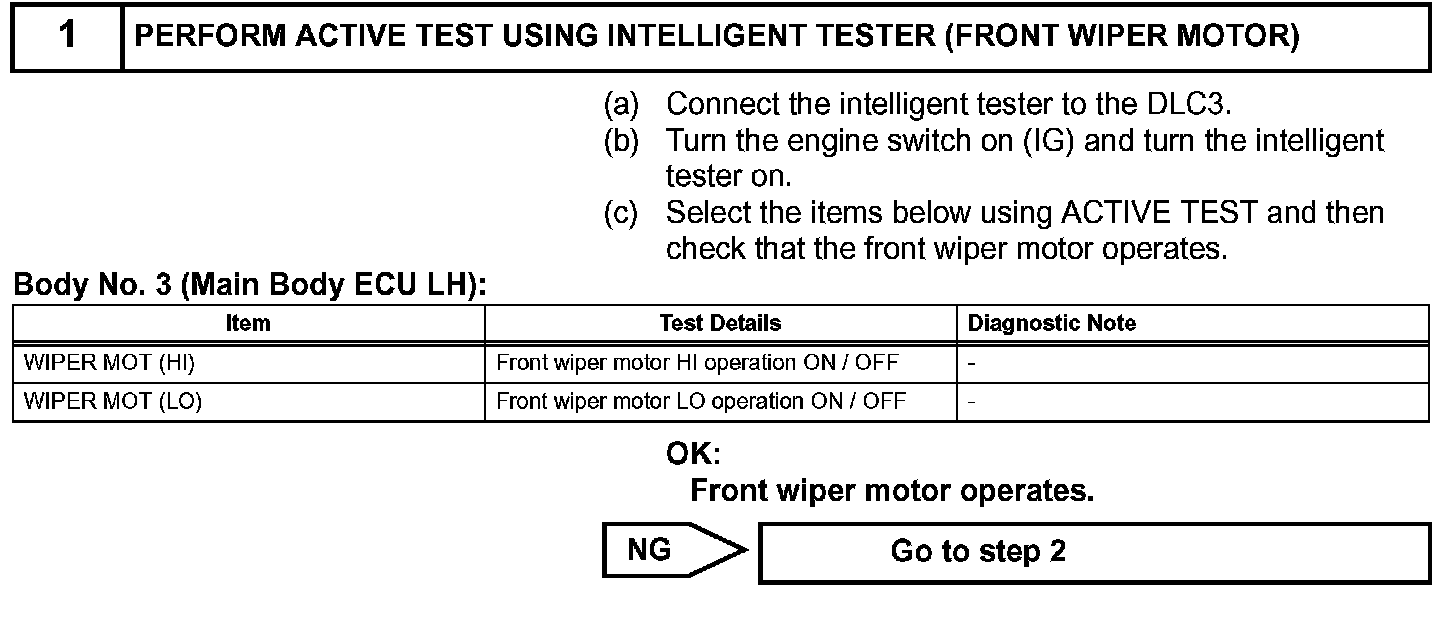

Step 1:

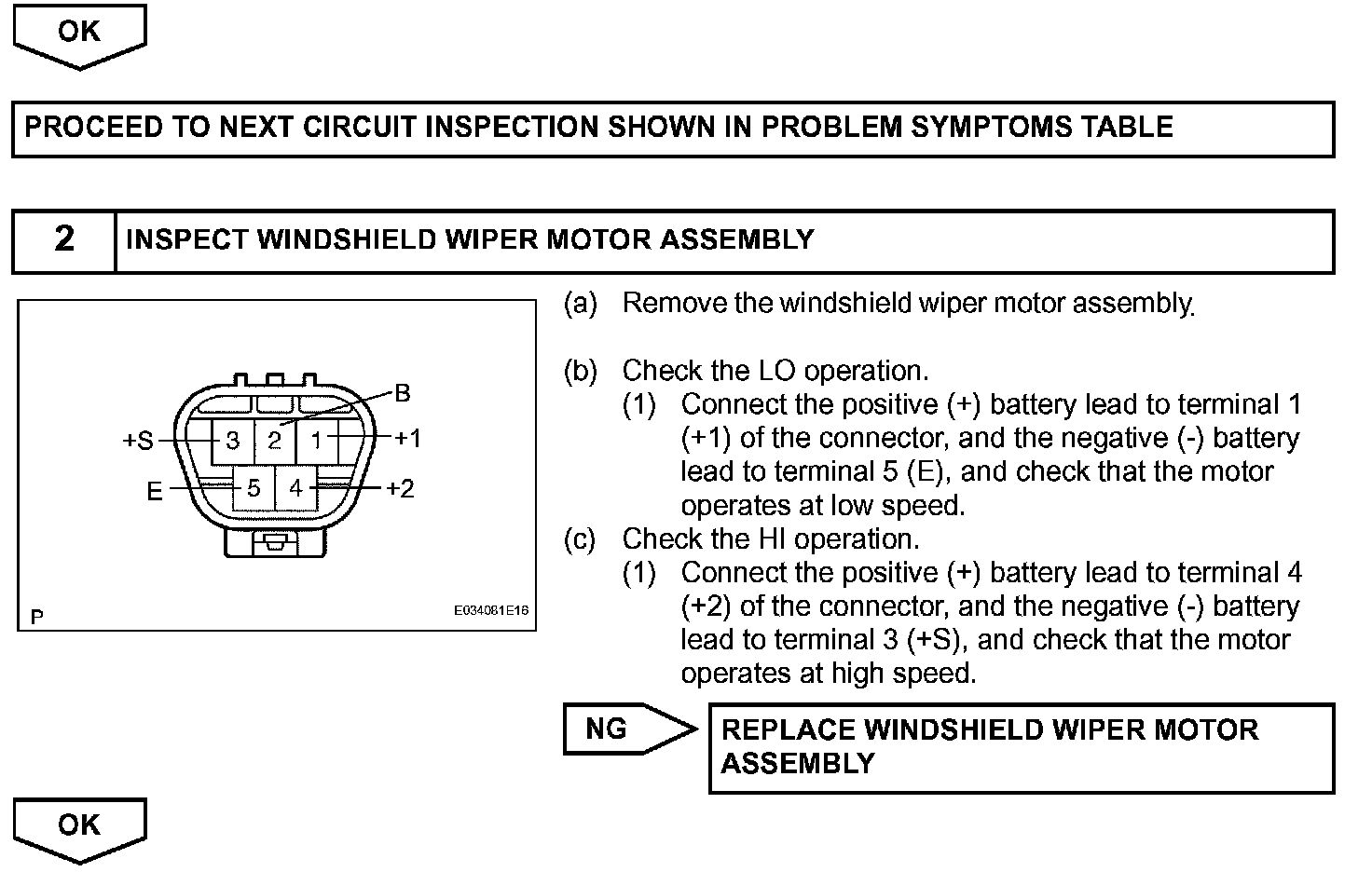

Step 1 (Continued)-2:

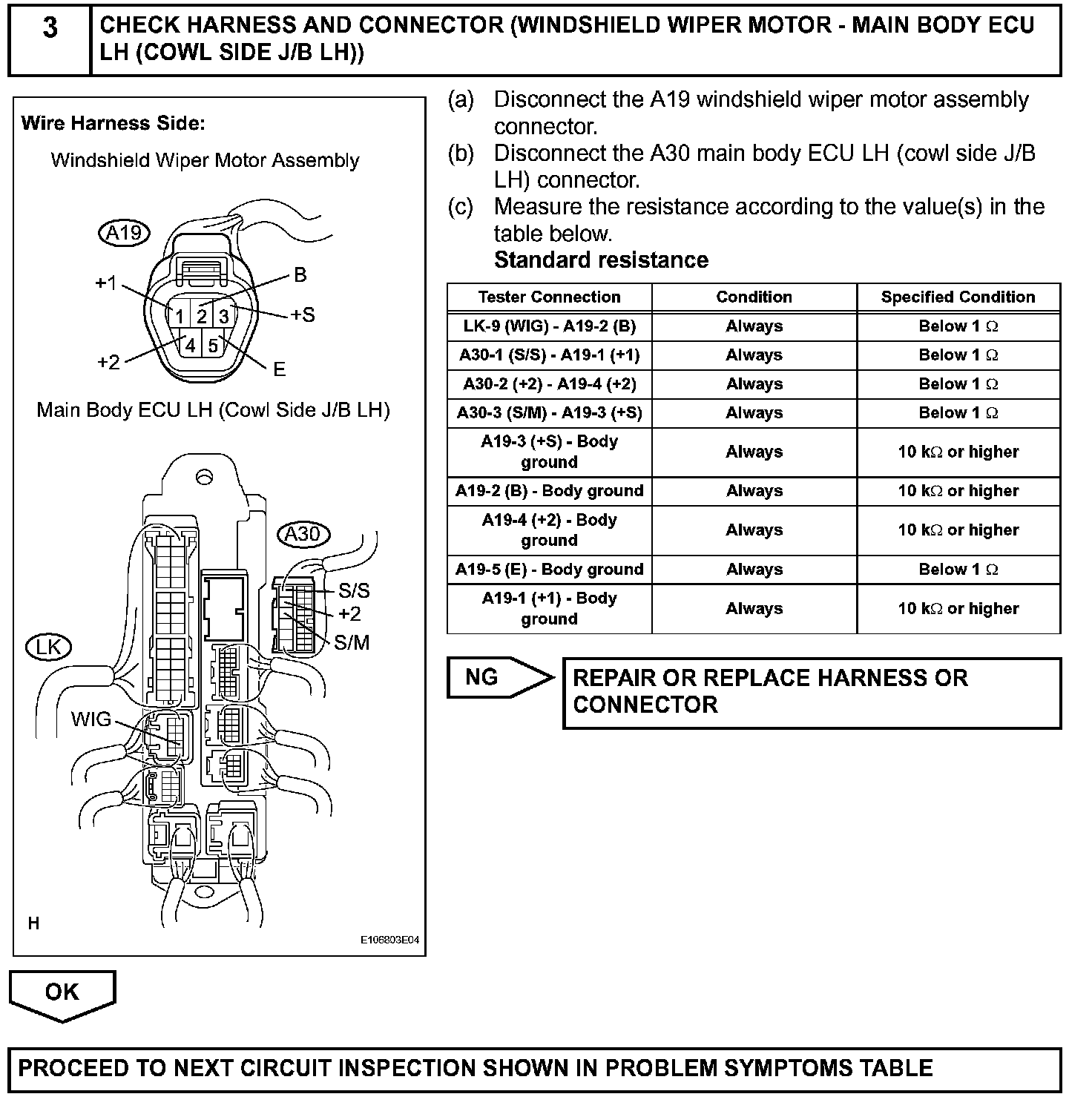

Step 3:

INSPECTION PROCEDURE
