Rear Sunshade Does Not Operate With Rear Sunshade Switch

Rear Sunshade Does Not Operate With Rear Sunshade Switch

SYSTEM DESCRIPTION
When the rear sunshade switch is pressed, a signal is sent directly to the rear sunshade relay.

WIRING DIAGRAM

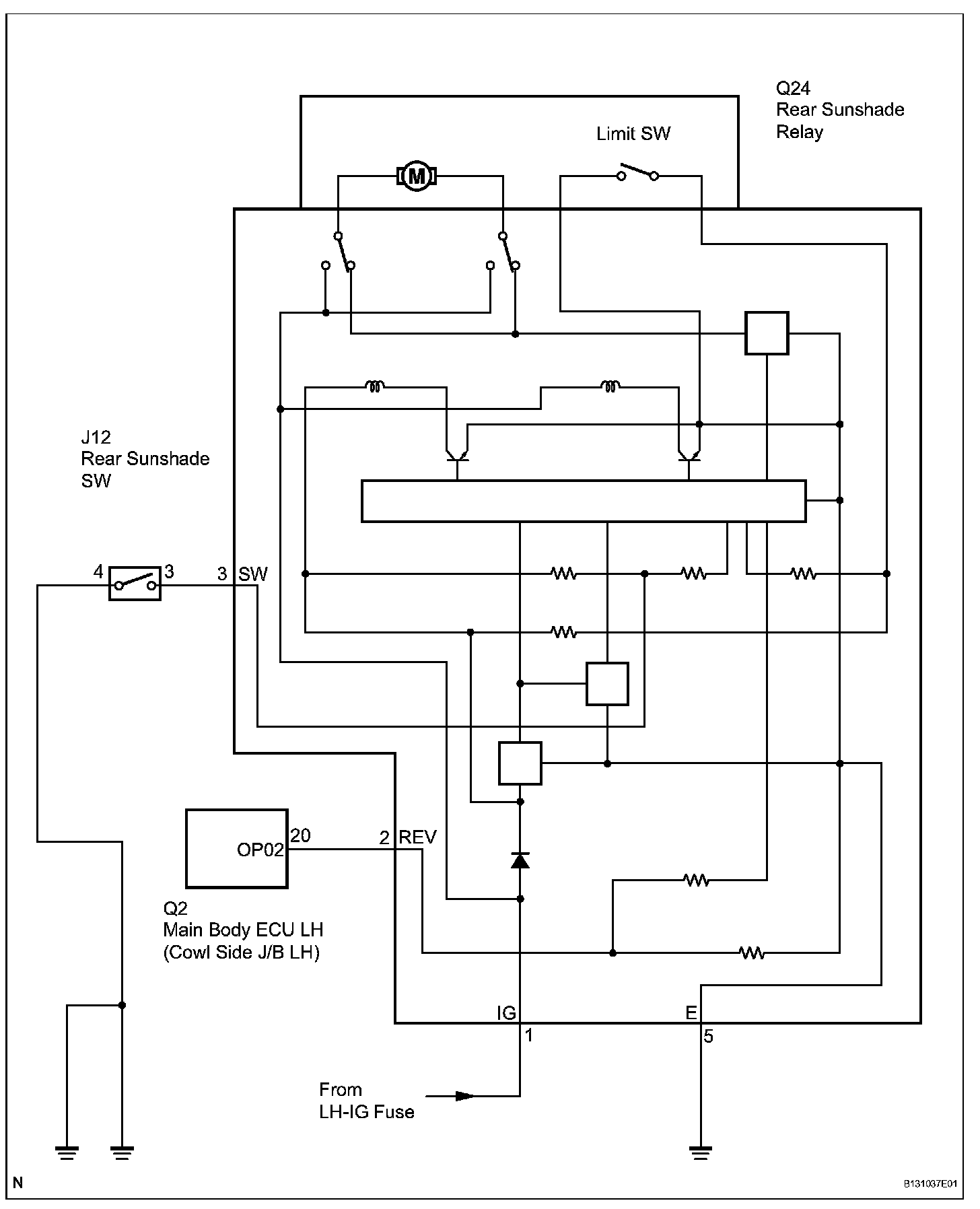

Wiring Diagram:





INSPECTION PROCEDURE

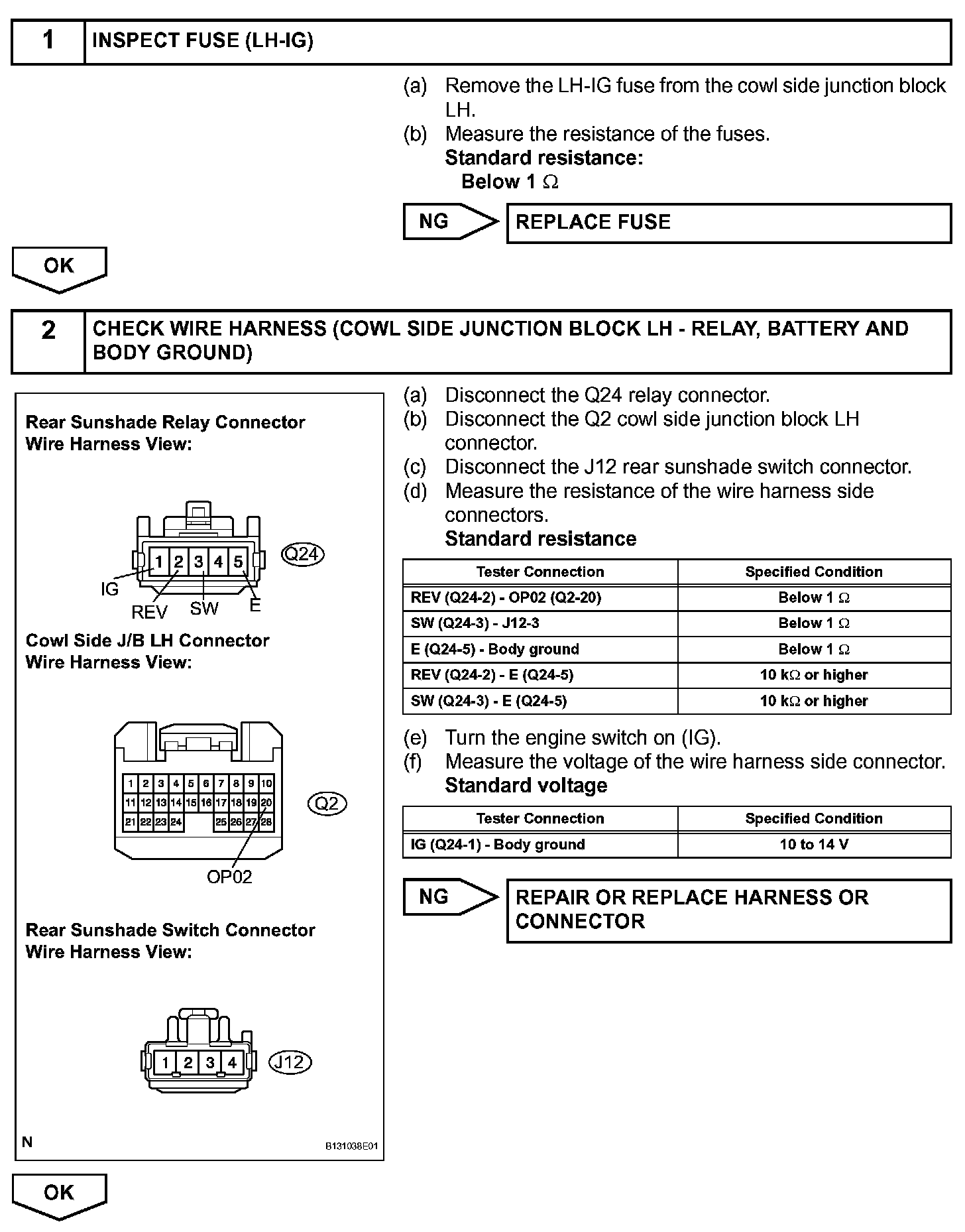

Step 1 - 2:

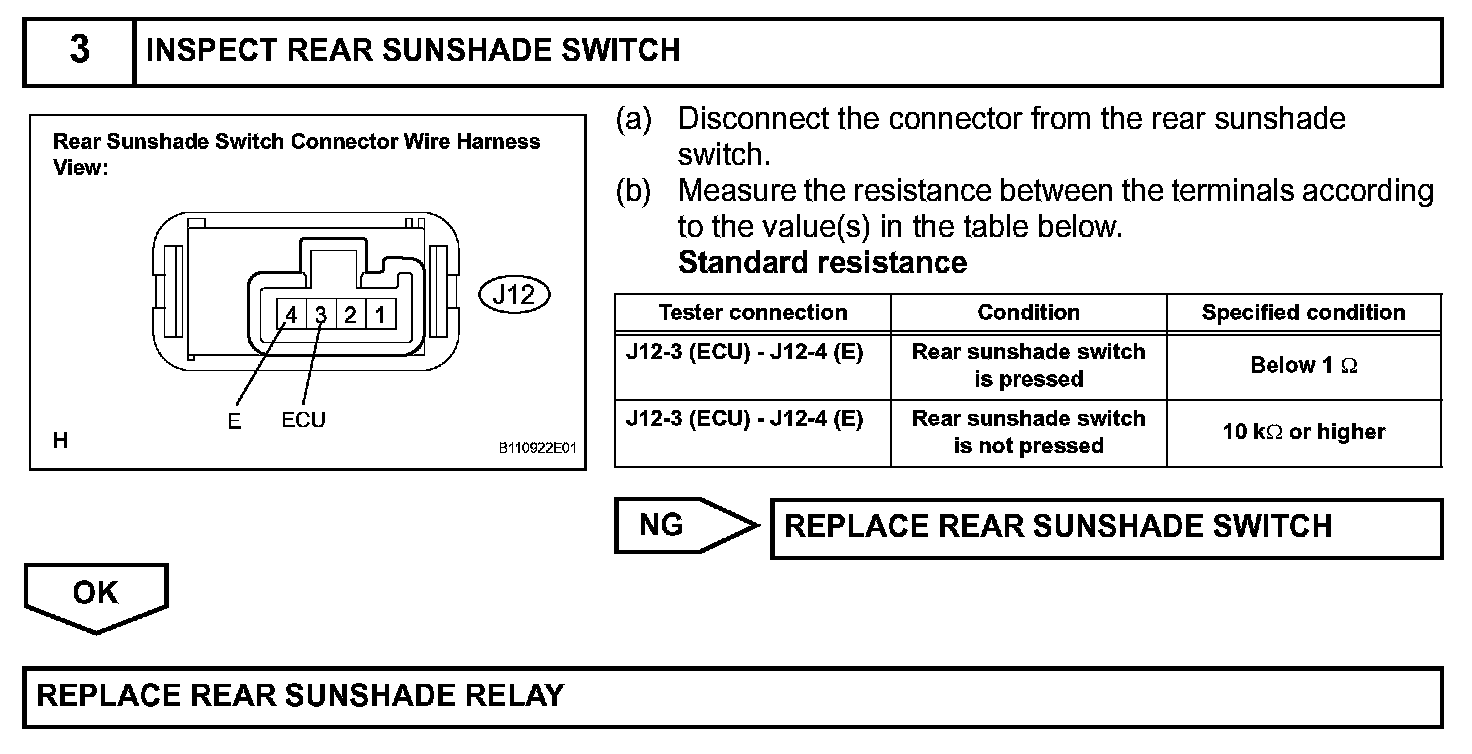

Step 3:
