OPERATION CHECK1. CHECK WINDOW LOCK SWITCH
a. Check that the front passenger side power window and rear power windows operation are disabled when the window lock switch of the power window master switch is pressed.
standard: Front passenger side power window and rear power windows operation are disabled.
b. Check that the front passenger side power window and rear power windows can be operated when the window lock switch is pressed again.
standard: Front passenger side power window and rear power windows can be operated.
2. CHECK MANUAL UP/DOWN FUNCTION

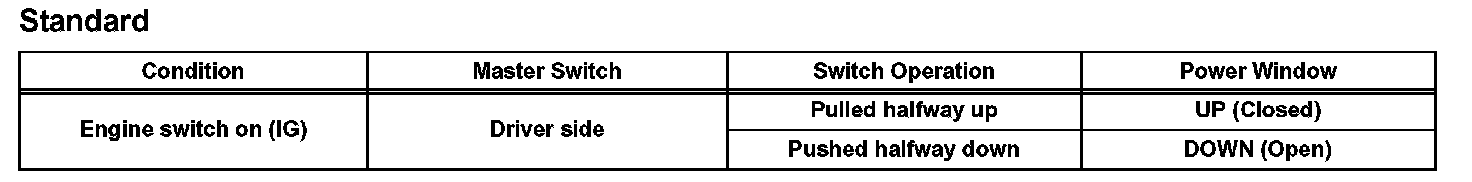

a. Check that the driver side power window operates as follows:

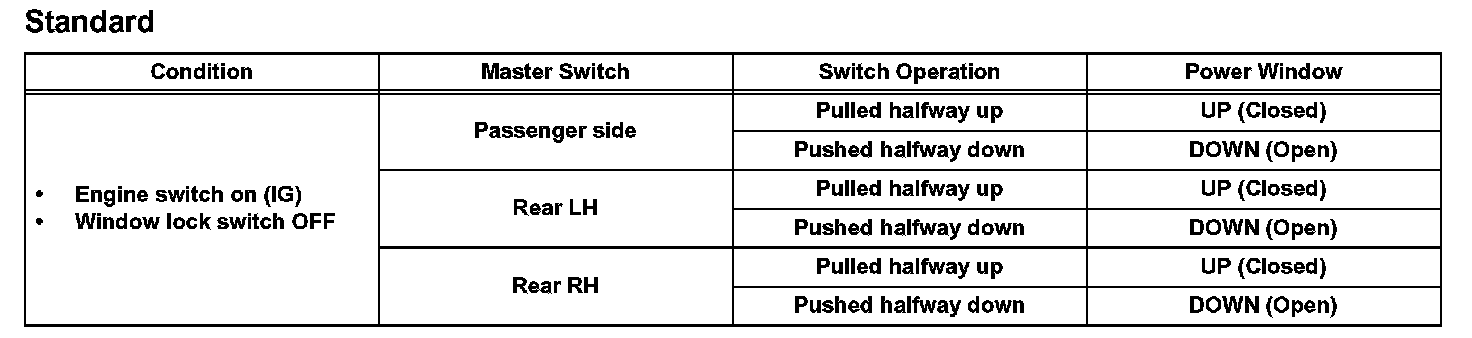

b. Check that the power windows except the driver side power window operates as follows:
3. CHECK AUTO UP/DOWN FUNCTION

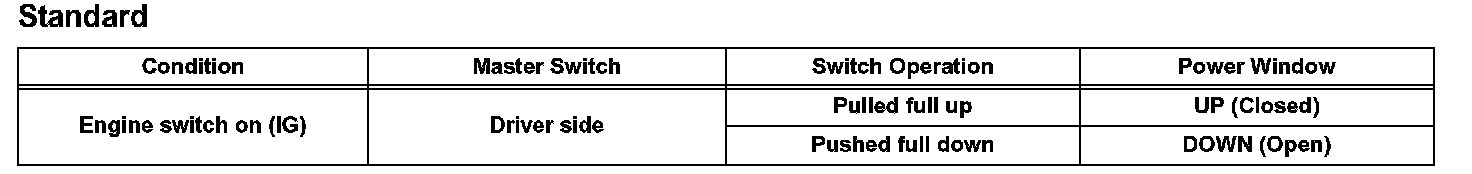

a. Check that the driver side power window operates as follows:

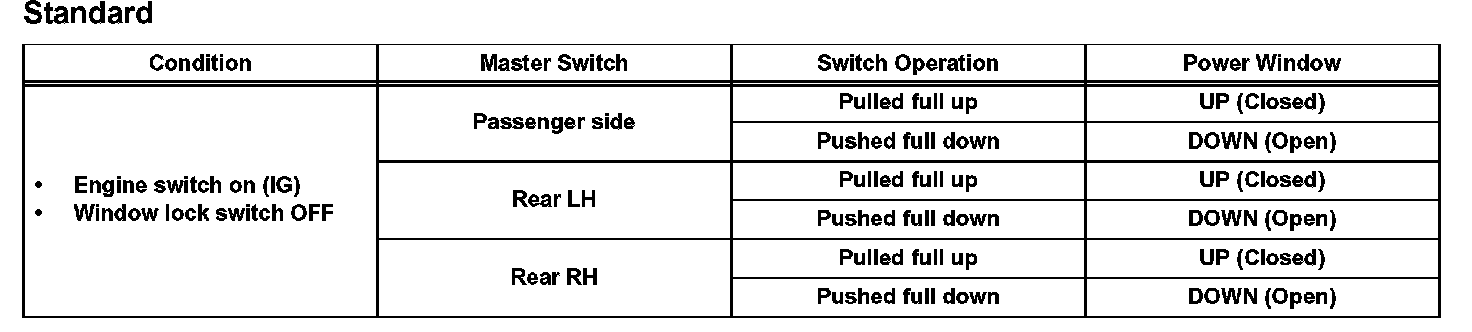

b. Check that the power windows except the driver side power window operate as follows:
4. CHECK REMOTE MANUAL UP/DOWN FUNCTION

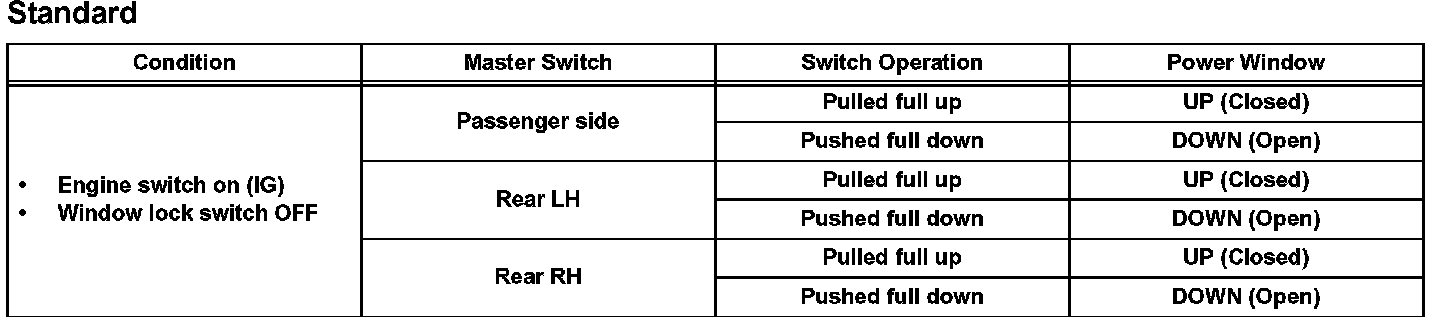

a. Check that the power windows except the driver side power window operate as follows:
5. CHECK REMOTE AUTO UP/DOWN FUNCTION

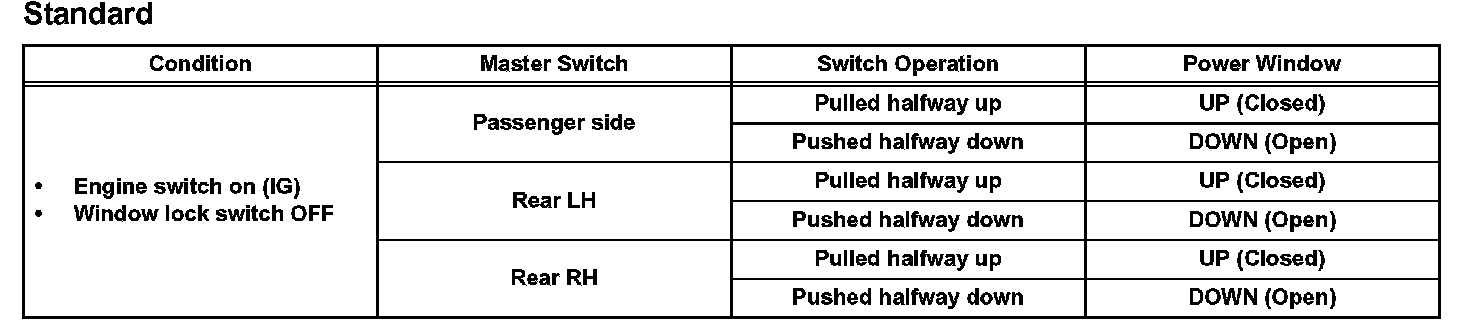

a. Check that the power windows except the driver side power window operate as follows:
6. CHECK JAM PROTECTION FUNCTION
HINT: The jam protection function prevents any part of your body from getting caught by accident between the door frame and the door glass during power window operation.
NOTICE: If the power window motor has been reset, raise and lower the door glass several times using MANUAL function before performing the check.

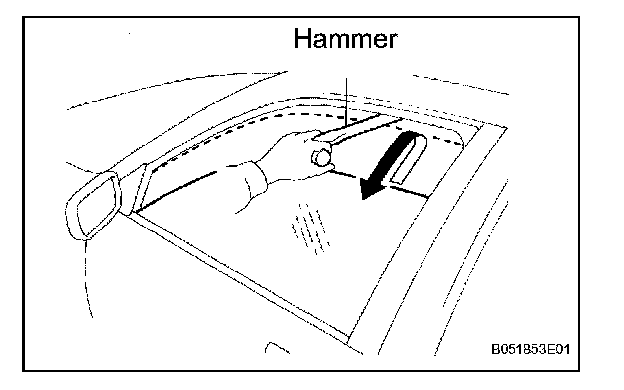

a. Check that the door glass goes down by approx. 50 mm (1.97 in.) right when something gets caught between the door frame and door glass during power window operation. However, when the opening between the door frame and the door glass is less than 200 mm (7.87 in.), the door glass continues to go down and does not stop until an opening of 200 mm (7.87 in.) is achieved. Operative conditions:
- AUTO UP
- AUTO UP function after the engine switch is turned off
- MANUAL UP function after the engine switch turned off
