Rear Power Window Switch RH Circuit

Rear Power Window Switch RH Circuit

DESCRIPTION
This circuit supplies power to operate the multiplex network switch.

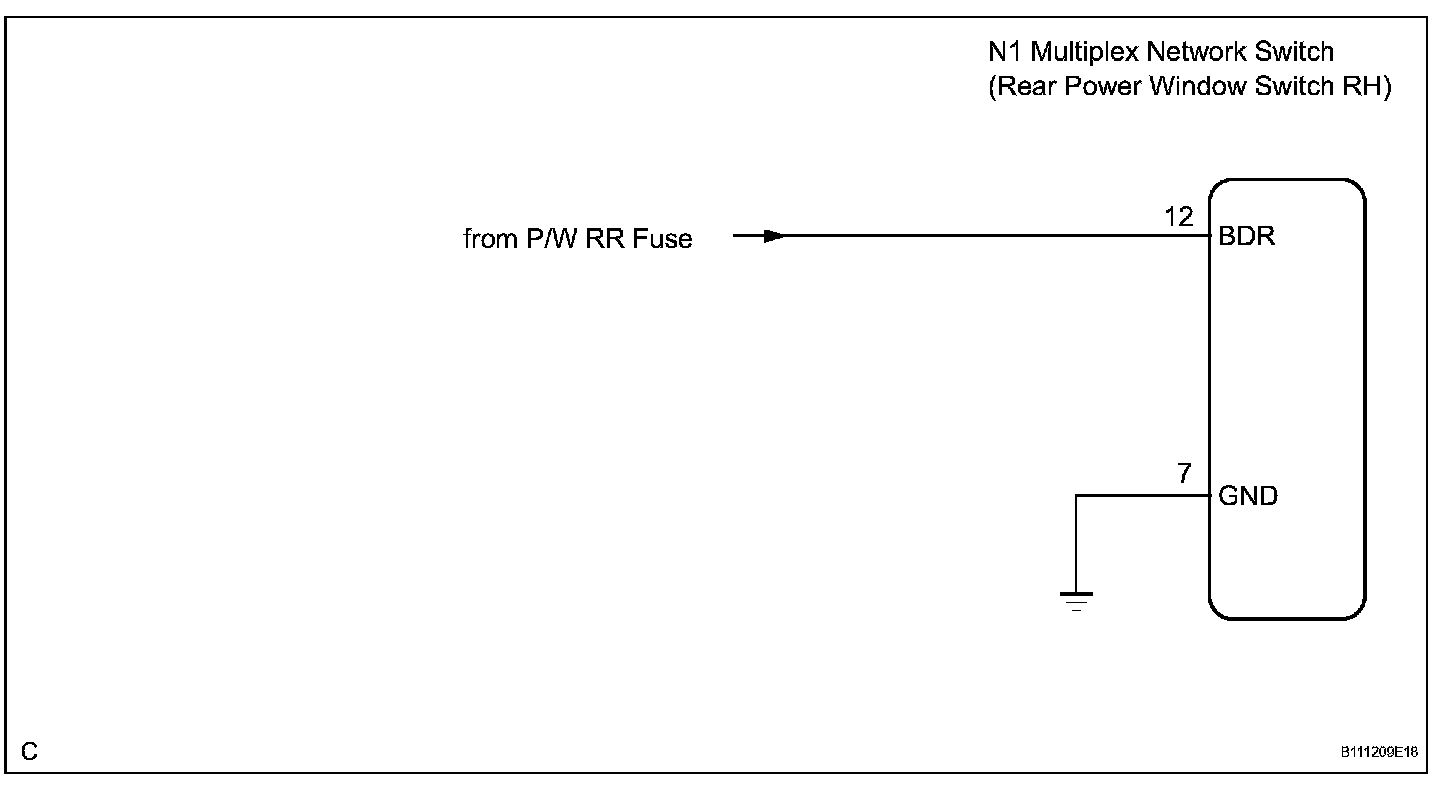

WIRING DIAGRAM

Wiring Diagram:





INSPECTION PROCEDURE

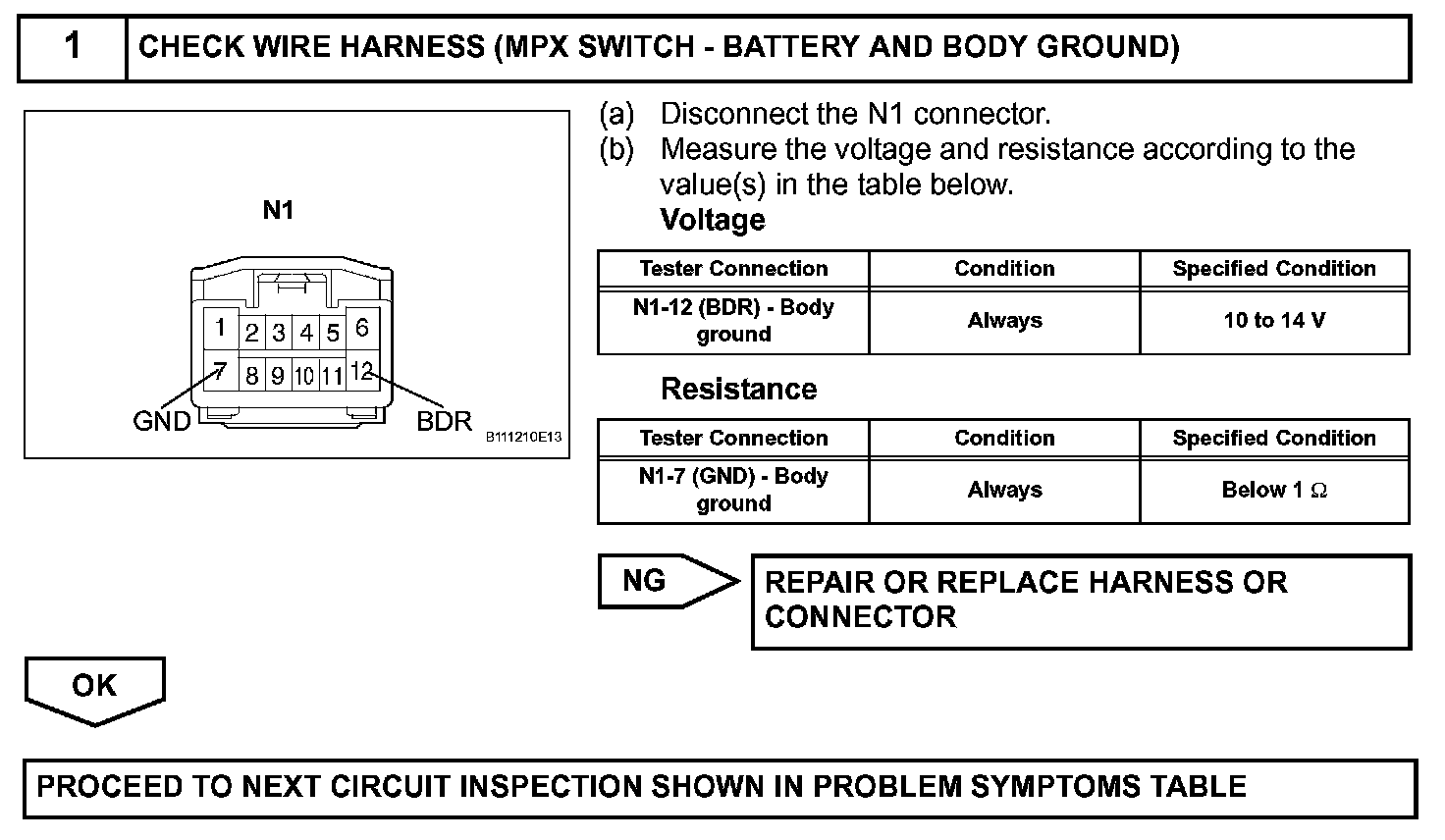

Step 1:
