Rear Power Window Motor RH Circuit

Rear Power Window Motor RH Circuit

DESCRIPTION
This circuit transmits signals from the multiplex network switch to the power window regulator motor.

WIRING DIAGRAM

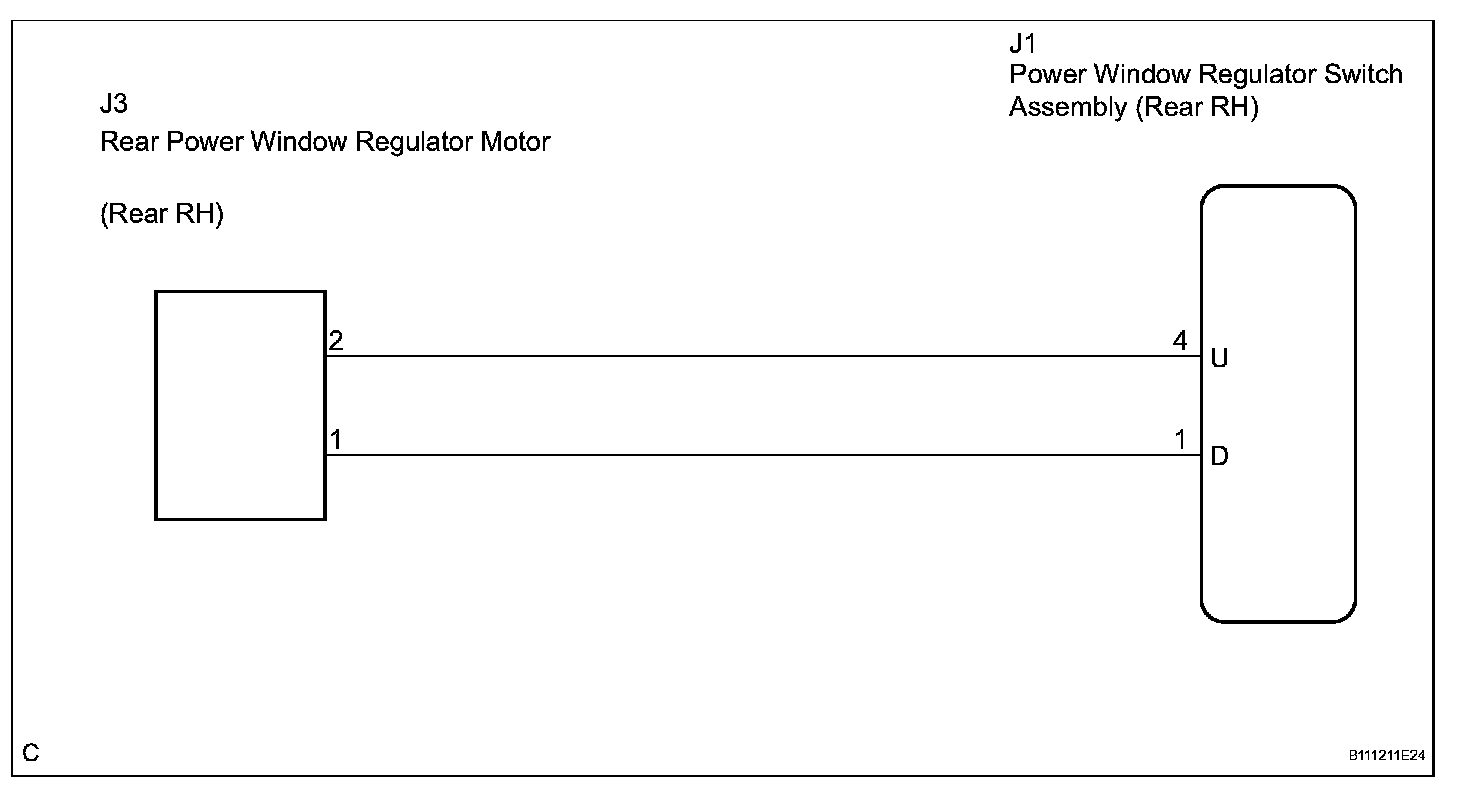

Wiring Diagram:





INSPECTION PROCEDURE

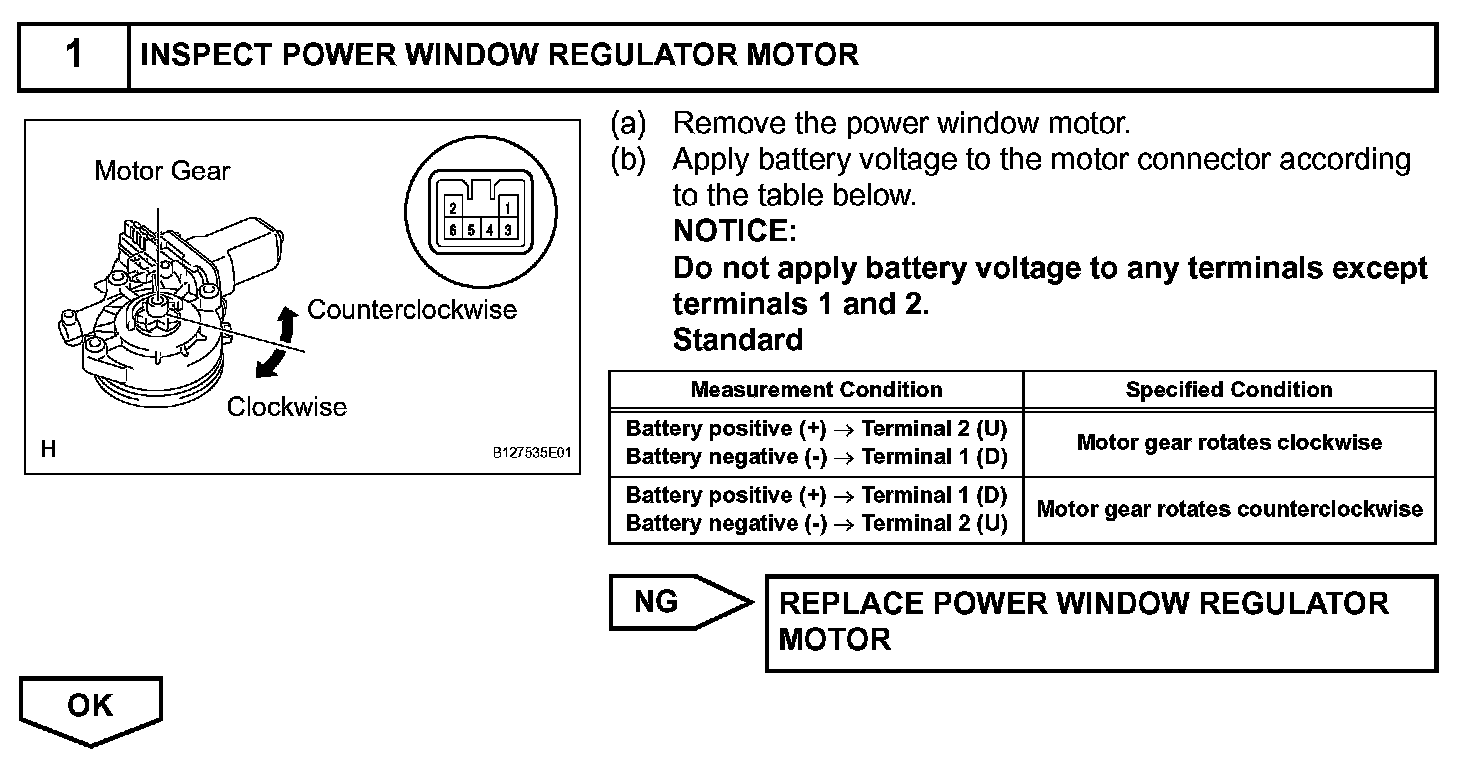

Step 1:

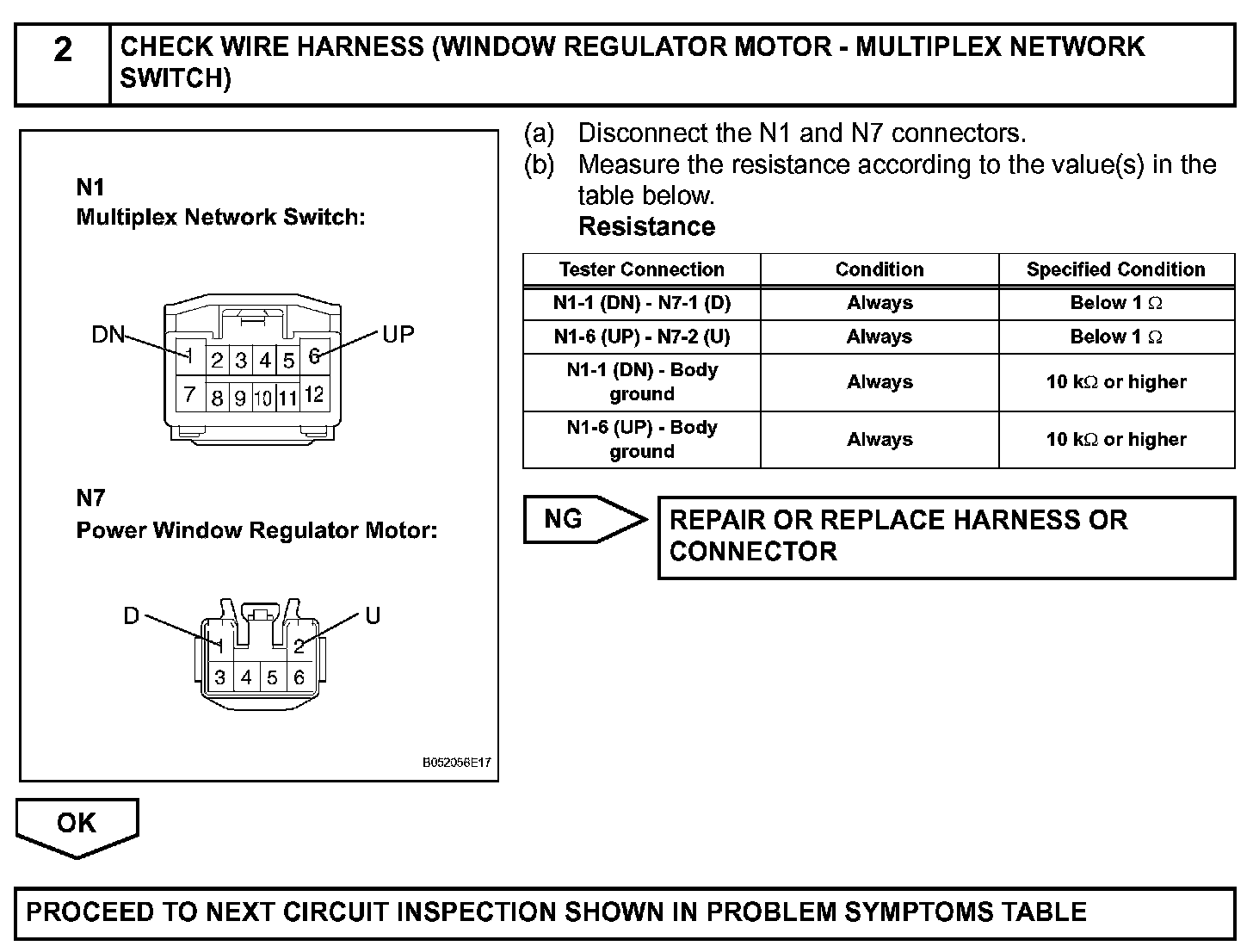

Step 2:
