Power Window Master Switch Power Source Circuit

Power Window Master Switch Power Source Circuit

DESCRIPTION
This circuit supplies power to operate the multiplex network master switch.

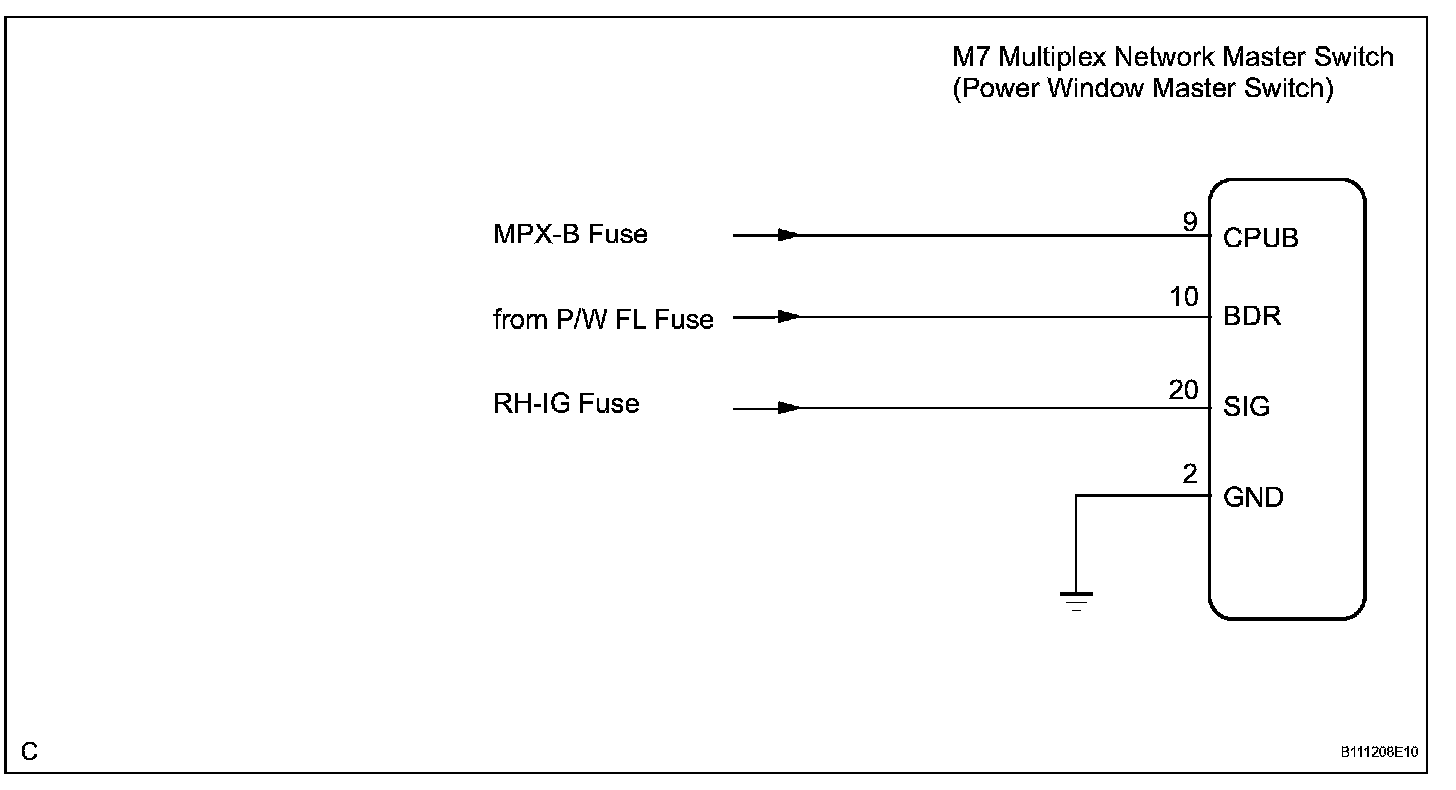

WIRING DIAGRAM

Wiring Diagram:





INSPECTION PROCEDURE

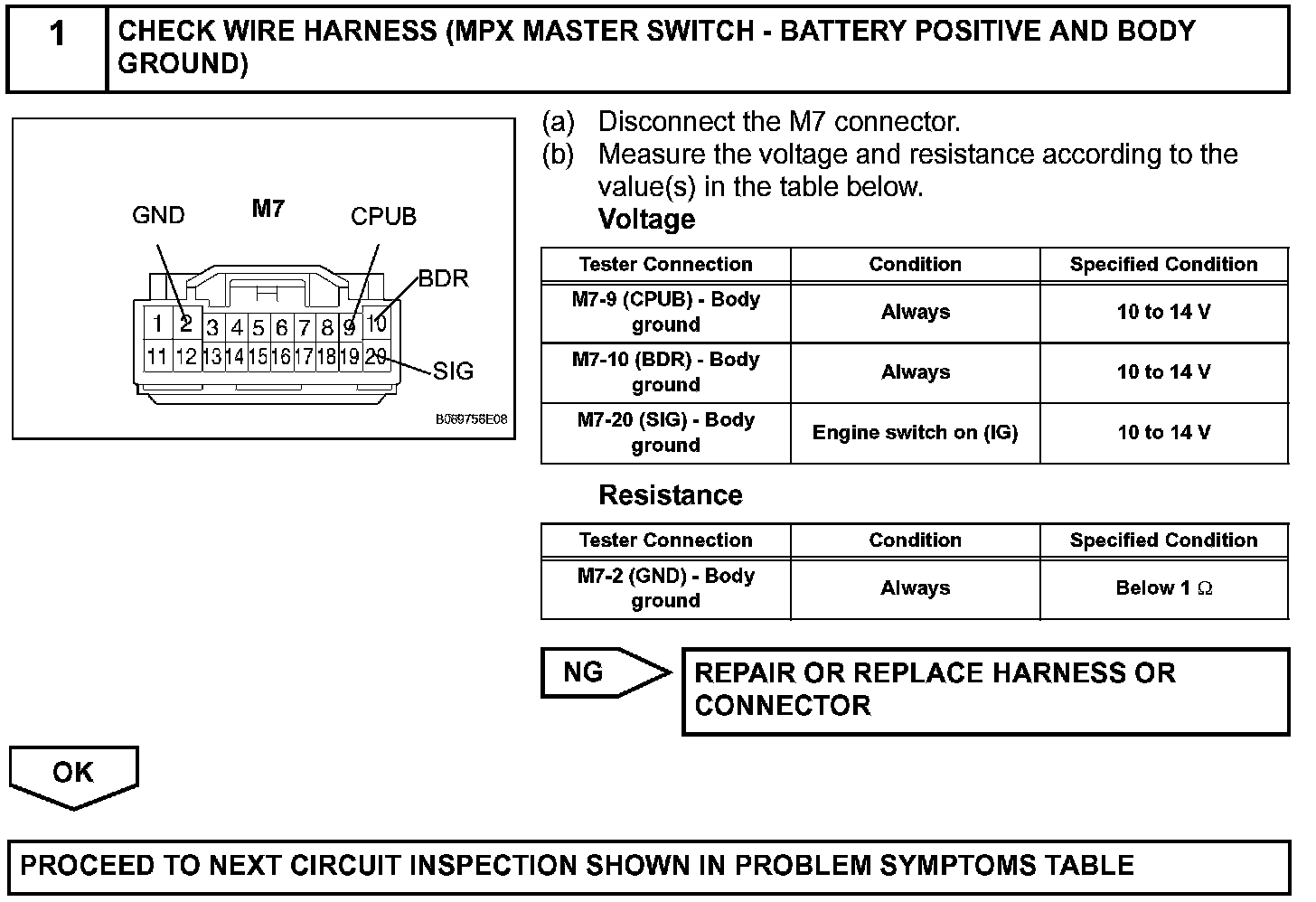

Step 1:
