Front Passenger Side Power Window Motor Circuit

Front Passenger Side Power Window Motor Circuit

DESCRIPTION
This circuit transmits signals from the multiplex network switch to the power window regulator motor.

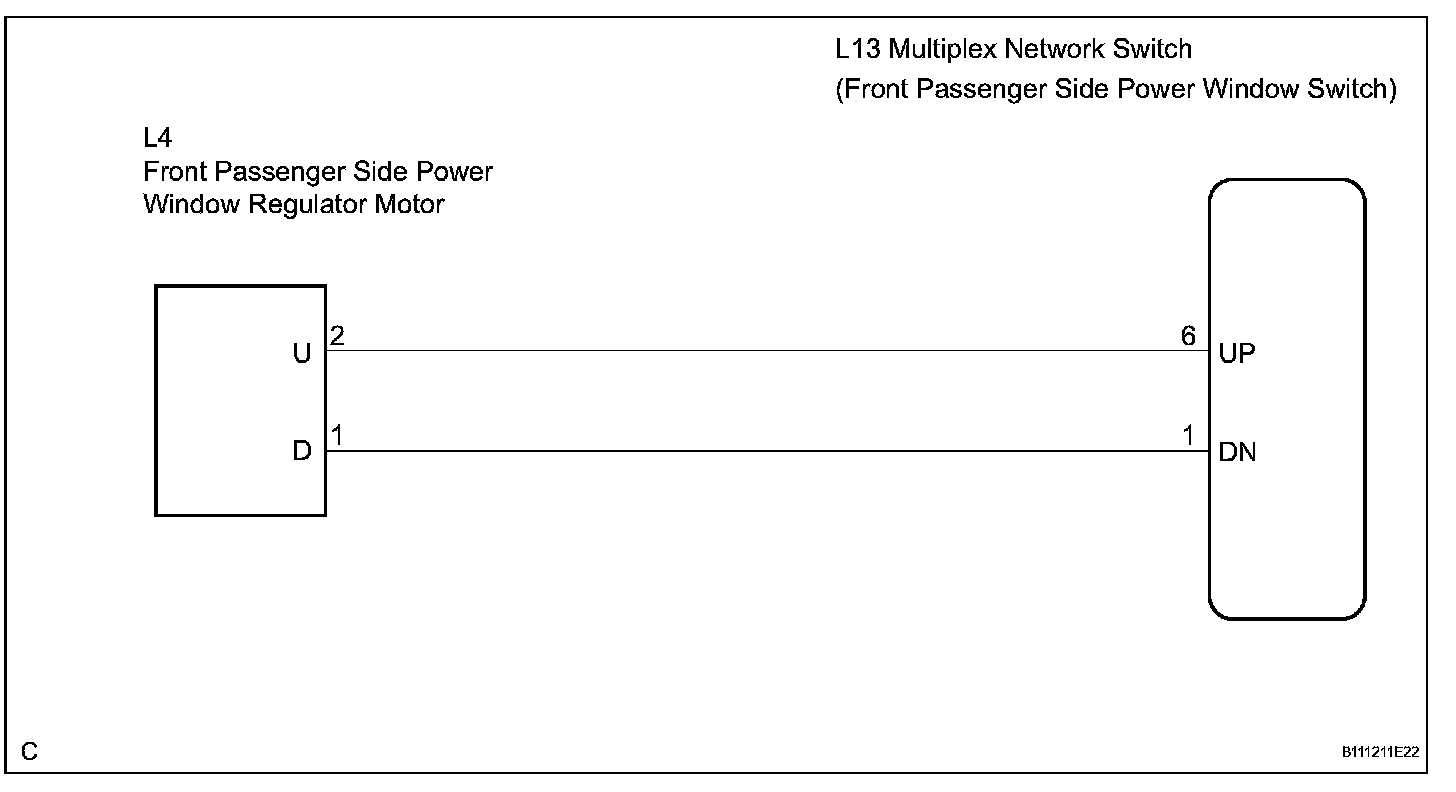

WIRING DIAGRAM

Wiring Diagram:





INSPECTION PROCEDURE

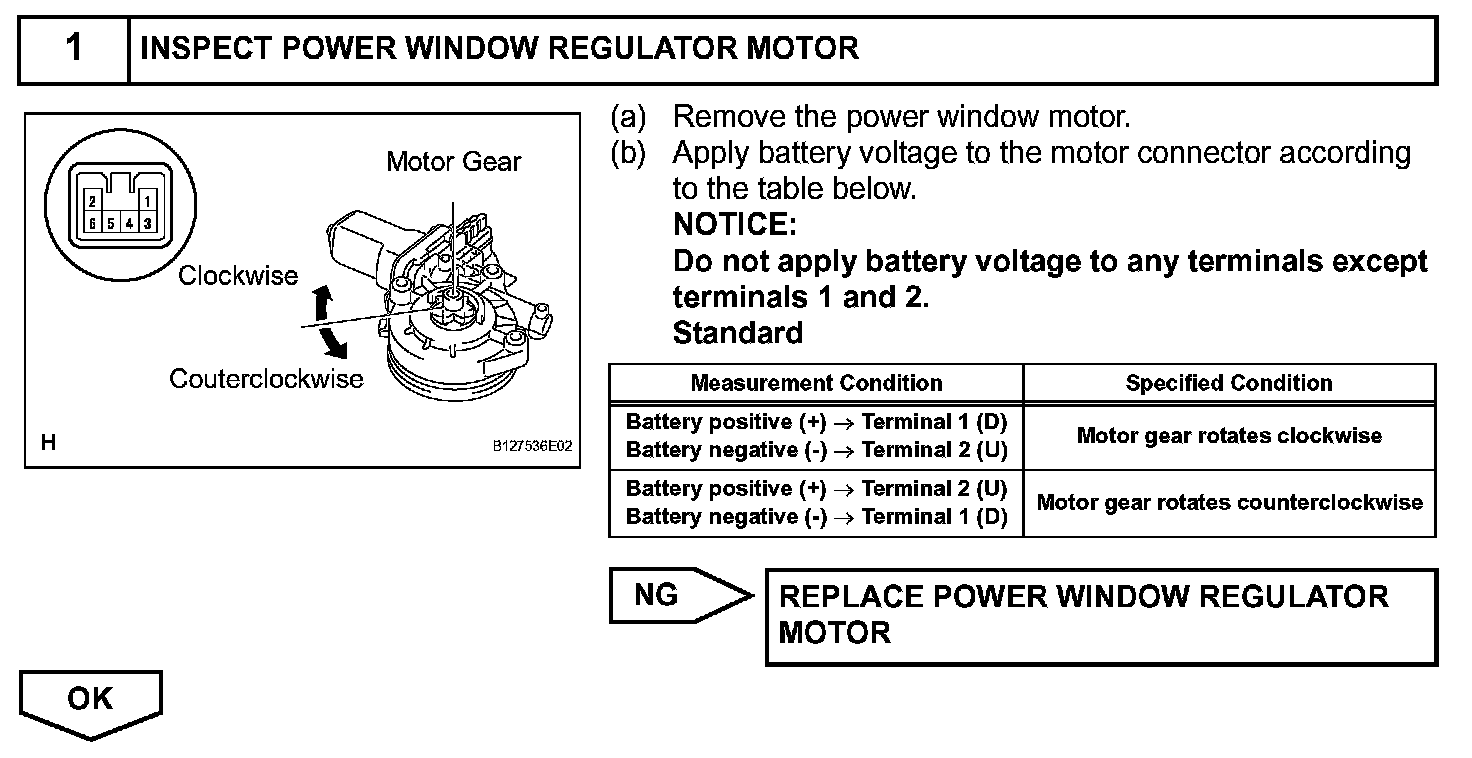

Step 1:

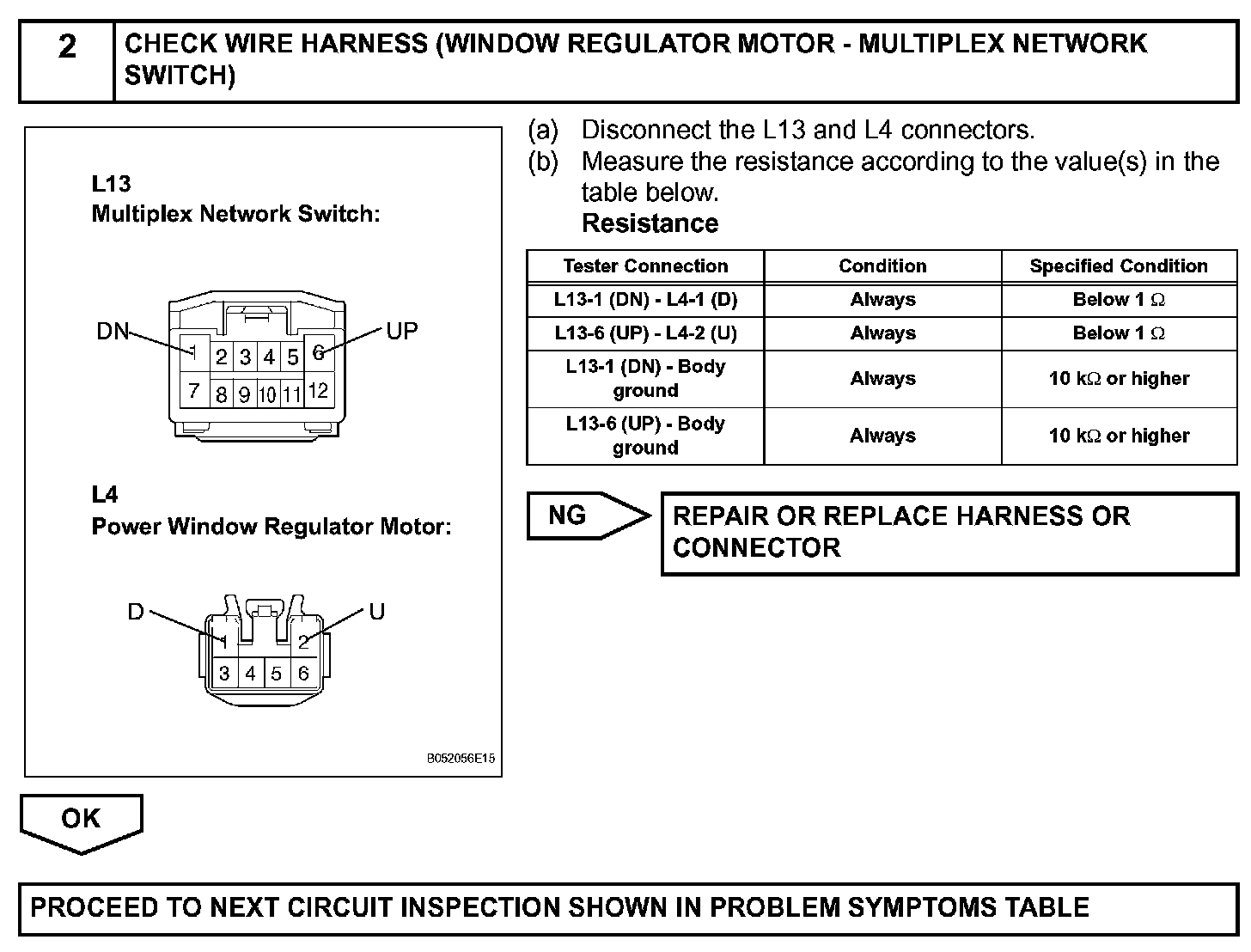

Step 2:
