Heated Glass Element: Service and Repair

REPAIR

1. IF NECESSARY, REPAIR THE DEFOGGER WIRE





a. Clean the broken wire tips with a grease, wax and silicone remover.

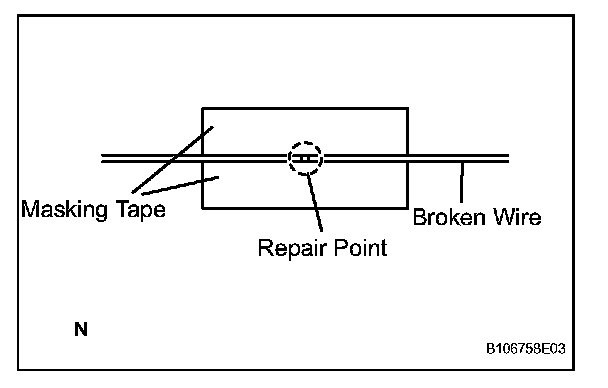

b. Place the masking tape along both sides of the wire.





c. Thoroughly mix the repair agent (DuPont paste No. 4817 or equivalent).

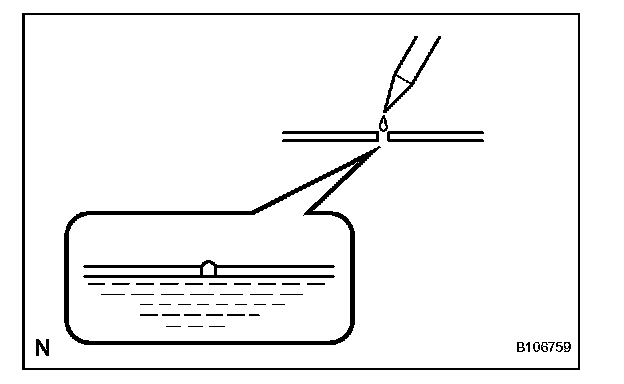

d. Using a fine tip brush, apply a small amount of the agent to the wire.
e. After a few minutes, remove the masking tape.

NOTICE: Do not repair the defogger wire again for at least 24 hours.
