COUNTER GEAR AND REVERSE IDLER GEAR ContinuedINSPECTION
1. INSPECT COUNTER GEAR

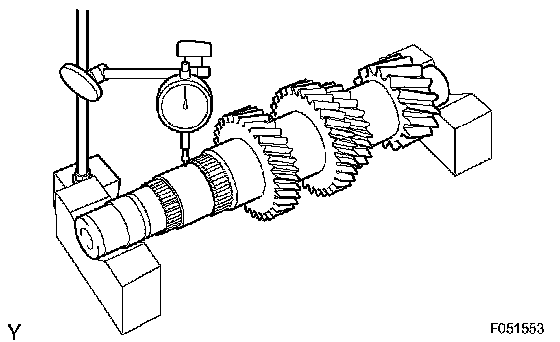

a) Using a dial indicator and 2 V-blocks, measure the shaft runout.
Maximum runout: 0.03 mm (0.0012 inch)
If the runout exceeds the maximum, replace the counter gear.

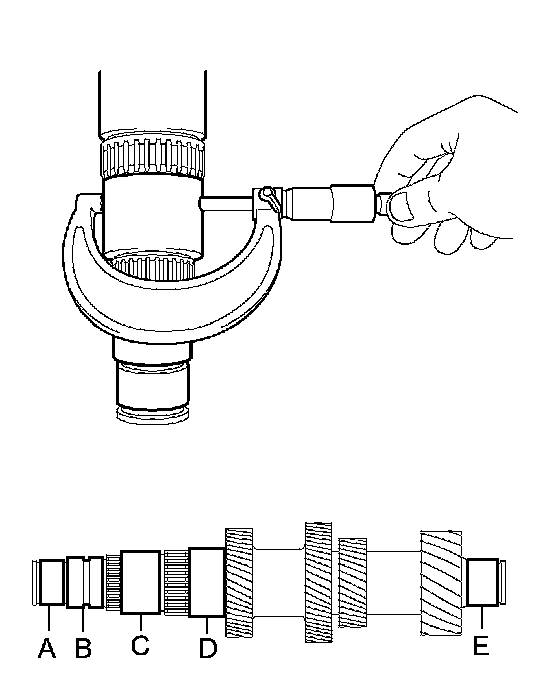

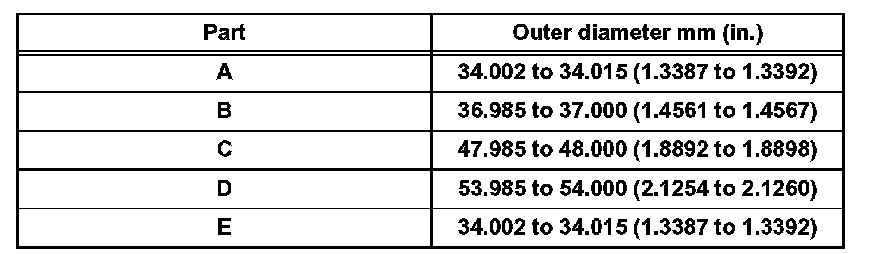

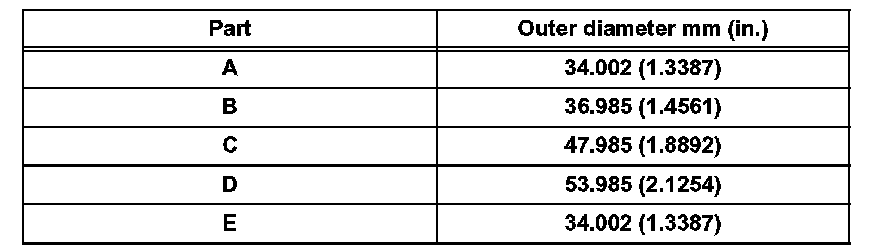

b) Using a micrometer, measure the outer diameter of the input shaft journal surface.
Standard:
Minimum:
If the diameter is less than the minimum, replace the counter gear shaft.
2. INSPECT COUNTER SHAFT REVERSE GEAR

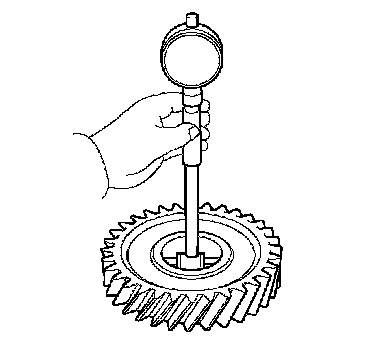

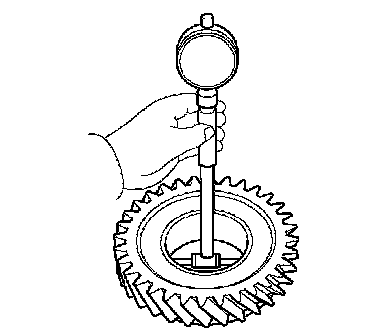

a) Using a cylinder gauge, measure the inside diameter of the reverse gear.
Standard inside diameter: 51.015 to 51.040 mm (2.0085 to 2.0095 inch)
Maximum inside diameter: 51.040 mm (2.0095 inch)
If the inside diameter exceeds the maximum, replace the reverse gear.
3. INSPECT COUNTER SHAFT GEAR 1ST SPEED

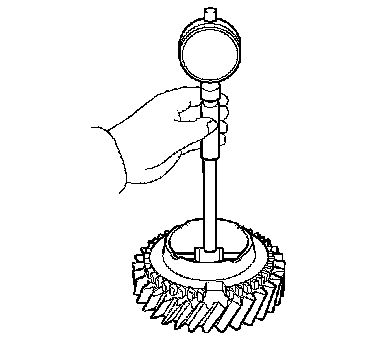

a) Using a cylinder gauge, measure the inside diameter of the 1st gear.
Standard inside diameter: 54.015 to 54.040 mm (2.1266 to 2.1276 inch)
Maximum inside diameter: 54.040 mm (2.1276 inch)
If the inside diameter exceeds the maximum, replace the 1st gear.
4. INSPECT COUNTER SHAFT 2ND SPEED GEAR
a) Using a cylinder gauge, measure the inside diameter of the 2nd gear.
Standard inside diameter: 60.015 to 60.040 mm (2.3628 to 2.3638 inch)
Maximum inside diameter: 60.040 mm (2.3638 inch)
If the inside diameter exceeds the maximum, replace the 2nd gear.
5. INSPECT NO.3 TRANSMISSION HUB SLEEVE

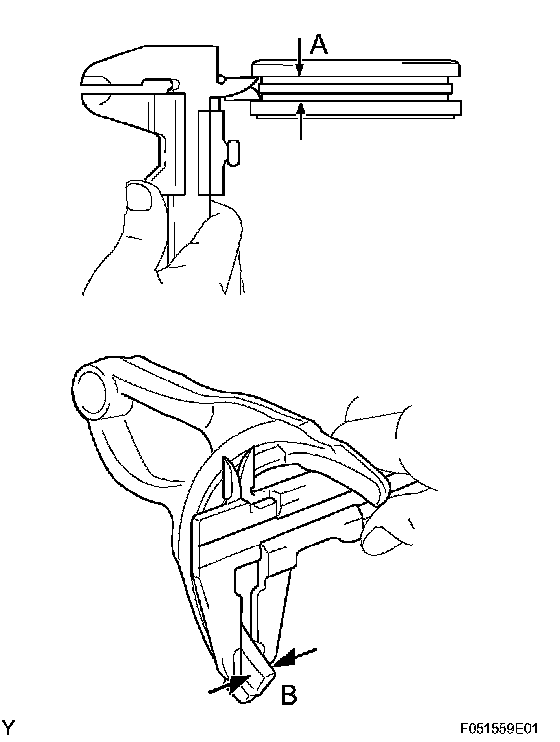

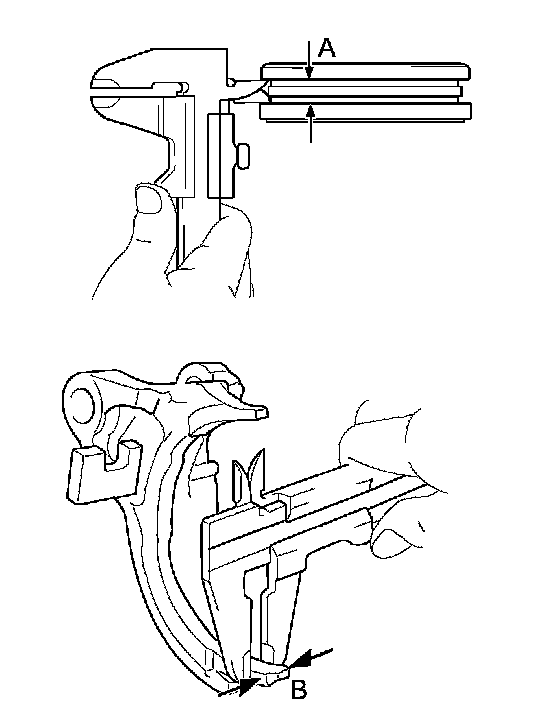

a) Using vernier calipers, measure the width of the No.3 transmission hub sleeve groove (A) and the thickness of the claw part on the No.4 gear shift fork (B), and calculate the clearance.
Standard clearance (A - B): 0.26 to 0.84 mm (0.0102 to 0.0331 inch)
If the clearance is outside the specification, replace the No.3 transmission hub sleeve and No.4 gear shift fork.
6. INSPECT NO.1 TRANSMISSION HUB SLEEVE

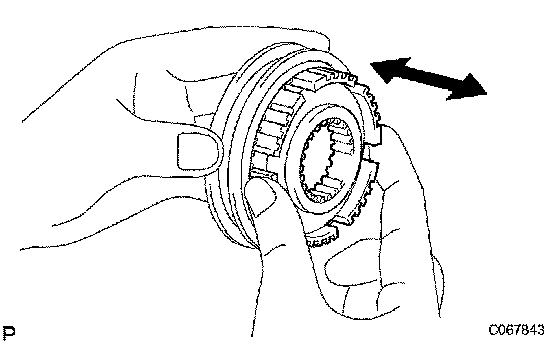

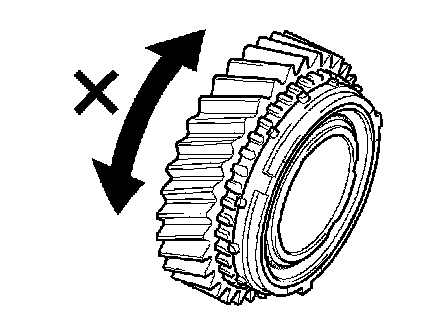

a) Check the sliding condition between the No.1 transmission clutch hub and No.1 transmission hub sleeve.
b) Check that the spline gear teeth of the No.1 transmission hub sleeve are not worn.
c) Using vernier calipers, measure the width of the No.1 transmission hub sleeve groove (A) and the thickness of the claw part on the No.1 gear shift fork (B), and calculate the clearance.
Standard clearance (A - B): 0.15 to 0.35 mm (0.0059 to 0.0138 inch)
If the clearance is outside the specification, replace the No.1 transmission hub sleeve and No.1 gear shift fork.
7. INSPECT NO.4 SYNCHRONIZER RING

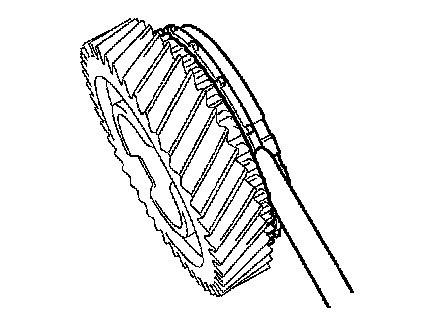

a) Using a feeler gauge, measure the clearance between the synchronizer ring and reverse gear.
Standard clearance: 0.70 to 1.30 mm (0.0276 to 0.0512 inch)
Minimum clearance: 0.70 mm (0.0276 inch)
If the clearance is less than the minimum, replace the synchronizer ring.

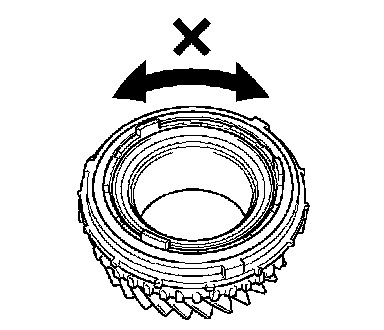

b) Coat the reverse gear cone with gear oil. Check the braking effect of the synchronizer ring. Turn the synchronizer ring in one direction while pushing it onto the reverse gear cone. Check that the ring locks.
8. INSPECT NO.1 SYNCHRONIZER RING SET (for 1st Gear)

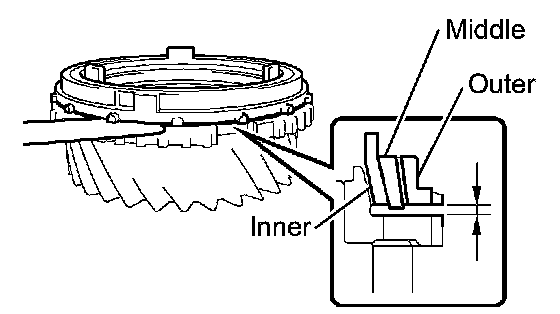

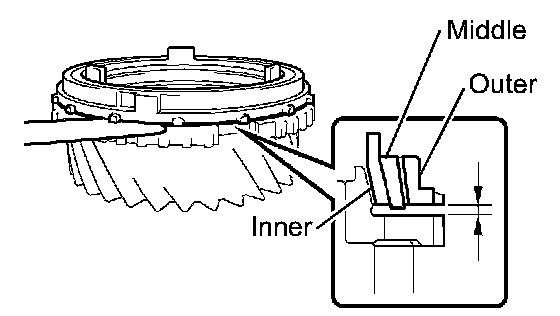

a) Using a feeler gauge, measure the clearance between the synchronizer ring and 1st gear.
Standard clearance:
Inner: 1.48 to 2.12 mm (0.0583 to 0.0835 inch)
Middle: 0.68 to 1.92 mm (0.0268 to 0.0756 inch)
Outer: 0.88 to 1.72 mm (0.0346 to 0.0677 inch)
Minimum clearance:
Inner: 1.48 mm (0.0583 inch)
Middle: 0.68 mm (0.0268 inch)
Outer: 0.88 mm (0.0346 inch)
If the clearance is less than the minimum, replace the synchronizer ring.

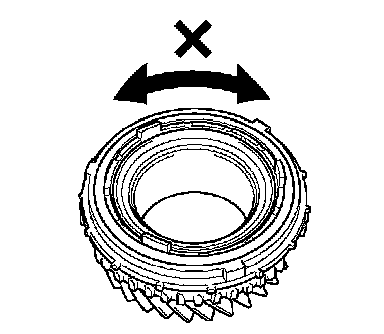

b) Coat the 1st gear cone with gear oil. Check the braking effect of the synchronizer ring. Turn the synchronizer ring in one direction while pushing it onto the 1st gear cone. Check that the ring locks.
9. INSPECT NO.1 SYNCHRONIZER RING SET (for 2nd Gear)
a) Using a feeler gauge, measure the clearance between the synchronizer ring and 2nd gear.
Standard clearance:
Inner: 1.48 to 2.12 mm (0.0583 to 0.0835 inch)
Middle: 0.68 to 1.92 mm (0.0268 to 0.0756 inch)
Outer: 0.88 to 1.72 mm (0.0346 to 0.0677 inch)
Minimum clearance:
Inner: 1.48 mm (0.0583 inch)
Middle: 0.68 mm (0.0268 inch)
Outer: 0.88 mm (0.0346 inch)
If the clearance is less than the minimum, replace the synchronizer ring.
b) Coat the 2nd gear cone with gear oil. Check the braking effect of the synchronizer ring. Turn the synchronizer ring in one direction while pushing it onto the 2nd gear cone. Check that the ring locks.
