Clutch Fluid Accumulator: Service and Repair
CLUTCH ACCUMULATORComponents:
REMOVAL

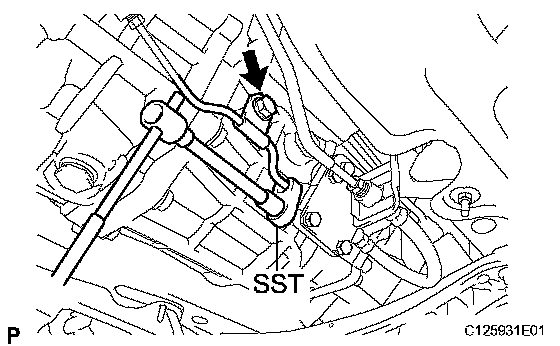

1. DISCONNECT CLUTCH LINE
a) Remove the bolt and separate the clutch line clamp.
b) Using SST, disconnect the clutch line.
SST 09023-00101
HINT: Use a container to catch the fluid.
2. REMOVE CLUTCH TUBE

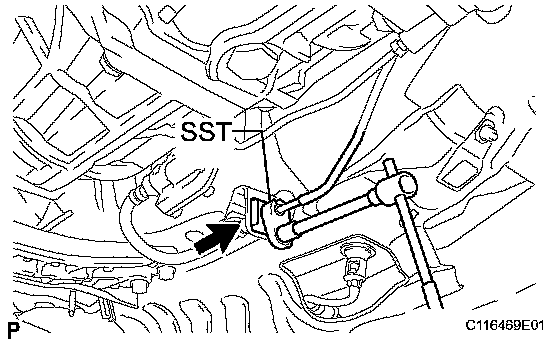

a) Using SST, disconnect the clutch line.
SST 09023-00101
HINT: Use a container to catch the fluid.
b) Remove the clip and disconnect the clutch tube.
HINT: Use a container to catch the fluid.

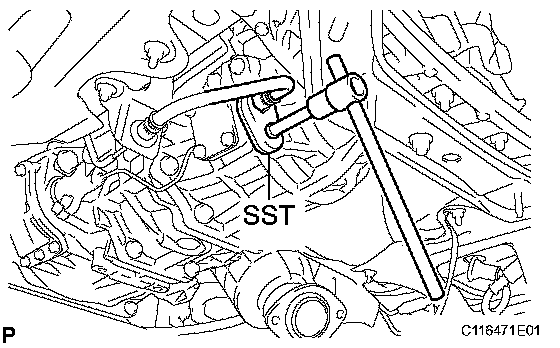

c) Using SST, remove the clutch tube.
SST 09023-12701
HINT: Use a container to catch the fluid.

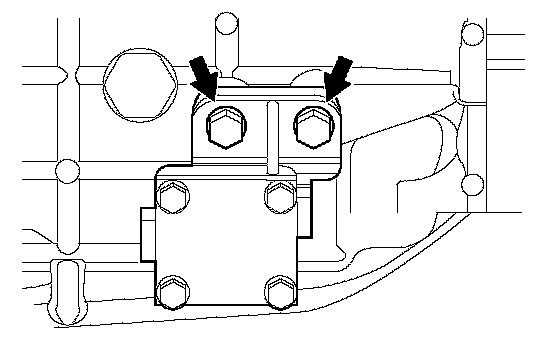

3. REMOVE CLUTCH ACCUMULATOR ASSEMBLY
a) Remove the 2 bolts and clutch accumulator.
INSTALLATION

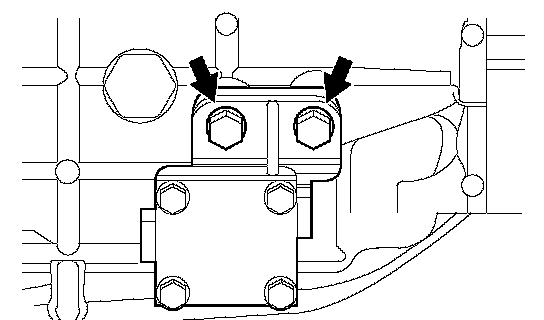

1. TEMPORARILY TIGHTEN CLUTCH ACCUMULATOR ASSEMBLY
a) Temporarily tighten the clutch accumulator with the 2 bolts.
2. CONNECT CLUTCH TUBE

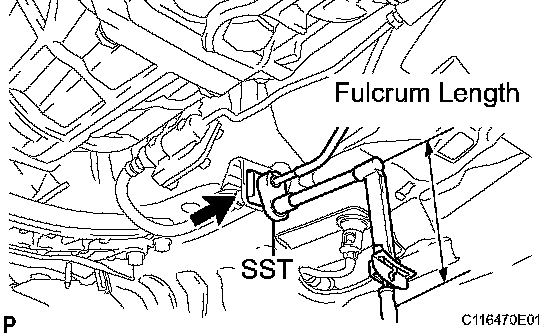

a) Using SST, connect the clutch tube.
SST 09023-12701
Torque: When using SST 21 Nm (216 kgf-cm, 16 ft. lbs.)
When not using SST 23 Nm (235 kgf-cm, 17 ft. lbs.)

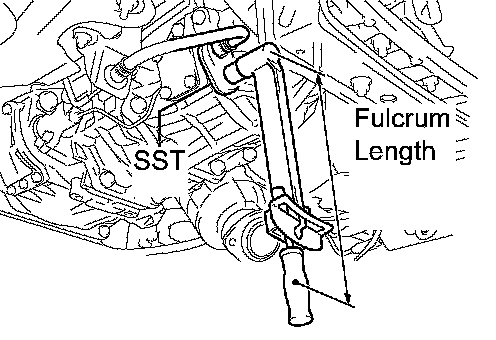

HINT: Use a torque wrench with a fulcrum length of 345 mm (13.58 inch).
b) Connect the clutch tube to the bracket with a new clip.
c) Using SST, connect the clutch tube.
SST 09023-00101
Torque: 15 Nm (153 kgf-cm, 11 ft. lbs.)
HINT: Use a torque wrench with a fulcrum length of 300 mm (11.81 inch).
3. CONNECT CLUTCH LINE

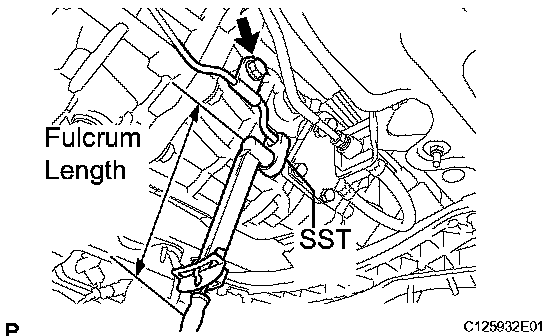

a) Using SST, connect the clutch line.
Torque: 15 Nm (153 kgf-cm, 11 ft. lbs.)
HINT: Use a torque wrench with a fulcrum length of 300 mm (11.81 inch).
b) Temporarily tighten the clutch line with the bolt.
4. FULLY TIGHTEN CLUTCH ACCUMULATOR ASSEMBLY

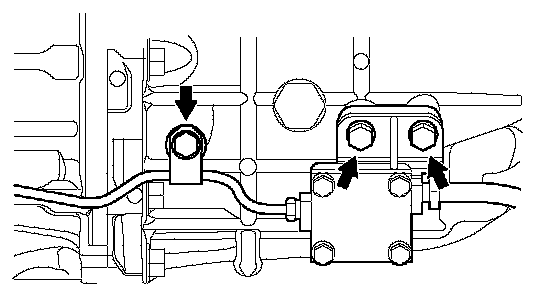

a) Fully tighten the clutch accumulator with the 3 bolts.
Torque: 12 Nm (120 kgf-cm, 9 ft. lbs.)
5. BLEED CLUTCH LINE
a) Fill the brake reservoir with the brake fluid and bleed the clutch system.
Torque: 11 Nm (112 kgf-cm, 8 ft. lbs.)
6. CHECK FOR BRAKE FLUID LEAKAGE
a) Check for leakage in the clutch system.
7. CHECK FOR BRAKE FLUID LEVEL IN RESERVOIR
