Wiring Harness: Testing and Inspection
TRANSMISSION WIREINSPECTION
1. INSPECT TRANSMISSION WIRE

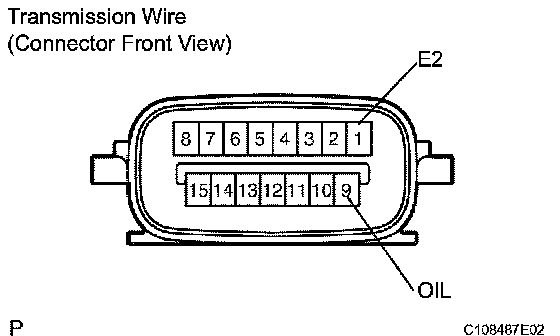

Transmission Wire (Connector Front View):
a) Using an ohmmeter, measure the resistance between the terminals.

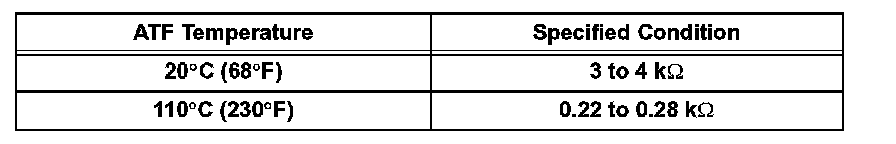

Standard Resistance:
If the resistance value is not as specified, replace the transmission wire.
