Torque Converter: Service and Repair

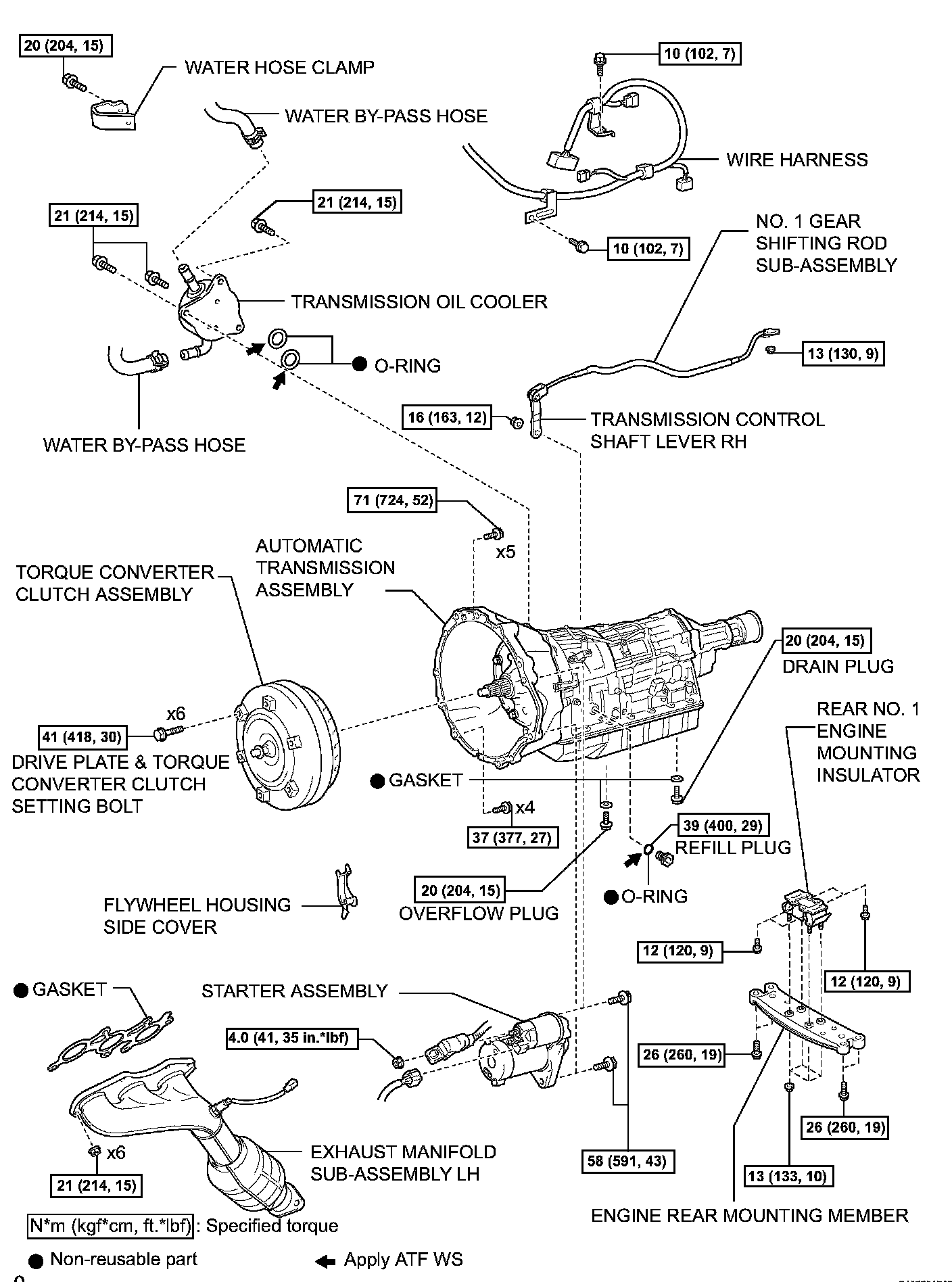

TORQUE CONVERTER AND DRIVE PLATE

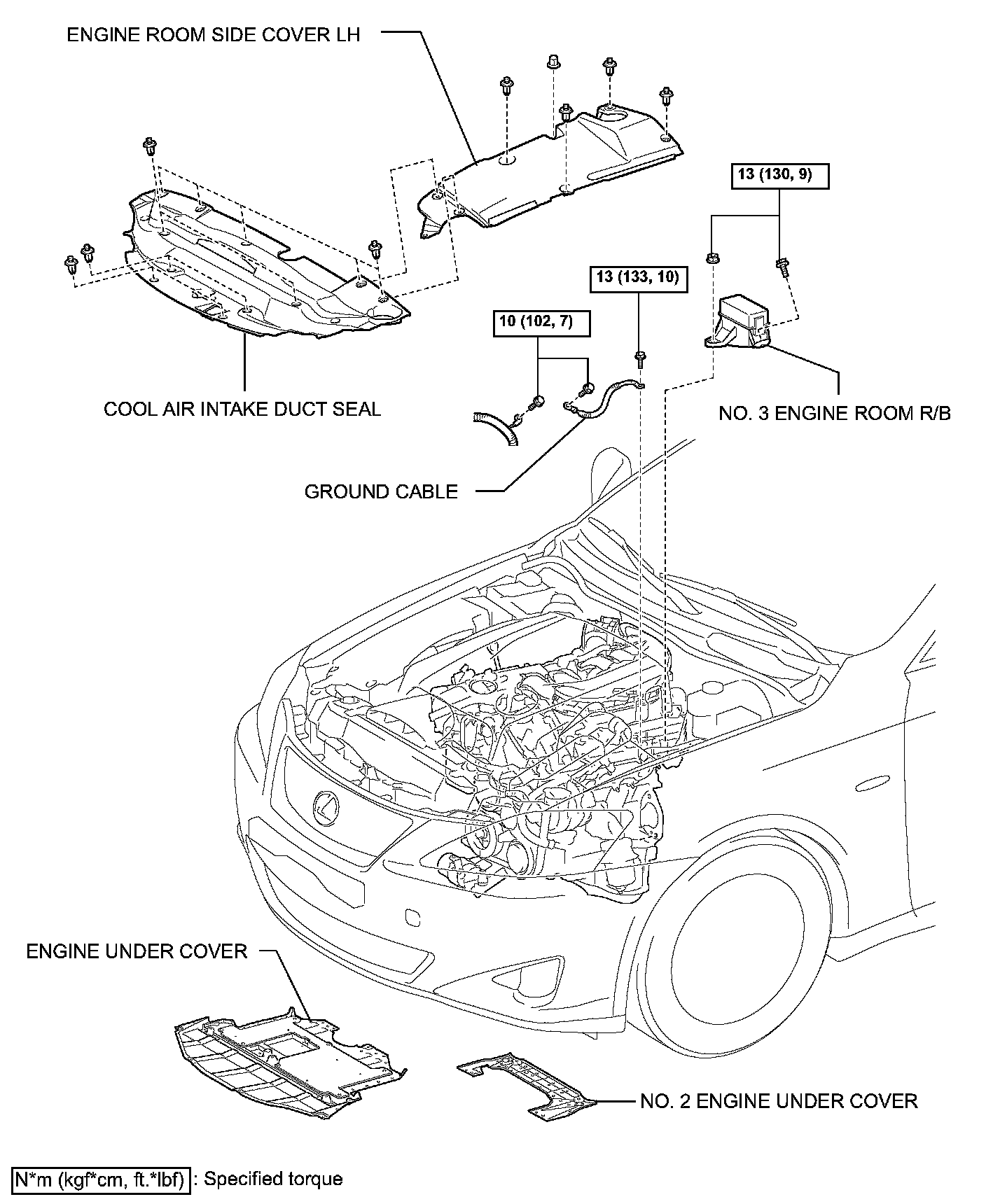

Components:

REMOVAL
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE COOL AIR INTAKE DUCT SEAL
3. REMOVE ENGINE ROOM SIDE COVER LH
4. REMOVE ENGINE UNDER COVER
5. REMOVE NO.2 ENGINE UNDER COVER
6. DRAIN COOLANT
7. DRAIN AUTOMATIC TRANSMISSION FLUID

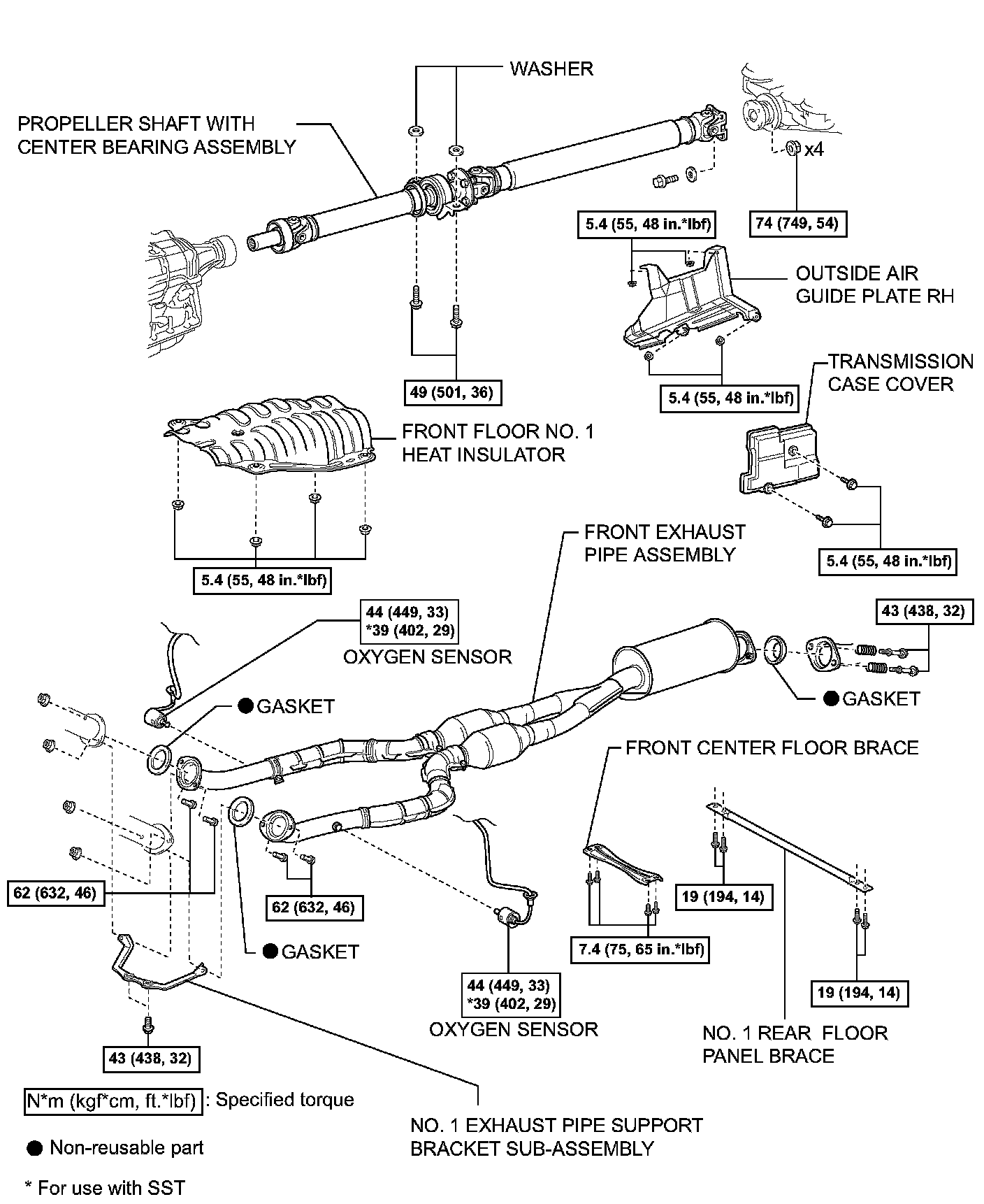

8. REMOVE NO.1 REAR FLOOR PANEL BRACE
9. REMOVE FRONT CENTER FLOOR BRACE
10. REMOVE OXYGEN SENSOR
11. REMOVE FRONT EXHAUST PIPE ASSEMBLY
12. REMOVE FRONT FLOOR NO.1 HEAT INSULATOR
13. REMOVE OUTSIDE AIR GUIDE PLATE RH
14. REMOVE PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY
15. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY LH
16. REMOVE STARTER ASSEMBLY
17. REMOVE FLYWHEEL HOUSING SIDE COVER

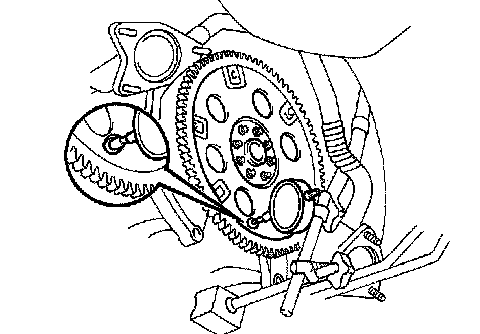

18. REMOVE DRIVE PLATE & TORQUE CONVERTER CLUTCH SETTING BOLT
19. REMOVE NO.1 EXHAUST PIPE SUPPORT BRACKET SUB-ASSEMBLY
20. SEPARATE FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY
21. SUPPORT AUTOMATIC TRANSMISSION ASSEMBLY
22. REMOVE ENGINE REAR MOUNTING MEMBER
23. SEPARATE CONNECTOR
24. SEPARATE WIRE HARNESS
25. SEPARATE WATER BY-PASS HOSE
26. REMOVE AUTOMATIC TRANSMISSION ASSEMBLY
27. REMOVE REAR NO.1 ENGINE MOUNTING INSULATOR
28. REMOVE TRANSMISSION CONTROL SHAFT LEVER RH
29. REMOVE TRANSMISSION OIL COOLER
30. REMOVE TORQUE CONVERTER CLUTCH ASSEMBLY
31. INSPECT TORQUE CONVERTER CLUTCH ASSEMBLY

INSTALLATION
1. INSTALL TORQUE CONVERTER CLUTCH ASSEMBLY
2. INSTALL TRANSMISSION OIL COOLER
3. INSTALL TRANSMISSION CONTROL SHAFT LEVER RH
4. INSTALL REAR NO.1 ENGINE MOUNTING INSULATOR
5. INSTALL AUTOMATIC TRANSMISSION ASSEMBLY
6. INSTALL WATER BY-PASS HOSE
7. INSTALL WIRE HARNESS
8. INSTALL CONNECTOR
9. INSTALL ENGINE REAR MOUNTING MEMBER
10. INSTALL FLOOR SHIFT GEAR SHIFTING ROD SUBASSEMBLY
11. INSTALL NO.1 EXHAUST PIPE SUPPORT BRACKET SUB-ASSEMBLY
12. INSTALL DRIVE PLATE &TORQUE CONVERTER CLUTCH SETTING BOLT
13. INSTALL STARTER ASSEMBLY
14. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY LH
15. INSTALL PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY
16. INSTALL OUTSIDE AIR GUIDE PLATE RH
17. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
18. ADJUST SHIFT LEVER POSITION
19. INSPECT SHIFT LEVER POSITION
20. INSTALL FRONT FLOOR NO.1 HEAT INSULATOR
21. INSTALL FRONT EXHAUST PIPE ASSEMBLY
22. INSTALL OXYGEN SENSOR
23. INSTALL FRONT CENTER FLOOR BRACE
24. INSTALL NO.1 REAR FLOOR PANEL BRACE
25. ADD COOLANT
26. ADD AUTOMATIC TRANSMISSION FLUID
27. ADJUST COOLANT
28. CHECK FOR ENGINE COOLANT LEAKS
29. CHECK FOR EXHAUST GAS LEAKS
30. INSTALL NO.2 ENGINE UNDER COVER
31. INSTALL ENGINE UNDER COVER
32. INSTALL ENGINE ROOM SIDE COVER LH
33. INSTALL COOL AIR INTAKE DUCT SEAL
34. RESET MEMORY
35. PERFORM INITIALIZATION
Some systems need initialization after reconnecting the cable to the negative battery terminal.

INSPECTION
1. INSPECT TORQUE CONVERTER CLUTCH ASSEMBLY
a) Inspect the one-way clutch.

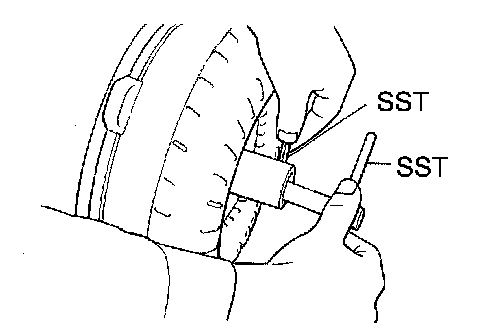

1) Install SST so that it fits in a notch of the converter hub and a notch of the outer race of the one-way clutch.
SST 09350-32014 (09351-32010, 09351-32020)
2) Press on the serrations of the stator with a finger and rotate the starter. Check that it rotates smoothly when turned clockwise and locks up when turned counterclockwise.
SST 09350-32014 (09351-32010, 09351-32020)
If necessary, clean the converter and retest the one-way clutch.
Replace the converter if the one-way clutch still fails the test.
b) Determine the condition of the torque converter clutch assembly.

1) If the inspection result of the torque converter clutch assembly meets the following item, replace the torque converter clutch.
Malfunction Item: Any metallic sound is heard from the torque converter clutch during a stall test or when the shift lever is in the N position. The one-way clutch is free or locked in both directions.
Fine powder exceeding the sample limit is identified in ATF. (See the sample.)

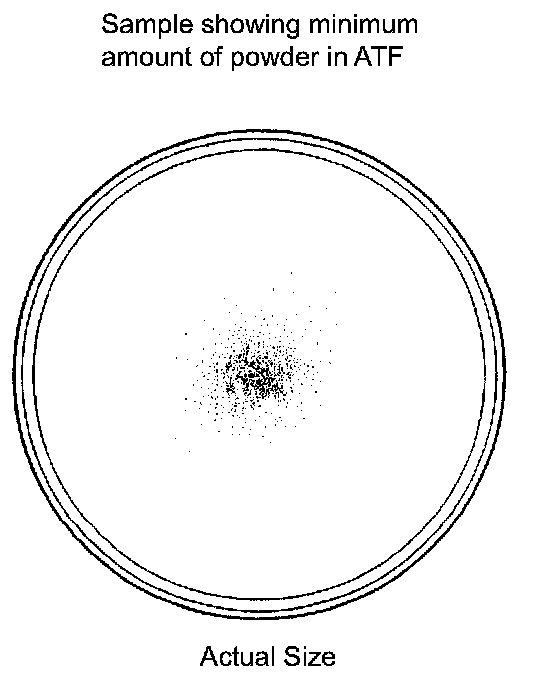

HINT: The sample shows approximately 0.25 liters (0.26 US quarts, 0.22 Imp. quarts) of ATF that is taken out from the removed torque converter clutch.

c) Replace the ATF in the torque converter clutch.
1) If the ATF is discolored and/or has a foul odor, completely stir the ATF in the torque converter clutch and drain it.
d) Clean and check the oil cooler and oil pipe line.

1) If the torque converter clutch is inspected or the ATF is changed, clean the oil cooler and oil pipe line.

HINT:

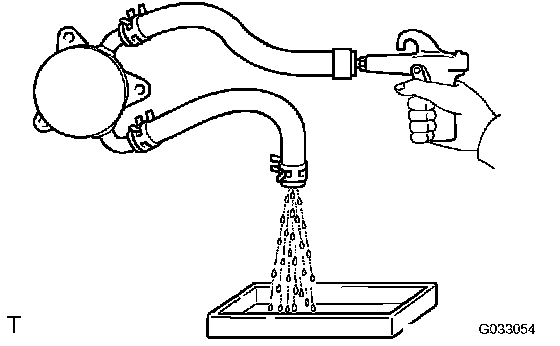

^ Apply compressed air of 196 kPa (2 kgf/cm2 28 psi) from the inlet hose.
^ If a lot of fine powder is found in the ATF, add new ATF using a bucket pump and clean it again.

2) If the ATF is cloudy, inspect the oil cooler (radiator).
e) Prevent deformation of the torque converter clutch.

1) When there is any damage to the end of the bolt for the torque converter clutch and to the bottom of the bolt hole, replace the bolt and the torque converter clutch.
2) All of the bolts have to be the same length.

2. INSPECT RUNOUT OF DRIVE PLATE AND RING GEAR SUB-ASSEMBLY

a) Set up a dial indicator and measure the drive plate runout.
Maximum runout: 0.20 mm (0.0079 inch)
If runout exceeds the maximum value or if the ring gear is damaged, replace the drive plate.
