Home >> Lexus >> 2007 >> IS 250 RWD V6-2.5L (4GR-FSE) >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Testing and Inspection >> Initial Inspection and Diagnostic Overview

Initial Inspection and Diagnostic Overview

HOW TO PROCEED WITH TROUBLESHOOTING

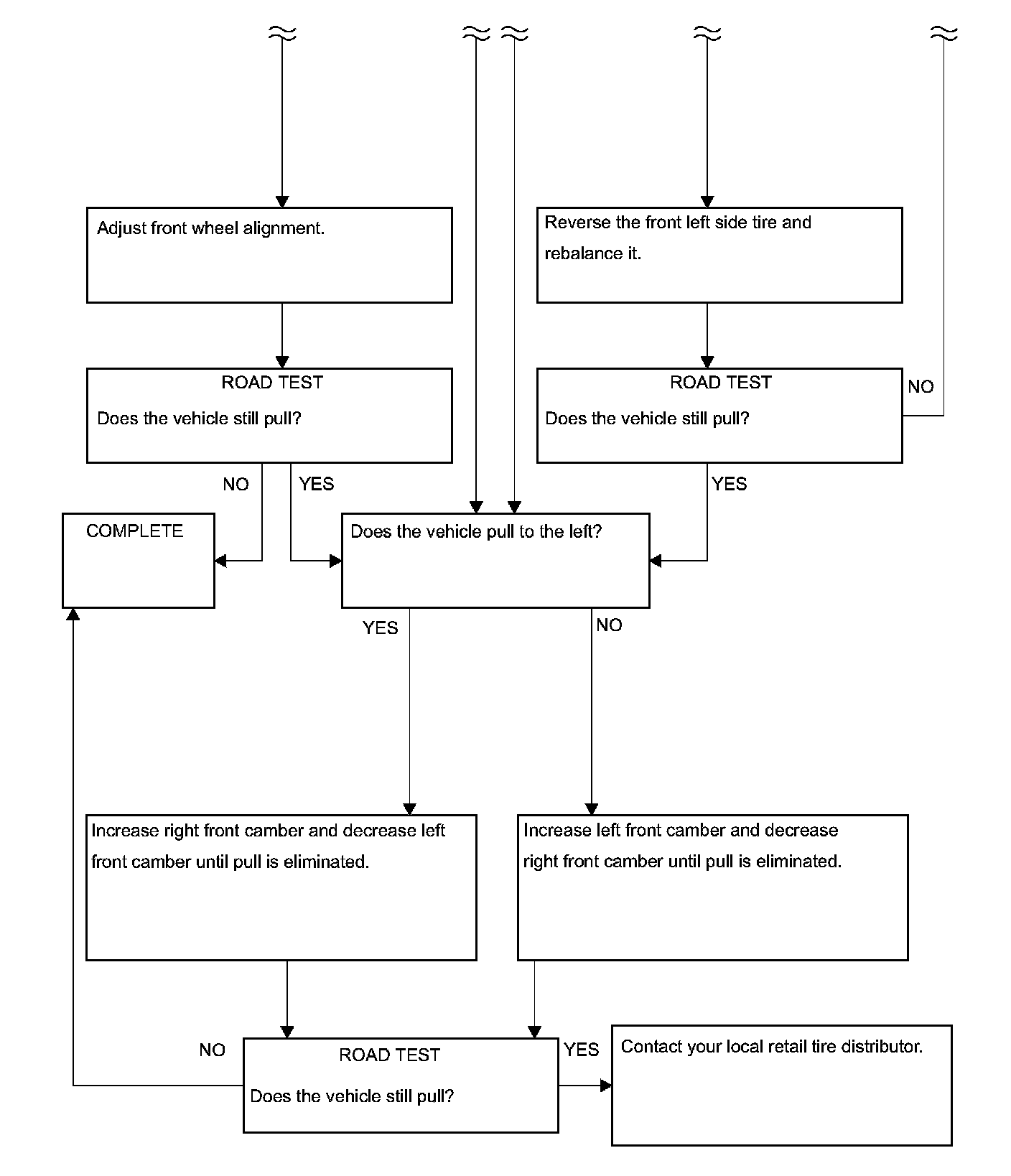

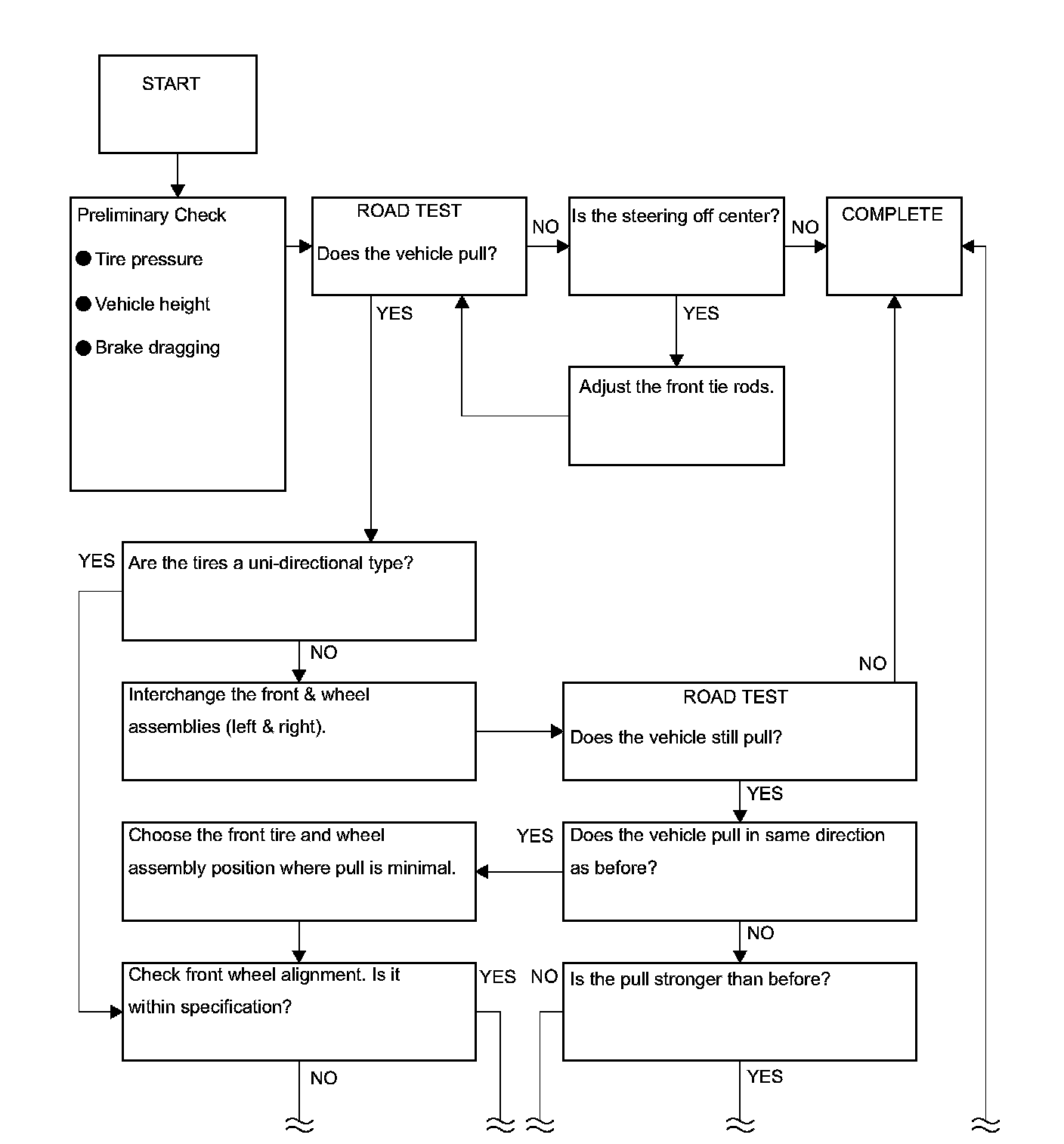

HINT: This is a flow chart for vehicle pull.
