Pinout Values and Diagnostic Parameters

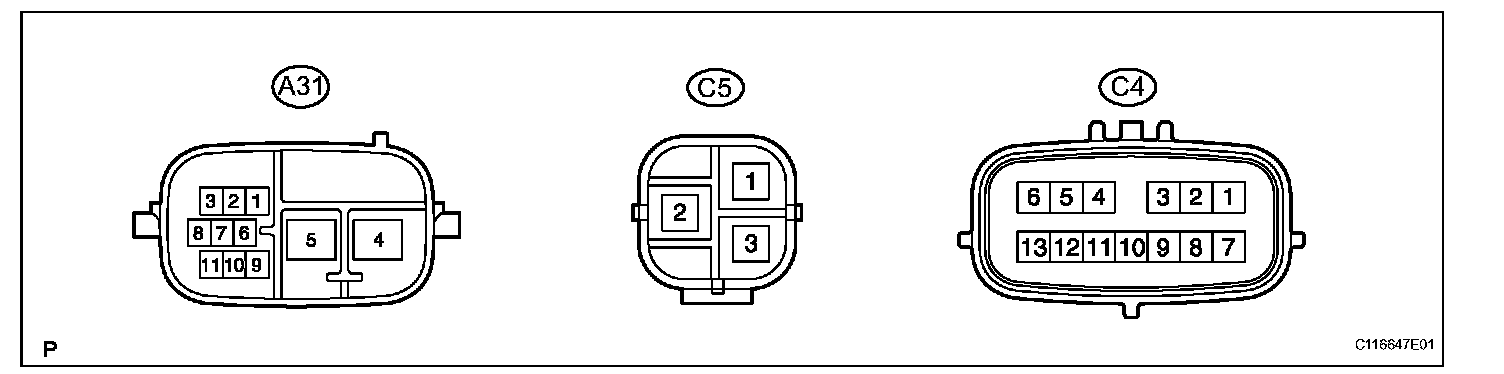

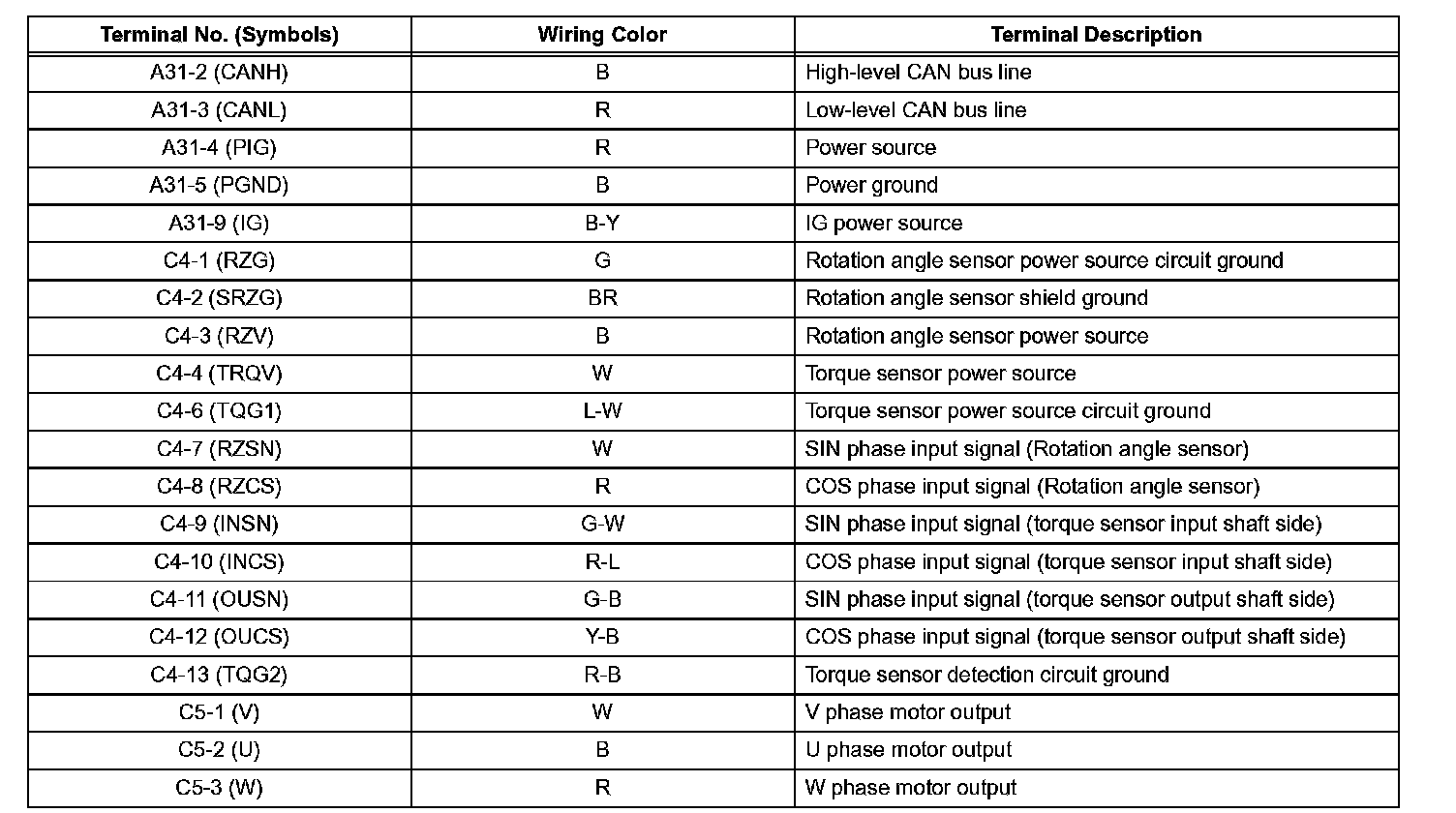

TERMINALS OF ECU1. TERMINALS OF ECU
HINT: The power steering ECU assembly uses waterproof connectors. Therefore, voltage or waveforms cannot be checked with the connectors connected to the vehicle.

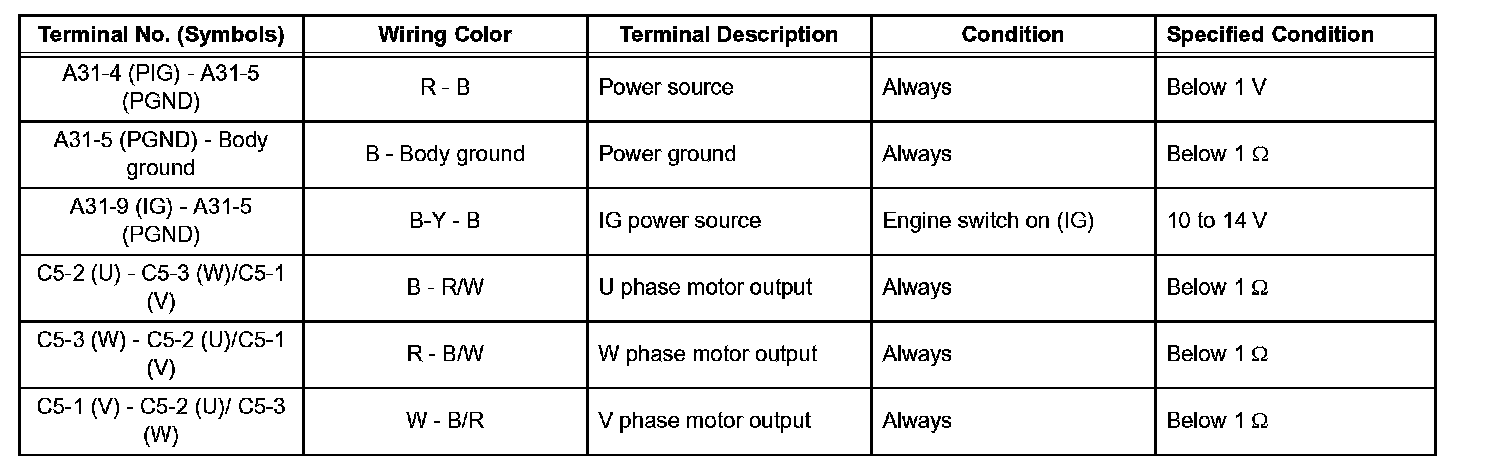

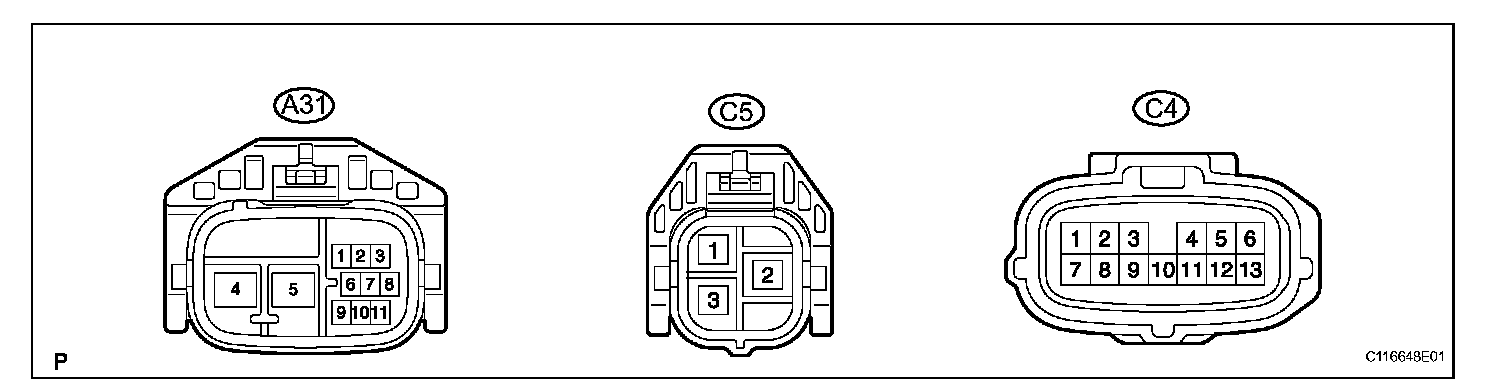

2. INSPECT WIRE HARNESS SIDE CONNECTOR
