How to Proceed With Troubleshooting

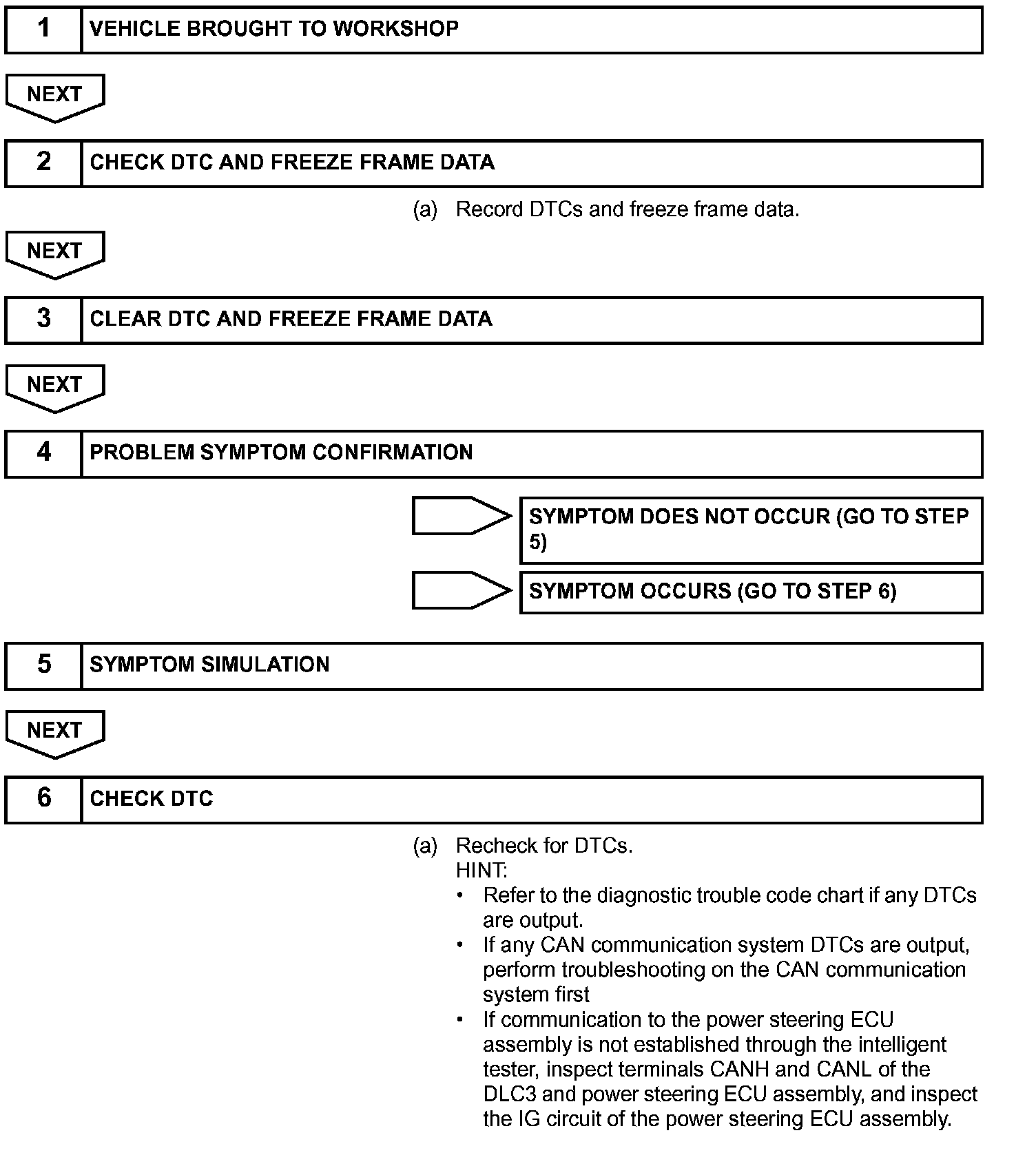

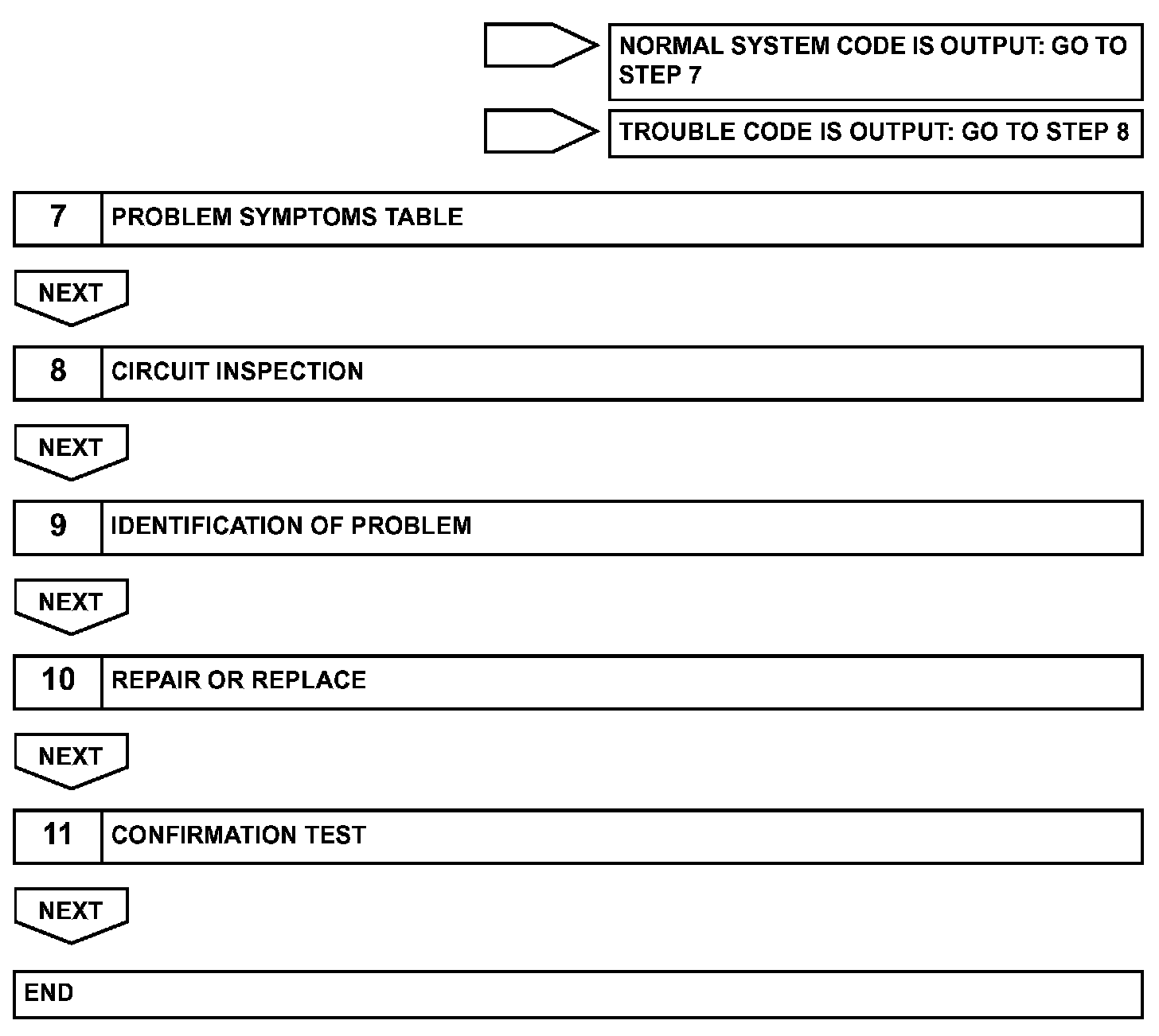

HOW TO PROCEED WITH TROUBLESHOOTINGPerform troubleshooting according to the following flowchart.
HINT:
^ The intelligent tester can be used at steps 2, 3, 6, 9, and 12.
Steps 1-6(Part 1):
Perform troubleshooting according to the following flowchart.
HINT:
^ The intelligent tester can be used at steps 2, 3, 6, 9, and 12.
