Component Tests and General Diagnostics
ON-VEHICLE INSPECTION1. CHECK STEERING EFFORT (TORQUE)
NOTICE: Some service operations affect the SRS airbags. Be sure to refer to Restraint Systems Service Precautions.
(a) Stop the vehicle on a level, paved surface and align the wheels straight ahead.
(b) Disconnect the negative (-) battery cable from the battery. Refer to Restraint Systems Service Precautions.
(c) Remove the steering wheel pad.
(d) Connect the negative (-) battery cable to the battery.
(e) Using a torque wrench, check if the steering wheel set nut is properly tightened.
Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)
(f) Turn the engine switch on (IG) so that power steering is available.

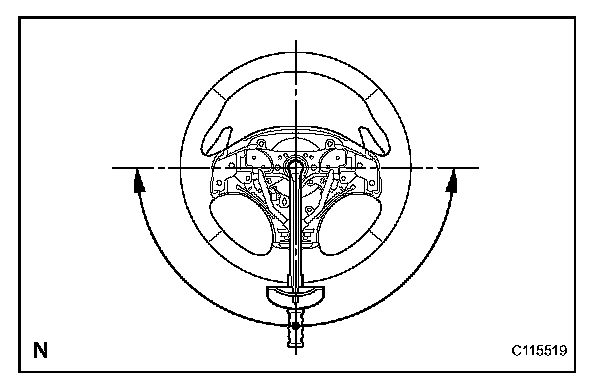

(g) Turn the steering wheel 90 degrees to the right and check steering effort (torque) while turning. Check in the opposite direction using the same manner.
Steering effort (Reference): 6.9 N*m (70 kgf*cm, 61 in.*lbf) or less
(h) Align the front wheels straight ahead.
(i) Disconnect the negative (-) battery cable from the battery.
(j) Install the steering wheel pad.
(k) Connect the negative (-) battery cable to the battery.
(l) Clear the DTCs. Refer to Restraint Systems Service Precautions.
(m) Perform initialization.
(n) Inspect the airbag warning light.
