Engine Switch Indicator Circuit

Engine Switch Indicator Circuit

DESCRIPTION

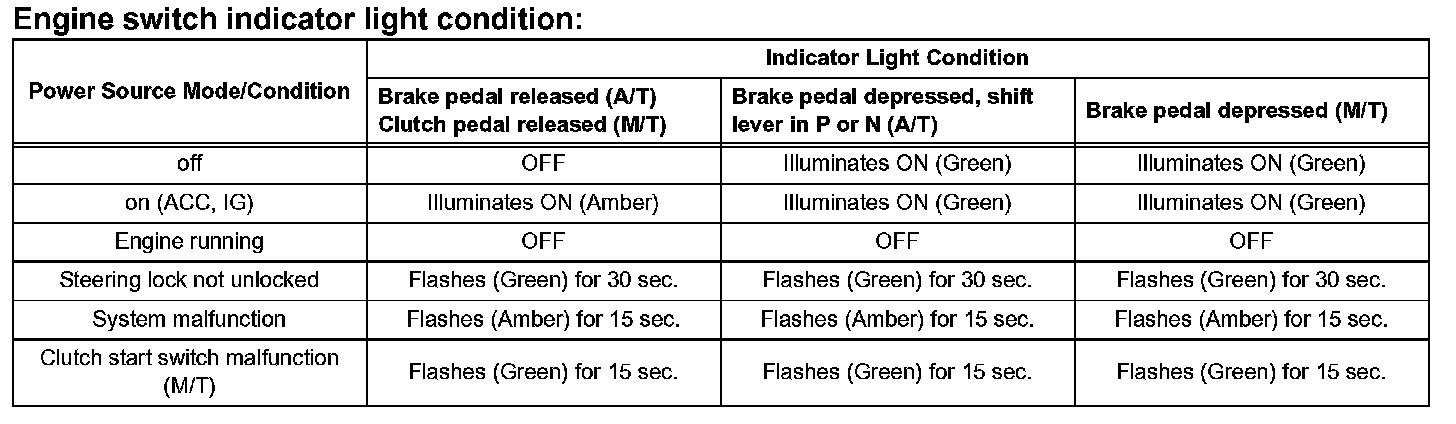

Engine start conditions or system malfunctions can be checked by the status of the engine switch indicator light.

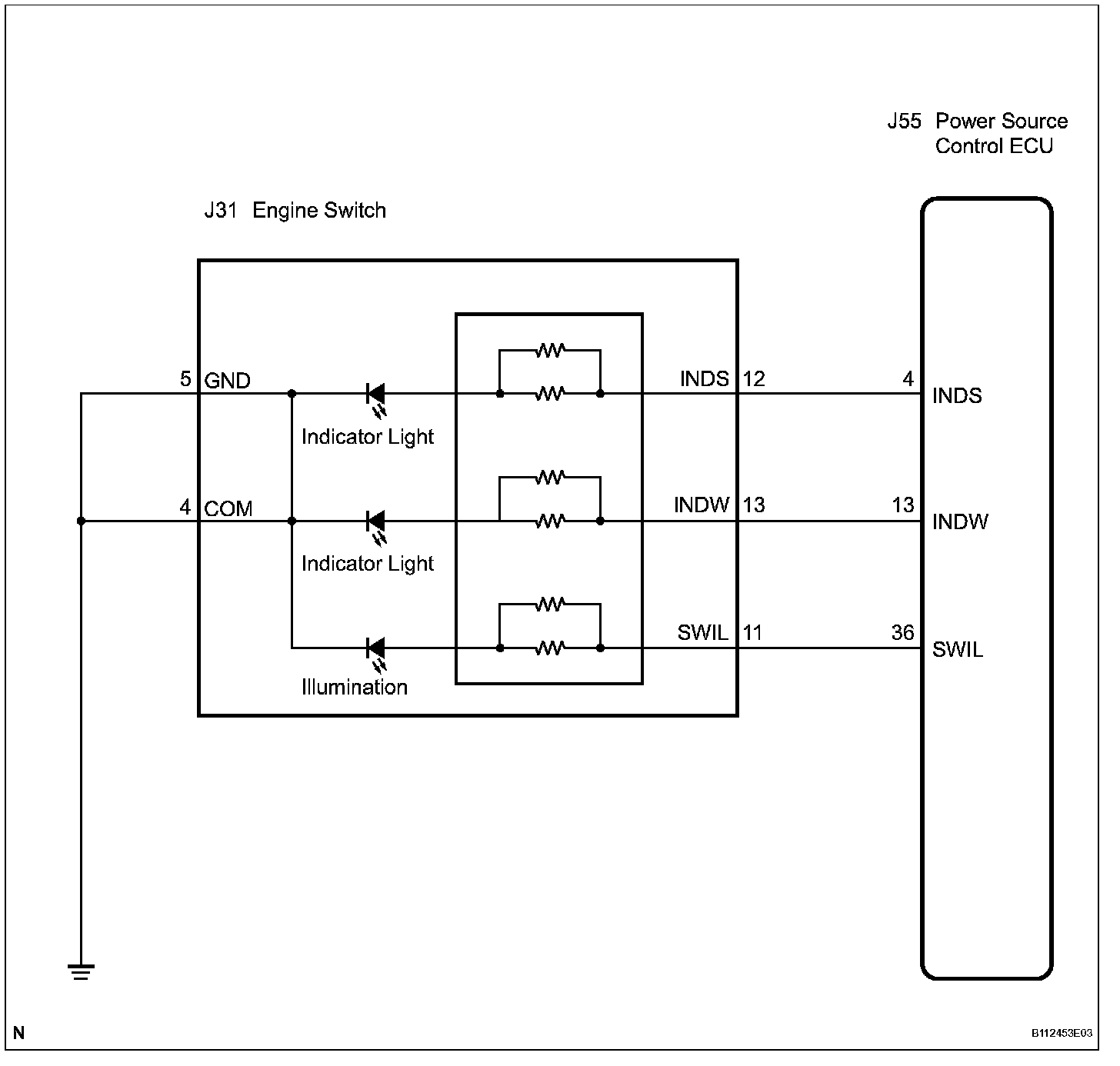

Wiring Diagram:

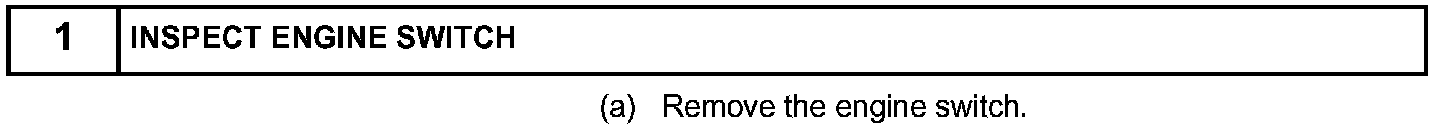

Step 1:

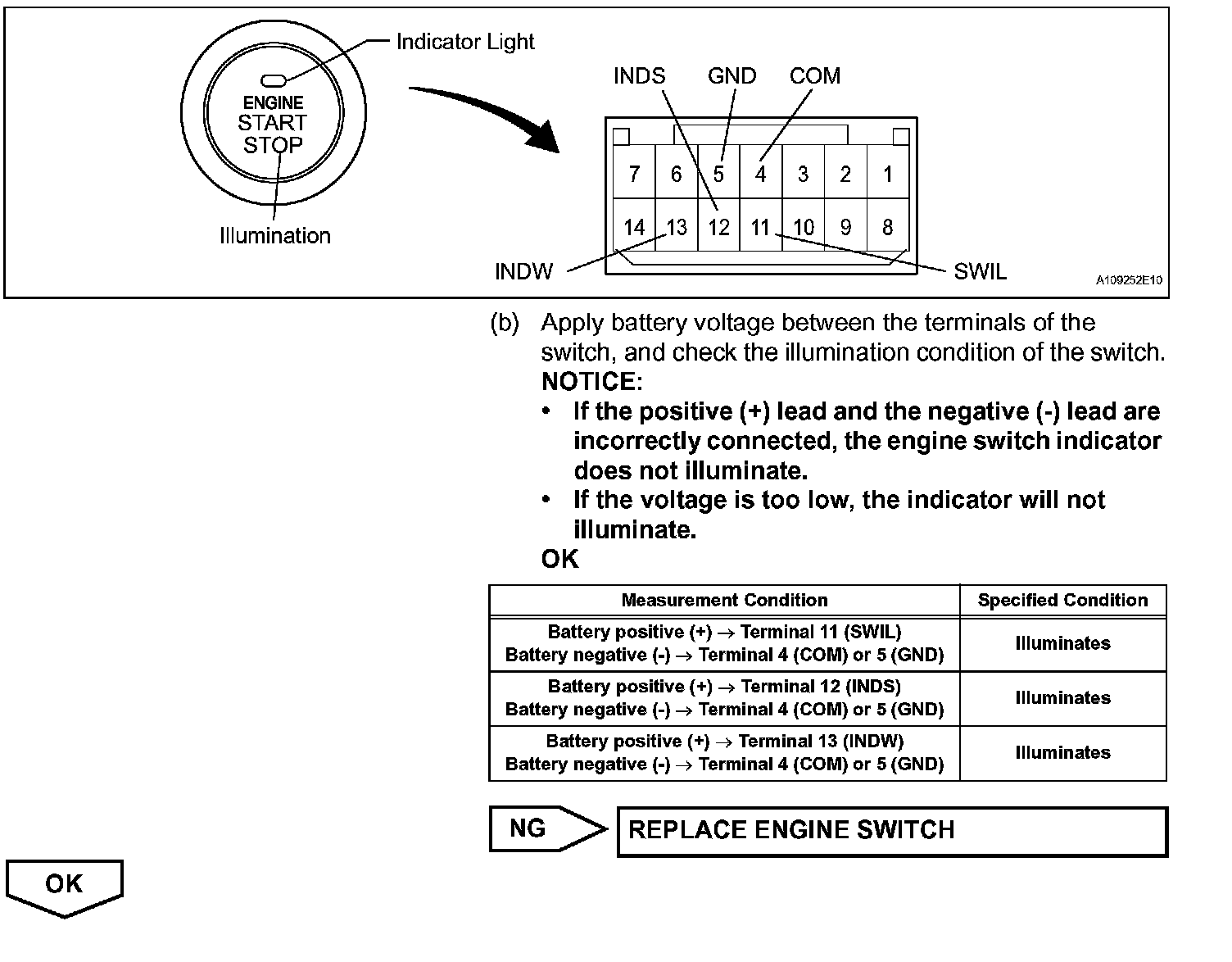

Step 1 (Continued):

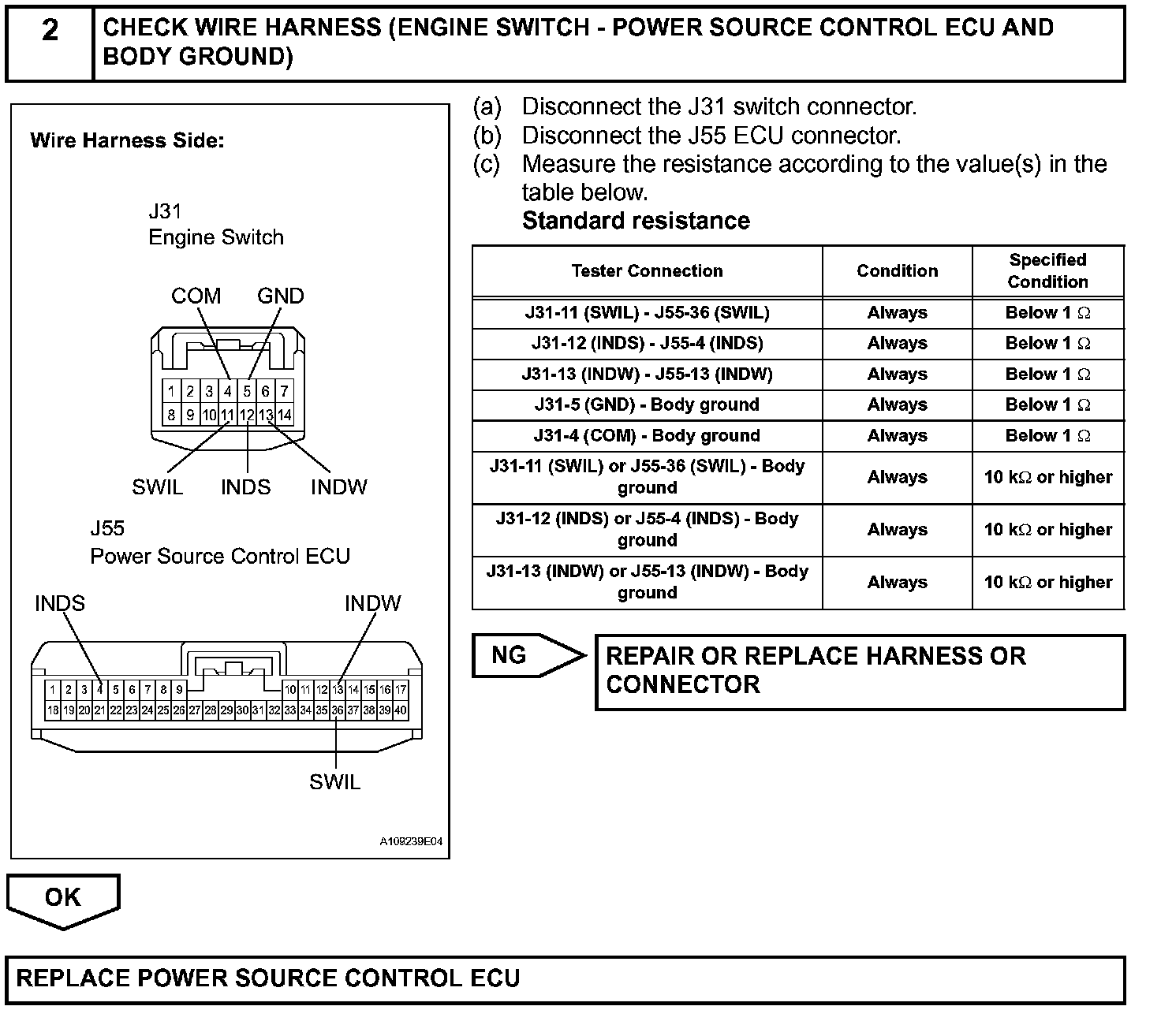

Step 2:

INSPECTION PROCEDURE
