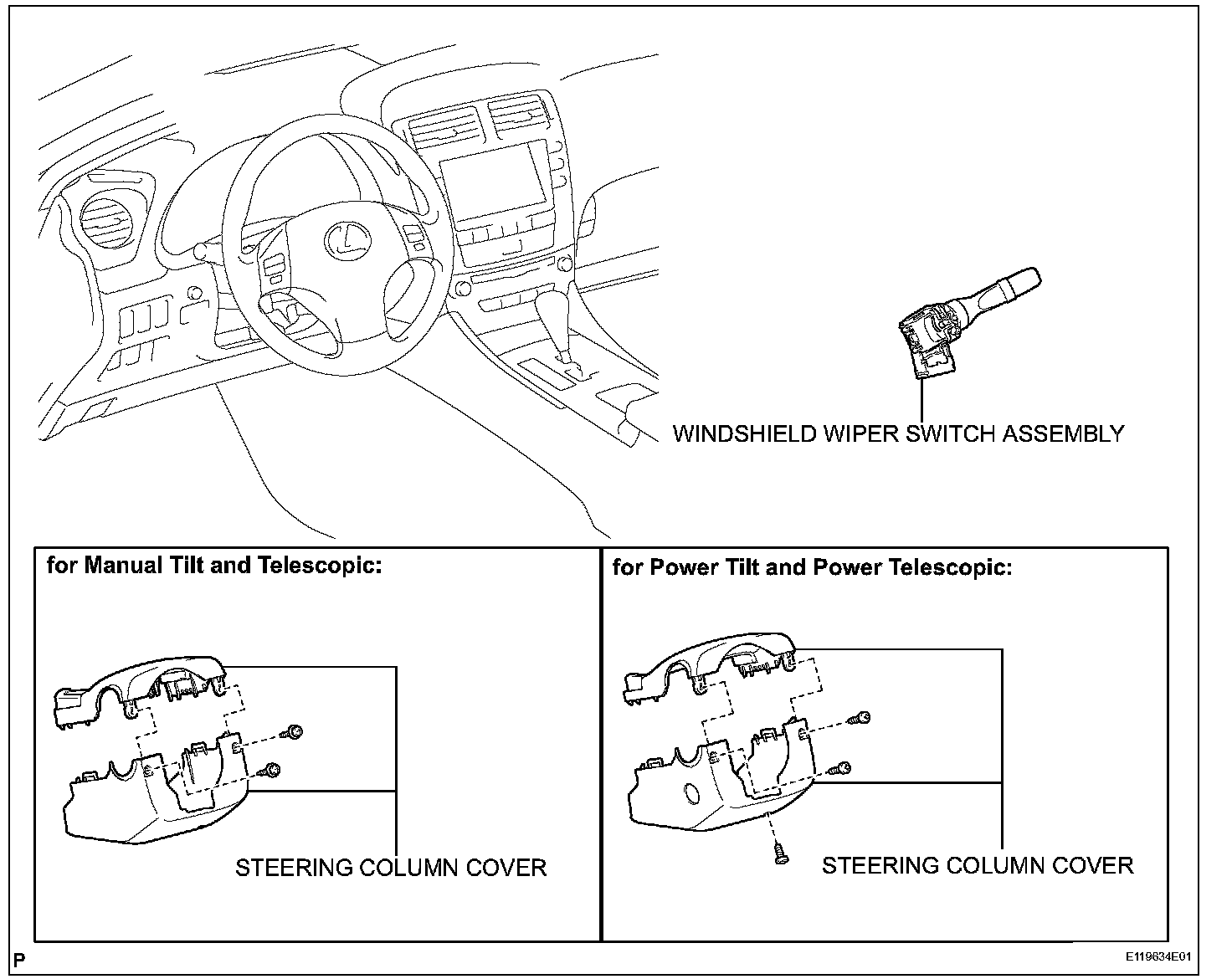

WIPER SWITCH

REMOVAL




1. REMOVE STEERING COLUMN COVER (for Manual Tilt and Telescopic)

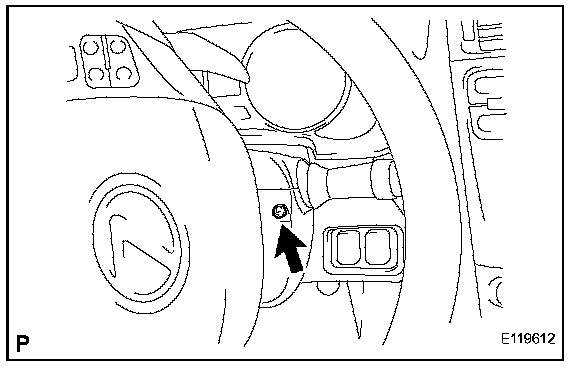

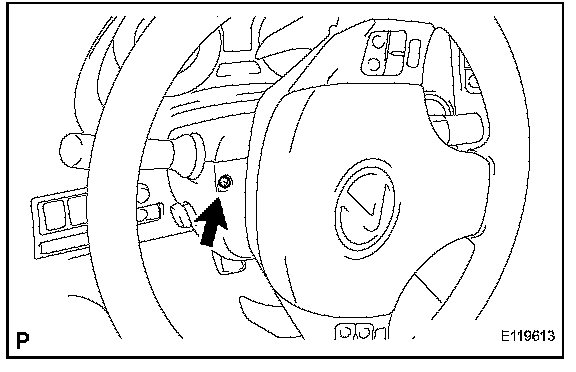

a. The steering wheel assembly is turned to the right and remove the screw as shown in the illustration.

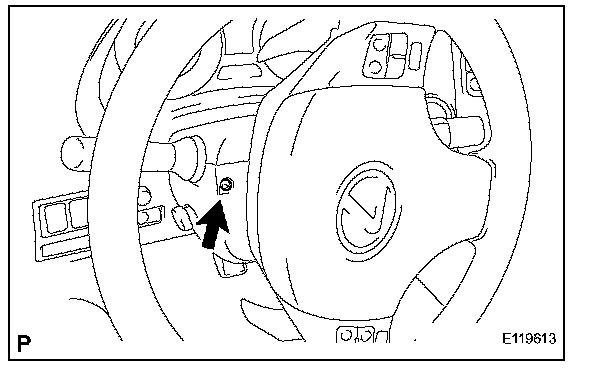

b. The steering wheel assembly is turned to the left and remove the screw as shown in the illustration.

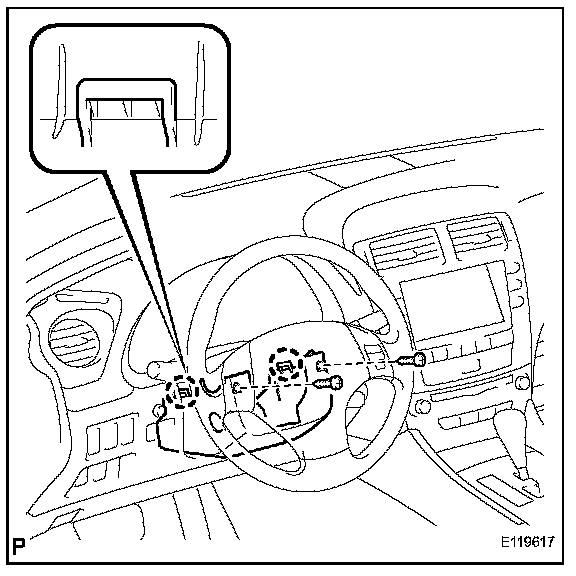

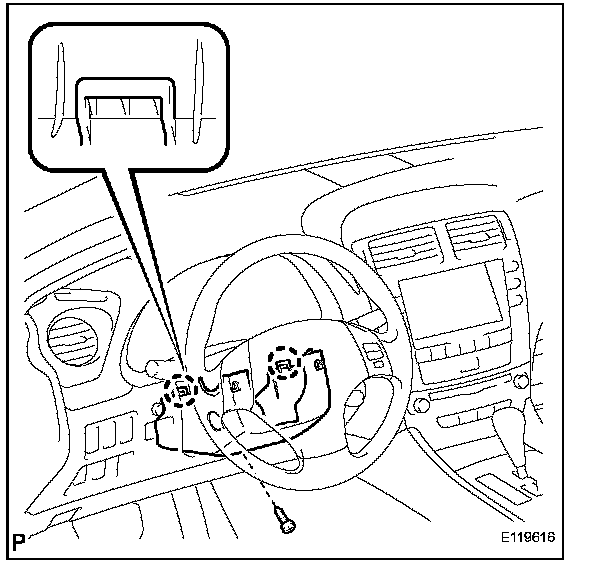

c. Disengage the 2 claws and remove the steering column cover lower.

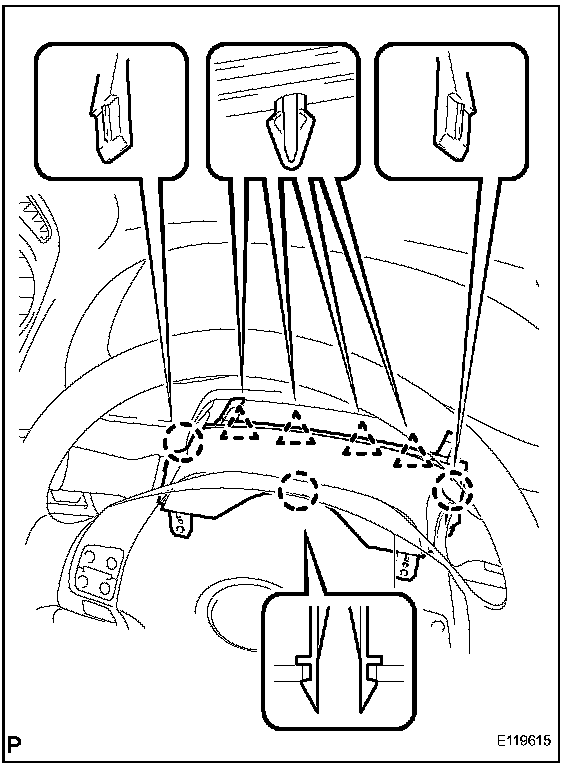

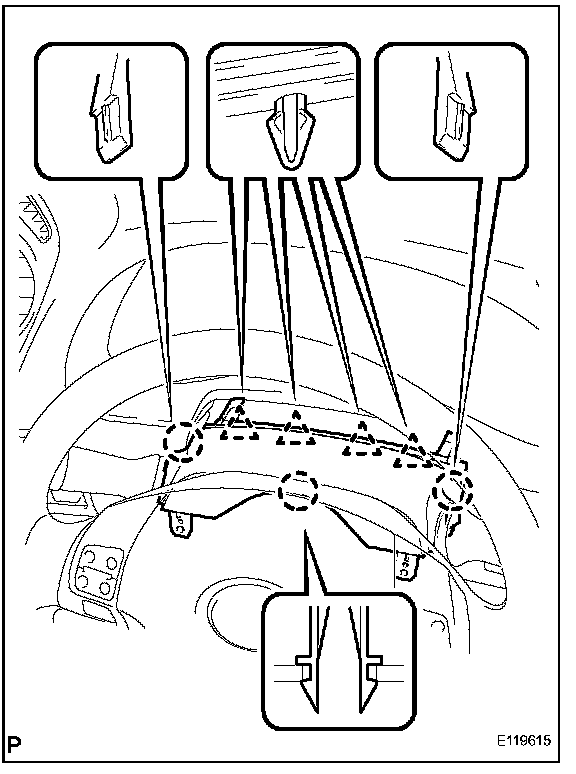

d. Disengage the 4 clips and 3 claws to remove the steering column cover upper.




2. REMOVE STEERING COLUMN COVER (for Power Tilt and Power Telescopic)

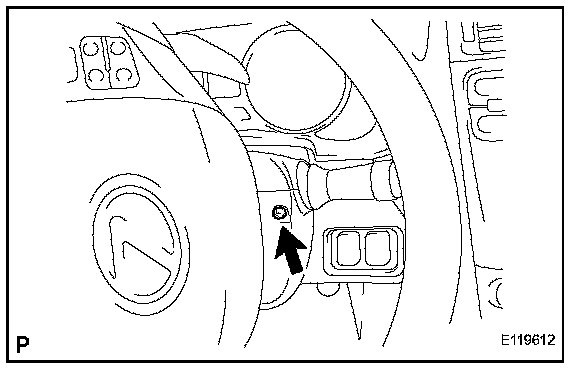

a. The steering wheel assembly is turned to the right and remove the screw as shown in the illustration.




b. The steering wheel assembly is turned to the left and remove the screw as shown in the illustration.




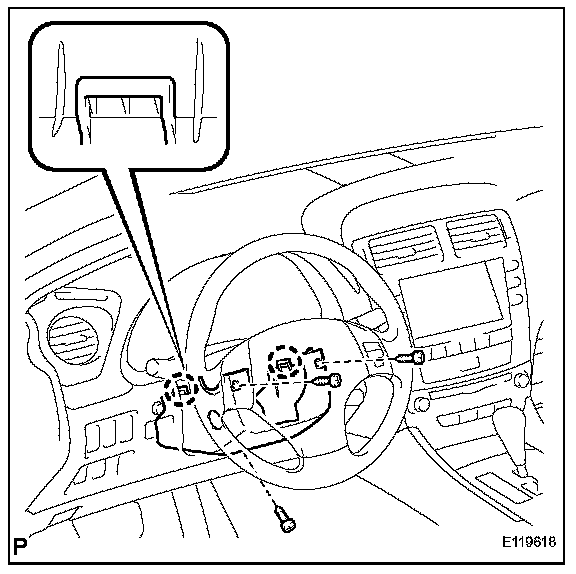

c. Disengage the 2 claws and remove the screw and the steering column cover lower.

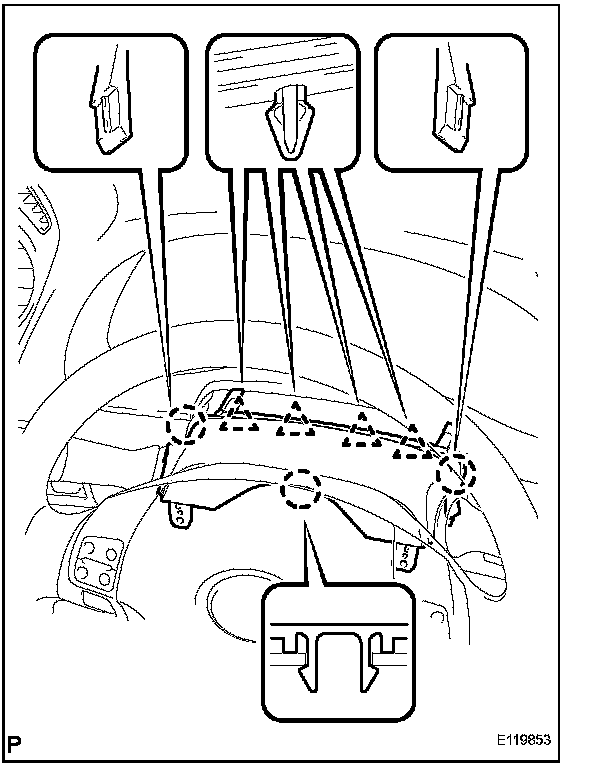

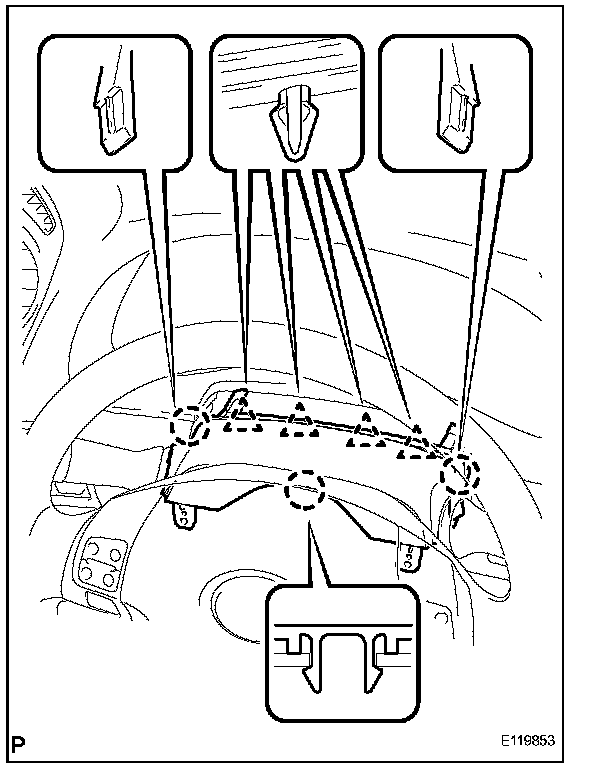

d. Disengage the 4 clips and 3 claws to remove the steering column cover upper.




3. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY

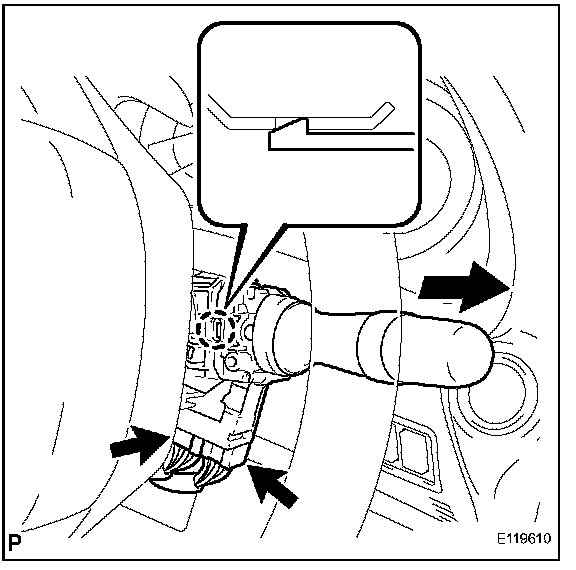

a. Disconnect the 2 connectors.

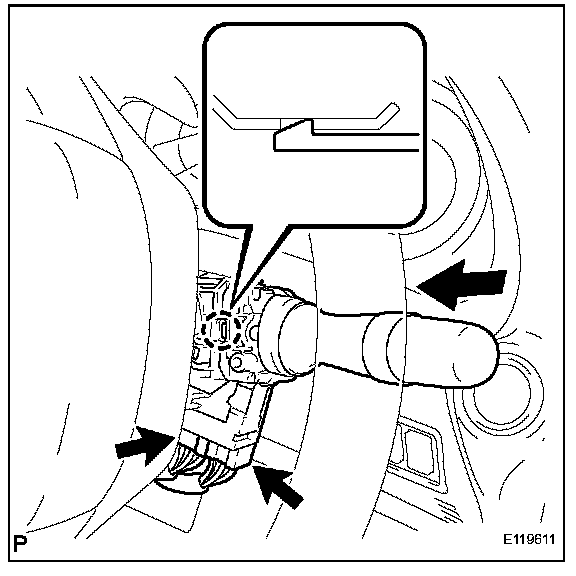

b. Disengage the claw and remove the windshield wiper switch assembly as shown in the illustration.

NOTE: If the claw is pushed with excessive force, it may break.

INSTALLATION




1. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY
a. Engage the claw and install the windshield wiper switch assembly as shown in the illustration.
b. Connect the 2 connectors.




2. INSTALL STEERING COLUMN COVER (for Manual Tilt and Telescopic) a. Engage the 3 claws and the 4 clips.




b. Engage the 2 claws and install the 2 screws to the steering column cover.




3. INSTALL STEERING COLUMN COVER (for Power Tilt and Power Telescopic)
a. Engage the 3 claws and the 4 clips.




b. Engage the 2 claws and install the 3 screws to the steering column cover.

NOTE: Do not damage the tilt and telescopic switch.
