Transmission Speed Sensor: Testing and Inspection
SPEED SENSORINSPECTION
1. INSPECT TRANSMISSION REVOLUTION SENSOR (NT)

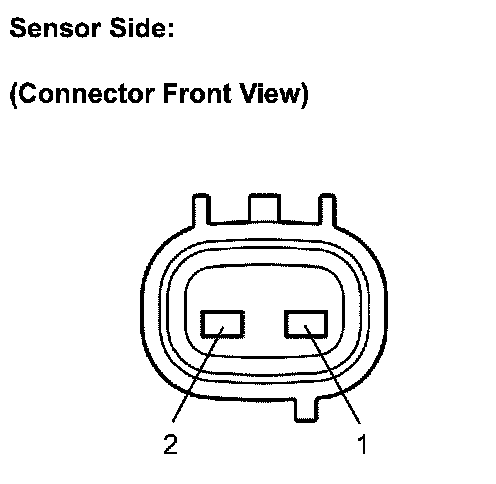

Sensor Side (Connector Front View):
a) Measure the resistance according to the value(s) in the table.

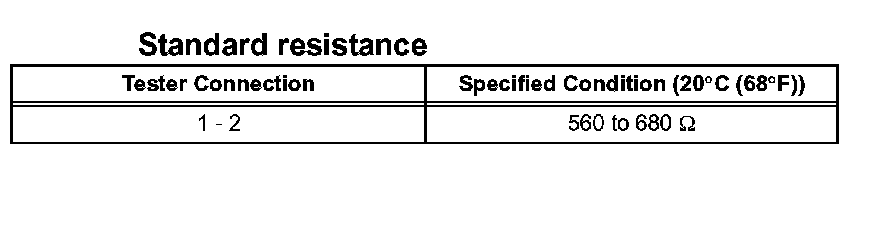

Standard Resistance:
If the resistance value is not as specified, replace the speed sensor.
2. INSPECT TRANSMISSION REVOLUTION SENSOR (SP2)

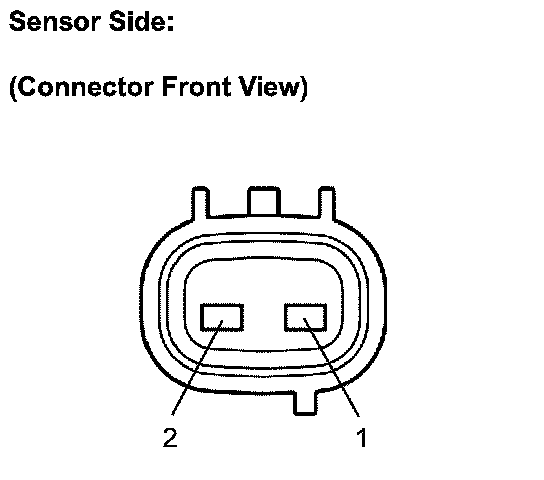

Sensor Side (Connector Front View):
a) Measure the resistance according to the value(s) in the table.

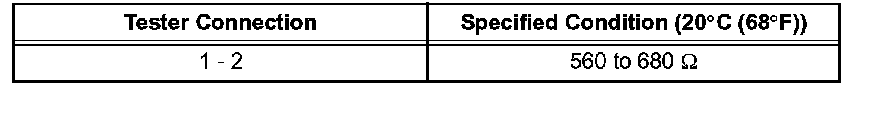

Standard Resistance:
If the resistance value is not as specified, replace the speed sensor.
