OCCUPANT DETECTION SENSOR (for Manual Seat)

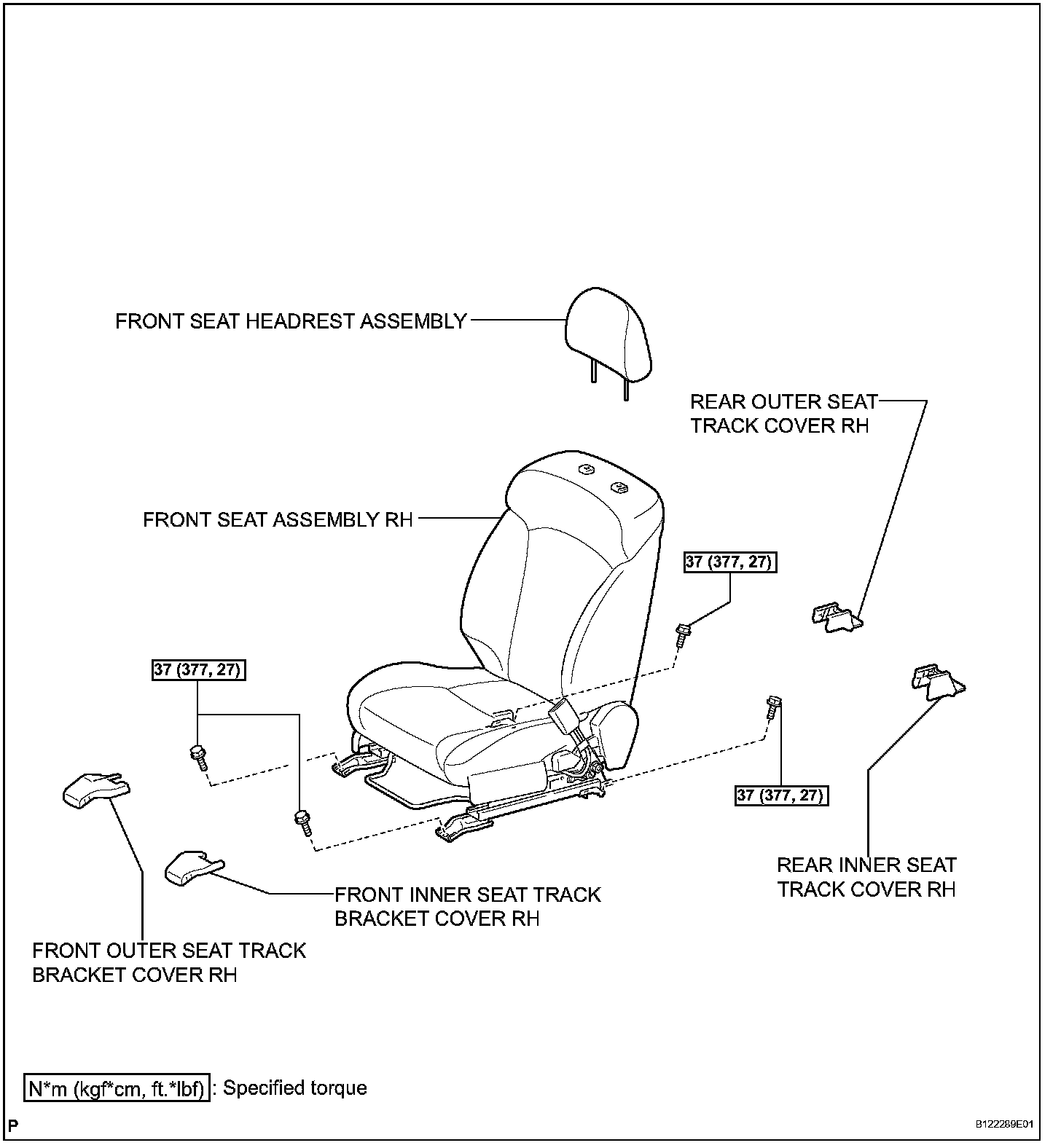

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment.

2. REMOVE FRONT SEAT HEADREST ASSEMBLY

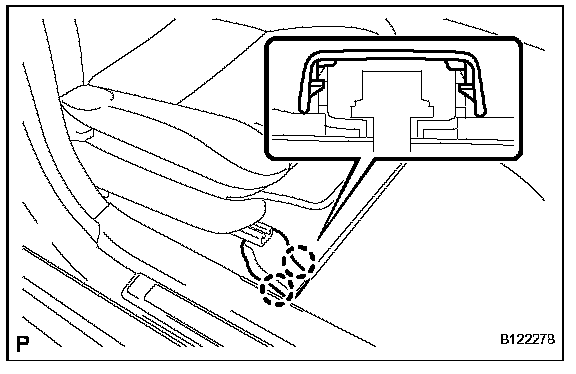

3. REMOVE FRONT OUTER SEAT TRACK BRACKET COVER RH
a. Lift up the seat track adjusting handle and move the seat to the rearmost position.

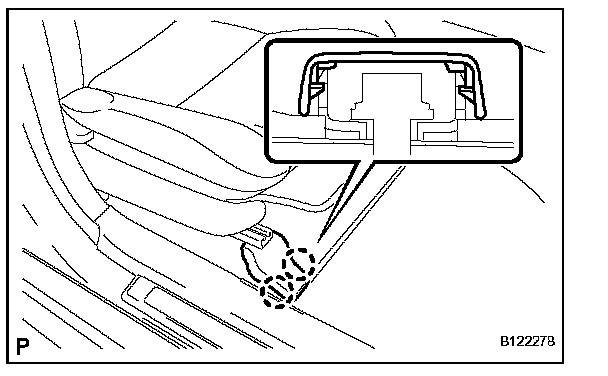

b. Using a screwdriver, detach the 2 claws and remove the front outer seat track bracket cover RH.

HINT: Tape the screwdriver tip before use.

4. REMOVE FRONT INNER SEAT TRACK BRACKET COVER RH

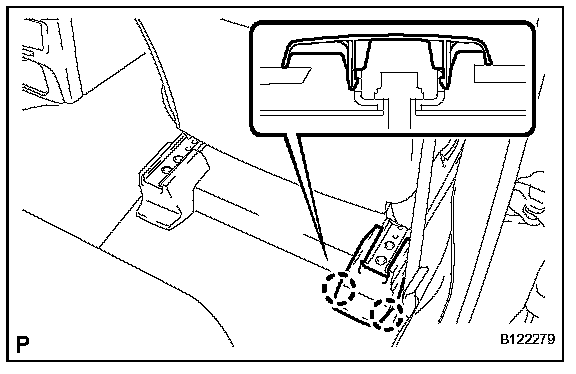

5. REMOVE REAR OUTER SEAT TRACK COVER RH
a. Lift up the seat track adjusting handle and move the seat to the position farthest forward.

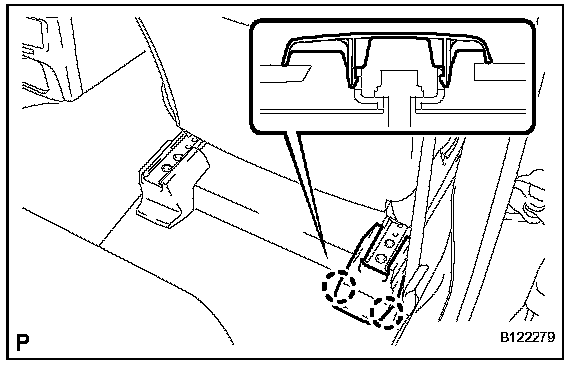

b. Using a screwdriver, detach the 2 claws and remove the rear outer seat track cover RH.

HINT: Tape the screwdriver tip before use.

6. REMOVE REAR INNER SEAT TRACK COVER RH

7. REMOVE FRONT SEAT ASSEMBLY RH
a. Lift up the seat track adjusting handle and move the seat to the rearmost position.
b. Remove the 2 bolts on the front seat track bracket.
c. Lift up the seat track adjusting handle and move the seat to the position farthest forward.
d. Remove the 2 bolts on the rear seat track bracket.
e. Lift up the seat track adjusting handle and move the seat to the center position. Also, operate the reclining adjuster release handle and move the seatback to the upright position.
f. Disconnect the connectors under the seat. Then remove the front seat.

8. REMOVE FRONT SEAT INNER BELT ASSEMBLY RH
a. Disconnect the connector and detach the 3 clamps.

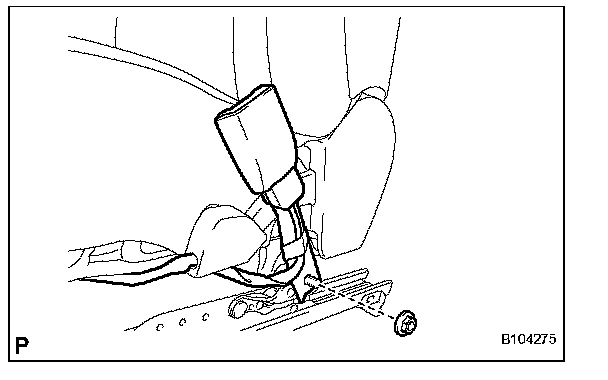

b. Remove the nut and front seat inner belt assembly RH.

9. REMOVE RECLINING ADJUSTER RELEASE HANDLE RH
a. Lift the reclining adjuster release handle.

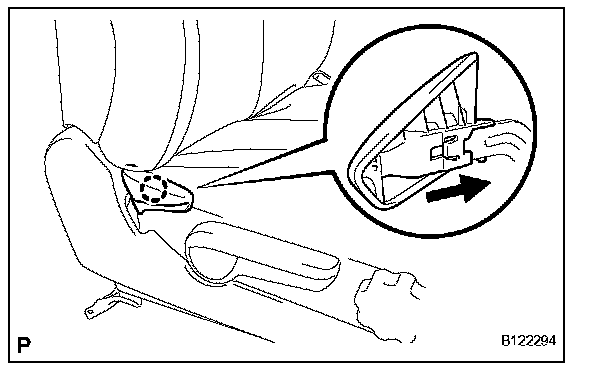

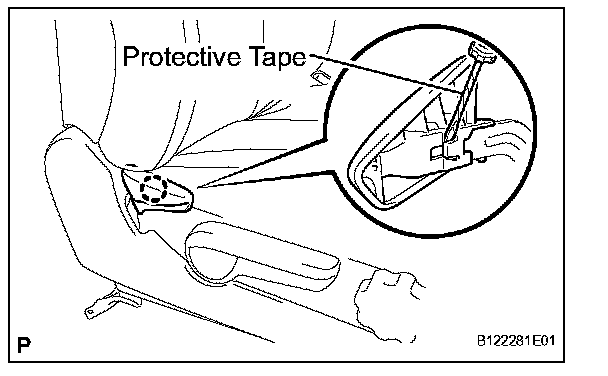

b. Using a screwdriver, disengage the claw and remove the reclining adjuster release handle.

HINT: Tape the screwdriver tip before use.

10. REMOVE VERTICAL ADJUSTER RH COVER

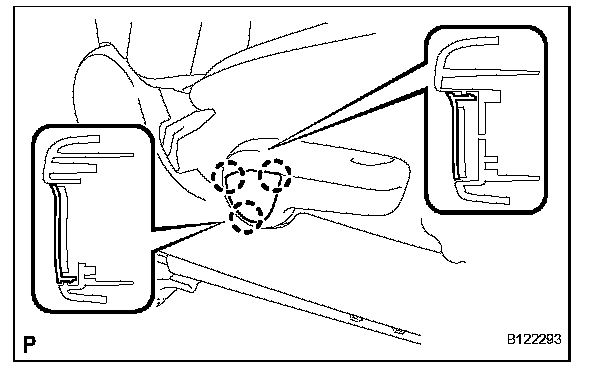

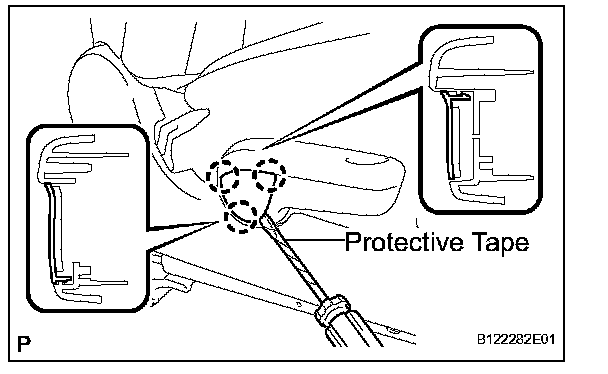

a. Using a screwdriver, disengage the 3 claws and remove the vertical adjuster RH cover.

HINT: Tape the screwdriver tip before use.

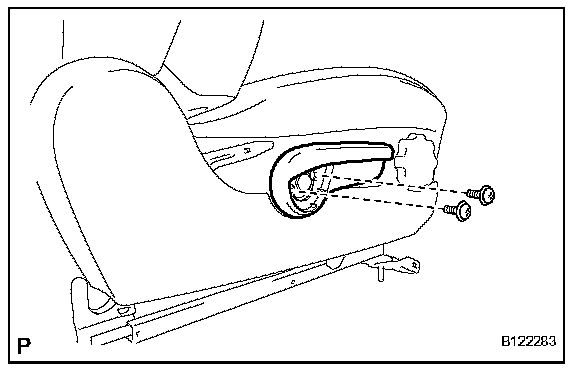

11. REMOVE VERTICAL ADJUSTING HANDLE RH

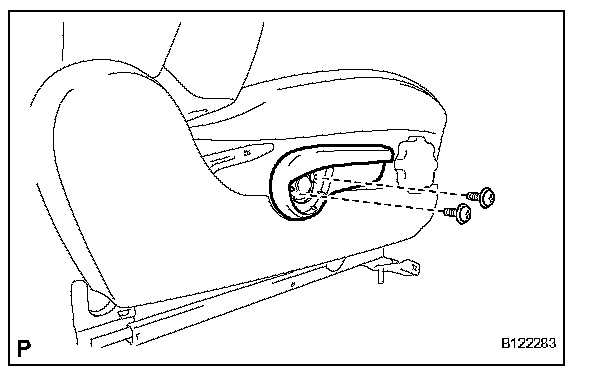

a. Remove the 2 screws and the vertical adjusting handle RH.

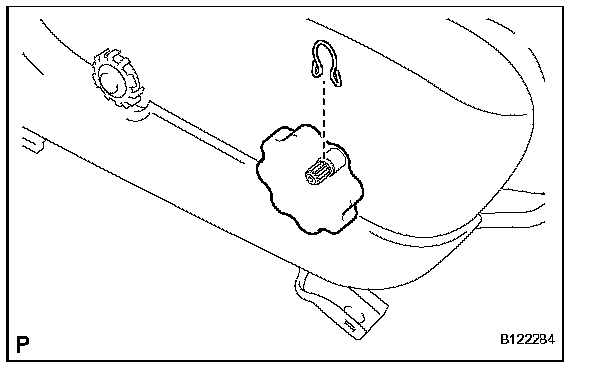

12. REMOVE VERTICAL SEAT ADJUSTER KNOB RH
a. Remove the snap ring and the vertical seat adjuster knob RH.

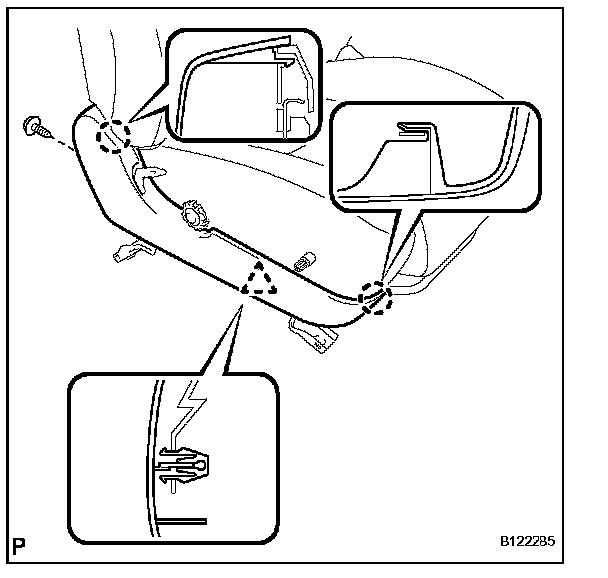

13. REMOVE FRONT SEAT CUSHION SHIELD RH
a. Remove the screw.

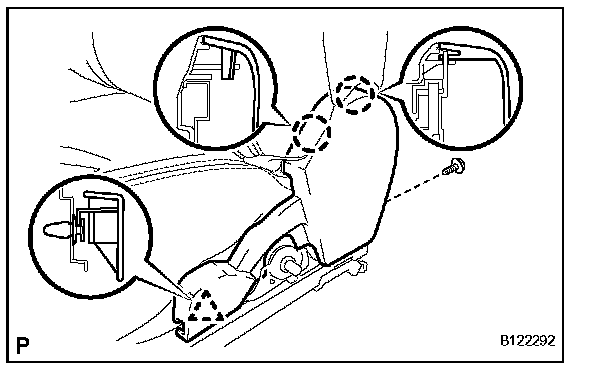

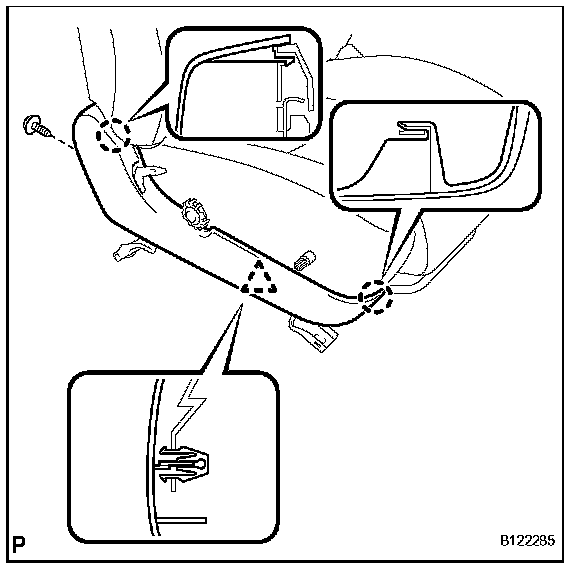

b. Disengage the 2 claws and clip to remove the front seat cushion shield RH.

14. REMOVE FRONT SEAT INNER CUSHION SHIELD RH
a. Remove the screw.

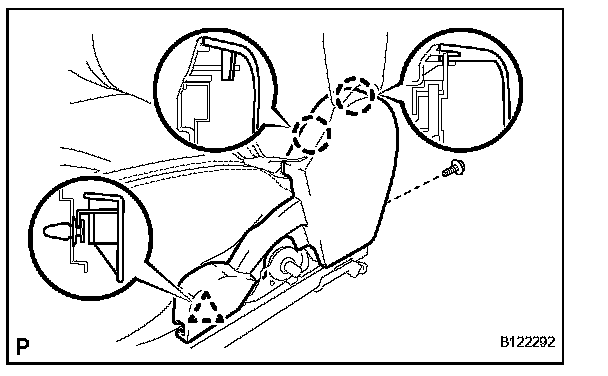

b. Disengage the 2 claws and clip to remove the front seat inner cushion shield RH.

15. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

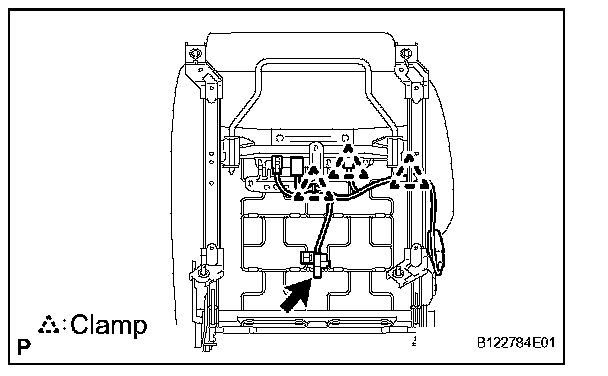

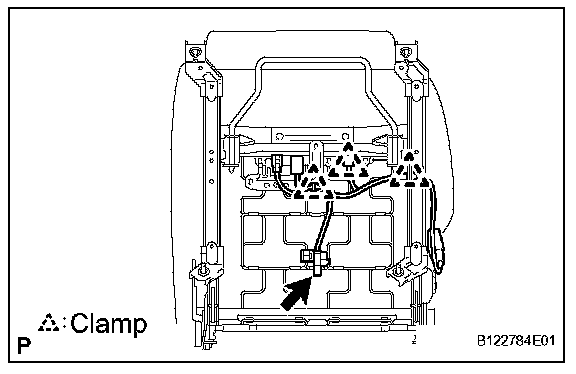

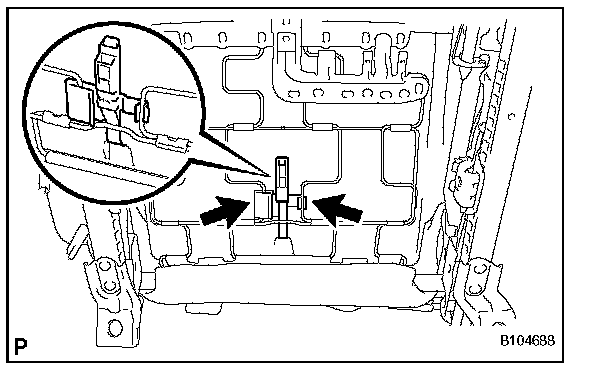

a. Disengage the clamp and separate the occupant detection sensor connector.

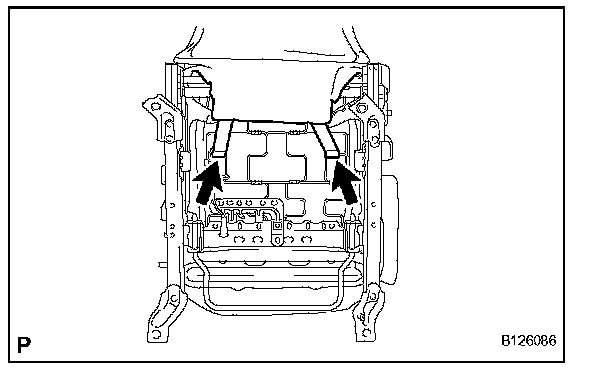

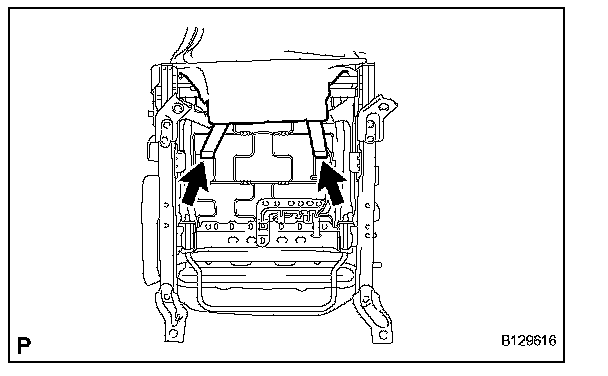

b. Disengage the 2 hooks.

c. Disengage the hooks and clamp.
d. Remove the front seat cushion cover with pad.

16. REMOVE SEPARATE TYPE FRONT SEAT CUSHION PAD

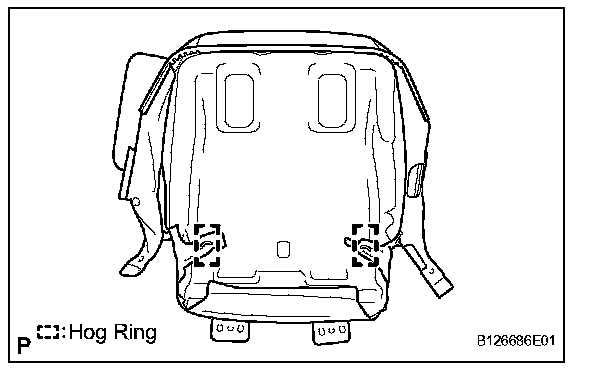

a. Remove the hog rings.

b. Remove the separate type front seat cushion pad.

INSTALLATION

1. INSTALL SEPARATE TYPE FRONT SEAT CUSHION PAD

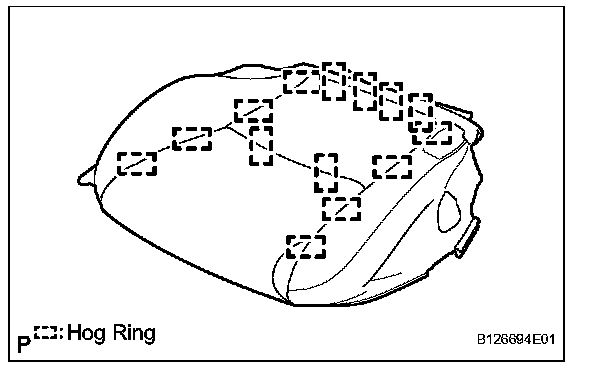

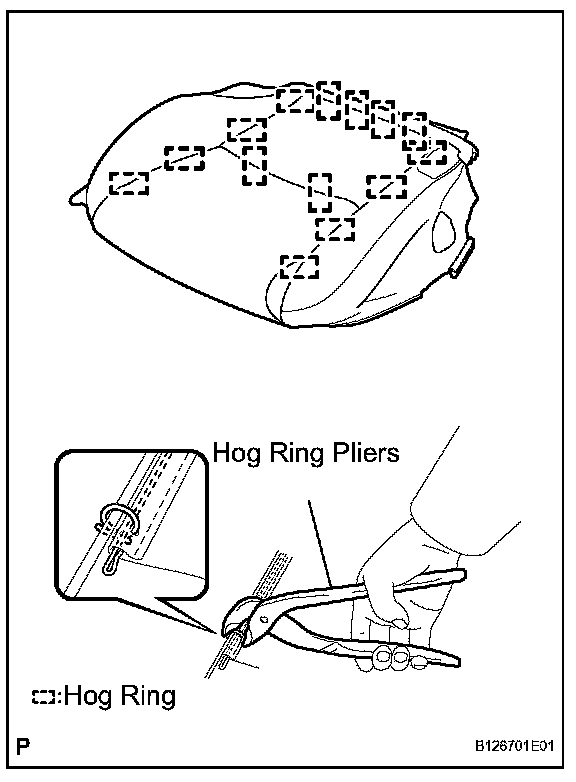

a. Using hog ring pliers, install the separate type front seat cushion pad with new hog rings.

NOTE:
- Be careful not to damage the cover.
- When installing the hog rings, take care to minimize wrinkles as much as possible.

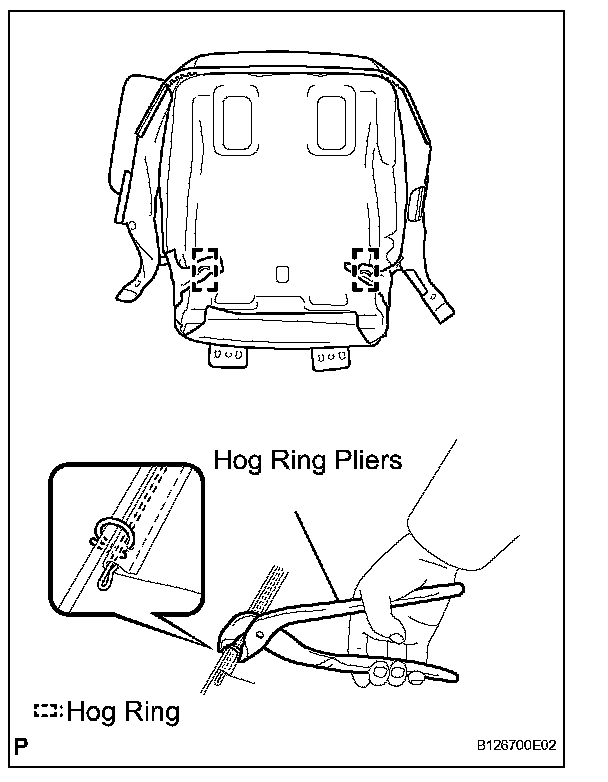

b. Using hog ring pliers, install the separate type front seat cushion pad to the separate type front seat cushion cover with new hog rings.

NOTE:
- Be careful not to damage the cover.
- When installing the hog rings, take care to minimize wrinkles as much as possible.

2. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

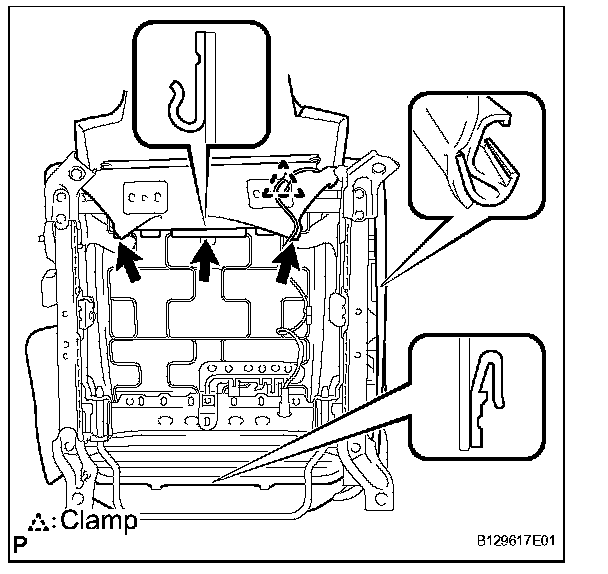

a. Engage the hooks and clamp.

b. Engage the hooks to install the separate type front seat cushion cover with pad.

c. Engage the clamp to install the occupant detection sensor connector.

3. INSTALL FRONT SEAT INNER CUSHION SHIELD RH
a. Engage the 2 claws and clip to install the front seat inner cushion shield RH.
b. Install the screw.

4. INSTALL FRONT SEAT CUSHION SHIELD RH
a. Engage the 2 claws and clip to install the front seat cushion shield RH.
b. Install the screw.

5. INSTALL VERTICAL SEAT ADJUSTER KNOB RH

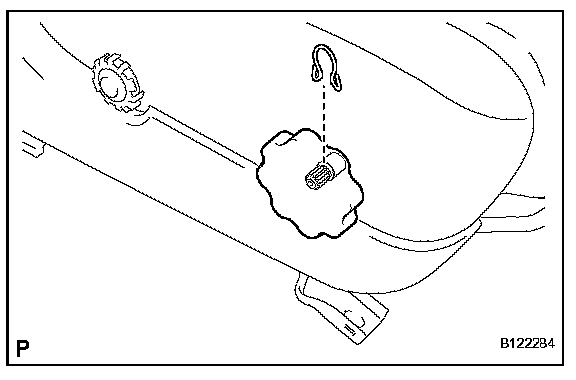

a. Install the vertical seat adjuster knob RH with the snap ring.

6. INSTALL VERTICAL ADJUSTING HANDLE RH
a. Install the vertical adjusting handle RH with the 2 screws.

7. INSTALL VERTICAL ADJUSTER RH COVER
a. Engage the 3 claws to install the vertical adjuster cover RH.

8. INSTALL RECLINING ADJUSTER RELEASE HANDLE RH
a. Engage the claw to install the reclining adjuster release handle RH.

9. INSTALL FRONT SEAT INNER BELT ASSEMBLY RH
a. Install the 3 clamps.
b. Connect the connector.

c. Install the front seat inner belt assembly RH with the nut.

Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)

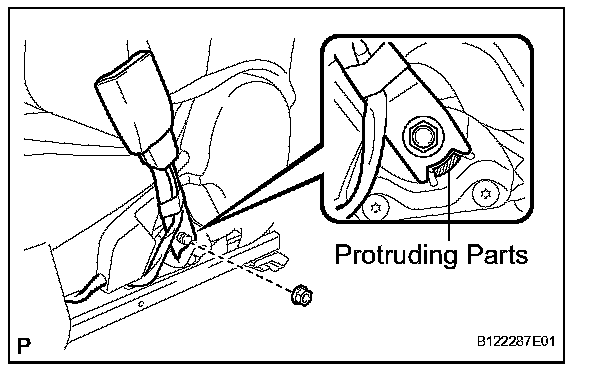

NOTE: Do not allow the anchor part of the front seat inner belt assembly to overlap the protruding parts of the front seat adjuster.

10. INSTALL FRONT SEAT ASSEMBLY RH
a. Place the seat in the cabin.
b. Connect the connectors under the seat.
c. Lift up the seat track adjusting handle and move the seat to the position farthest forward.
d. Temporarily install the 2 bolts on the rear seat track bracket.
e. Lift up the seat track adjusting handle and move the seat to the rearmost position.
f. Temporarily install the 2 bolts on the front seat track bracket.

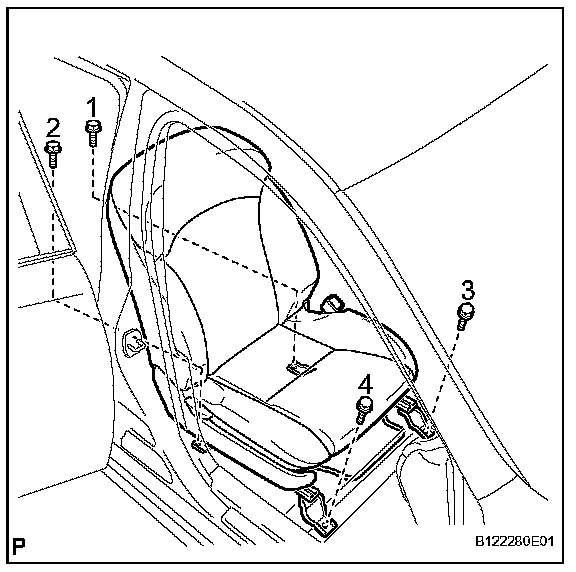

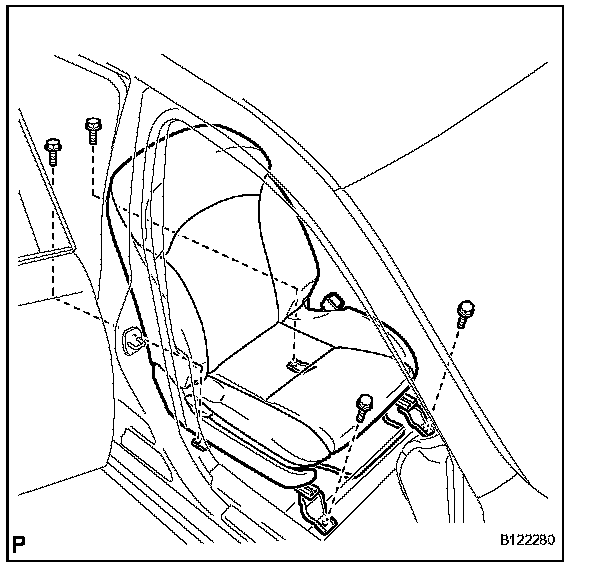

g. Tighten the 4 bolts in the order indicated in the illustration.

Torque: 37 N.m (377 kgf.cm, 27 ft.lbf)

11. INSTALL REAR OUTER SEAT TRACK COVER RH
a. Lift up the seat track adjusting handle and move the seat to the position farthest forward.

b. Engage the 2 claws to install the rear outer seat track cover RH.

12. INSTALL REAR INNER SEAT TRACK COVER RH
13. INSTALL FRONT OUTER SEAT TRACK BRACKET COVER RH
a. Lift up the seat track adjusting handle and move the seat to the rearmost position.

b. Engage the 2 claws to install the front outer seat track bracket cover RH.

14. INSTALL FRONT INNER SEAT TRACK BRACKET COVER RH
15. INSTALL FRONT SEAT HEADREST ASSEMBLY
16. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

17. PERFORM INITIALIZATION

HINT: Some systems need initialization after reconnecting the cable to the negative battery terminal.

18. INSPECT SLIDE ADJUSTER LOCK
19. INSPECT SRS WARNING LIGHT
a. Inspect the SRS warning light.
