Center Airbag Sensor Assembly
Center Airbag Sensor Assembly:

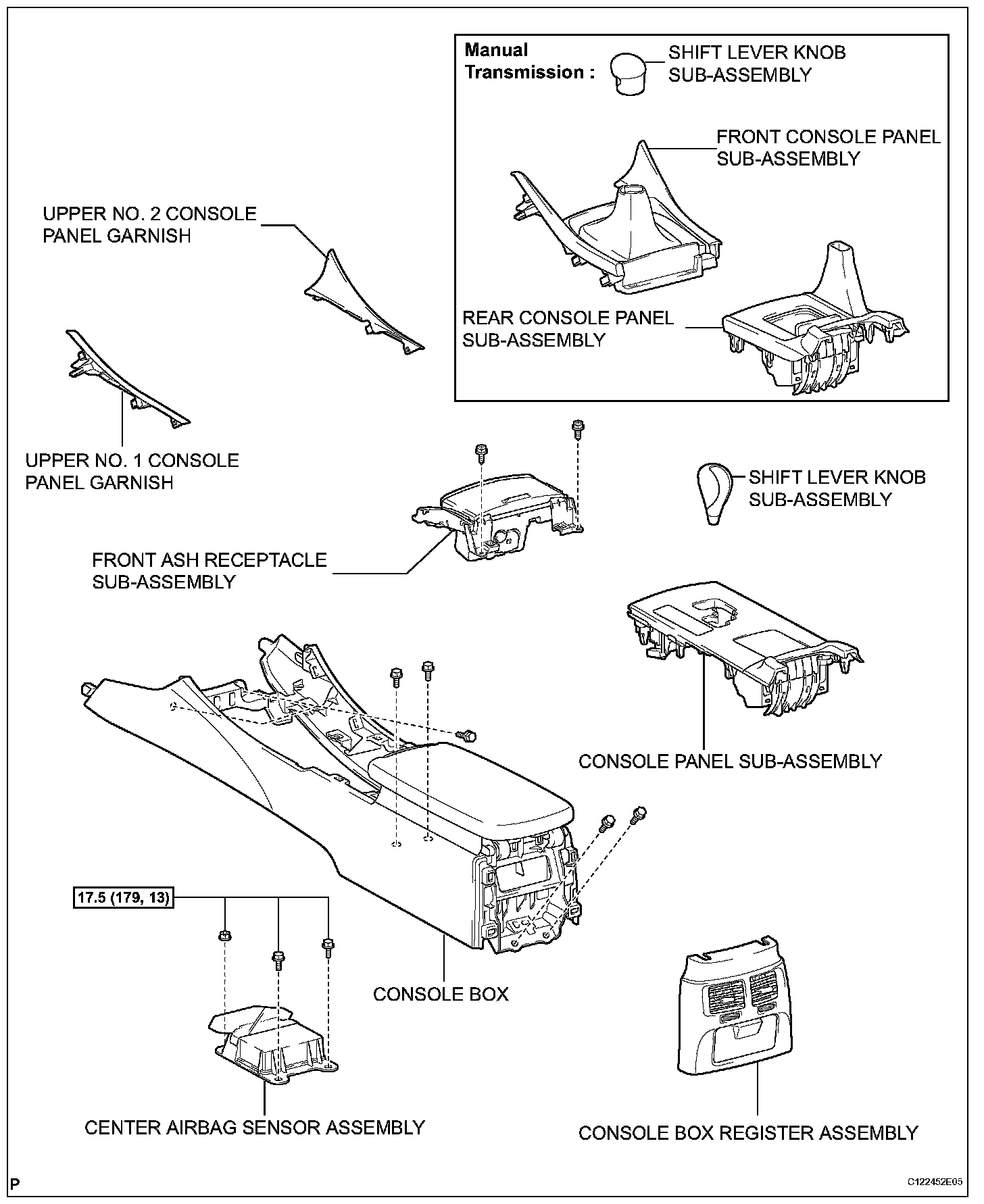

CENTER AIRBAG SENSOR ASSEMBLY
REMOVAL
1. PRECAUTION
CAUTION: Be sure to read the Restraint Systems Service Precautions thoroughly before servicing.
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment.
3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
5. REMOVE UPPER NO.1 CONSOLE PANEL GARNISH (for Automatic Transmission)
6. REMOVE UPPER NO.2 CONSOLE PANEL GARNISH (for Automatic Transmission)
7. REMOVE CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)
8. REMOVE REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
9. REMOVE FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
10. REMOVE FRONT ASH RECEPTACLE SUB-ASSEMBLY
11. REMOVE REAR ASH RECEPTACLE ASSEMBLY
12. REMOVE CONSOLE BOX REGISTER ASSEMBLY
13. REMOVE CONSOLE BOX
14. REMOVE CENTER AIRBAG SENSOR ASSEMBLY
a. Disconnect the holder (with connectors).

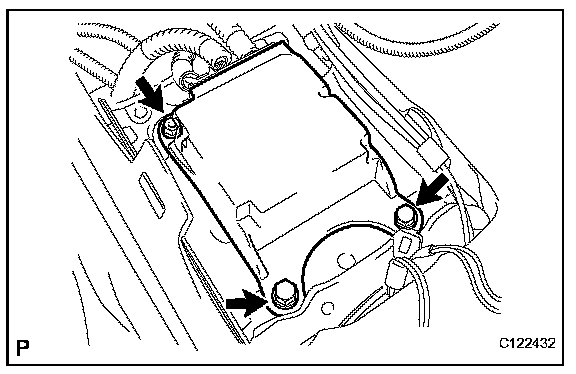

b. Remove the nut, 2 bolts and center airbag sensor assembly.
INSTALLATION
1. INSTALL CENTER AIRBAG SENSOR ASSEMBLY
a. Check that the engine switch is off.
b. Check that the battery negative (-) terminal is disconnected.
NOTE: After disconnecting the negative battery terminal, wait for at least 90 seconds before starting the operation.
c. Install the center airbag sensor assembly with the nut and 2 bolts.
Torque: 17.5 N.m (179 kgf.cm, 13 ft.lbf)
NOTE:
- If the center airbag sensor assembly has been dropped, or there are any cracks, dents or other defects in the case, bracket or connector, replace it with a new one.
- When installing the center airbag sensor assembly, be careful that the SRS wiring does not interfere with other parts and that it is not pinched between other parts.
d. Check that there is no looseness in the installation parts of the center airbag sensor assembly.
e. Connect the holder (with connectors).
f. Check that the water-proof sheet is properly set.
2. INSTALL CONSOLE BOX
3. INSTALL CONSOLE BOX REGISTER ASSEMBLY
4. INSTALL REAR ASH RECEPTACLE ASSEMBLY
5. INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY
6. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
7. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
8. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)
9. INSTALL UPPER NO.2 CONSOLE PANEL GARNISH (for Automatic Transmission)
10. INSTALL UPPER NO.1 CONSOLE PANEL GARNISH (for Automatic Transmission)
11. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
12. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
13. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
14. PERFORM INITIALIZATION
a. Perform initialization.
HINT: Some systems need initialization after reconnecting the cable to the negative battery terminal.
15. INSPECT SRS WARNING LIGHT
a. Inspect the SRS warning light.
