Front Door Courtesy Switch

Front Door Courtesy Switch:

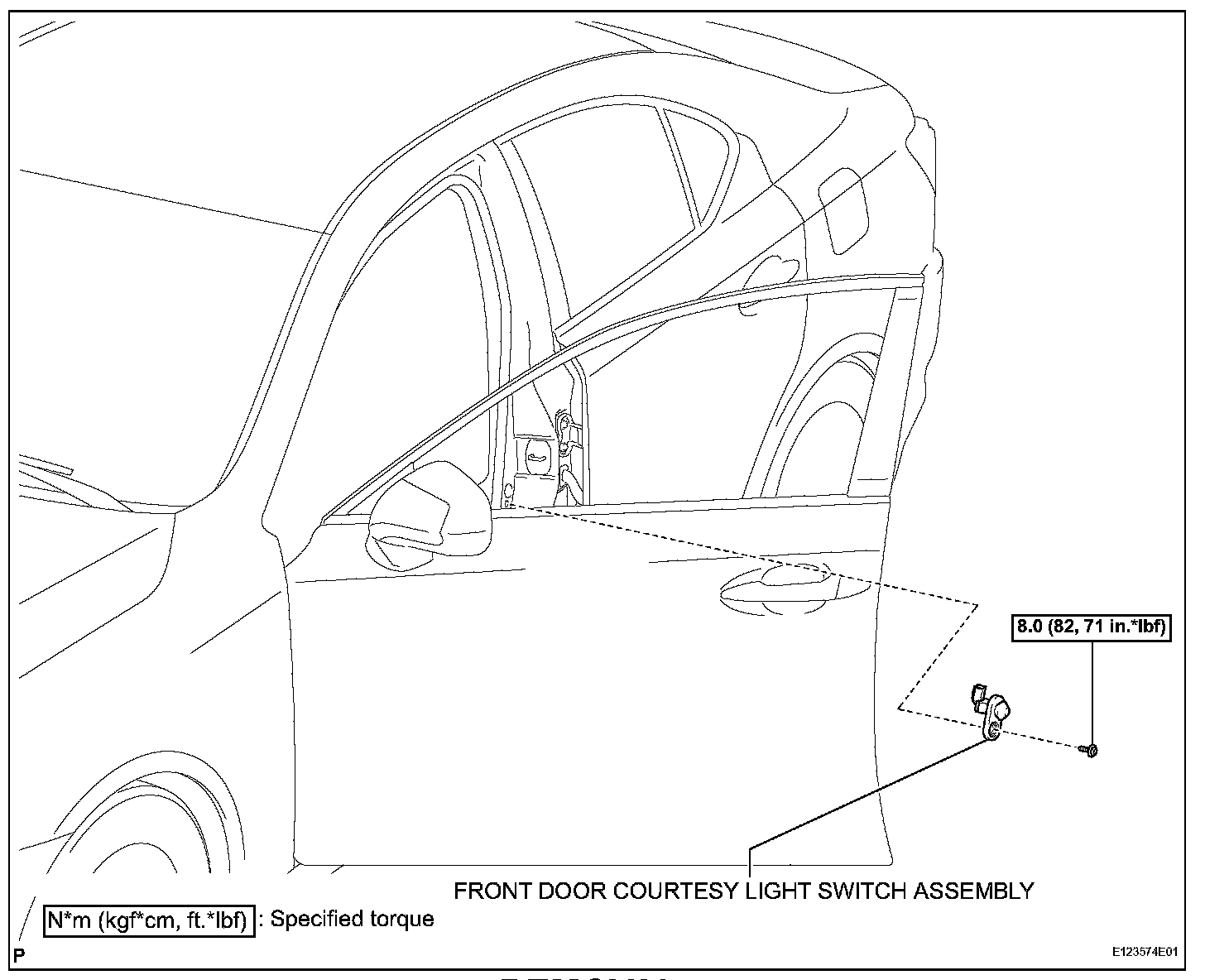

FRONT DOOR COURTESY SWITCH

REMOVAL




1. REMOVE FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY

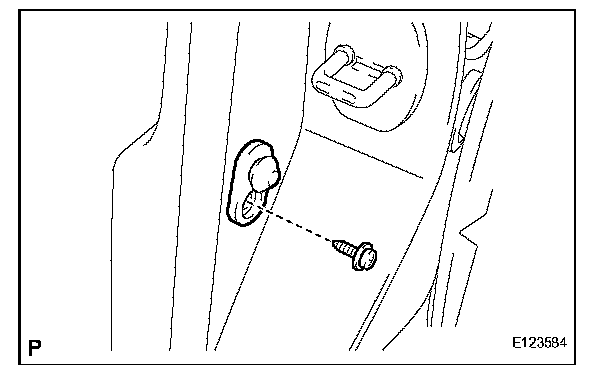

a. Using a "torx" socket wrench (T30), remove the "torx" bolt.
b. Disconnect the connector and remove the front door courtesy light switch assembly.

INSTALLATION




1. INSTALL FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY
a. Connect the connector.

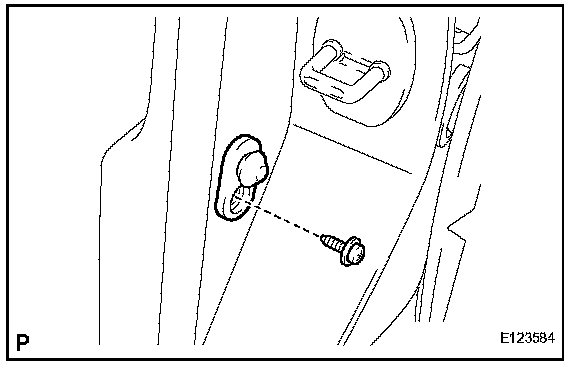

b. Using a "torx" socket wrench (T30), install the front door courtesy light switch assembly with the "torx" bolt.

Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
