Climate Control Exhaust Gas Sensor: Service and Repair

Smog Ventilation Sensor:

SMOG VENTILATION SENSOR

REMOVAL

1. REMOVE COOL AIR INTAKE DUCT SEAL

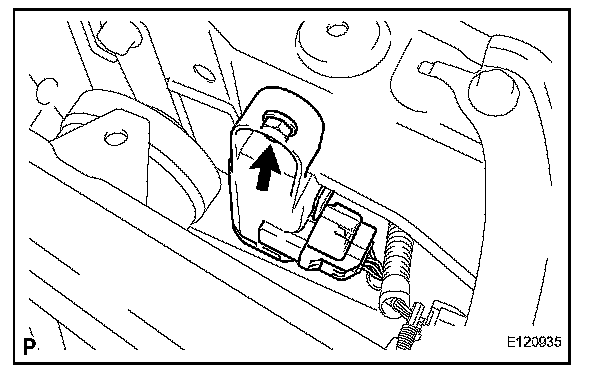

2. REMOVE SMOG VENTILATION SENSOR
a. Disconnect the connector.
b. Remove the bolt and smog ventilation sensor.

INSTALLATION

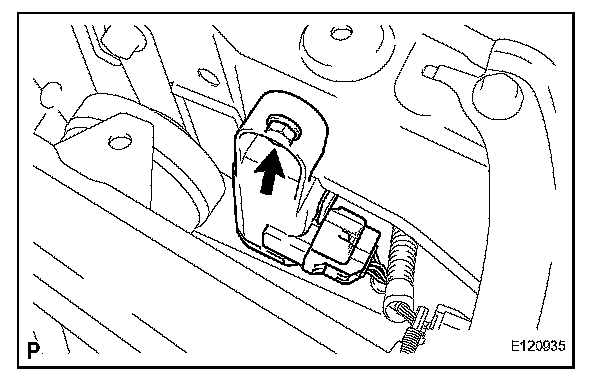

1. INSTALL SMOG VENTILATION SENSOR
a. Install the smog ventilation sensor with the bolt.

Torque: 9.8 N.m (100 kgf.cm, 7 ft.lbf)

b. Connect the connector.

2. INSTALL COOL AIR INTAKE DUCT SEAL
