Cabin Temperature Sensor / Switch: Testing and Inspection

INSPECTION




1. INSPECT ROOM TEMPERATURE SENSOR

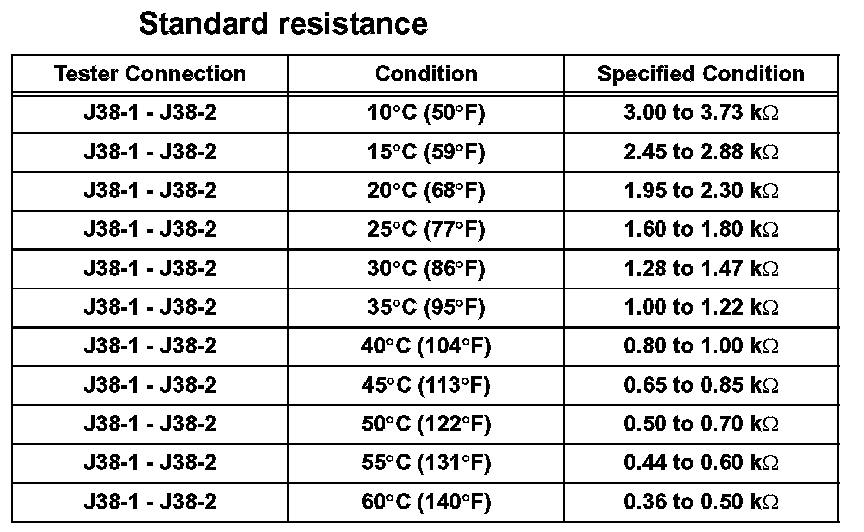

a. Measure the resistance according to the value(s) in the table.

NOTE:
- Hold the sensor only by its connector. Touching the sensor may change the resistance value.
- When measuring, the sensor temperature must be the same as the ambient temperature.

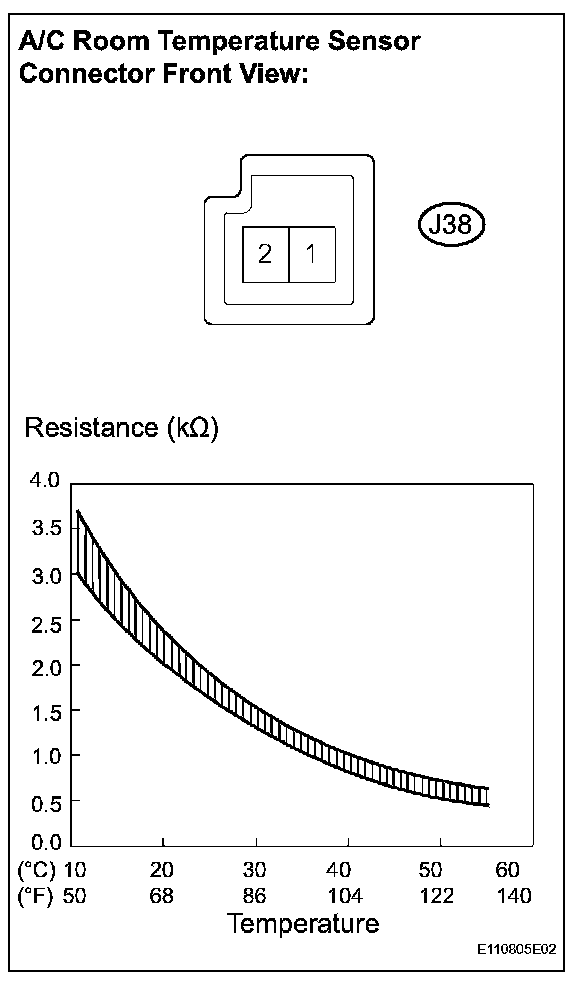

HINT: As the temperature increases, the resistance decreases (see the graph).

If the resistance is not as specified, replace the room temperature sensor.
