Cabin Temperature Sensor / Switch: Service and Repair

Room Temperature Sensor:

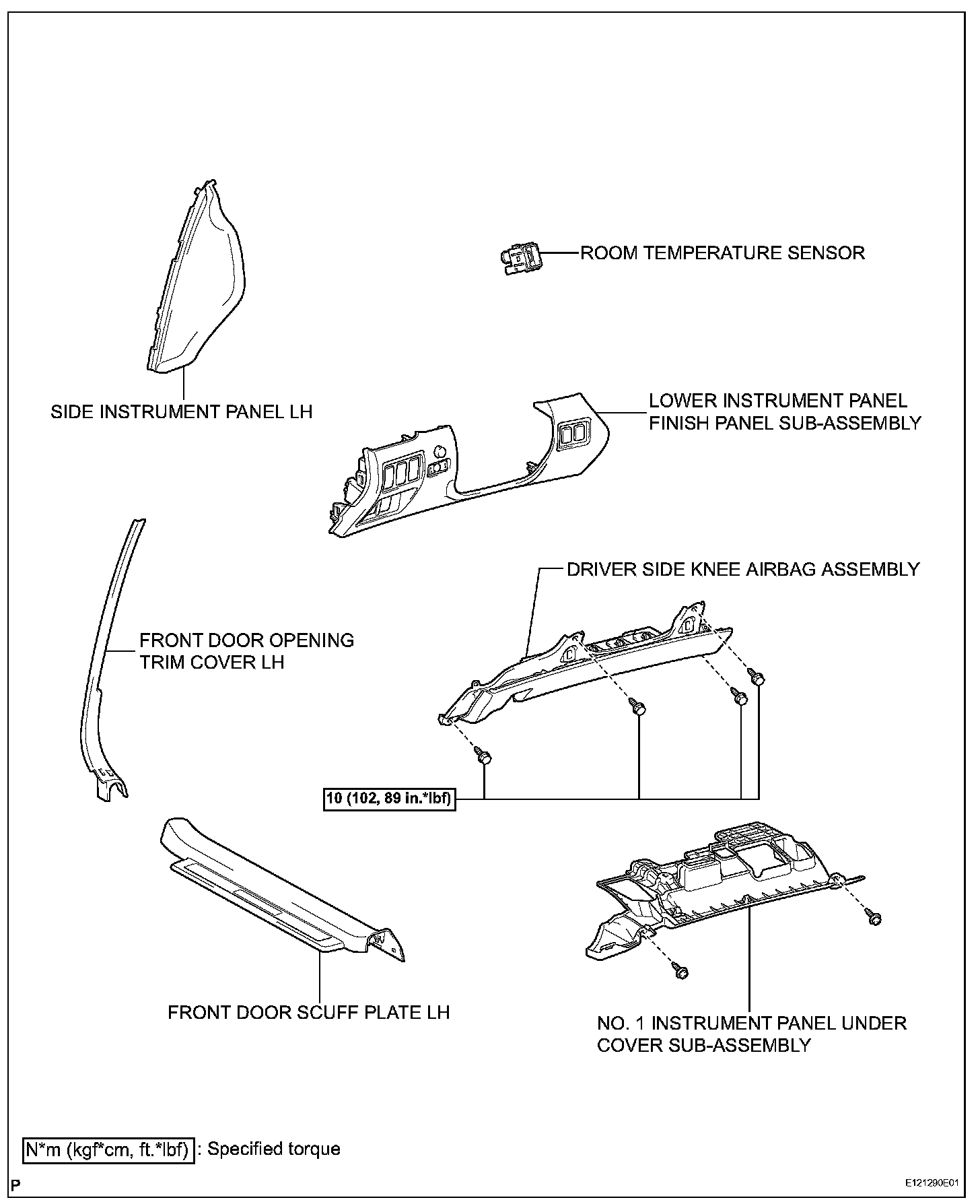

ROOM TEMPERATURE SENSOR

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY

CAUTION: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment.

2. REMOVE FRONT DOOR SCUFF PLATE LH (w/o Illumination)
3. REMOVE FRONT DOOR SCUFF PLATE LH (w/ Illumination)
4. REMOVE FRONT DOOR OPENING TRIM COVER LH
5. REMOVE SIDE INSTRUMENT PANEL LH
6. REMOVE NO.1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
7. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
8. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY

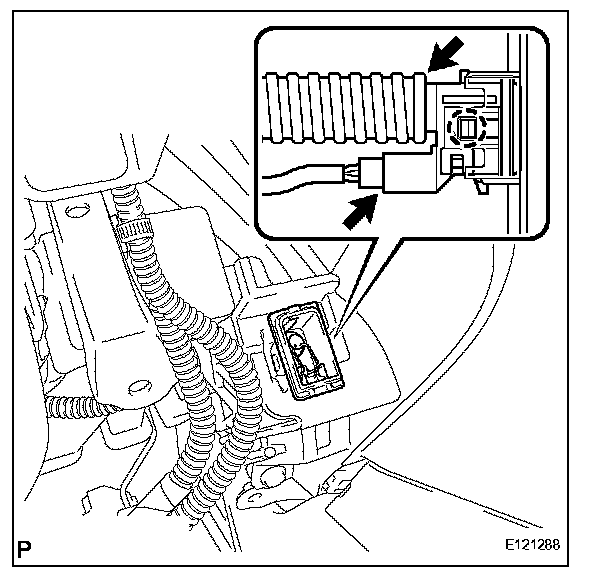

9. REMOVE ROOM TEMPERATURE SENSOR
a. Disconnect the connector and air hose.
b. Detach the claw and remove the sensor.

INSTALLATION

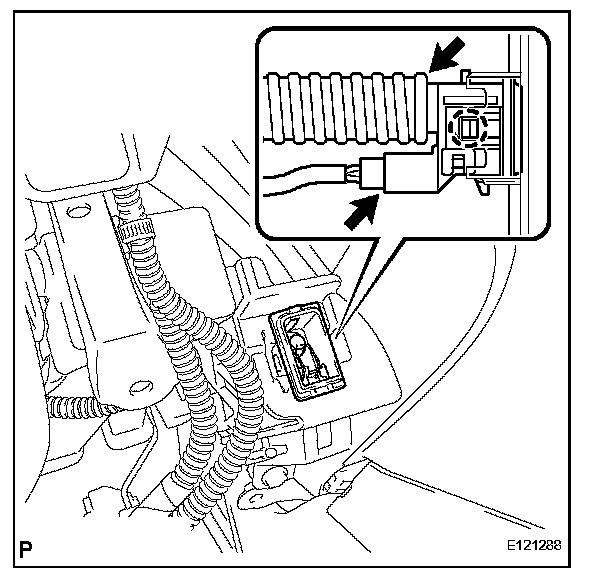

1. INSTALL ROOM TEMPERATURE SENSOR
a. Install the sensor with the claw.
b. Connect the connector and attach the air hose.

2. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY
3. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
4. INSTALL NO.1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
5. INSTALL SIDE INSTRUMENT PANEL LH
6. INSTALL FRONT DOOR OPENING TRIM COVER LH
7. INSTALL FRONT DOOR SCUFF PLATE LH (w/o Illumination)
8. REMOVE FRONT DOOR SCUFF PLATE LH (w/ Illumination)
9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
10. PERFORM INITIALIZATION

NOTE: Some systems need initialization after reconnecting the cable to the negative battery terminal

11. INSPECT SRS WARNING LIGHT
