Cruise Control Switch: Service and Repair

Cruise Control Main Switch:

CRUISE CONTROL MAIN SWITCH

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE NO.2 LOWER STEERING WHEEL COVER
3. REMOVE NO.3 LOWER STEERING WHEEL COVER
4. REMOVE STEERING PAD
5. REMOVE CRUISE CONTROL MAIN SWITCH
a. Disconnect the connector.

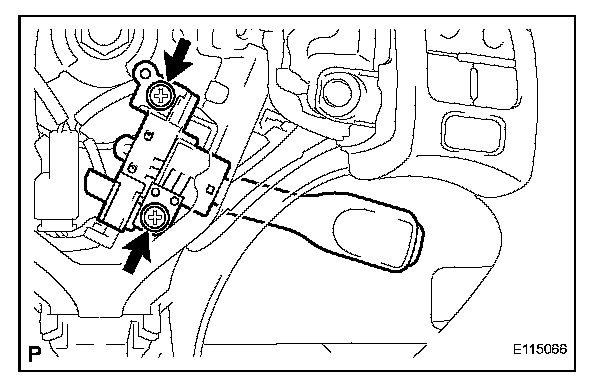

b. Remove the 2 screws and the cruise control main switch.

INSTALLATION




1. INSTALL CRUISE CONTROL MAIN SWITCH

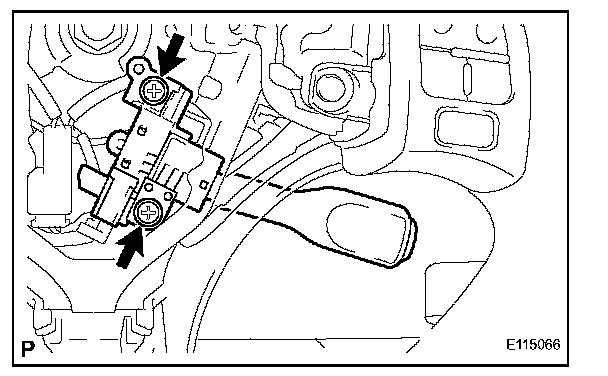

a. Install the cruise control main switch with the 2 screws.

Torque: 1.7 to 3.0 N.m (17 to 31 kgf.cm, 15 to 27 in.lbf)

b. Connect the connector.

2. INSTALL STEERING PAD
3. INSTALL NO.3 LOWER STEERING WHEEL COVER
4. INSTALL NO.2 LOWER STEERING WHEEL COVER
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. PERFORM INITIALIZATION

NOTE: Some systems need initialization when disconnecting the cable from the negative battery terminal.

7. INSPECT SRS WARNING LIGHT
