Rear Speed Sensor
REMOVALHINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed are for the LH side.
1. REMOVE REAR WHEEL

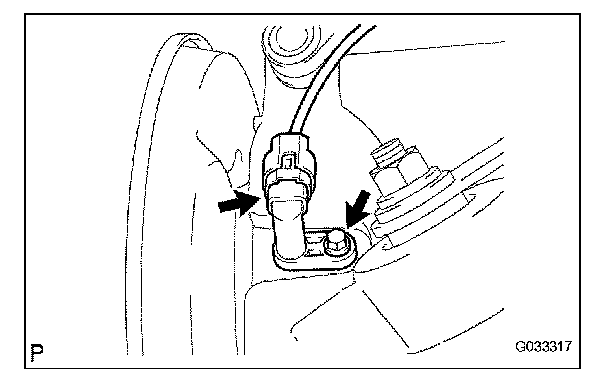

2. REMOVE REAR SPEED SENSOR
a. Disconnect the rear speed sensor connector.
b. Remove the bolt and rear speed sensor.
NOTE: Prevent foreign matter from attaching to the sensor tip.
INSTALLATION

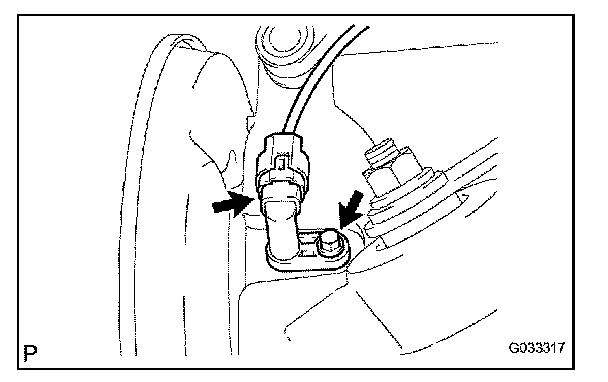

1. INSTALL REAR SPEED SENSOR
a. Install the rear speed sensor with the bolt.
Torque:8.5 N.m (87 kgf.cm, 75 in.lbf)
NOTE: Prevent foreign matter from attaching to the sensor tip.
b. Connect the speed sensor connector.
2. INSTALL REAR WHEEL
a. Install the rear wheel.
Torque:103 N.m (1,050 kgf.cm, 76 ft.lbf)
3. INSPECT SPEED SENSOR SIGNAL
