Traction Control Switch: Service and Repair

REMOVAL

1. REMOVE FRONT DOOR SCUFF PLATE LH
2. REMOVE FRONT DOOR OPENING TRIM COVER LH
3. REMOVE SIDE INSTRUMENT PANEL LH
4. REMOVE LOWER INSTRUMENT FINISH PANEL SUBASSEMBLY

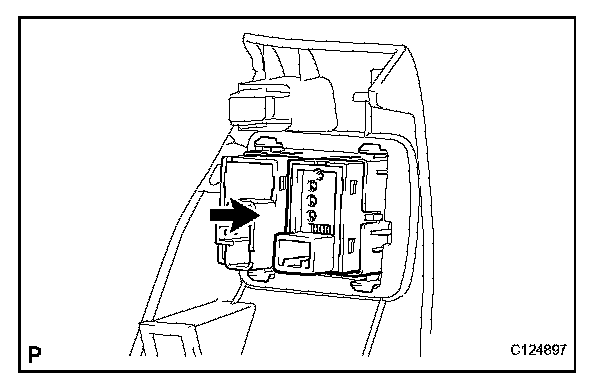

5. REMOVE VSC OFF SWITCH

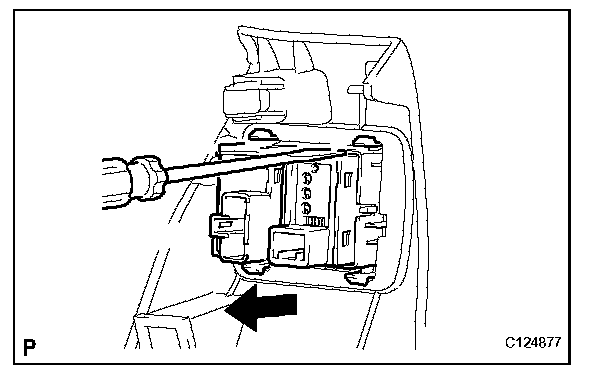

a. Using a screwdriver, remove the VSC off switch from the instrument panel safety pad sub-assembly.

INSTALLATION




1. INSTALL VSC OFF SWITCH
a. Install the VSC off switch into the instrument panel safety pad sub-assembly.

2. INSTALL LOWER INSTRUMENT FINISH PANEL SUBASSEMBLY
3. INSTALL SIDE INSTRUMENT PANEL LH
4. INSTALL FRONT DOOR OPENING TRIM COVER LH
5. INSTALL FRONT DOOR SCUFF PLATE LH
