Braking Sensor/Switch: Testing and Inspection

ON-VEHICLE INSPECTION

1. INSPECT BRAKE PEDAL LOAD SENSING SWITCH

NOTE:
- Do not remove the brake pedal load sensing switch from the brake pedal sub-assembly.
- When there is a malfunction in the brake pedal load sensing switch, replace the brake pedal subassembly.




a. Disconnect the brake pedal load sensing switch connector.

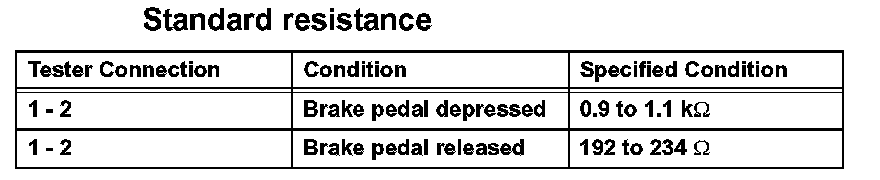

b. Measure the resistance according to the value(s) in the table.

If the value is not as specified, replace the brake pedal load sensing switch.
