Acceleration/Deceleration Sensor: Service and Repair
REMOVAL1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
3. REMOVE NO. 1 UPPER CONSOLE PANEL GARNISH (for Automatic Transmission)
4. REMOVE NO. 2 UPPER CONSOLE PANEL GARNISH (for Automatic Transmission)
5. REMOVE CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)
6. REMOVE REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
7. REMOVE FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
8. REMOVE FRONT ASH RECEPTACLE SUBASSEMBLY
9. REMOVE CONSOLE BOX REGISTER ASSEMBLY
10. REMOVE CONSOLE BOX

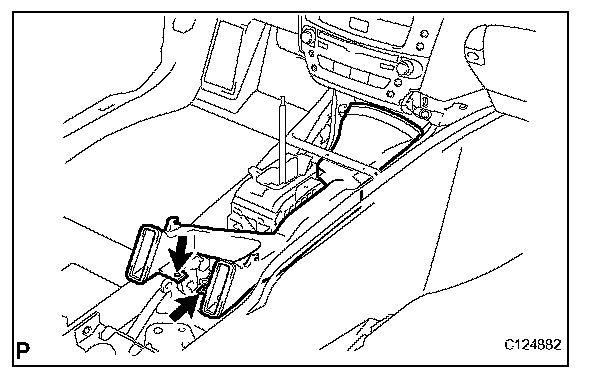

11. REMOVE NO. 2 REAR AIR DUCT (for Automatic Transmission)
a. Remove the 2 clips and the No. 2 rear air duct.

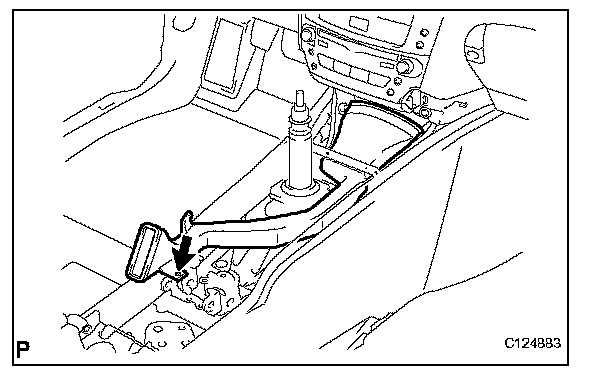

12. REMOVE NO. 2 REAR AIR DUCT (for Manual Transmission)
a. Remove the clip and the No. 2 rear air duct.

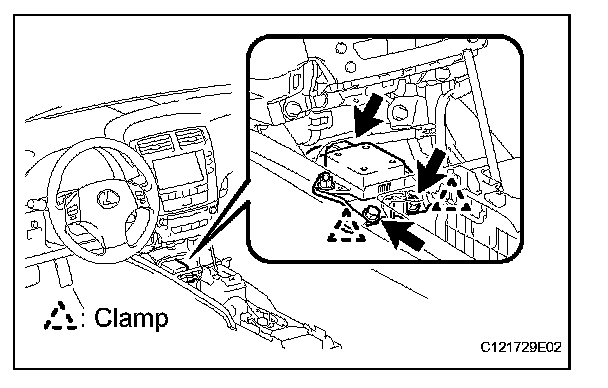

13. REMOVE YAW RATE AND ACCELERATION SENSOR
a. Disconnect the yaw rate and acceleration sensor connector.
b. Separate the 2 wire harness clamps.
c. Remove the 2 bolts and yaw and acceleration rate sensor.
NOTE: Do not remove the sensor from the bracket.
INSTALLATION
1. INSTALL YAW RATE AND ACCELERATION SENSOR
a. Install the yaw rate and acceleration sensor with the 2 bolts.
Torque:15 N.m (153 kgf.cm, 11 ft.lbf)
NOTE:
- Do not damage the yaw rate and acceleration sensor.
- Make sure that the yaw rate and acceleration sensor is installed securely.
b. Install the 2 wire harness clamps.
c. Connect the yaw rate and acceleration sensor connector.

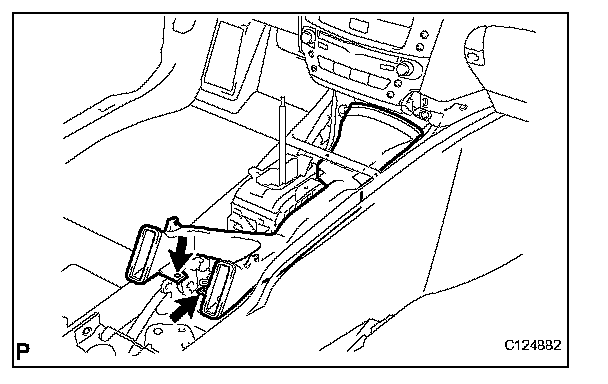

2. INSTALL NO. 2 REAR AIR DUCT (for Automatic Transmission)
a. Install the No. 2 console box duct with the 2 clips.

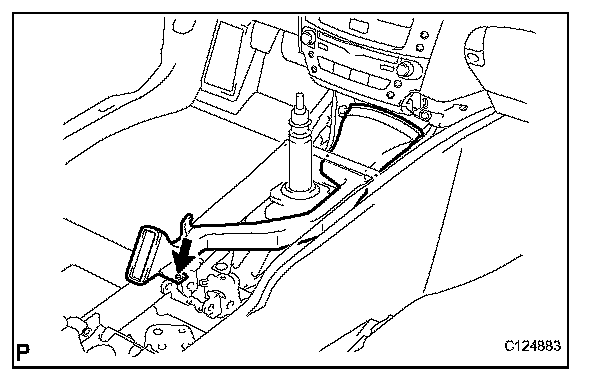

3. INSTALL NO. 2 REAR AIR DUCT (for Manual Transmission)
a. Install the No. 2 console box duct with the clip.
4. INSTALL CONSOLE BOX
5. INSTALL CONSOLE BOX REGISTER ASSEMBLY
6. INSTALL FRONT ASH RECEPTACLE SUBASSEMBLY
7. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
8. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
9. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)

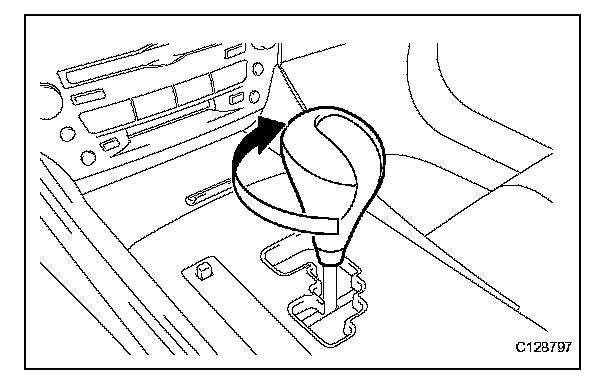

10. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
a. Turn the shift knob clockwise and install the shift lever knob sub-assembly.

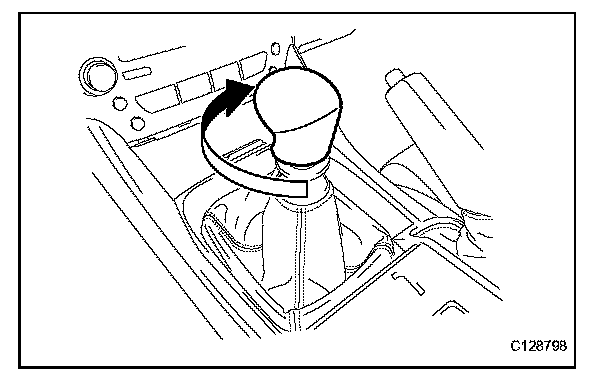

11. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
a. Turn the shift knob clockwise and install the shift lever knob sub-assembly.
12. INSTALL NO. 1 UPPER CONSOLE PANEL GARNISH (for Automatic Transmission)
13. INSTALL NO. 2 UPPER CONSOLE PANEL GARNISH (for Automatic Transmission)
14. PERFORM YAW RATE SENSOR ZERO POINT CALIBRATION
15. INSPECT SENSOR SIGNAL
