Luggage Key Electrical Switch

INSPECTION

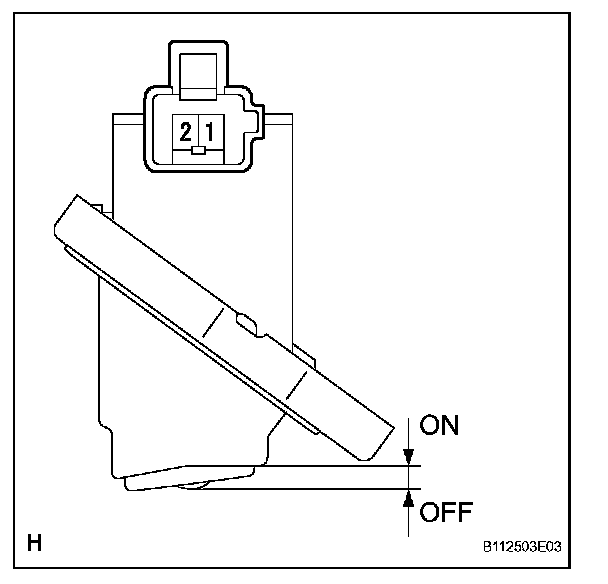

1. INSPECT LUGGAGE KEY ELECTRICAL SWITCH
a. Disconnect the switch connector.

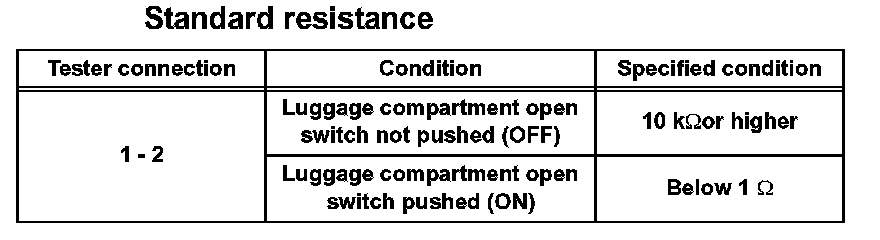

b. Measure the resistance according to the value(s) in the table.
