Luggage Compartment Door Opener Inner Switch

LUGGAGE COMPARTMENT DOOR OPENER INNER SWITCH

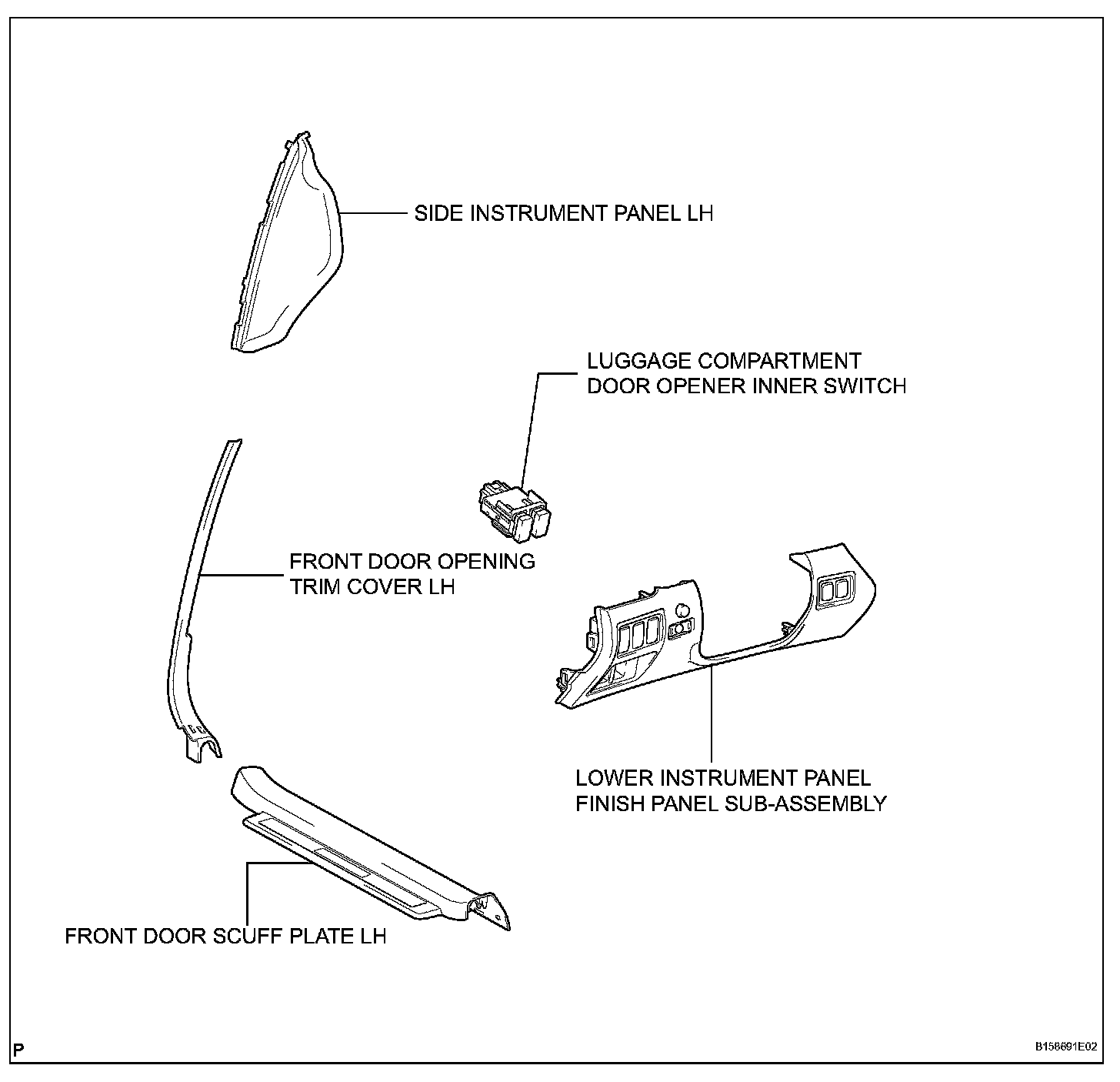

Luggage Compartment Door Opener Inner Switch:

REMOVAL

1. REMOVE FRONT DOOR SCUFF PLATE LH (w/o Illumination)
2. REMOVE FRONT DOOR SCUFF PLATE LH (w/ Illumination)
3. REMOVE FRONT DOOR OPENING TRIM COVER LH
4. REMOVE SIDE INSTRUMENT PANEL LH
5. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
6. REMOVE LUGGAGE COMPARTMENT DOOR OPENER INNER SWITCH

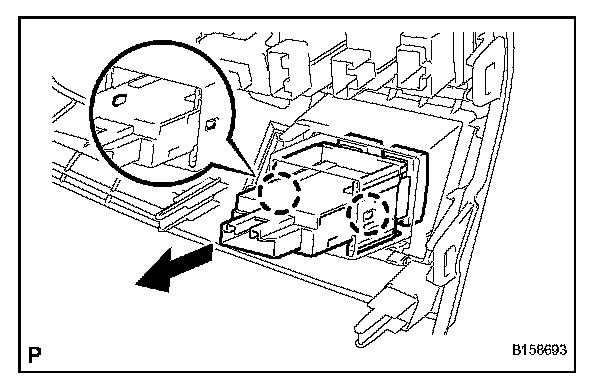

a. Detach the 2 claws and remove the luggage compartment door opener inner switch.

INSTALLATION

1. INSTALL LUGGAGE COMPARTMENT DOOR OPENER INNER SWITCH

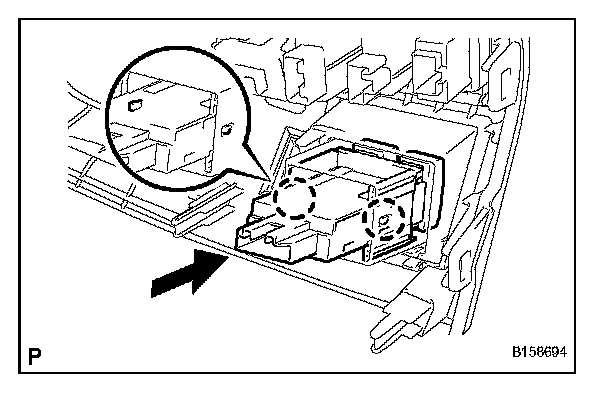

a. Attach the 2 claws and install the luggage compartment door opener inner switch.

2. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
3. INSTALL SIDE INSTRUMENT PANEL LH
4. INSTALL FRONT DOOR OPENING TRIM COVER LH
5. INSTALL FRONT DOOR SCUFF PLATE LH (w/o Illumination)
6. INSTALL FRONT DOOR SCUFF PLATE LH (w/ Illumination)
