Sunroof / Moonroof Switch: Testing and Inspection

SLIDING ROOF SWITCH ASSEMBLY

ON-VEHICLE INSPECTION

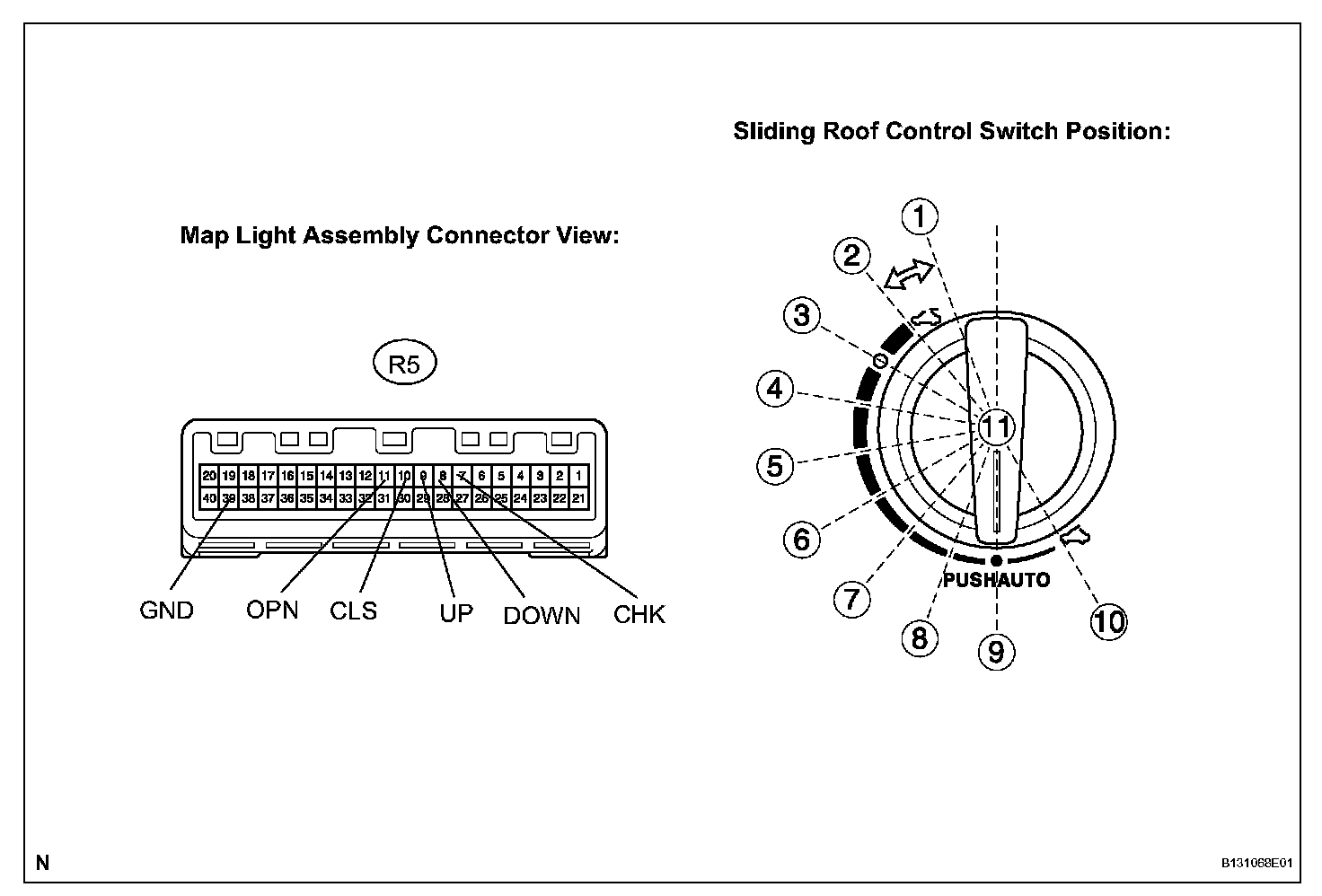

1. INSPECT MAP LIGHT ASSEMBLY
a. Remove the map light assembly.

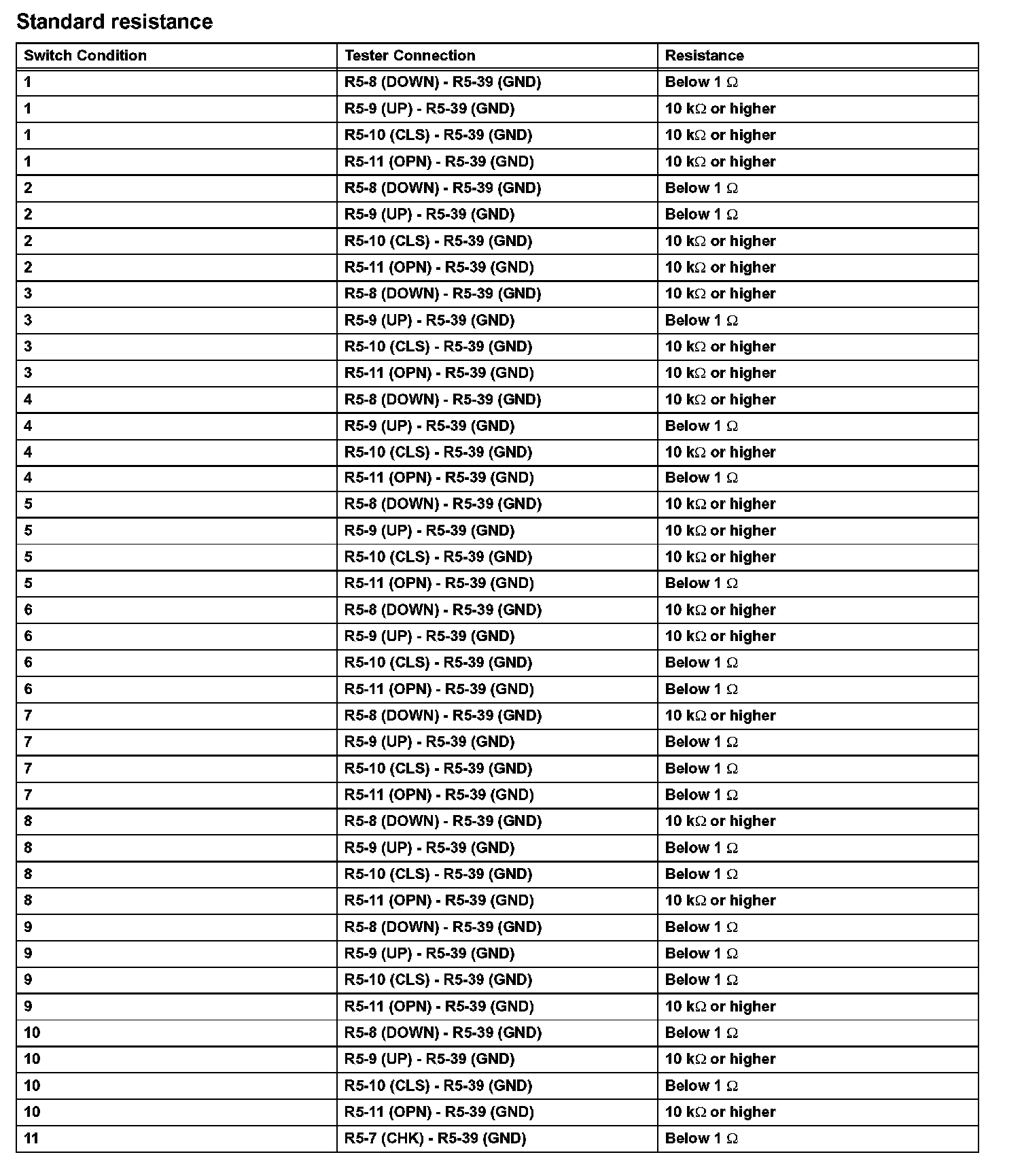

b. Measure the resistance of the map light assembly.

If the result is not as specified, replace the map light assembly.
