Seat Temperature Switch: Testing and Inspection

INSPECTION

1. INSPECT SEAT HEATER SWITCH

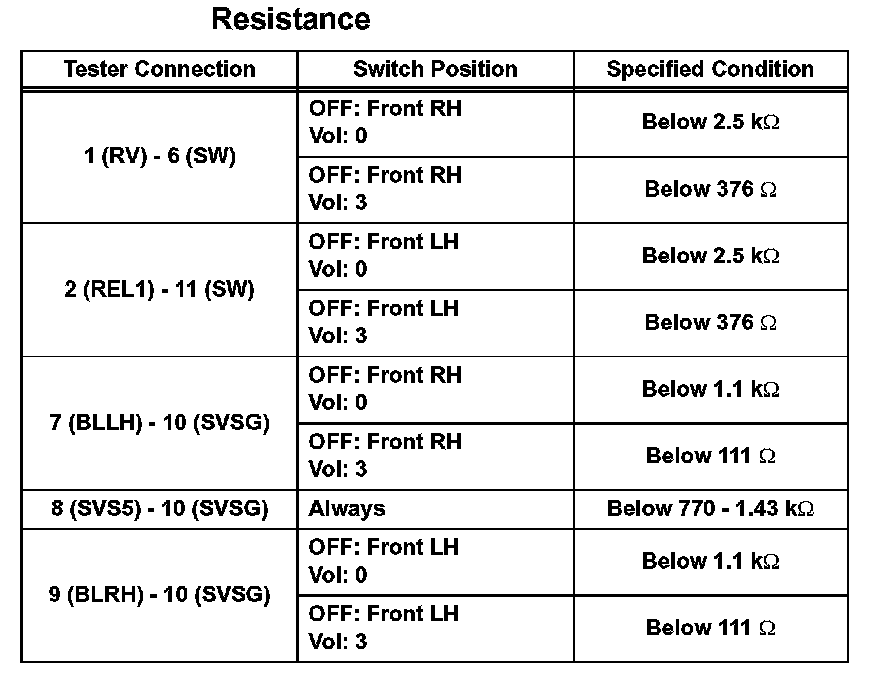

a. Inspect seat heater switch operation.
1. Measure the resistance according to the value(s) in the table below.

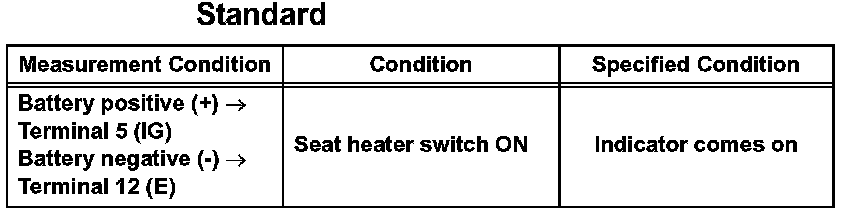

b. Inspect seat heater switch indicator operation.
1. Apply battery voltage and check operation of the switch, as shown in the table below.

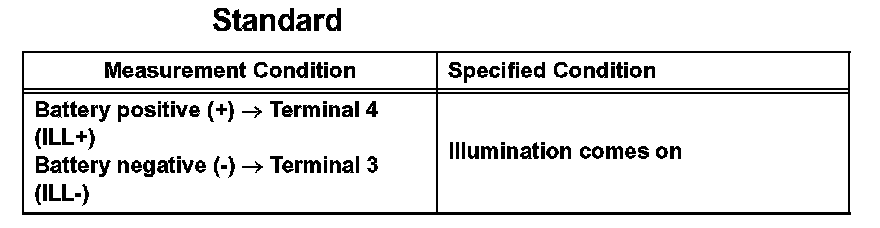

c. Inspect seat heater switch illumination.
1. Apply battery voltage and check operation of the switch, as shown in the table below.
